EZ Switch 10/100
• Jabber lock-up function automatically stops
transmission of abnormal frames to prevent network
disruption
• Desktop installation— No internal fan is required.

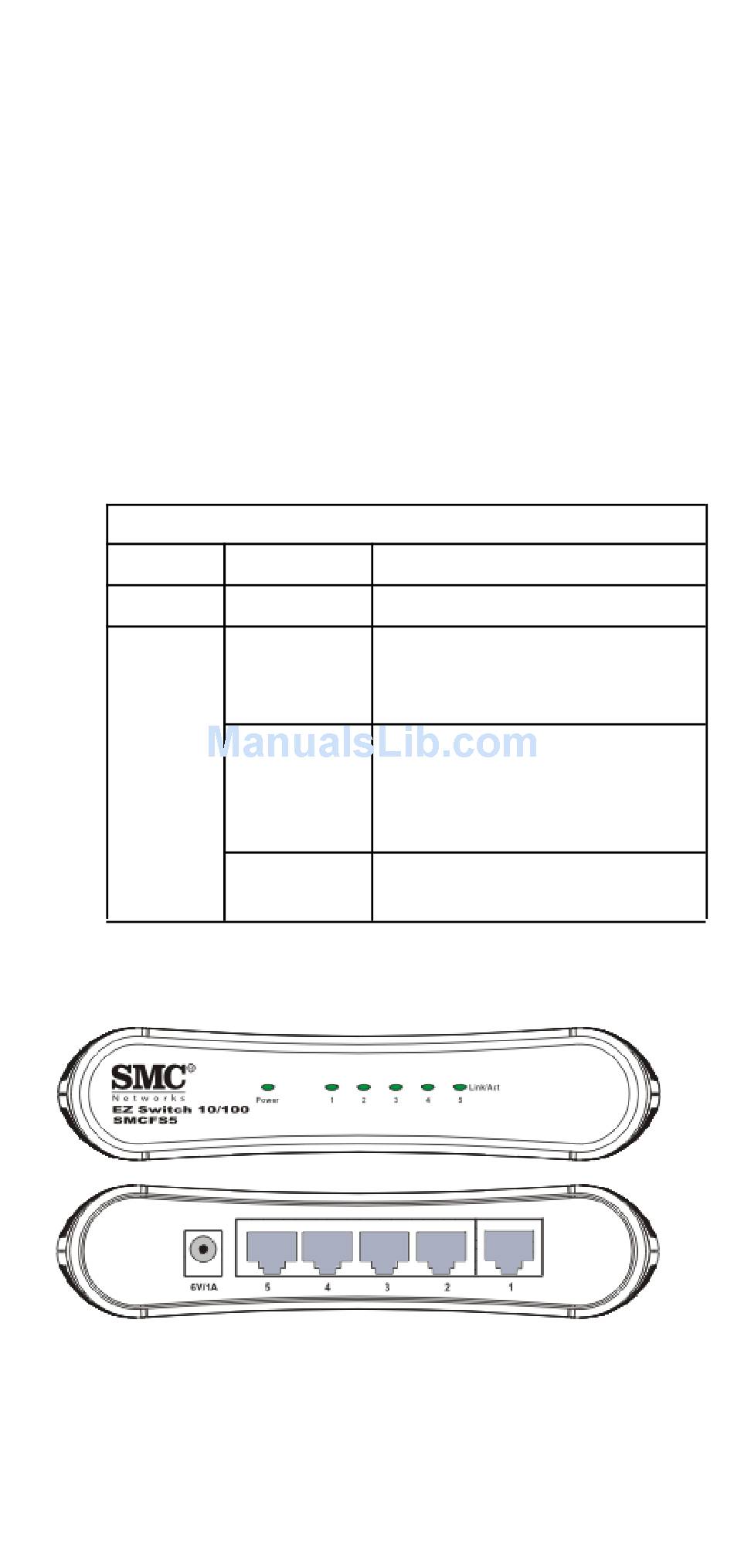

Front Panel LEDs

The front panel of the switch provides status LEDs for
"at-a-glance" system monitoring. The following table
details the functions of the LEDs:
LED
Power
Link/
Activity

SMCFS5

2
Port and System Status LEDs
Condition
Green
Green
Off
Flashing
Green
Status
The switch is receiving power.
Indicates a valid network
connection between the port
and the attached device.
Indicates no network
connection established
between the port and the
attached device.
Indicates that the port is
transmitting or receiving data.
