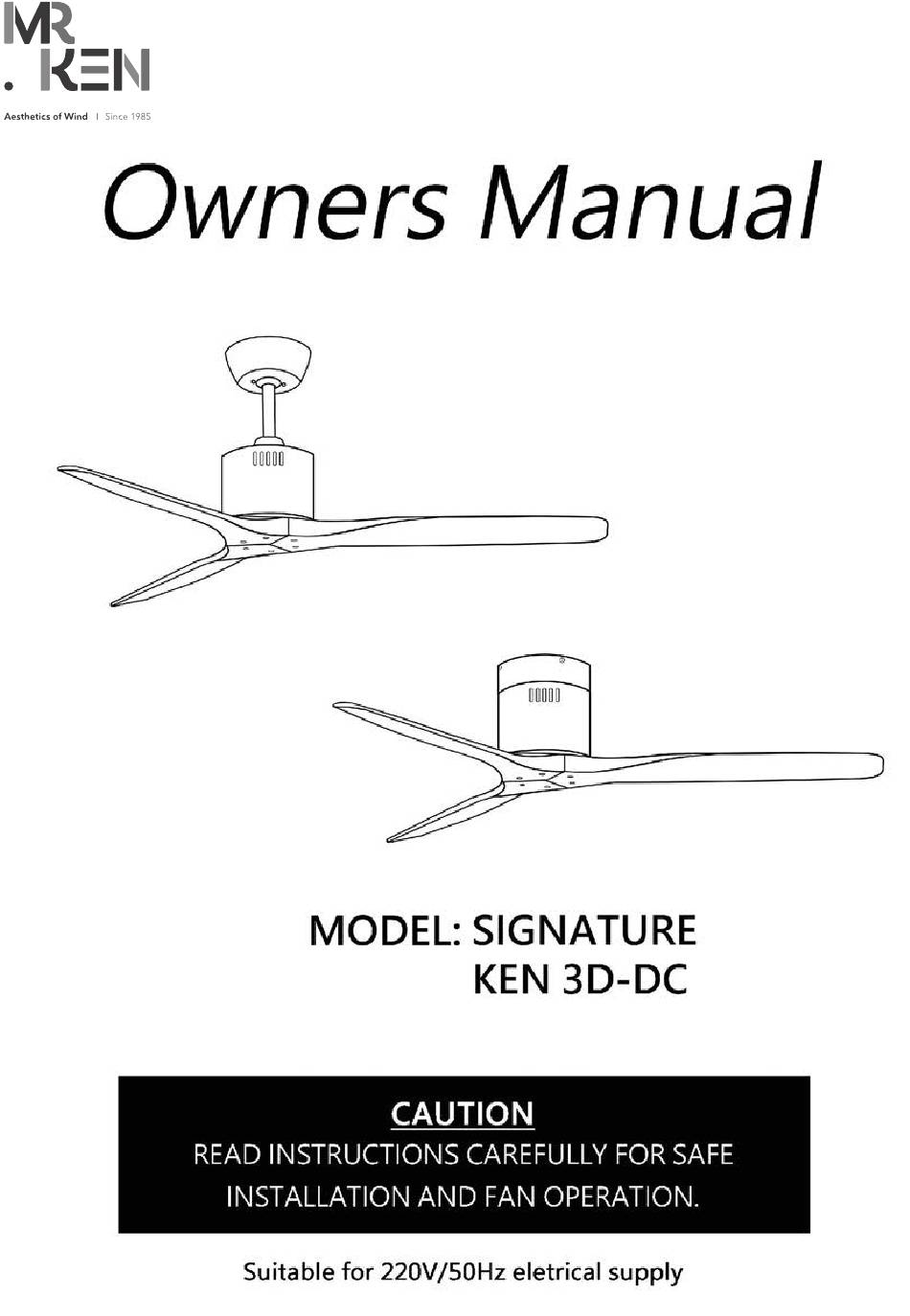

Mr.Ken SIGNATURE KEN 3D-DC Owner's Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIGNATURE KEN 3D-DC and is the answer not in the manual?

Questions and answers

Related Manuals for Mr.Ken SIGNATURE KEN 3D-DC

Summary of Contents for Mr.Ken SIGNATURE KEN 3D-DC

  • Page 2: Safety Instructions

    8. After fan is completely installed, check to make sure that all connections are secured to prevent fan from falling and/or causing damage or injury. Refrain from using product in case of abnormalities, stop operation immediately and contact MR.KEN service center for help and support.

  • Page 3: Parts List

    PARTS LIST Unpack and inspect fan carefully to be certain all contents are included. ● SOLID-DR Hardware Bag Mounting Bracket Wood Screw Bracket Screw Blade Screw with Downrod Assembly Spring Washer x 12 Lock Washer Rubber Tube Balanced Slice Canopy Weight Block Fan Blade Fan Assembly...
  • Page 4 DOWROD INSTALLATION (FOR DR MODELS ONLY) ● Installing Downrod and Yoke Downrod Ball Ball Screw 1. Remove the pin and ball screw from the downrod assembly, then remove the downrod ball. Remove cotter pin and cross clip from Yoke the yoke and lossen the downrod jam screw at yoke.
  • Page 5 EXTENSION SAFETY CABLE CONNECTION (OPTION) Note: Each new downrod is packed with one new safety cable. One end of which is looped with copper ring and the other one is looped with clamp end. Clamping Screw Copper-Ring End Clamp End 1.
  • Page 6 4. Ensure all wood screws are fully tightened. WARNING: For safety regulation, the safety cable must be fastened on mounting bracket or with separate hook firmly HR CEILING JOINT 1. Secure the mounting bracket to the ceiling joint or structure with 4 wood screws provided. 3 of wood screw sets are fully tightened.

  • Page 7: Wiring Instructions

    WIRING INSTRUCTIONS Note: Turn off power at breaker box to avoid possible electrical shock. Follow diagram below and make sure that all exposed wires are secured inside terminal block. Note: Wires from house may vary in color. 1. Connect the household live wire to the other side of terminal block marked "L" . Secure the wire with screw driver.

  • Page 8: Canopy Installation

    CANOPY INSTALLATION Canopy Installing for DR Models Canopy 1. Loosen 2 screws with hex nut from Screw with the botom of the mounting bracket. Hex Nut 2. Rotate canopy slightly until 2 pre-installed Key Hole screw heads are engaged in the narrow end of key holes.
  • Page 9 BLADE INSTALLATION: KEN SOLID WOOD Secure the 3 blades using the screws with lock washer, spring washer and plastic bushing through the holes located on the bottom of the motor assembly. Rubber Tube Lock Washer Spring Washer Blade Screw WARNING: To reduce the risk of serious bodily injury, DO NOT use power tools to assemble the blades.
