Summary of Contents for Mr.Ken 4JA52

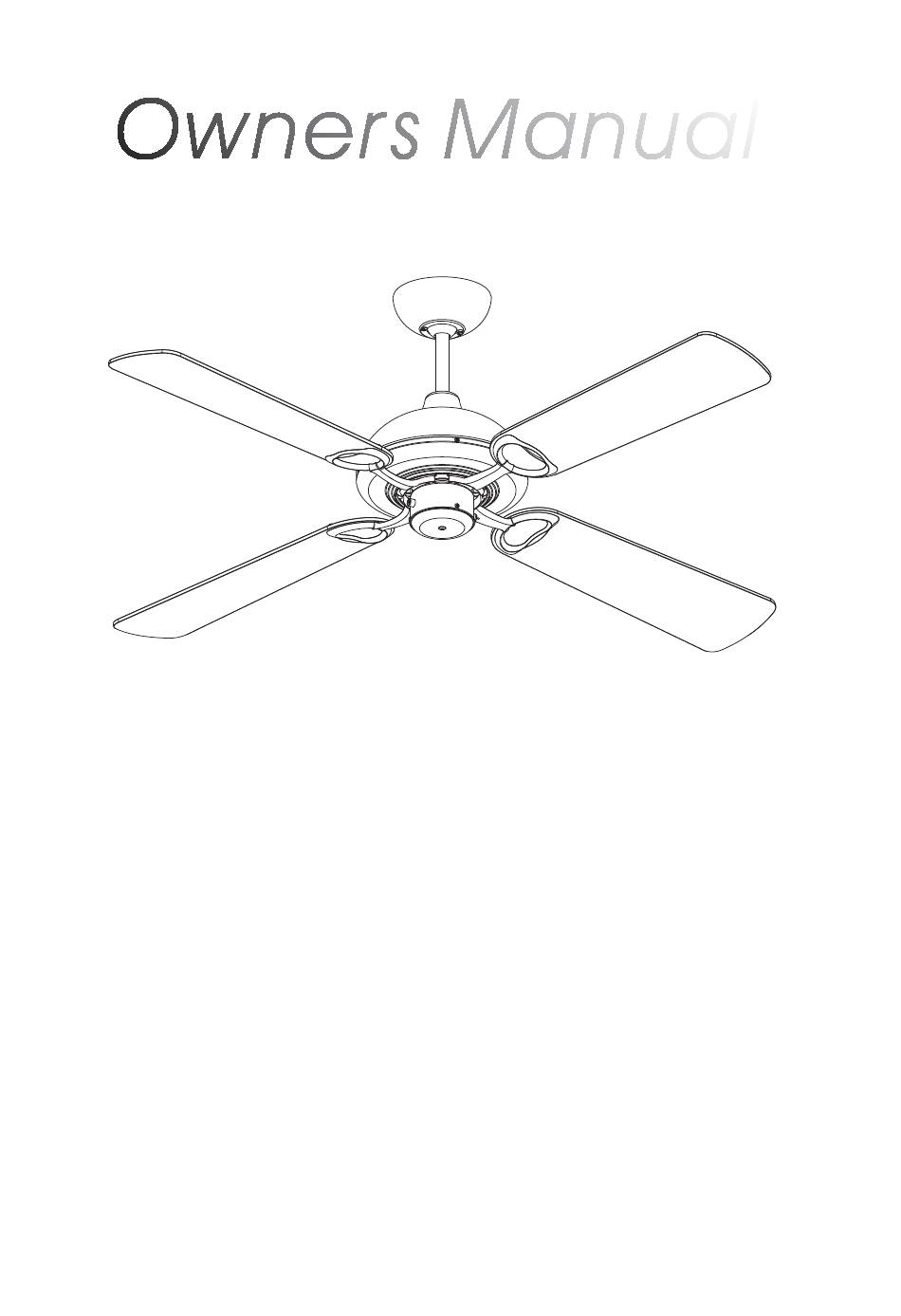

- Page 1 Owners Manual 4JA52 Warning : Read and follow these instructions carefully and be mindful of all warnings shown throughout.
- Page 2 READ AND SAVE THESE INSTRUCTIONS WARNING : TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, PLEASE OBSERVE THE FOLLOWING : 1]. To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning.
- Page 3 1.Unpack and inspect fan carefully to be certain all contents are 1.Unpack and inspect fan carefully to be certain all contents are included. included. Hardware bag Hardware bag Mounting Screw 2pcs Spring Washer 2pcs Mounting Bracket Lock Washer 2pcs Wood Screw 2pcs Canopy Tooth Washer...
- Page 4 6. Hanging the fan 6. Hanging the fan Mounting Bracket Ridge Mounting Bracket Ball Groove Carefully lift fan assembly onto mounting bracket. Lift fan assembly onto Rotate fan so that the groove on the ball engages mounting bracket. the ridge in the mounting bracket. 7.
- Page 5 9. Blades installation 9. Blades installation Attach blade to blade holder with blade screw & rubber washer provided. Blade Screw Make sure that all screws are firmly tightened. Paper Washer 10. Blades assembly to motor 10. Blades assembly to motor Mount blade assembly to motor housing by motor screws provided.
