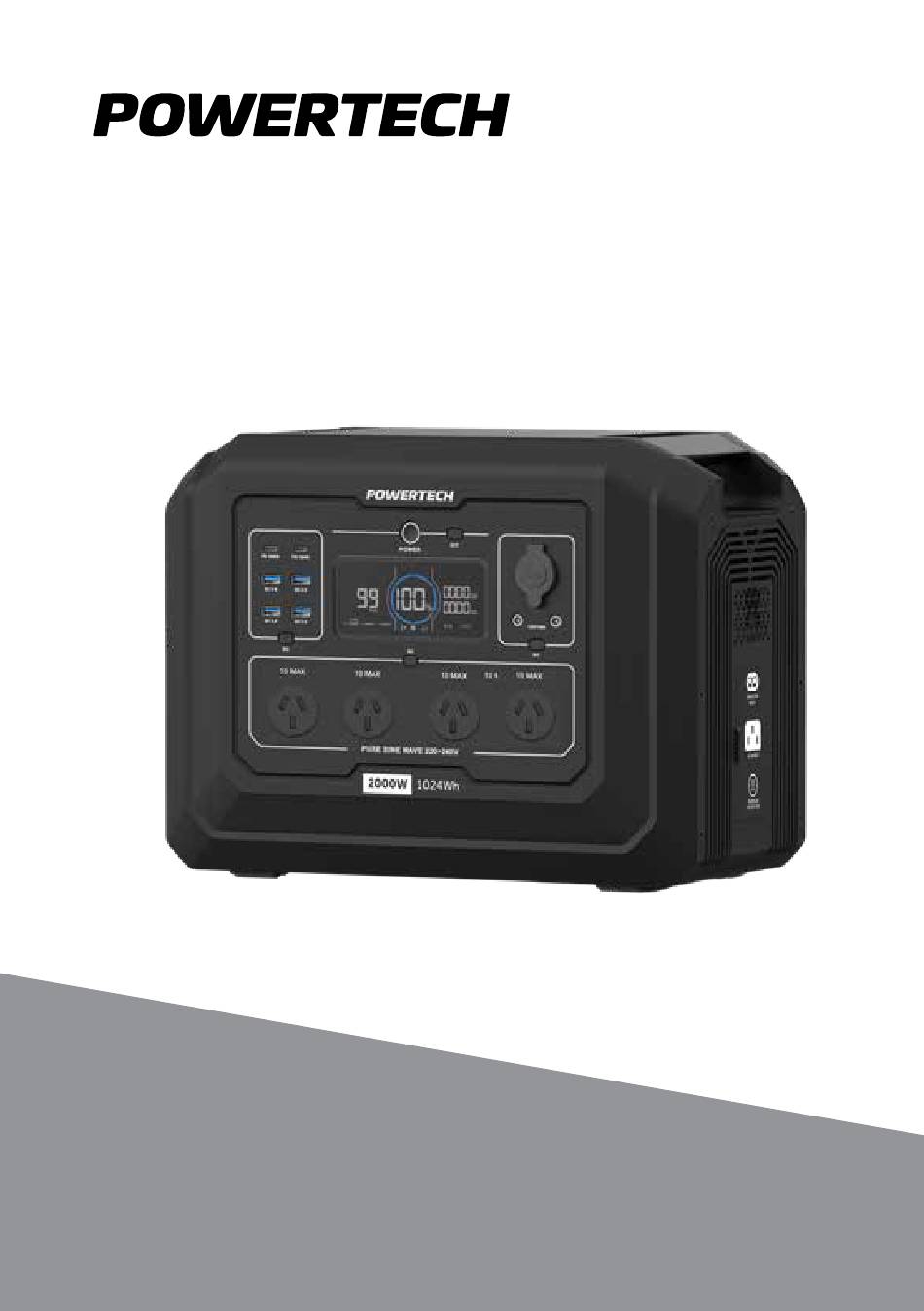

- Page 1 MB4102 1024Wh Power Station Instruction Manual...
-
Page 2: Table Of Contents
CONTENTS Warnings & Safety Information ..............3 Before First Use .....................4 Box Contents ....................4 Product Diagram ................... 5 LCD Screen Description ................6 Usage Instructions ..................6 Charging Instructions ..................8 Other Functions ...................11 FAQ ........................ 12 Error Codes ....................13 Maintenance ....................15 Specifications .................... -
Page 3: Warnings & Safety Information
WARNINGS & SAFETY INFORMATION WARNING: The manufacturer is not responsible for any potential injury from misuse • Read this user manual carefully before using the product to ensure that you completely understand the product and can correctly use it. After reading this user manual, keep it properly for future reference. -
Page 4: Before First Use
BEFORE FIRST USE Prior to using your product, please read all the safety and operating instructions thoroughly. Please ensure you follow the steps below before using the product. We recommend you keep the original packaging for storing the product when not in use. -
Page 5: Product Diagram
PRODUCT DIAGRAM 1. AC Outputs 8. DC5521 Outputs 2. LDC Display 9. DC Output Switch 3. 100W PD USB-C Outputs 10. Extended Battery Socket 4. QC 3.0 USB-A Outputs 11. High Current DC Input 5. AC Output Switch 12. AC Charging Input 6. -
Page 6: Lcd Screen Description
LCD SCREEN DESCRIPTION USAGE INSTRUCTIONS LCD battery capacity circle indicates battery level. The capacity circle is divided into six sections, accounting for approximately 17%~35%~51%~68%~85%~100% of the capacity. When in use, the LCD display automatically wakes up. When discharging, the blue capacity segment disappears from the display, indicating remaining capacity. - Page 7 NOTE: After the product is turned on, short press the main power button. The LCD screen will turn off but the product will not shut down. If the product is not operated within 5 minutes, the product will automatically shut down. NOTE: The default standby time of this product is 6 hours.
-
Page 8: Charging Instructions
CHARGING INSTRUCTIONS AC Charging When the AC output of the product is turned off, the switch is in the ‘SLOW’ posi- tion for slow charging with an input power of 700W, and the switch is in the ‘Fast’ position for fast charging with an input power of 1400W; NOTE: The product’s fast and slow charging function must be turned off when switching. - Page 9 Solar Charging Use the included solar cable to connect a 12V solar panels to the device. Up to 3 standard solar panels can be connected. NOTE: When using a suitable solar panel to charge this product, please make the connection according to the user manual specifications. WARNING: Before connecting the solar panel, please confirm that the output open circuit voltage specification of the solar panel is within 80V to avoid damage to the product.
- Page 10 Extended Battery Charging Up to one extended battery can be connected to this product. Only use the supplied cable to connect the power station and the extended battery, the device will start to charge when a reading appears on the input power on the screen. NOTE: Please make sure that both the product and the power pack are turned off Before connecting the extended battery to this product.
-
Page 11: Other Functions
OTHER FUNCTIONS Circuit Break Protection Function When the AC input current is continuously more than 10A, the device charge input port will protect itself. The AC input overload protector button will pop up automatically. After confirming that the product is not faulty, press the AC input overload protector to reset the circuit breaker. -
Page 12: Faq
1. What type of battery does the product use? This product uses high-quality lithium iron phosphate batteries. 2. What equipment can be connected to the AC output port of the product? The AC output port of this product has a rated power of 2000W and a peak power of 4500W. -
Page 13: Error Codes
ERROR CODES FAULT FAULT INFORMATION STATUS REMARKS CODE E000 AC output short circuit Flashing, no output Press the AC output power protection on/off button for recovery E001 Output overload Flashing, no output Flashing icons indicates protection which circuit overload. Overload protection needs to be restored manually, UPS function overload 2000W 1 sec. - Page 14 FAULT FAULT INFORMATION STATUS REMARKS CODE E020 BMS communication Flashing, no Check BMS communication failure output at all cable ports E021 Battery cell high voltage E021 code flashing Set the device aside and alarm wait for the battery voltage to recover automatically E022 Battery cell low voltage Battery capacity...
-
Page 15: Maintenance
MAINTENANCE Please store the product away from water sources, heat sources, and metal objects. In order to extend the service life of the battery, it is recommended to use or store this product in an environment of 20C to 30°C. If long-term storage is required, please charge and discharge this product once every 3 months (first discharge to 0%, then fully charge, then discharge to 60% for long-term storage);... -
Page 16: Warranty Information
WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose.
