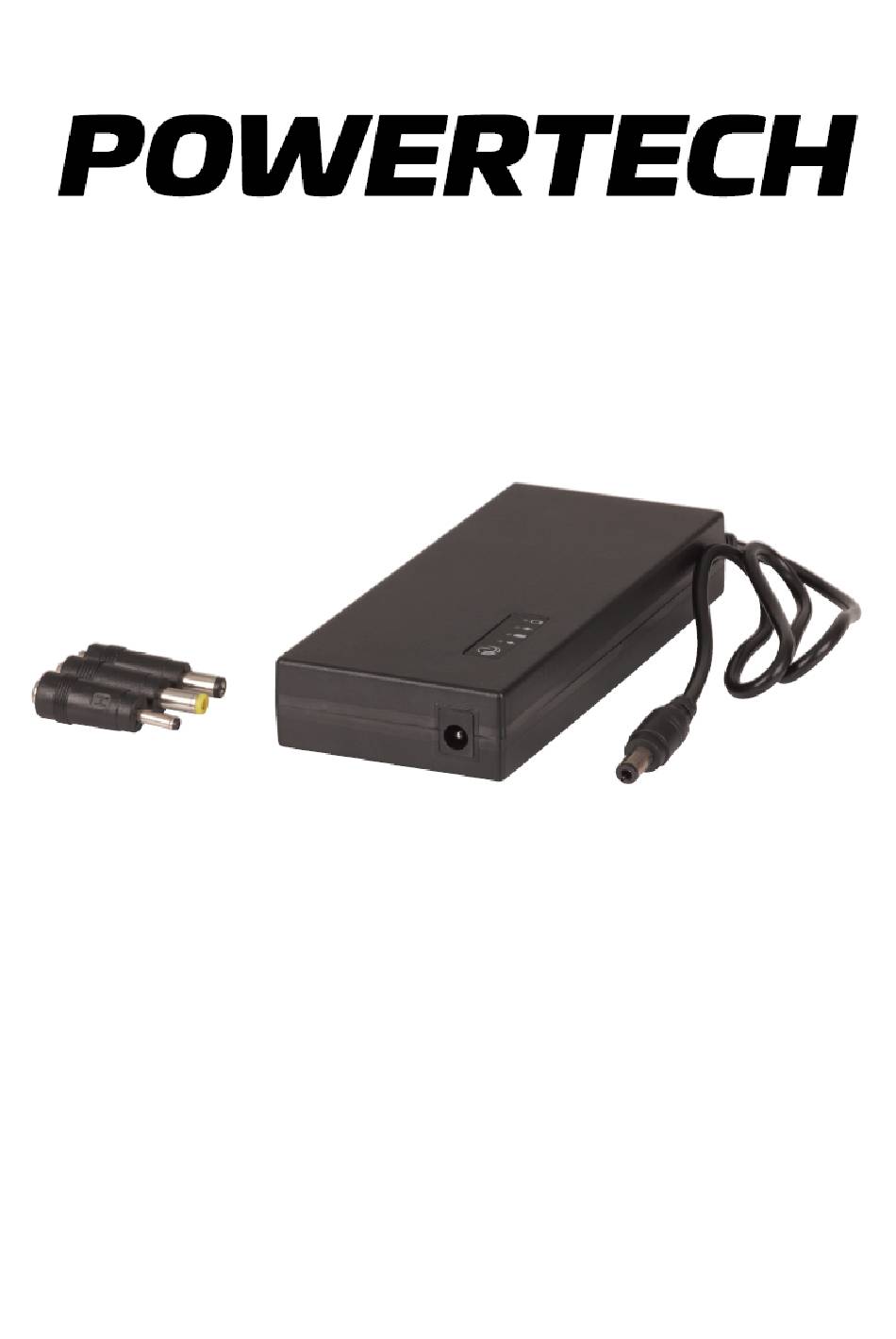

- Page 1 12V 2.5A DC to DC Uninterruptable Power Supply User Manual MP524O...
- Page 2 Description: The MP5240 is a DC uninterruptible power supply (UPS) which is designed to fit between your appliance and its existing 12 Volt AC Adaptor. When AC power is present, the 12 Volts from the AC Adaptor passes directly through the MP5240 to your appliance.
- Page 3 Product Specifications: Input: 12V, 3A Output: 12V, 2.5A (Rated), 3A (Max) Input connector: 5.5*2.1MM DC socket Output connector: 5.5*2.5MM DC plug Over current protection: 3.5A±0.5A Battery Capacity: 7.4v, 4000mAh (29.6wh) Dimensions: 138.0mm (L) x 60.0mm (W) x 24.0mm (H) Weight : 260g Understanding LED indicators:...
- Page 4 Operation Guide: • Connect AC adapter 12V output to UPS input jack • Connect UPS 12V output to appliance’s input jack, using appropriate plug adaptor if necessary. • Plug AC Adaptor into mains power and switch on. • It is recommended you fully charge the UPS prior to use.
- Page 5 Storage: When stored, the UPS will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent the battery from losing its original capacity.
- Page 6 Distributed by: Tech Brands by Electus Distribution Pty. Ltd. 320 Victoria Rd, Rydalmere NSW 2116 Australia Ph:1300 738 555 lnt’l: +61 2 8832 3200 Fax: 1300 738 500 www.techbrands.com Made in China...
