PowerTech MP3319 Owner's Manual

Universal Power Supply
Suits Laptops
Owner's Manual
Please read the entire instruction manual before using the product and then save it for future reference.
This universal power supply is suitable for a variety of applications, powering small devices that operate
on 5V, 9V, 10.5V, 12V, or 15V, as well as laptops that require 19.5V. Voltage is manually selectable and
there are 8 detachable adaptors available to fit Dell, Toshiba, IBM, Lenovo, HP, Acer, Asus, and Samsung
laptops.
Specifications:
Input Voltage:
Output Voltage:
Lead length:
Plug Inner/Outer DIM
AA 1.0x3.0mm
AG 3.0x4.5mm (w/0.6pin)
AH Rectangular
R 1.7x5.5mm
V 1.7x4.0mm
P 2.5x5.5mm
T 1.7x4.75mm
g 0.7x2.5mm

Operating Instructions:

1. This power supply is designed for appliances with positive polarity (
2. Connect your appliance with this power supply by connecting the supplied detachable tip.

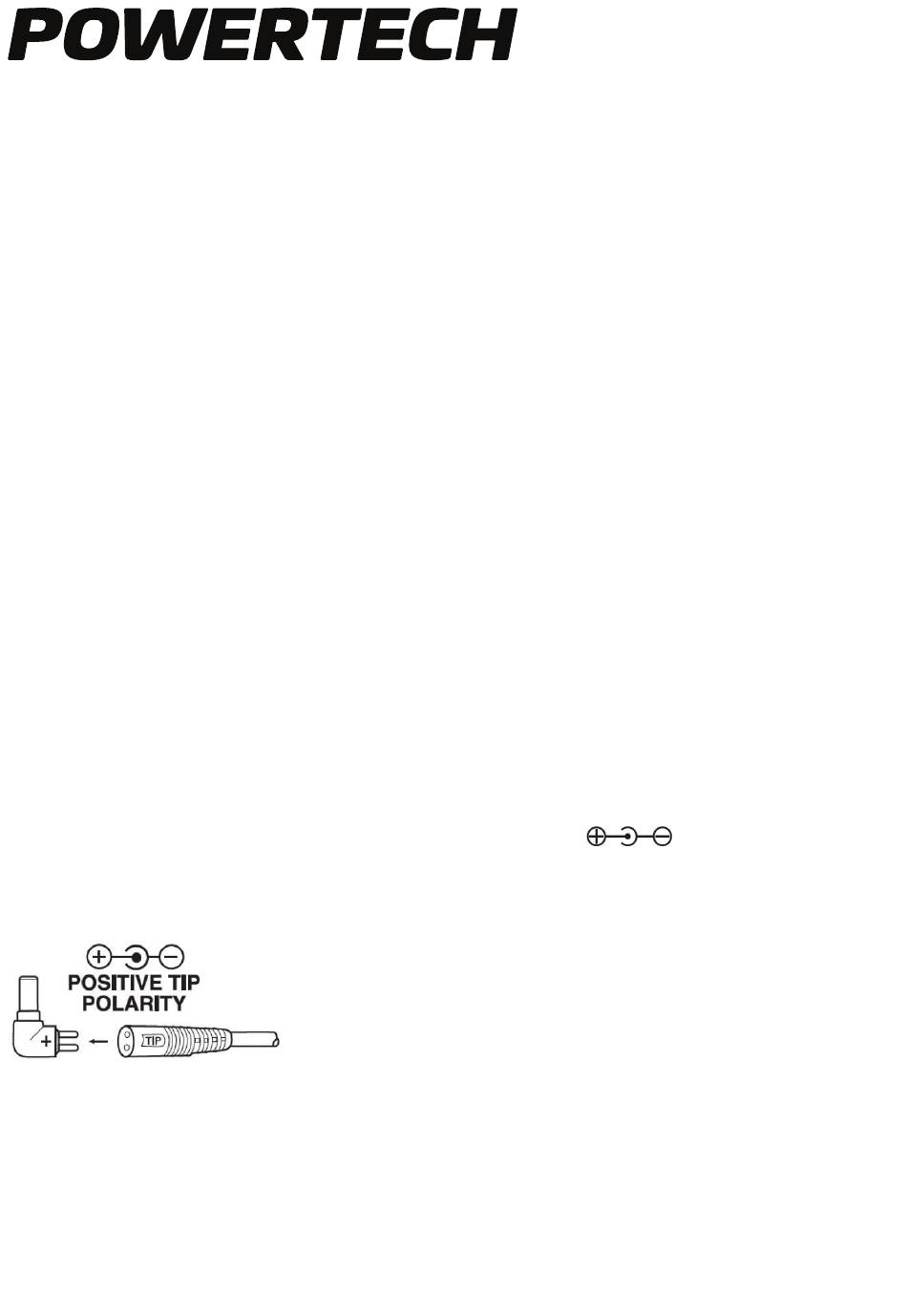

3. Determine proper connector size. The polarity of the supplied detachable tip is presented with positive
tip polarity. Common symbol is shown below:
4. Ensure correct voltage setting
a. Determine proper output voltage setting. Check rating plate and the voltage indication marked next to
input jack on your appliances. You may find the voltage in your original AC adaptor or in the product
user's manual.
b. Set the DC voltage selector at the desired voltage position at the bottom of the power supply by using
a pen or tool. (ie. 5V / 9V / 10.5V / 12V / 15V DC at 3A or 19.5V DC at 2.3A)
100–240VAC/50-60Hz 1A max.
5V/9V/10.5V/12V/15V DC @ 3A max.
19.5VDC @ 2.3A max.
1.6m
Supported Laptops
Asus –Zenbook, Samsung
HP
Lenovo
Acer
HP-mini notebook
Acer, Asus, Compaq, Gateway, HP, IBM, Toshiba
HP
Asus –Eee PC
MP3319
) only.
