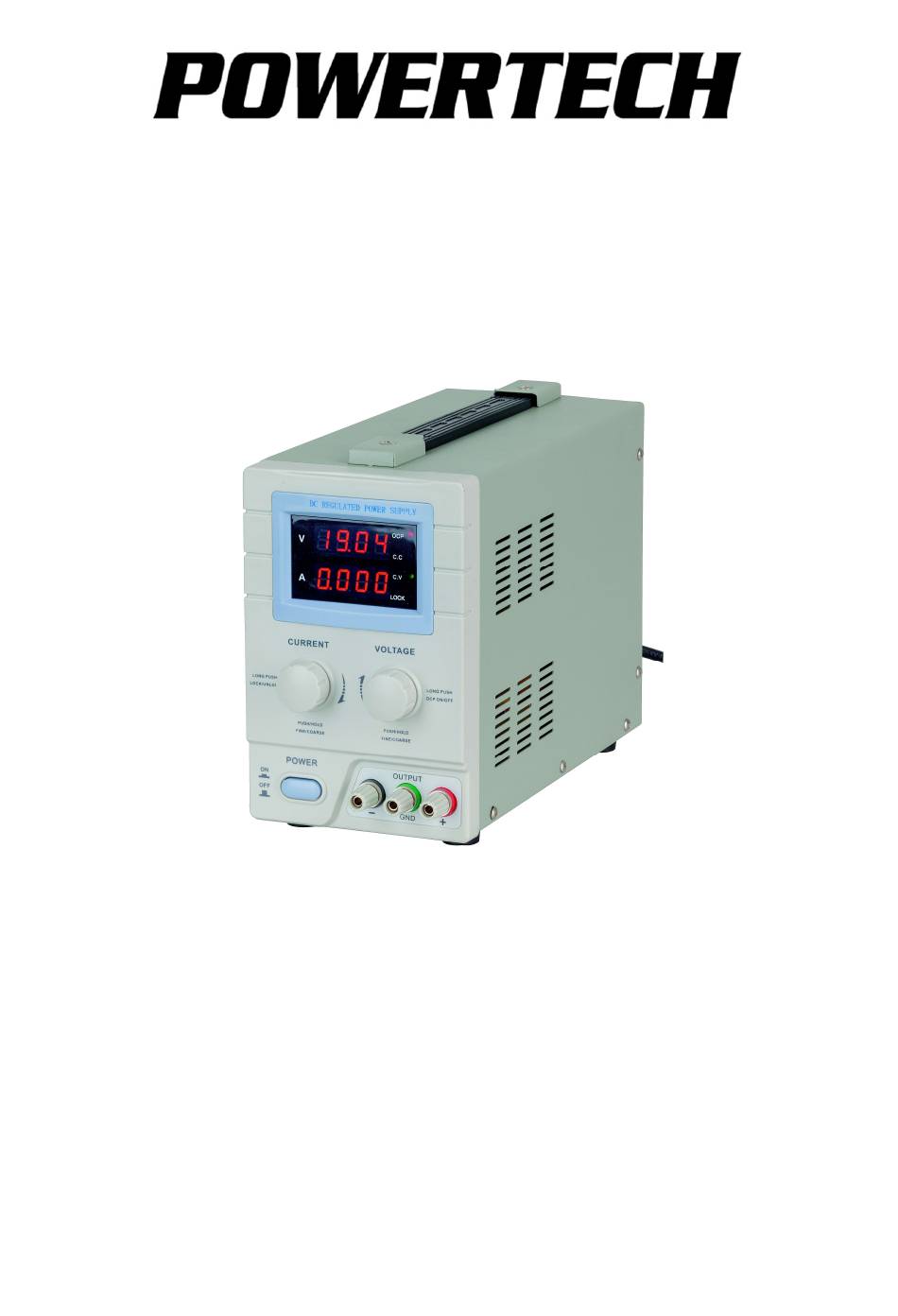

0-30VDC 0-5A Regulated Lab Power Supply
Features:
•
Professional, highly flexible lab power supply
•
Select precise voltage levels and current limits
•
Prevents overheating, burnout and over-current
•
Short-circuit protection
•
Surface mount technology with a powerful internal cooling system
•
1mV ripple voltage
•
0 to 30VDC adjustable voltage output
•
0 to 5A adjustable current limit
•
Bright 4-digit LCD display
•
Button lock function
•
Banana plug/binding posts on front of unit
User Manual
Advertisement
Table of Contents
Related Manuals for PowerTech 0-30VDC
Summary of Contents for PowerTech 0-30VDC
- Page 1 0-30VDC 0-5A Regulated Lab Power Supply User Manual Features: • Professional, highly flexible lab power supply • Select precise voltage levels and current limits • Prevents overheating, burnout and over-current • Short-circuit protection • Surface mount technology with a powerful internal cooling system •...
- Page 2 Please familiarise yourself with the functions of this product before use. We recommend keeping this manual for ease of reference. • If you experience issues with this product within the warranty period then please contact Techbrands by Electus Distribution. • Only use this product for its intended purpose.

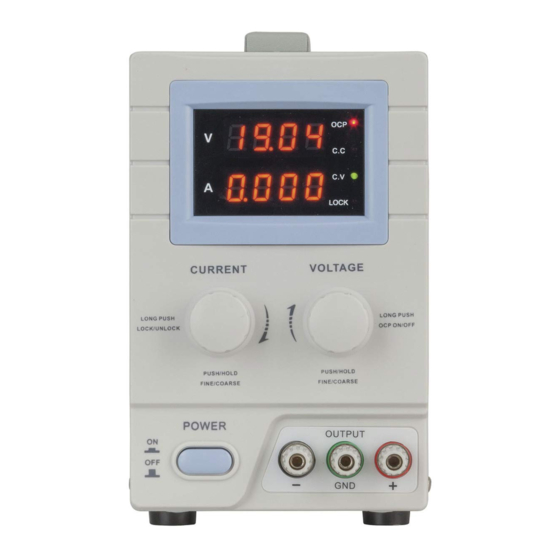

- Page 3 Functions: Power button Panel lock indicator Current adjustment dial Voltage adjustment dial Ampere meter Earth (ground) terminal (connected to the chassis and earth pin of the power supply socket) Volt meter Output terminals (displays voltage limit) Over-current protection indicator Constant current indicator Power supply socket (lights up when product is in constant current mode)
-
Page 4: Operation: Switching On/Off
Operation: Switching On/Off: • Connect the enclosed power cable to the back of the product, then plug the other end into an earthed mains power supply. • Press the POWER button to switch the power supply on. • The device will display the last used setting. •... -
Page 5: Over-Current Protection
Locking the panel controls: • Lock the front panel controls to prevent accidental/unwanted changes or adjustments. • Press and hold the CURRENT adjustment dial until the lock indicator lights up. The controls are now locked. Output voltage cannot be adjusted. •... -
Page 6: Technical Specifications
Technical Specifications: Input Voltage: 220-240AC 50-60Hz Output Voltage: 0-30V adjustable (10mV accuracy) Output Current: 0-5A adjustable (1mA accuracy) Ripple Voltage: Ripple Current: Dimensions: 270(L) x 120(W) x 185(H)mm Weight: 4.8kg This product must not be disposed of as domestic waste. It must be disposed of at an authorised place for recycling of electrical equipment and appliances.
