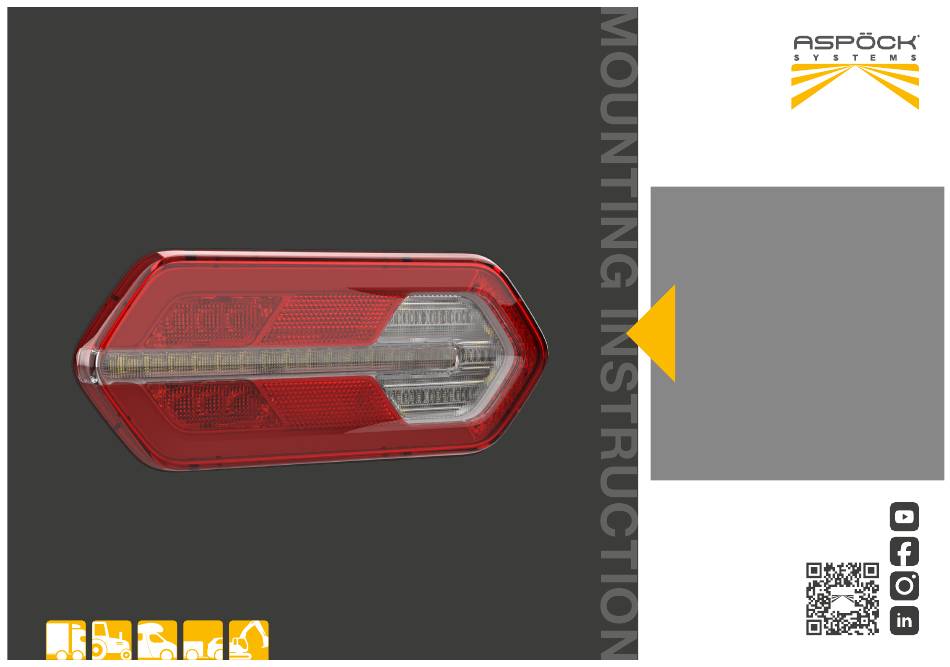

- Page 1 MIDILED II MONTAGEANLEITUNG MOUNTING INSTRUCTION aspoeck.com...
- Page 2 • If you have any questions or installation problems, please contact Aspöck customer service, a dealer or the authorised workshop. • Ensure that packaging, auxiliary materials and components are properly separated and disposed of correctly. MIDILED II | MOUNTING INSTRUCTION...
- Page 3 Bremsleuchte, Standleuchte und Kennzeichenbeleuchtung. The MidiLED II is a versatile LED multifunctional light that can be found on the rear border contour of vehicles and trailers. It combines the following individual functions in a single lamp: directional indicator, position lamp, rear lamp, brake lamp, parking lamp and licence plate illumination.
- Page 4 LOOK - CONTROL TWIST MESSEN MARKIEREN ANKÖRNEN BOHREN KLEIN BOHREN GROSS KORROSIONSSCHUTZ MEASURE MARK CENTRE PUNCH CORROSION PROTECTION DRILL SMALL DRILL BIG DREHMOMENTSCHLÜSSEL SCHRAUBENDREHER ENTSORGEN SÄUBERN KONTAKTFETT ÖLEN TORQUE WRENCH SCREWDRIVER RECYCLE CLEAN CONTACT GREASE OILING MIDILED II | MOUNTING INSTRUCTION...
- Page 5 MIN. 350MM *Wenn die Form des Fahrzeugaufbaus die Einhaltung von 900 mm bzw. 1200 mm nicht zulässt. *If the shape of the bodywork makes it impossible to keep within 900 mm or 1200 mm respectively. MIDILED II | MOUNTING INSTRUCTION...
-
Page 6: H O L E Pat T E R N
MOUNTING INSTRUCTION B O H R B I L D H O L E PAT T E R N 152±0.5mm optional Ø7mm/Ø10mm MIDILED II | MOUNTING INSTRUCTION... -
Page 7: Montage
MOUNTING INSTRUCTION M O N TA G E M O U N T I N G KABELFÜHRUNG OPTIONAL OPTIONAL CABLING SW10 2 - 2.5 Nm MIDILED II | MOUNTING INSTRUCTION... - Page 8 M O U N T I N G W I T H L I C E N S E P L AT E L I G H T ( L P L ) B [mm] A=95 A=130 B=60 B=60 A=85 A=130 B=40 B=40 A [mm] MIDILED II | MOUNTING INSTRUCTION...
- Page 9 MOUNTING INSTRUCTION A N S C H L Ü S S E C O N N E C T O R S Tail Stop Reverse (LPL) MIDILED II | MOUNTING INSTRUCTION...
- Page 10 Bei Fragen oder Einbauproblemen den Aspöck-Kundendienst, einen Händler oder die Vertragswerkstatt kontaktieren. Check that the lighting system is working perfectly. If you have any questions or installation problems, please contact Aspöck customer service, a dealer or the authorised workshop. MIDILED II | MOUNTING INSTRUCTION...
- Page 11 Other (limiting) liability provisions can be found in item 11 of the Terms of Sales and Delivery (TSD) www.aspoeck.com . • Limiting product liability provisions are laid down in item 12 of the Terms of Sales and Delivery (TSD) www.aspoeck.com . MIDILED II | MOUNTING INSTRUCTION...
- Page 12 ASPÖCK Systems GmbH Enzing 4, 4722 Peuerbach, AUSTRIA Office: +43 7276 2670-0 aspoeck.com E-Mail: office@aspoeck.com...
