Page 1: C A N - T E R M I N At I O
RADC 1.0 OPERATING MANUAL aspoeck.com OPERATING MANUAL... -
Page 2: L I A B I L I T Y P R O V I S I O N S
Other (limiting) liability provisions can be found in item 11 of the Terms of Sales and Delivery (TSD) www.aspoeck.com . • Limiting product liability provisions are laid down in item 12 of the Terms of Sales and Delivery (TSD) www.aspoeck.com . RADC 1.0 OPERATING MANUAL... -
Page 3: Table Of Contents
1 1 . A S P Ö C K T P M S R E PA I R M A N U A L ............... . . 5 7 RADC 1.0... -
Page 4: I N S Ta L L C O N F I G U R At I O N S O F T W A R
1 . P R O D U C T D E S C R I P T I O N The RADC 1.0 system is a ramp approach assistance and is only intended to be an addition to existing safety systems. The vehicle operator is always the first line of defense when it comes to safety when operating the equipment. -
Page 5: G E N E R A L I N F O R M At I O N
NOTE A note in the context of these instructions is important information, a technical note, about the product or the relevant part of the instructions to which particular attention is to be paid. RADC 1.0 OPERATING MANUAL... -
Page 6: S Y S T E M D E S C R I P T I O N
OPERATING MANUAL 3 . S Y S T E M D E S C R I P T I O N The RADC 1.0 without warning systems for the vehicle owner is not recommended. Sensor Distributor Status lamp Beeper Warning system Recommended! 3 . -
Page 7: N E W R E G U L At I O N U N E C E R 1 4 1
The sensor is designed to process and report detections within 240 milliseconds (ms) allowing the operator to quickly respond to any object within the detection zone. Using the RADC 1.0 measures radial range, speed and angle, reflectivity, and other parameters of multiple stationary and moving targets simultaneously. -
Page 8: F I R S T S Ta R T- U
Horizontal “Keep Out” Zone Vertical “Keep Out” Zone Before the RADC 1.0 is permanently installed on the equipment, verify the selected location provides a clear detection zone. Move the equipment to an open field with no objects in the sensor’s field of view, temporarily attach the sensor to the equipment in the proposed location, apply power and activate the system. -
Page 9: M O U N T I N G T H E S E N S O R S O N T H E V A Lv E W I T H S T R A
In some cases, especially with longer range models, it may be necessary to tilt the sensor upward to avoid false detections from the ground. RADC 1.0 OPERATING MANUAL... - Page 10 4 . 5 O B J E C T D E T E C T I O N C A PA B I L I T Y WARNING The RADC 1.0 system is a ramp approach assistance and is only intended to be an addition to existing safety systems. The vehicle operator is always the first line of defense when it comes to safety when operating the equipment.

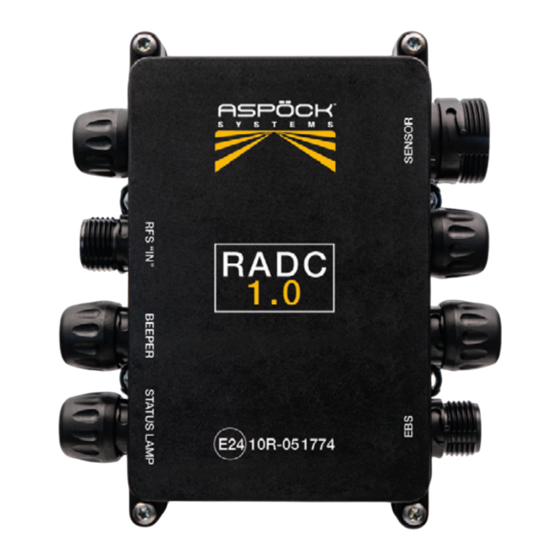

- Page 11 OPERATING MANUAL 5 . S Y S T E M O V E R V I E W Supply cable Signal lamp Signal lamp connection cable Beeper RADC 1.0 sensor Sensor connection cable EBS connection cable Junction box ASPÖCK SYSTEMS RADC 1.0...
- Page 12 EBS connection cable [no. 7] to the junction box and the EBS system. CAUTION The EBS manufacturer-specific operating and assembly instructions must be observed! Contact the respective manufacturer for this purpose. travel direction 7 mm 130 mm RADC 1.0 OPERATING MANUAL...
- Page 13 Side marker lamps must not be disassembled or relocated. • The status lamp is not a substitute for a side marker lamp or other lights. It is not part of the vehicle lighting according to regulation UN ECE R 48. RADC 1.0 OPERATING MANUAL...
- Page 14 Drill 2 Ø5.5 mm holes in the frame or adapter at a distance of 70 mm. • Then fasten the status lamp with Ø5 mm screws. Screw design: self-locking with spring pretension. • Use Ø 15 mm washers to fix the status lamp holder. Ø5.5mm 11 mm max. vehicle width RADC 1.0 OPERATING MANUAL...
- Page 15 Then check this as follows. • Check the alignment: Testing Result Deform the rubber arm slightly upwards Luminosity decreases slightly. and towards the vehicle Movement in opposite direction Luminosity stays the same. RADC 1.0 OPERATING MANUAL...
- Page 16 Mount the beeper at the back of the trailer. The sound output has to point directly towards the road. Drill a hole with a diameter of 28mm. Then attach the beeper with the help of the washer and the plastic nut. Ø6mm Ø28mm RADC 1.0 OPERATING MANUAL...
- Page 17 • The RADC 1.0 system is intended as an Object Detection System and should not be relied upon as your first line of defense for the safe operation of the equipment. It should be used in conjunction with established safety programs and procedures to augment the safe operation of the equipment, ground personnel, and adjacent property.
- Page 18 EBS system/braking system becoming active when you enter the detection zone. You can check the exact detection range of the detection zone by repeatedly moving into and out of the detection zone from all directions. RADC 1.0 OPERATING MANUAL...
- Page 19 POWER CONSUMPTION (TOTAL SYSTEM) > 1A WORKING TEMPERATURE RANGE -40°C — +50°C STORAGE TEMPERATURE RANGE -40°C — +80°C INTERNATIONAL PROTECTION RATING (IP) (ASS-JUNCTION-BOX) IP68 INTERNATIONAL PROTECTION RATING (IP) (CONNECTORS + SENSOR) IP6K9K HOMOLOGATION 10R-05 1774 EMC APPROVAL 10R-05 15387 RADC 1.0 OPERATING MANUAL...
- Page 20 1 1 . B R A K E C O N F I G U R AT I O N ( E X A M P L E S ) 1 1 . 1 H A L D E X Max. speed Brake pressure RADC 1.0 OPERATING MANUAL...
- Page 21 OPERATING MANUAL 1 1 . 2 K N O R R - B R E M S E Max. speed Brake pressure System input 1 1 . 3 W A B C O Max. speed Brake pressure RADC 1.0 OPERATING MANUAL...
- Page 22 Improper disposal can damage health and the environment. Contact specialised waste disposal companies or the responsible authorities for detailed information. • Packaging: Packaging must be disposed of separately. Paper, cardboard and plastics can be recycled. RADC 1.0 OPERATING MANUAL...
- Page 23 ASPÖCK Systems GmbH Enzing 4, 4722 Peuerbach, AUSTRIA Office: +43 7276 2670-0 E-Mail: office@aspoeck.com aspoeck.com...
