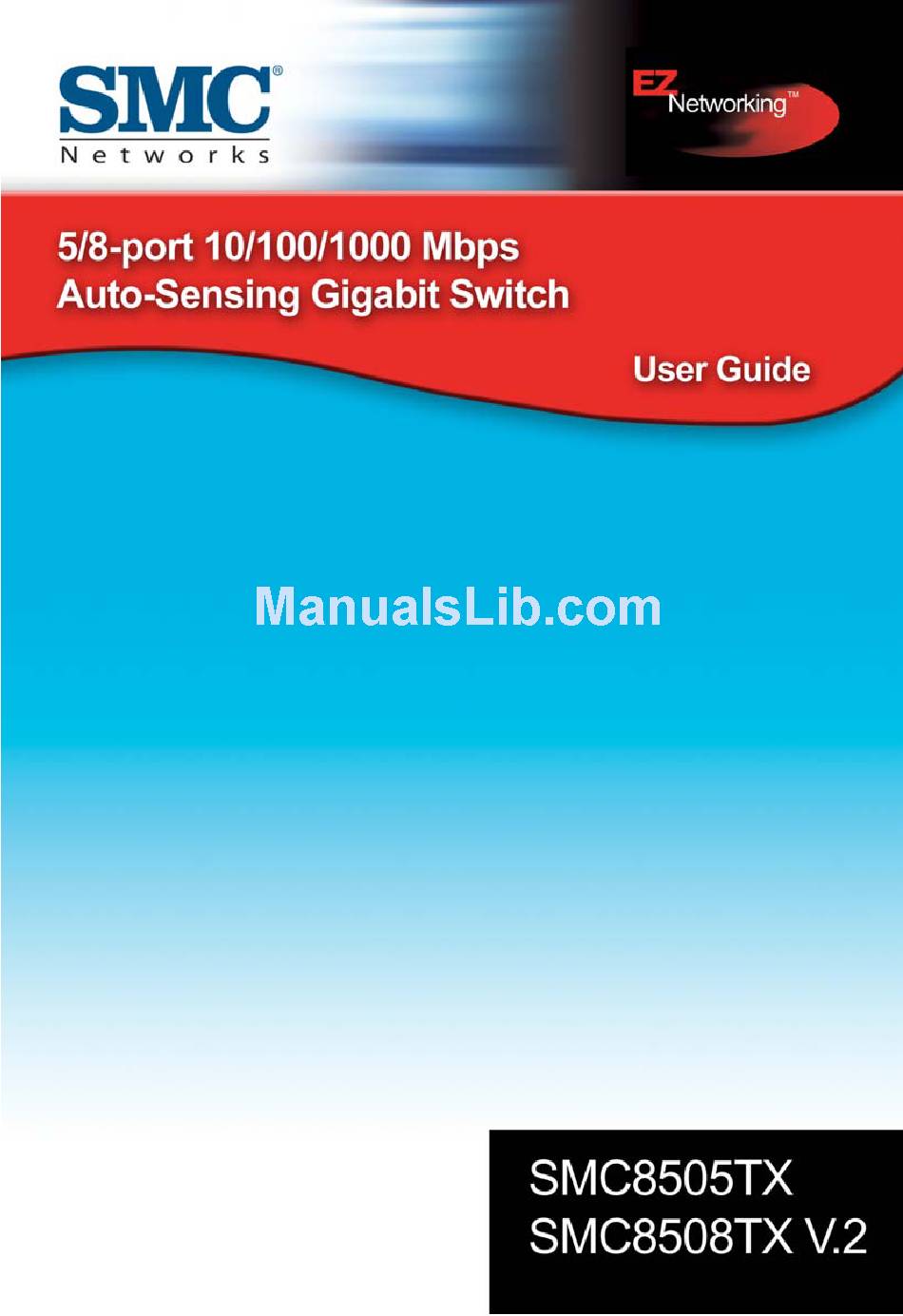

SMC Networks 8505T - annexe 1 Manual

5/8 port 10/100/1000 mbps auto-sensing gigabit switch
Hide thumbs Also See for 8505T - annexe 1:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8505T - annexe 1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMC Networks 8505T - annexe 1

Summary of Contents for SMC Networks 8505T - annexe 1

  • Page 2 EZ Switch 10/100/1000 User Guide From SMC’s EZ line of low-cost workgroup LAN solutions September 2003 Pub. # 150000005200H R01...

  • Page 3: Table Of Contents

    ABLE OF CONTENTS Introduction ........1 Features and Benefits ........1 Front Panel RJ-45 Ports .

  • Page 4: Introduction

    NTRODUCTION The EZ Switch 10/100/1000, SMC8505T and SMC8508T, are high-performance Gigabit Ethernet switches designed for delivering Gigabit connectivity to the desktop. They provide 5/8 full-duplex 1000BASE-T ports that significantly improve network performance and boost throughput for high-bandwidth applications. With 10/16 Gigabits of aggregate bandwidth, these switches provide the quickest solution to meeting the growing demands on your network’s limited resources.

  • Page 5: Front Panel Rj-45 Ports

    NTRODUCTION Front Panel RJ-45 Ports These EZ Switch 10/100 models feature 5/8 1000BASE-T ports with RJ-45 connectors located on the front panel of the switch. Because all ports support automatic MDI/MDI-X operation, you can use straight- through cables for all network connections to PCs or servers, or to other switches or hubs.

  • Page 6: Smc8505T

    ANEL SMC8505T EZSwitch 10/100/1000 EZSwitch 10/100/1000 8505T 8505T SMC8508T EZSwitch 10/100/1000 EZSwitch 10/100/1000 8508T 8508T 1.25A Rear Panel The DC power receptacle is located on the rear panel of the switch.

  • Page 7: Installing The Switch

    NSTALLING THE WITCH Before installing the switch, verify that you have all the items listed under “Package Contents.” Note that the switch can be installed on any suitably large flat surface or in a standard EIA 19-inch rack. Package Contents The EZ Switch 10/100/1000 includes: •...

  • Page 8: Instructions

    NSTALLING THE WITCH • There should be adequate space (approximately two inches) on all sides for proper air flow. • Make sure twisted-pair cable is always routed away from power lines, fluorescent lighting fixtures and other sources of electrical interference such as radios, transmitters, etc. •...
  • Page 9 NSTRUCTIONS 4. Cascading Switches and Other Network Devices: All the ports on the switch support automatic MDI/MDI-X configuration for cable connections. This allows you to use straight-through cable to connect to other switches or hubs from any port on the switch. No crossover cables or other device settings are needed.
  • Page 10 00 0 00 /1 00 /1 10 /1 10 /1 itc h itc h EZ Sw EZ Sw 85 08 85 08 SMC-EZ109DT Link Activi WLAN Notebook SMC2804WBR Wireless Broadband Router Workstations With SMC9452TX Gigabit Workstations PCI Cards Notebook with...

  • Page 11: Troubleshooting

    ROUBLESHOOTING Diagnosing Switch Indicators 1. Symptom Power LED does not light after power on. Probable Causes • DC power adapter may be defective. Possible Solutions • Check for loose connections. • Check the power outlet by using it for another device. •...

  • Page 12: Cables

    ABLES Cable Specifications Cable Types and Specifications Cable Type Max. Length Connector 10BASE-T Cat. 3 or better 100-ohm UTP 100 m (328 ft) RJ-45 100BASE-TX Cat. 5 or better 100-ohm UTP 100 m (328 ft) RJ-45 1000BASE-T Cat. 5, 5e, or 6 100-ohm UTP 100 m (328 ft) RJ-45 10BASE-T/100BASE-TX Pin Assignments...

  • Page 13: 1000Base-T Pin Assignments

    ABLES The table below shows the 10BASE-T/100BASE-TX MDI-X and MDI port pinouts. MDI-X Signal Name MDI Signal Name Receive Data plus (RD+) Transmit Data plus (TD+) Receive Data minus (RD-) Transmit Data minus (TD-) Transmit Data plus (TD+) Receive Data plus (RD+) Transmit Data minus (TD-) Receive Data minus (RD-) 4,5,7,8...

  • Page 14: 1000Base-T Cable Requirements

    1000BASE-T C ABLE EQUIREMENTS 1000BASE-T Cable Requirements All Category 5 UTP cables that are used for 100BASE-TX connections should also work for 1000BASE-T, providing that all four wire pairs are connected. However, it is recommended that for all critical connections, or any new cable installations, Category 5e (enhanced Category 5) or 6 cable should be used.

  • Page 15: Product Specifications

    RODUCT PECIFICATIONS EZ Switch 10/100/1000 Standards Conformance IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab Communication Rate 10, 100, and 1000 Mbps Communication Mode Full or half duplex at 10/100 Mbps Full duplex at 1000 Mbps Media Supported 10BASE-T: 100-ohm Category 3 or better twisted-pair 100BASE-TX: 100-ohm Category 5 or better twisted pair 1000BASE-T: 100-ohm Category 5, 5e, or 6 twisted-pair Number of Ports...

  • Page 16: Emc/Safety Compliances

    RODUCT PECIFICATIONS Weight SMC8505T: 0.59 kg (1.309 lbs) SMC8508T: 0.62 kg (1.378 lbs) MAC Address Table 8 K entries Memory Buffer 768 Kbits per unit Power Consumption SMC8505T: 12 Watts SMC8508T: 15 Watts Power Requirement DC input SMC8505T: 12 V, 1 A SMC8508T: 12 V, 1.25 A Temperature Operating: 0 ~ 40 ºC / 32 ~ 98 ºF...

  • Page 17: Compliances

    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help EC Conformance Declaration - Class B SMC contact for these products in Europe is: SMC Networks Europe, Edificio Conata II, Calle Fructuós Gelabert 6-8, 2 08970 - Sant Joan Despí,...
  • Page 18 OMPLIANCES • Radio-frequency electromagnetic field according to EN 61000-4-3:1996 (80 - 1000 MHz with 1 kHz AM 80% Modulation: 3 V/m) • Electrical fast transient/burst according to EN 61000-4-4:1995 (AC/DC power supply: ±1 kV, Data/Signal lines: ±0.5 kV) • Surge immunity test according to EN 61000-4-5:1995 (AC/DC Line to Line: ±1 kV, AC/DC Line to Earth: ±2 kV) •...
  • Page 19 OMPLIANCES Wichtige Sicherheitshinweise (Germany) 1. Bitte lesen Sie diese Hinweise sorgfältig durch. 2. Heben Sie diese Anleitung für den späteren Gebrauch auf. 3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Verwenden Sie keine Flüssigoder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung. 4.

  • Page 20: Legal Information And Contacts

    SMC web site. Failure to register will not affect the standard limited warranty. The Limited Lifetime warranty covers a product during the Life of that Product, which is defined as a period of 5 years from the date of purchase of the product from SMC or its authorized reseller.
  • Page 21 ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. SMC SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THE ALLEGED...
  • Page 22 SMC or its authorized reseller has been adviced of the possiblity of such damages. Copyright Information furnished by SMC Networks, Inc.
  • Page 23 Model Number: SMC8505TX, SMC8508TX V.2 Pub. Number: 150000005200H E072003-R01...

This manual is also suitable for:

8508t - annexe 1Ez switch smc8505txEz switch smc8508tx v.2
