U A
SER UTHENTICATION
• Re-authentication Period – Sets the time period after which a
connected client must be re-authenticated. (Range: 1-65535 seconds;
Default: 3600 seconds)
• TX Period – Sets the time period during an authentication session that
the switch waits before re-transmitting an EAP packet. (Range: 1-65535;
Default: 30 seconds)
• Authorized –
- Yes – Connected client is authorized.
- No – Connected client is not authorized.
- Blank – Displays nothing when dot1x is disabled on a port.
• Supplicant – Indicates the MAC address of a connected client.
• Trunk – Indicates if the port is configured as a trunk port.
Web – Click Security, 802.1X, Port Configuration. Modify the parameters
required, and click Apply.
6-24

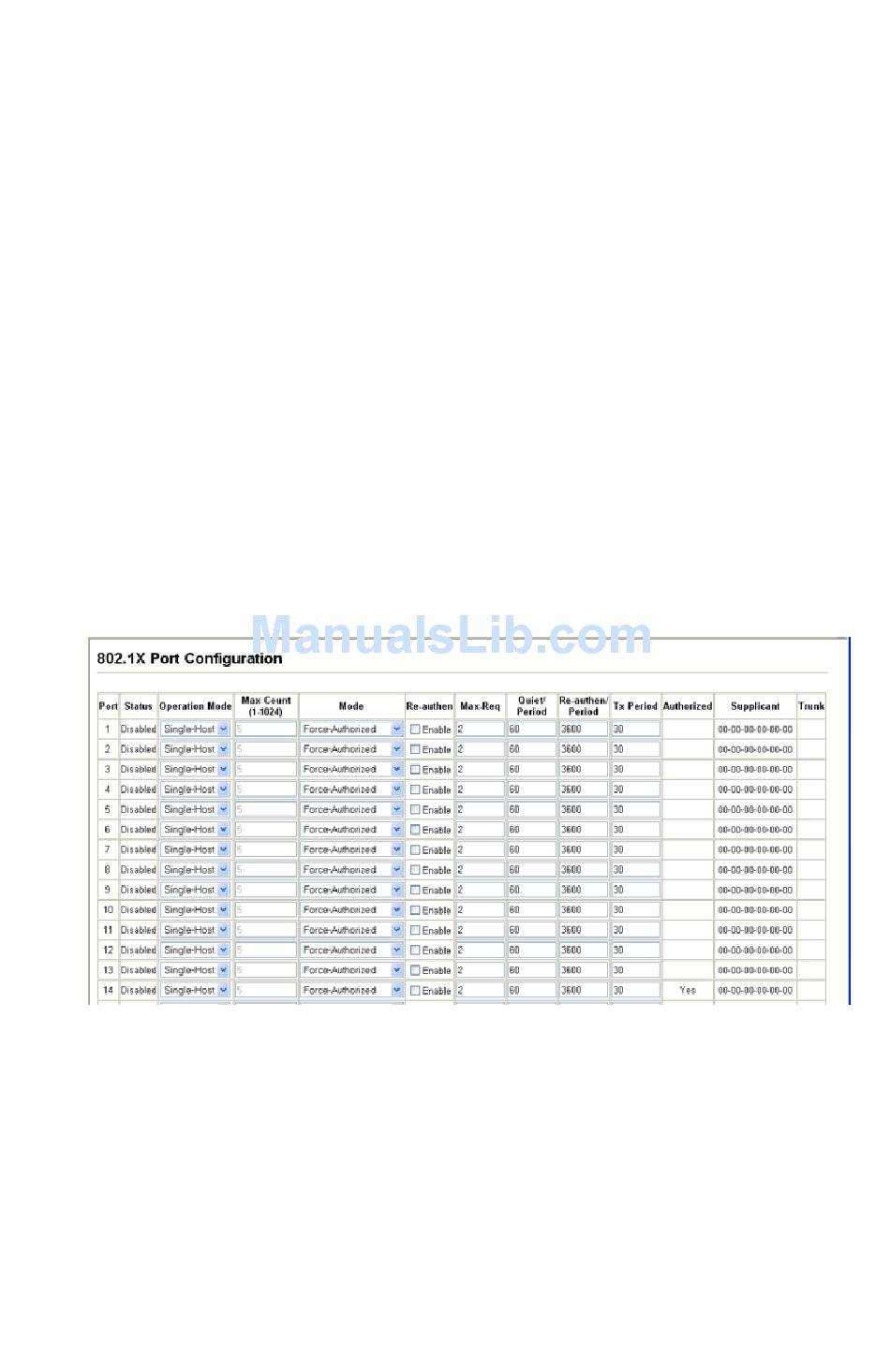

Figure 6-8 802.1X Port Configuration
