Technical Support and E-Warranty Certificate
www.vevor.com/support

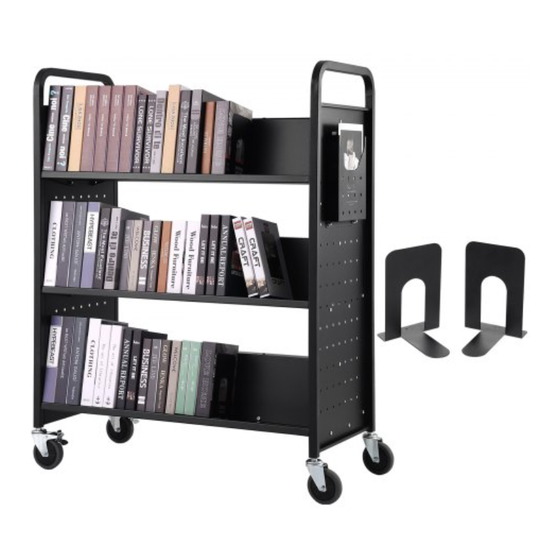

BOOK CARTS
MODEL: HXTC-V
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Related Manuals for VEVOR HXTC-V
Summary of Contents for VEVOR HXTC-V
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support BOOK CARTS MODEL: HXTC-V We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 3 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 4: Safety Instructions
6. Do not alter this product in any manner. 7. Do not lift the product directly with a forklift or tow with any mechanical devices. MODEL AND PARAMETERS Model HXTC-V Shelve Type V-shaped(Single-sided) Number of Shelves Max. Capacity 110lbs/per shelf... -
Page 5: Structure Diagram
STRUCTURE DIAGRAM Lateral Plate Book Storage Area Document Rack Wheels(With Lock) Wheels(Without Lock) PARTS LIST Lateral Plates x2 Bookshelf Backboards x3 (Two pieces are symmetrical.) Book Storage Panels x3 Wheels(With Lock) x2 - 3 -... - Page 6 Wheels(Without Lock) x2 Document Rack x1 Bookends x2 Hex key x1 Bolts(M6*8) x5 Hat nuts(M6) x5 (Only four are needed ,one more) (Only four are needed ,one more) Bolts(M6*14) x41 Wrenchs(10+19mm) x2 (Only thirty-nine are needed ,two more) User Manual x1 - 4 -...
-
Page 7: Installation
INSTALLATION NOTE: This installation is best done by two people. Step 1: Install the Book Storage Panel and Bookshelf Backboards. (Three kits in total.) M6*14 NOTE: Please do not tighten the bolts above yet. Step 2: Install the kits with the lateral plates. After all parts are installed, adjust the angle of the frame and tighten all bolts. - Page 8 Step 3: Install the Document Rack. M6*8+Hat Nuts Hat Nuts Step 4: Install the four wheels. Wheels (With Lock) - 6 -...
-
Page 9: Maintenance
USING THE CASTER BRAKE ■ To lock the swivel casters with brake, step down the levers. ■ To unlock the swivel casters with brake, pull up the levers. MAINTENANCE 1. Clean the surface after each use . Please check and confirm that the cart is intact before each use. 2. - Page 10 Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd, Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730 SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany Pooledas Group Ltd Unit 5 Albert Edward House, The...
- Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
