Technical Support and E-Warranty Certificate www.vevor.com/support

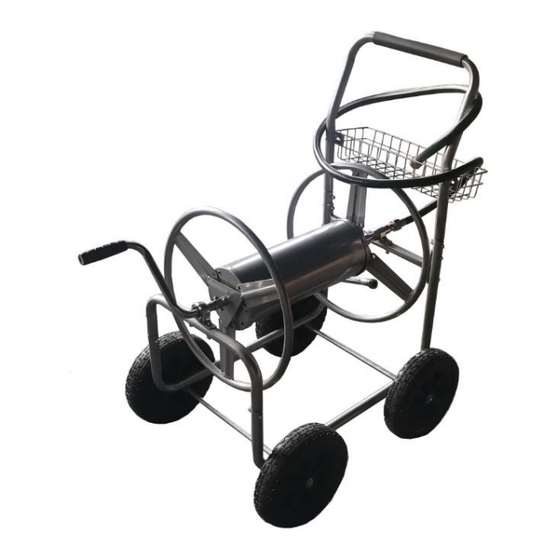

PRESSURE WASHER HOSE REEL CART
MODEL:GT0707
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Related Manuals for VEVOR GT0707
Summary of Contents for VEVOR GT0707
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support PRESSURE WASHER HOSE REEL CART MODEL:GT0707 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: Assembly Precautions
Warning-To reduce the risk of injury, user must read instructions manual carefully. This symbol, placed before a safety comment, indicates a kind of precaution, warning, or danger. Ignoring this warning may lead to an accident. To reduce the risk of injury, fire, or electrocution, please always follow the recommendation shown below. - Page 4 6.Product capabilities apply to properly and completely assembled product only. 7.Assemble on a flat, level, hard and smooth surface capable of safely supporting a fully loaded Pressure Washer Hose Reel Cart. SAVE THESE INSTRUCTIONS Model GT0707 Maximum Capacity (5/8”Flexible Pipe) 300ft Number of Wheels Colour Silver Gray Carton Contents Ref.
- Page 5 Push Handle Hose Reel Center Water Coupling Tube Crank Handle Hose Extension Wire Basket Painted Water Coupler U-Bracket Crank U-Bracket Crank Bracket Bushing Hose Washer M6 x 35 Bolt M6 x 25 Bolt M6 x 15 Screws Cotter Pin 20 12mm Large Washer 6mm Small Washer - 4 -...
- Page 6 M6 Nylock Nuts Front Crank Frame M6 Small Washer Assembly Instructions Tools Needed for Cart Assembly (1) Screwdriver. (1) M10 Wrench or Adjustable Wrench. 1. Install front crank frame to side frames using two M6 X 35 bolt sets. Next add cross brace to side frame using four M6 x 35 Bolt Sets. Slide axles through tabs on the bottom of side frames.
- Page 7 3. Attach hose reel end to the center hub using (6) M6 x 15 screws. repeat opposite side. See figure 3A. Find the end of the center hub with the extra threaded screw hole and insert water coupler tube through this end first. Attach water coupler tube to the center hub using the painted water coupler U-Bracket.
- Page 8 frame using (2) M6 x 35 Bolt Sets. Insert crank handle through the crank bushing then slide hose reel onto crank handle securing with (2) M6 x 25 bolt sets. See figure 4. 5.Attach opposite end of the hose reel to the cross brace using (2) M6 x 35 bolt sets.See figure 5.
- Page 9 Assemble push handle onto cart frame using (2) M6x35 bolt sets. See figure 6. 7. Attach basket to handle using (2) M6x35 bolt sets. See figure 7. - 8 -...
- Page 10 8. Insert rubber washers into hose extension and water coupler. See figure 8. 9. Attach hose extension to water coupler. See figure 9. - 9 -...
- Page 11 Connect the water pipe Address：Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730 Made In China - 10 -...
- Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
