Funtronix SCORE-N-TIME SNT-344M Operating Manual

Mid-sized portable wireless multisport electronic scoreboard
Hide thumbs

Advertisement

Quick Links

Download this manual

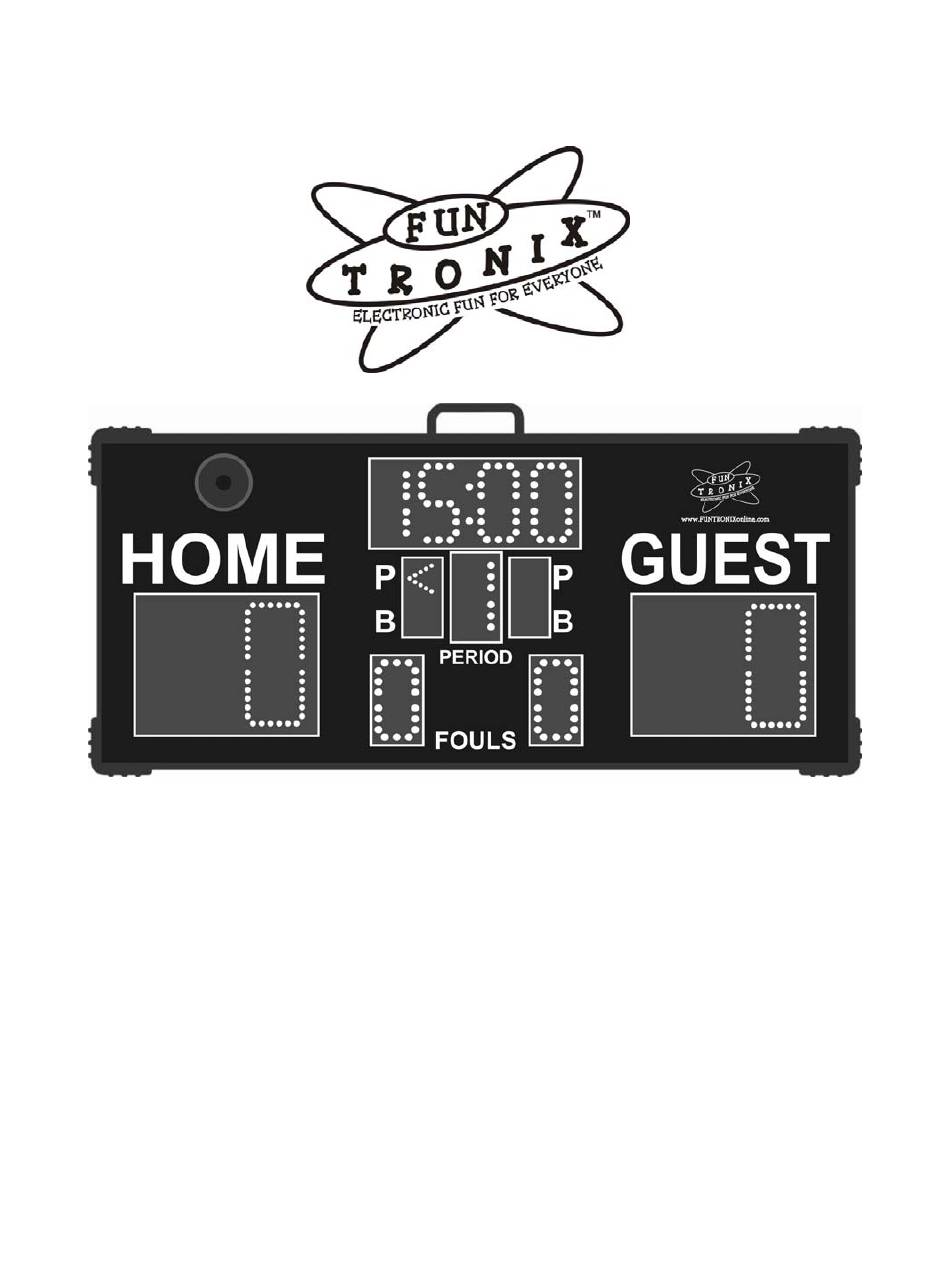

FUNTRONIX
SCORE-N-TIME
TM
MID-SIZED
PORTABLE WIRELESS MULTISPORT
ELECTRONIC SCOREBOARD
OPERATING MANUAL
Model SNT-344M
Revised December 17, 2021
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SCORE-N-TIME SNT-344M and is the answer not in the manual?

Questions and answers

Related Manuals for Funtronix SCORE-N-TIME SNT-344M

Summary of Contents for Funtronix SCORE-N-TIME SNT-344M

  • Page 1 FUNTRONIX SCORE-N-TIME MID-SIZED PORTABLE WIRELESS MULTISPORT ELECTRONIC SCOREBOARD OPERATING MANUAL Model SNT-344M Revised December 17, 2021...

  • Page 2: Additional Warnings

    Thank you for purchasing a Funtronix Score-N-Time Portable Electronic Scoreboard. At Funtronix, our motto is “Electronic Fun for Everyone”. By offering a line of affordable electronic scoreboards, our goal is to add a little fun to your sports and leisure activities.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION PAGE Product Features and Highlights Section 1: Scoreboard Setup Section 2: Using your scoreboard Section 3: Tournament Mode Section 4: Workout Timer Section 5: Bocce Ball Section 6: Clock/Timer Mode Section 7: Halftime and Overtime Periods Section 8: Short and Long Timeouts Section 9: Replacing the batteries in the wireless keypad Section 10: Pairing the scoreboard and keypad...
  • Page 4 PRODUCT FEATURES • Wireless RF remote-controlled keypad operates up to • Up/Down Timer/Clock Mode 200 feet from scoreboard* • Stopwatch Mode with split time • Large 6-inch score digits and 4-inch clock digits • Fully-configurable Workout Timer • Loud 110 dB internal horn** for end-of-period and •...

  • Page 5: Section 1: Scoreboard Setup

    SECTION 1: SCOREBOARD SETUP 1. If you are using the scoreboard without an AC adapter, open the two battery covers located on the back-side of the scoreboard and install 8 C-size alkaline batteries (not included). Close the battery covers. 2. The wireless keypad requires AAA-size alkaline batteries (included). To install or replace these batteries follow the instructions in Section 9.

  • Page 6: Section 2: Using Your Scoreboard

    SECTION 2: USING YOUR SCOREBOARD This section describes how to configure your scoreboard for your particular sport. You can configure the automatic horn sounding function, clock/timer direction, possession arrow usage, and much more. Keypad Layout: Shown below is a description of the keypad buttons and their functions, for reference. ALTERNATE FUNCTIONS ON THE SNT-344M WIRELESS KEYPAD Hold these buttons down for several seconds to select the alternate function.
  • Page 7 Clock/Timer Use as a count-up timer or count-down clock Section 6 Timed with fouls Soccer, Hockey, Basketball Section 2 In play modes 1, 6, and 7, you can set the direction of the clock (count-up or count-down) by holding button for approximately 3 seconds. If the clock is set up as a count-down clock the time to count down from will be shown.
  • Page 8 After approximately 10 minutes of non-use (game clock stopped, no buttons pressed), the scoreboard display will shut off and the game clock decimal point will blink to indicate the scoreboard is still on and in power save mode. Pressing any button on the remote will re-awaken the scoreboard with the previous status of the game play information intact.

  • Page 9: Section 3: Tournament Mode

    SECTION 3: TOURNAMENT MODE Tournament Mode is great for events where multiple rounds of timed play occur, and a final round is set up as a sudden-death round. Your scoreboard can be set up to have any number of timed rounds (up to 9 total) and one sudden-death round.

  • Page 10: Section 4: Workout Timer

    SECTION 4: WORKOUT TIMER The workout timer is completely configurable for use in a variety of events, including sparing, exercise routines, speech timing and debates. Each workout round can be set to a unique time. The resting period can be set from 15 seconds to 99 minutes. And the total number of rounds can be set from 1 to 10 rounds, or placed in a continuous-cycle mode.
  • Page 11 Press and hold the button for approximately 3 seconds to select the resting round time. The period digit will show a “r”. Use the buttons to select set the resting time to “1:00” on the display. Press and release the button to select the second workout round.

  • Page 12: Section 5: Bocce Ball

    SECTION 5: BOCCE BALL The Bocce Ball mode is configurable for different variations of use: the match can be timed or untimed, with timed matches settable from 15 minutes to 99 hours (default is 4 hours). The possession arrows default to disabled but can be enabled to indicate team turns, and the period digit can be used to indicate rounds of play.

  • Page 13: Section 6: Clock/Timer-Only Mode

    SECTION 6: CLOCK/TIMER-ONLY MODE Your scoreboard features a Clock/Timer-only mode, which can be set up as a count-down clock or count-up timer. 1. Select play mode 6 (Clock/Timer-Only mode) as described in Section 2. 2. The clock/timer defaults to a count-down clock. To select the count-up timer function, press and hold the guest button for approximately 3 seconds.

  • Page 14: Section 7: Halftime And Overtime Periods

    SECTION 7: HALFTIME AND OVERTIME PERIODS Your scoreboard features an adjustable halftime period and overtime period. The halftime period can be inserted between any of the regular periods 1 through 9. It can be adjusted from 15 seconds to 99 minutes, and is independent of regulation period times.

  • Page 15: Section 8: Short And Long Timeouts

    SECTION 8: SHORT AND LONG TIMEOUTS Your scoreboard features an adjustable short timeout and long timeout function. Follow the steps below to initiate a timeout. 1. Make sure the game clock has been stopped. 2. Press and hold either the button for approximately 3 seconds to initiate a short timeout or long timeout, respectively.

  • Page 16: Section 9: Replacing The Batteries In The Wireless Keypad

    SECTION 9: REPLACING THE BATTERIES IN THE WIRELESS KEYPAD The wireless keypad requires 2 AAA-size alkaline batteries. The status indicator will blink green if the batteries are good, and will blink red if the batteries need to be replaced.. Make sure you only use alkaline batteries in your keypad.

  • Page 17: Section 11: Care And Maintenance

    SECTION 11: CARE AND MAINTENANCE Keep your scoreboard clean for optimum viewing of the display. • Never spray cleaning solutions directly onto the scoreboard or keypad. • Use only ammonia-free window cleaning solution. To clean your scoreboard, spray the cleaner onto a clean cloth. Lightly wipe the scoreboard or keypad with the damp cloth until clean.

  • Page 18: Section 13: Product Specifications

    Up to 15 hours continuous use – high brightness level Keypad: 2 AAA-size alkaline batteries POWER ADAPTER SPECIFICATION: Use Only Funtronix AC adapter 120 VAC input, 12 VDC 2 A output. Part Number: PS-9V-1400: 5.5mm x 2.1mm barrel connector, center-positive.
  • Page 19 Write down your product serial number for your records. SN: _________________________ Please visit our website for new products and accessories for your scoreboard: www.funtronixonline.com...
