- Page 1 FUNTRONIX SCORE-N-TIME PORTABLE MULTISPORT ELECTRONIC SCOREBOARD OPERATING MANUAL Models: SNT-140, SNT-140P SNT-440, SNT-440P Revised January 7, 2016...
- Page 2 Thank you for purchasing a Funtronix Score-N-Time Portable Electronic Scoreboard. At Funtronix, our motto is “Electronic Fun for Everyone”. By offering a line of affordable electronic scoreboards, our goal is to add a little fun to your sports and leisure activities.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION PAGE Product Features and Highlights Section 1: Scoreboard Setup Section 2: Using the common modes of the SNT-140/440 & SNT-140P/440P scoreboards Section 3: Using the added modes of the SNT-140P/440P Multisport-Pro scoreboard Section 4: Using the Tournament mode Section 5: Using the Workout Timer Section 6: Using your scoreboard for Bocce Ball Section 7: Using the Game Clock as a Count-Down Clock or Count-Up Timer... -
Page 4: Product Features And Highlights

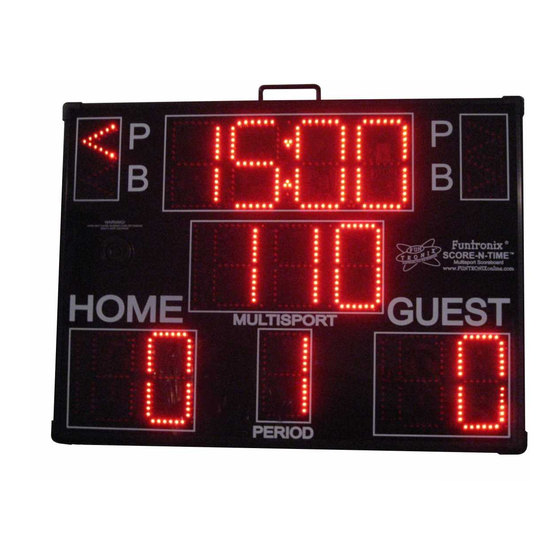

MODEL SNT-140 MODEL SNT-140P MODEL SNT-440 MODEL SNT-440P STANDARD MULTISPORT MODEL SNT-140 & SNT-440 Available with a full-function wireless keypad or Displays team scores up to 199 points corded keypad with LCD display Game clock functions as a count-down timer or ... -
Page 5: Section 1: Scoreboard Setup
SECTION 1: SCOREBOARD SETUP 1. If you are using a wireless keypad, make sure it is fully charge before using your scoreboard. Refer to Section 10 for charging instructions. 2. If you are using the scoreboard without an AC adapter, remove/open the battery cover(s) located on the rear of the scoreboard and install six AA-size alkaline batteries (SNT-140 series) or 8 C-cell alkaline batteries (SNT-440 series). -
Page 6: Section 2: Using The Common Modes Of The Snt-140/440 & Snt-140P/440P Scoreboards
SECTION 2: USING THE PLAY MODES COMMON TO BOTH SNT-140/440 AND SNT-140P/440P SCOREBOARD MODELS LAYOUT OF THE SNT-140/440 SCOREBOARD WIRELESS KEYPAD - - Buttons with Alternate Functions - - Hold these buttons down for several seconds to select the alternate function. Prior to the start of a game, press and hold the button until the scoreboard clock flashes a “PL X”... - Page 7 If the game clock is being used, set the desired length of each period with the buttons. The period length can be preset in 5 second intervals up to 1 minute, then 1 minute 30 seconds, and then in 1-minute increments from 2 to 99 minutes. All periods (except overtime and halftime) will start with this time and will be stored in the scoreboard even after power is turned off.
- Page 8 If your game goes into overtime, set the period digit to ‘0’ by repeated presses of the button and then set the length of the overtime period time using the buttons. See Section 8 for details on using the halftime and overtime periods. Your scoreboard features a short and long timeout function when using play mode 1.
-
Page 9: Section 3: Using The Added Modes Of The Snt-140P/440P Multisport-Pro Scoreboard
SECTION 3: USING THE ADDED MODES OF THE MULTISPORT-PRO SCOREBOARD: MODEL SNT-140P/440P 1. Prior to the start of a game, press and hold the button until the scoreboard clock flashes a “PL X” message. The “PL” indicates the play mode the scoreboard is currently in. See the table below for the list of play modes in your scoreboard. - Page 10 List of available play modes in the SNT-140P/440P scoreboards Play Owner’s Manual mode Configuration Uses/Features Section Timed Soccer, hockey, basketball Section 2 Step 3 Untimed Volleyball, table tennis Section 2 Step 4 Tournament 2 or more timed rounds plus an untimed Section 4 mode sudden death round...
- Page 11 Detailed information for each additional play mode in the SNT-140P/440P scoreboard is shown below. (SNT-140P image shown for reference): --------------------------------------------------------------------------------------------------------------------------- Mode 7: Untimed Baseball/Kickball Mode 8: Timed Baseball/Kickball Left multisport digit = Balls Middle multisport digit = Strikes Right multisport digit = Outs Mode 7: The possession arrows represent the top and bottom of the Untimed Baseball Mode...
- Page 12 Refer to the following table for a description of the keypad functions for each Play Mode. TABLE 1: MULTISPORT BUTTON FUNCTIONS PLAY MODE BASEBALL/KICKBALL (Mode 7 & 8) Increment Balls Increment Strikes Increment Outs SOCCER/HOCKEY/BASKETBALL With Foul/Penalty Display Increment Home Team Clear Fouls Increment Guest Team (Mode 9)
- Page 13 NOTE: The display may dim or go off while the horn is sounding when the scoreboard is powered with batteries. This is a sign that the batteries are near the end of their life. 7. Each press of the button will start and stop the game clock. 8.
-
Page 14: Section 4: Using The Tournament Mode
SECTION 4: USING THE TOURNAMENT MODE Tournament Mode is great for events where multiple rounds of timed play occur, and a final round is set up as a sudden-death round. Your SNT-140/440 scoreboard can be set up to have any number of timed rounds (up to 9 total) and one sudden-death round. -
Page 15: Section 5: Using The Workout Timer
SECTION 5: USING THE WORKOUT TIMER The workout timer is completely configurable for use in a variety of events, including sparing, exercise routines, speech timing and debates. Each workout round can be set to a unique time. The resting period can be set from 15 seconds to 99 minutes. - Page 16 Press and hold the button for approximately 3 seconds to select the warning time setup. The period digit will show an “A”. Use the buttons to select set the warning time to “:20” on the display. Press and hold the button button for approximately 3 seconds to select the resting round time.
-
Page 17: Section 6: Using Your Scoreboard For Bocce Ball
SECTION 6: USING YOUR SCOREBOARD FOR BOCCE BALL The Bocce Ball mode is configurable for different variations of use: the match can be timed or untimed, with timed matches settable from 15 minutes to 99 hours (default is 4 hours). The possession arrows default to disabled but can be enabled to indicate team turns, and the period digit can be used to indicate rounds of play. -
Page 18: Section 7: Using The Game Clock As A Count-Down Clock Or Count-Up Timer
SECTION 7: USING THE CLOCK/TIMER FUNCTION In several play modes, the game clock can be configured as a count-down timer or count-up clock. Follow the next few steps to configure the game clock. 1. Select one of the following play modes that support the count up/down clock mode function: ... -
Page 19: Section 8: Halftime And Overtime Periods
SECTION 8: HALFTIME AND OVERTIME PERIODS The SNT-140/440 and SNT-140P/440P scoreboards feature an adjustable halftime period and overtime period. The halftime period can be inserted between any of the regular periods 1 through 9. It can be adjusted from 5 seconds to 99 minutes, and is independent of regulation period times. The overtime period can be called up when regulation play time has ended and an overtime period is required. -
Page 20: Section 9: Short And Long Timeouts
SECTION 9: SHORT AND LONG TIMEOUTS Your scoreboard features an adjustable short timeout and long timeout function. Follow the steps below to initiate a timeout. 1. Make sure the game clock has been stopped. 2. Press and hold either the button for approximately 3 seconds to initiate a short timeout or a long timeout, respectively. -
Page 21: Section 10: Charging The Wireless Keypad
SECTION 10: CHARGING THE WIRELESS KEYPAD The wireless keypad contains a rechargeable battery. While the charge of the keypad battery will typically last between 1 to 2 weeks (depending on usage), we recommend charging your keypad the night before each use of the scoreboard. The charging indicator will light up orange to indicate the keypad is charging, and will turn green when fully charged. -
Page 22: Section 12: Detailed Keypad Button Descriptions And Usage
SECTION 12: DETAILED KEYPAD BUTTON DESCRIPTIONS AND USAGE Buttons that have multiple functions will have a dividing line through them. Any function below the line on the button requires you to hold the button down to activate that particular function. BUTTON FUNCTION Start and stop the game clock (if applicable). -
Page 23: Section 13: Care And Maintenance
SECTION 13: CARE AND MAINTENANCE Keep your scoreboard clean for optimum viewing of the display. Never spray cleaning solutions directly onto the scoreboard or keypad. Use only ammonia-free window cleaning solution. To clean your scoreboard, spray the cleaner onto a clean cloth. Lightly wipe the scoreboard or keypad with the damp cloth until clean. -
Page 24: Section 15: Product Specifications
Up to 20 hours POWER ADAPTER SPECIFICATION: Output Connector: 2.1mm x 5.5mm barrel, center-positive Compatible AC Adapters: SNT-140 series: Funtronix PN PS-9V-1400 SNT-440 series: Funtronix PN PS-12V-3000 MECHANICAL SPECIFICATIONS: Approximate Dimensions: SNT-140 SERIES: 24 inches wide, 12 inches tall, 2 ¼ inches deep SNT-440 SERIES: 32 inches wide, 24 inches tall, 2 ½... - Page 25 Write down your product serial number for your records. SN: _________________________ Please visit our website for new products and accessories for your scoreboard: www.funtronixonline.com...
