Funtronix SCORE-N-TIME SNT-300F Operating Manual

Mid-sized portable wireless football scoreboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

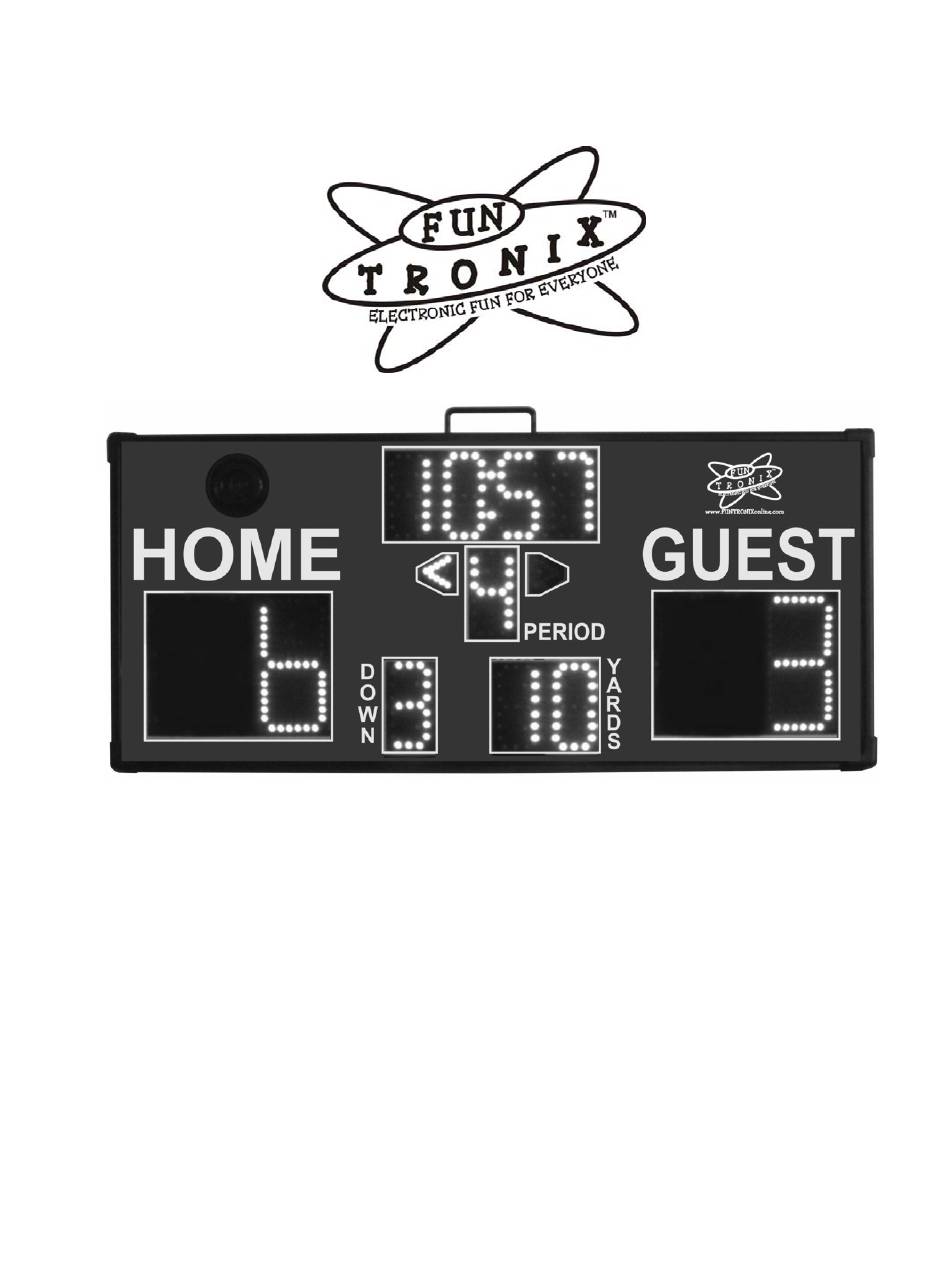

FUNTRONIX
®
SCORE-N-TIME
TM
MID-SIZED
PORTABLE WIRELESS FOOTBALL
SCOREBOARD
OPERATING MANUAL
Model SNT-300F
Revised January 21, 2013
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCORE-N-TIME SNT-300F and is the answer not in the manual?

Questions and answers

Related Manuals for Funtronix SCORE-N-TIME SNT-300F

Summary of Contents for Funtronix SCORE-N-TIME SNT-300F

  • Page 1 FUNTRONIX ® SCORE-N-TIME MID-SIZED PORTABLE WIRELESS FOOTBALL SCOREBOARD OPERATING MANUAL Model SNT-300F Revised January 21, 2013...
  • Page 2 Thank you for purchasing a Funtronix Score-N-Time Portable Electronic Scoreboard. At Funtronix, our motto is “Electronic Fun for Everyone”. By offering a line of affordable electronic scoreboards, our goal is to add a little fun to your sports and leisure activities.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION PAGE Product Features and Highlights Section 1: Scoreboard Setup Section 2: Using your scoreboard Section 3: Halftime and Overtime Periods Section 4: Short and Long Timeouts Section 5: Changing the batteries in the keypad remote Section 6: Pairing the scoreboard and keypad Section 7: Care and Maintenance Section 8 Troubleshooting Guide Section 9: Product Specifications...
  • Page 4 PRODUCT FEATURES  15-channel wireless RF remote-controlled keypad  Downs and Yards-to-Gain display operates up to 200 feet from scoreboard*  Save-game feature allows current game data to  Large 6-inch score digits and 4-inch clock digits be saved and recalled at a later time ...

  • Page 5: Section 1: Scoreboard Setup

    SECTION 1: SCOREBOARD SETUP 1. If you are using the scoreboard without an AC adapter, open the two battery covers located on the back-side of the scoreboard and install 8 C-size alkaline batteries (not included). Close the battery covers. 2. Install two AAA-size batteries (not included) in the keypad as described in Section 5.

  • Page 6: Section 2: Using Your Scoreboard

    SECTION 2: USING YOUR SCOREBOARD LAYOUT OF THE SNT-300F SCOREBOARD KEYPAD Set the period length with the buttons. The period length can be set from 15 seconds up to 99 minutes. All periods (except overtime and halftime) will start with this time and will be stored in the scoreboard even after power is turned off.
  • Page 7 Use the home and guest , and buttons to control the team scores. Use the buttons to control the ball possession. Use the button to increment the Downs digit by one. Use the buttons to adjust the remaining yards to first down. Press and release the button for a new first down and 10 yards to gain.

  • Page 8: Section 3: Halftime And Overtime Periods

    SECTION 3: HALFTIME AND OVERTIME PERIODS Your scoreboard features an adjustable halftime period and overtime period. The halftime period can be inserted between any of the regular periods 1 through 9. It can be adjusted from 15 seconds to 99 minutes, and is independent of regulation period times.

  • Page 9: Section 4: Short And Long Timeouts

    SECTION 4: SHORT AND LONG TIMEOUTS Your scoreboard features an adjustable short timeout and long timeout function. Follow the steps below to initiate a timeout. 1. Make sure the game clock has been stopped. 2. Press and hold either the button for approximately 3 seconds to initiate a short timeout or long timeout, respectively.

  • Page 10: Section 6: Pairing The Scoreboard And Keypad

    SECTION 5: INSTALLING BATTERIES IN THE KEYPAD REMOTE If the low-battery warning chirp is sounding in the keypad, it is time to replace the batteries. This warning chirp will occur following each press of a keypad button. 1. If you are in the middle of a game and the game clock is being used, make certain the game clock is stopped before proceeding, and that the scoreboard is not in the power-down mode.

  • Page 11: Section 7: Care And Maintenance

    SECTION 7: CARE AND MAINTENANCE Keep your scoreboard clean for optimum viewing of the display.  Never spray cleaning solutions directly onto the scoreboard or keypad.  Use only ammonia-free window cleaning solution. To clean your scoreboard, spray the cleaner onto a clean cloth. Lightly wipe the scoreboard or keypad with the damp cloth until clean.

  • Page 12: Section 9: Product Specifications

    Up to 15 hours continuous use – high brightness level Remote Keypad: 2 x AAA batteries/up to 1 year POWER ADAPTER SPECIFICATION: Use Only Funtronix AC adapter 120VAC input, 12V 2 A DC output. Part Number: PS-12V-3000: 5.5mm x 2.1mm barrel connector, center-positive.

  • Page 13: Warranty

    1 YEAR LIMITED WARRANTY Funtronix LLC warrants your product against defects in materials and workmanship for one (1) year from date of shipment to the original purchaser. Should any part of the scoreboard, keypad, or AC adapter be proven defective in material or workmanship within this period, such defect(s) will be repaired or replaced (with new or rebuilt parts) at Funtronix’s discretion, without charge for parts or labor directly related to the defect(s).
  • Page 14 Write down your product serial number for your records. SN: _________________________ Please visit our website for new products and accessories for your scoreboard: www.funtronixonline.com...
