Funtronix SCORE-N-TIME SNT-300BB Operating Manual

Mid-sized portable wireless baseball scoreboard

Advertisement

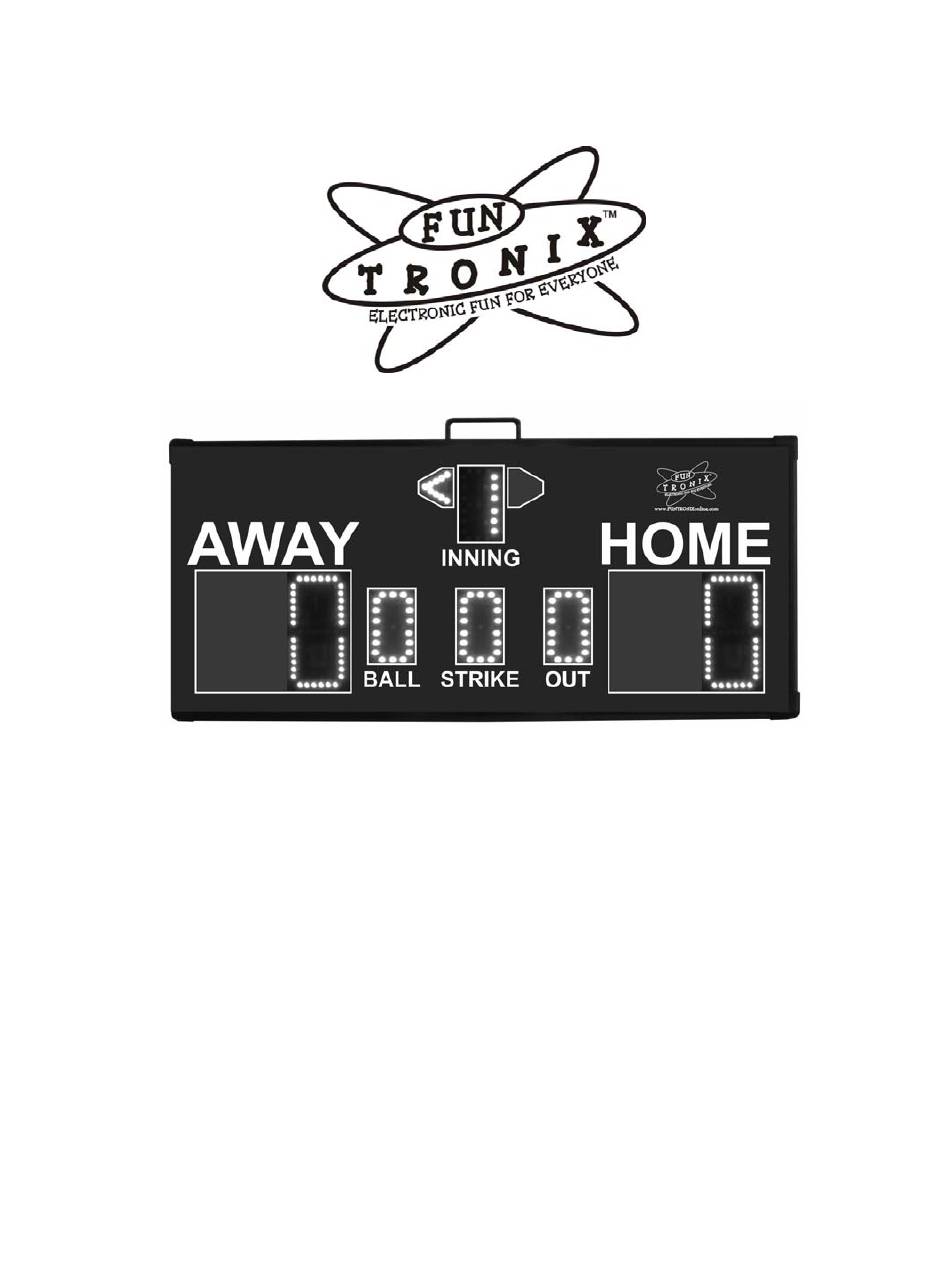

FUNTRONIX
SCORE-N-TIME
TM
MID-SIZED
PORTABLE WIRELESS BASEBALL
SCOREBOARD
OPERATING MANUAL
Model SNT-300BB
Revised January 7, 2016
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCORE-N-TIME SNT-300BB and is the answer not in the manual?

Questions and answers

Summary of Contents for Funtronix SCORE-N-TIME SNT-300BB

  • Page 1 FUNTRONIX SCORE-N-TIME MID-SIZED PORTABLE WIRELESS BASEBALL SCOREBOARD OPERATING MANUAL Model SNT-300BB Revised January 7, 2016...
  • Page 2 Thank you for purchasing a Funtronix Score-N-Time Portable Electronic Scoreboard. At Funtronix, our motto is “Electronic Fun for Everyone”. By offering a line of affordable electronic scoreboards, our goal is to add a little fun to your sports and leisure activities.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION PAGE Product Features and Highlights Section 1: Scoreboard Setup Section 2: Using your scoreboard Section 3: Charging the wireless keypad Section 4: Pairing the scoreboard and keypad Section 5: Care and Maintenance Section 6 Troubleshooting Guide Section 7: Product Specifications PRODUCT FEATURES ...
  • Page 4: Section 1: Scoreboard Setup

    SECTION 1: SCOREBOARD SETUP 1. If you are using the scoreboard without an AC adapter, open the two battery covers located on the back-side of the scoreboard and install 8 C-size alkaline batteries (not included). Close the battery covers. 2. Charge the wireless keypad as described in Section 3.
  • Page 5: Section 2: Using Your Scoreboard

    SECTION 2: USING YOUR SCOREBOARD LAYOUT OF THE SNT-300BB SCOREBOARD KEYPAD Hold the button for approximately 3 seconds when you’re ready to reset your current game. Use the Home buttons to control the Home-Team score, and the Away , and buttons to control the Away-Team score.
  • Page 6: Section 3: Charging The Wireless Keypad

    SECTION 3: CHARGING THE WIRELESS KEYPAD The wireless keypad contains a rechargeable battery. While the charge of the keypad battery will typically last between 1 to 2 weeks (depending on usage), we recommend charging your keypad the night before each use of the scoreboard. The charging indicator will light up orange to indicate the keypad is charging.
  • Page 7: Section 5: Care And Maintenance

    SECTION 5: CARE AND MAINTENANCE Keep your scoreboard clean for optimum viewing of the display.  Never spray cleaning solutions directly onto the scoreboard or keypad.  Use only ammonia-free window cleaning solution. To clean your scoreboard, spray the cleaner onto a clean cloth. Lightly wipe the scoreboard or keypad with the damp cloth until clean.
  • Page 8: Section 7: Product Specifications

    Up to 24 hours continuous use – mid brightness level Up to 15 hours continuous use – high brightness level POWER ADAPTER SPECIFICATION: Use Only Funtronix AC adapter 120VAC input, 12V 2 A DC output. Part Number: PS-12V-3000: 5.5mm x 2.1mm barrel connector, center-positive.
  • Page 9 Write down your product serial number for your records. SN: _________________________ Please visit our website for new products and accessories for your scoreboard: www.funtronixonline.com...
