- Page 1 Quick Start Ethernet Switch Ethernet Switch Gigabit Industry PoE 55624 1.01 07/2024...
-
Page 2: Connecting The Ethernet Devices

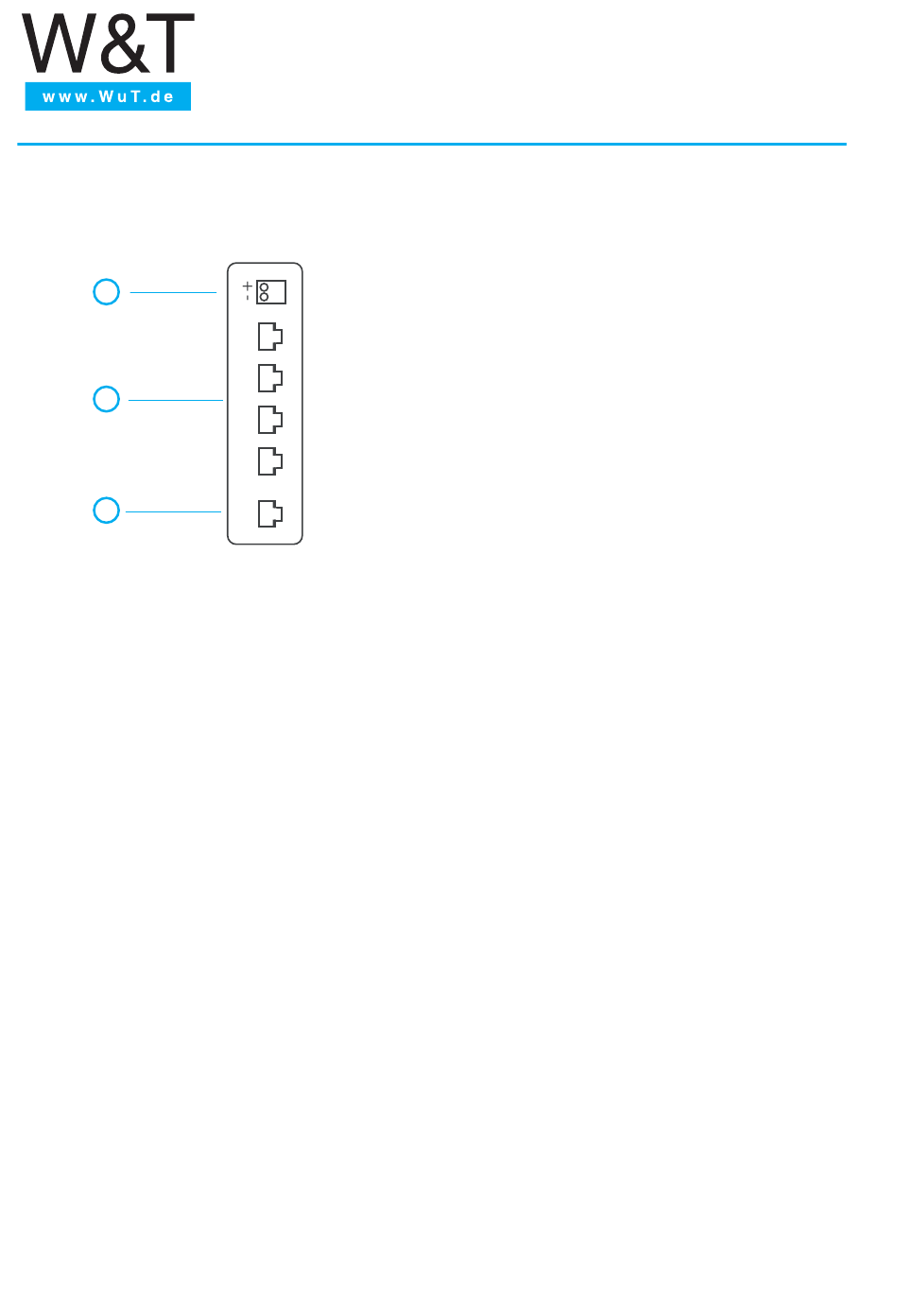

All other information, technical data and applications for your device, can be found on the Internet via the corresponding links on the device data sheet at: www.wut.de/55624 2 Connecting the Ethernet devices The W&T Ethernet Switch Gigabit Industry PoE has five equal RJ45 Ethernet ports for connecting Ethernet end devices. -
Page 3: Led Indicators
3 LED Indicators Orange LED on: Link established 10/100Mbps Orange LED flashes: Active connection Green LED on: Link established 1000Mbps 4 Power supply Supply with external power supply unit The device must be supplied with an external power supply unit. To do this, connect the plus and minus wires to the termi- nals marked “+”... -
Page 4: Technical Data
5 Technical Data Network 5x 10/100/1000BT autosensing Auto MDI/MDI-X Auto Crossover Support IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az Supply voltage Plug-in terminal block: DC 9V .. 30V (+/-10%) Power consumption @9-30V DC <2,2W (without connected PoE devices) Idle 0,64 W / Max: 2,31 W / PoE Max: 62,3 W PoE Output PoE Ports: 1-4... - Page 5 There are therefore no EMC-related restrictions with regard to the usability of the devices in these environments. The declaration of conformity, further legal information and detailed safety instructions can be found in the main instructions on the relevant Internet data sheet page at https://www.wut.de/55624.
- Page 6 For further support please contact our team of technicians: Wiesemann & Theis GmbH Porschestr. 12 42279 Wuppertal Germany Web: www.wut.de E-Mail: info@wut.de Tel.: +49 (0)202 / 2680-110 Fax: +49 (0)202 / 2680-265...
