Mobius M9 Assembly

M O B I U S M 9 S O R T E R
UNCRATING
& ASSEMBLY (1/4)

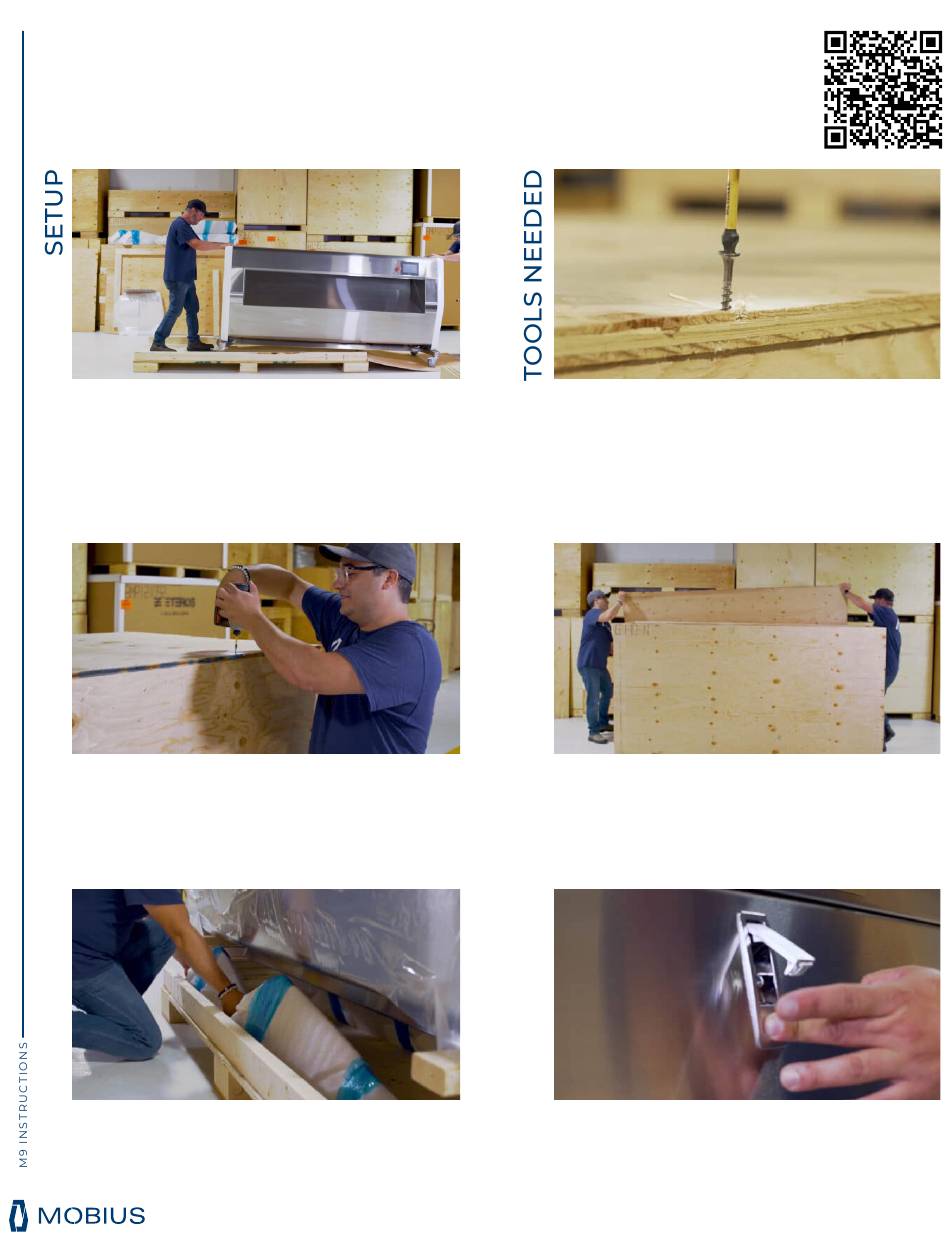

The Mobius M9 is a sizable machine; set yourself up
in an area with enough clearance to access all sides
of the crate. Once the crate top and side panels are
removed, the machine will be rolled off the end of the
crate base; it's vital to leave enough space at one end
to accommodate this.
01
First, remove the screws securing the top panel of the
crate and set this panel aside. Next, remove the two
screws from each end of the side panel that hold the
inner 2 x 4s in place.
03
Before we move the machine off the crate base, set
aside all of the loose parts: some of these parts are
resting on the crate base under the machine and some
are packed inside the machine.
Video instructions are available
online for your reference.
You'll need a drill with a Philips head bit and a 5/16ths
hex wrench. You will also need to have a total of three
people to carry out the uncrating process.
02
Now, remove the screws along the bottom of each
long side panel and set these panels aside. Finally,
remove the screws holding the end panels in place
and set these panels aside. Disassemble the crate.
04
To get to the parts that are packed inside the machine,
pop open the tabs on the rear access panel.
