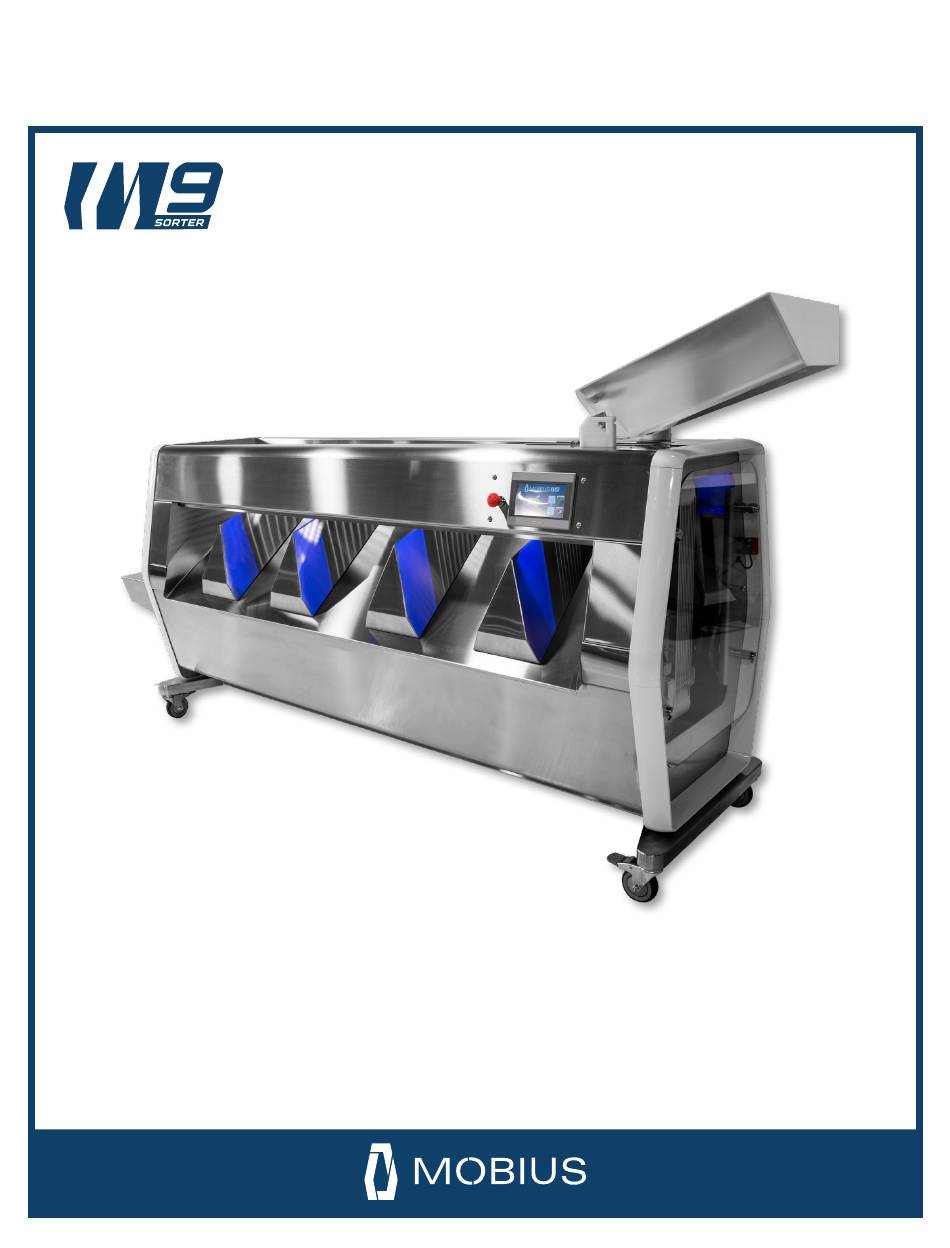

- Page 1 MOBIUS M9 SORTER USER GUIDE © 2 0 2 1 E T E R O S T E C H N O L O G I E S I N C . A L L R I G H T S R E S E R V E D .
- Page 2 CONTENTS...
-
Page 3: Table Of Contents
SPECIFICATIONS N OTES : This User Guide is a comprehensive manual covering the operation and maintenance of the M9 Sorter machine as of the date of publication. ETEROS TECHNOLOGIES reserves the right to make updates to the machine from time to time. In the event of an update, this User Guide will remain appropriate for the safe operation and maintenance of your unit. -
Page 4: Safety
SAFETY C O N T E N T S... -
Page 5: Safety Instructions
Guide. The M9 SORTER must be inspected regularly for damage, component failure, and wear. Results of inspection activity should be documented. ETEROS TECHNOLOGIES makes every effort to ensure the M9 SORTER is compliant with all current safety standards. It is the responsibility of the owner to ensure all municipal, provincial, state, county, territorial, and federal codes, regulations and standards have been met in each working location. -
Page 6: Warning Labels
Repairs may only be carried out by Eteros Technologies or a designated authorized agent (service technician). Should the need arise, please notify us: ETEROS TECHNOLOGIES 26 Industrial Ave. Carleton Place, Ontario, Canada K7C 3T2 www.eteros.com Improper interfacing, improper repair, or unauthorized modification could result in void warranty claims. MOBIUS M9 SORTER USER GUIDE... -
Page 7: General Safety Precautions
GENERAL SAFETY PRECAUTIONS 1. READ and become familiar with the entire User Guide. LEARN the equipment applications, limitations, and possible hazards. 2. DO NOT USE THE DEVICE IN A DANGEROUS ENVIRONMENT or damp or wet locations. Never expose the control panel directly to rain or water. Keep the work area well illuminated. 3. -
Page 8: Initial Setup
INITIAL SETUP C O N T E N T S... -
Page 9: Initial Assembly & Inspection
5. Attach Slide-outs by hooking them onto the edge of the Slide Out Table. This will allow Slide-outs to be adjustable 6. Once initial assembly is complete, inspect the M9 Sorter to confirm that it is ready to operate: • Confirm the power cord is in good condition •... - Page 10 A L L R I G H T S R E S E R V E D . M O B I U S T R I M M E R . C O M MOBIUS M9 SORTER USER GUIDE...
-
Page 11: Get To Know Your Sorter
GET TO KNOW YOUR SORTER GUIDE HOPPER 7" HMI SCREEN EMERGENCY STOP ADJUSTMENT BLOCK GRADING BAY DIVIDER GRADING TABLE CASTER W/ BRAKE INLET ROLLER INLET POLYCARBONATE SAFETY SENSOR BELT TENSIONER ADJUSTMENT PLUNGER MOTOR DRIVE ROLLER DRIVE ROLLER... -
Page 12: What's In The Crate
Y OUR S O RT ER CO M ES W I TH TH E FOLL OW I N G I T EMS: Your MOBIUS M9 SORTER comes lightly assembled, tested, and ready for operation. When unpacking the device, please ensure the following items are included: •... -
Page 13: Operation
OPERATION C O N T E N T S... -
Page 14: General Operation
9. Adjust Hopper to allow for flow of material onto the belts. 10. Adjust Slide Outs to desired sizing. 11. When totes are full, Press the Stop/Red Button on the HMI to stop belts from turning during tote changeover. MOBIUS M9 SORTER USER GUIDE... -
Page 15: Cleaning & Maintenance
CLEANING & MAINTENANCE C O N T E N T S... -
Page 16: Cleaning The Machine
CLEANING THE MACHINE The M9 Sorter is washdown rated. To clean the Sorter, proceed as follows: 1. Engage the E-Stop and disconnect the power cord. 2. Remove both endplate polycarbonate covers. 3. Open tailgate. 4. Using warm or hot water (maximum 55... -
Page 17: Specifications
SPECIFICATIONS Wet / Dry Capable Construction Anodized Aluminum & 304 Stainless Steel Speed Adjustments 11 Speed Settings Belt Material Polyurethane Number of Belts Belt Diameter 5/16" Belt Drive Motor 1/10 HP HMI Control Power Requirements 110 V, 1.5 A Tool-less Disassembly Fits through 32”... - Page 18 Eteros Technologies West Eteros Technologies East 202-17665 66A Ave. 26 Industrial Ave. Surrey, BC Carleton Place, ON V3S 2A7 K7C 3T2 1-866-874-6264 INFO@MOBIUSTRIMMER.COM MOBIUSTRIMMER.COM...
