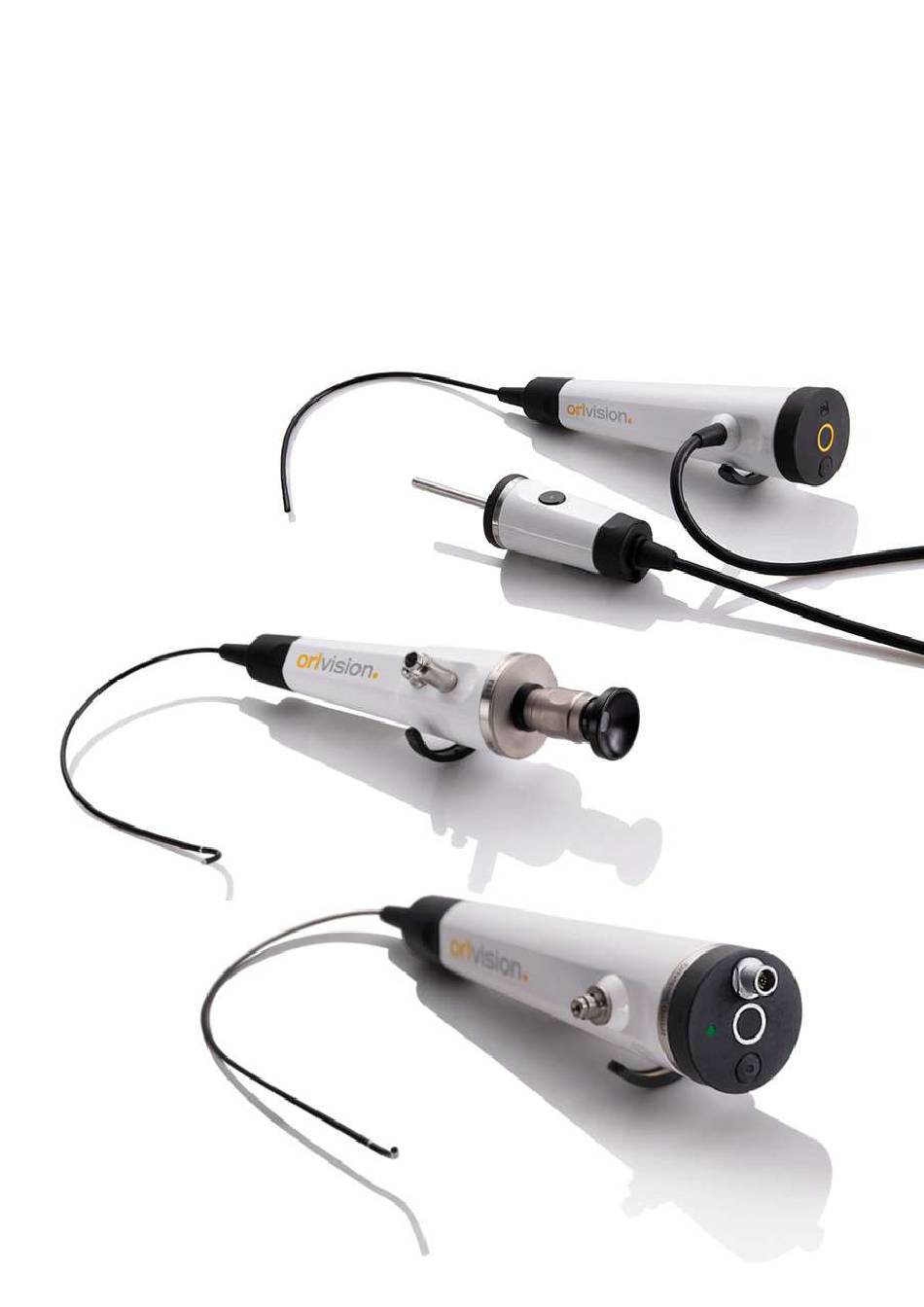

- Page 1 Instructions for use Rhino laryngoscopes Video types: RS1-PAL / RS1-NTSC / RX1 / RSX-USB / RSX-P / RSX-HD Fibre endoscope FS2 RS1-PAL / RS1-NTSC RSX-USB / RSX-P / RSX-HD Document is translated electronically!
-
Page 2: Table Of Contents
FS2 ..............................12 Manufacturer ............................13 Swiss representative ........................... 13 UK Authorised Representative ......................13 Use of the Rhino laryngoscopes ......................14 RX1, RS1-PAL, RS1-NTSC ......................14 9.1.1. Connection of the laryngoscope ................... 14 9.1.2. White balance ........................15 9.1.3. - Page 3 10.2.3. Disinfection ........................18 10.2.4. Automatic cleaning and disinfection programme ............. 19 10.3 Leak test ............................ 19 10.4 Care ............................19 Maintenance and repairs ....................... 21 11.1 Return shipment ........................21 Waste disposal ..........................21 Electromagnetic compatibility ......................22 13.1 Information on the operating environment: ................
-
Page 4: Risks And Hazard Warnings
1 Risks and hazard warnings 1. Please first check the packaging, the Rhino laryngoscope and the accessories for completeness and shipping damage. In the event of damage, make a note of the damage and inform your dealer or the manufacturer. 2. - Page 5 PC. Installing different software versions or other programmes on this PC may re- sult in malfunctions in the image display. orlvision accepts no liability for such faults. We recommend that you do not modify the Panel PC. Make sure that no saved image is being viewed when current examinations...
-
Page 6: Intended Use
2 Intended use The Rhino laryngoscopes RS1 / RX1 / RSX-USB / RSX-P / RSX-HD / FS2 are used for endo- scopic examinations in human ear, nose and throat medicine. The flexible rhino laryngoscopes can be used to examine the nose, pharynx and larynx, nasal cavities and nasopharynx. With the video types, the examination regions can be displayed on high-resolution screens via a (panel) PC. -
Page 7: Functionality And Application
Image processing 4.1.2.1. RS1 / RX1 With the RS1-PAL, RS1-NTSC and RX1 types, the image signal is transmitted in video format. This im- age format can be displayed directly on a monitor that has a corresponding video input (PAL; NTSC; HDMI). -
Page 8: Notes On Utilisation
The acquisition of medical expertise and its diagnostic and therapeutic consequences are the sole responsibility of the user of the medical device. -
Page 9: Rsx-Usb / Rsx-P / Rsx-Hd
There is a risk of burns. On request, we are also happy to offer you a wide range of adaptation options for light sources and endoscopes from other manufacturers and also for LED hand-held light sources. 4.5.2. Panel PC (available from orlvision) -
Page 10: Technical Data
5 Technical data RS1, RX1 Parameters RS1-PAL RS1-NTSC Focus area 10 - 55 mm 10 - 55 mm 10 - 55 mm Picture angle 90° 90° 90° Diameter distal end 3.9 mm 3.9 mm 3.9 mm Insertion tube diameter 3.9 mm 3.9 mm... -
Page 11: Rsx-Usb; Rsx-P; Rsx-Hd
RSX-USB, RSX-P, RSX-HD Parameters RSX-USB RSX-P RSX-HD Focus area 10 - 55 mm 10 - 55 mm 10 - 55 mm Picture angle 90° 90° 90° Diameter distal end 3.9 mm 2.9 mm 3.9 mm Insertion tube diameter 3.9 mm 2.9 mm 3.9 mm Distal angulation up / down... - Page 12 Parameters data Focus area 3 mm ± 1 to 50mm -5 / +10 Field of view (FOV) 90° ± 5° Diameter distal end 2.9 mm + 0 / -0.1 Insertion tube diameter 2.9 mm ± 0.1 Distal angulation up / down 130°...
-
Page 13: Manufacturer
6 Manufacturer The manufacturer of the Rhino laryngoscopes is orlvision GmbH Gewerbestrasse 17 D-35633 Lahnau Phone: +49(0) 64 41 67 92 98 - 0 Fax: +49(0) 64 41 67 92 98-99 info@orlvision.de www.orlvision.de 7 Swiss representative The Swiss representative is:... -
Page 14: Use Of The Rhino Laryngoscopes
9 Use of the Rhino laryngoscopes RX1, RS1-PAL, RS1-NTSC 9.1.1. Connection of the laryngoscope Figure 1: RX1 / RS1 connection Handpiece White balance Capture button Adjustment lever Light guide plug LED display Supply hose Valve for pressure test Multipoint plug... -
Page 15: White Balance
Attention: The monitor and light source must fulfil the requirements of the DIN EN 60601 standard! 9.1.2. White balance Caution: A white balance should be carried out before each examination so that the camera reproduces the natural colours. Figure 2: White balance RX1 / RS1 1: Handpiece 2: White balance 3: Capture button... -
Page 16: Inserting, Bending And Retracting The Insertion Tube (All Types)
Light guide cable or light from an external cold light source must be connected to connection (4) Figure 6: Elements on FS2 1: Adjustment lever 2: Flexible insertion tube 3: Connection for pressure test 4: Connection for fibre optic cable 5: Focussing device 6: Eyepiece Use the focussing device (5) to focus the image. -
Page 17: Cleaning
Picture: 7 Cover cap Plug Cap Naso Art. No. 000-00000-0020 10.1.1. Cleaning The Video Rhino laryngoscope must be carefully cleaned after each use. To do this, wipe all accessible external parts with a clean disposable cloth soaked in an appropriate disinfectant. We recommend for cleaning: 2% Sekusept®... -
Page 18: Cleaning
Caution: The laryngoscope is usually connected to the automatic pressure monitoring system during automated cleaning. If this is not done, we recommend using the optionally available cover cap M-860-0003-0086-P to protect the valve connection. It is also recommended to use this cover cap for manual cleaning. Picture:8 Cover cap article number 860-00003-0086 Picture: 9... -
Page 19: Automatic Cleaning And Disinfection Programme
10.2.4. Automatic cleaning and disinfection programme Automatic cleaning and disinfection process with programme no. 22 NORMAL-PAA with the following set- tings: Step Pre-cleaning for 4 minutes Emptying step Cleaning step 0.5% at 37°C for 6 minutes Cleaning step 0.5% at 43°C for 6 minutes ... - Page 20 No further special care is required. The laryngoscope must be stored in a dry place, protected from dust and damage.
-
Page 21: Maintenance And Repairs
The components of the Rhino laryngoscope are maintenance-free for their users. Repairs and mainte- nance work may only be carried out by orlvision or by specialist companies authorised by orlvision. The authorised companies will be provided with all necessary product documentation by orlvision. -
Page 22: Electromagnetic Compatibility
13 Electromagnetic compatibility 13.1 Information on the operating environment: The Video Rhino laryngoscopes are intended for less disturbed HF environments such as doctors' surger- ies. No shielded location is required. The FS2 laryngoscope is insensitive to electromagnetic interference. 13.2 Information on the performance characteristics ... - Page 23 Notes _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________...
- Page 24 GmbH Gewerbestrasse 17 D-35633 Lahnau Phone +49(0)6441679298-0 Fax +49(0)6441679298-99 info@orlvision.com www.orlvision.com Rev. 02 from 30.10.2024...
