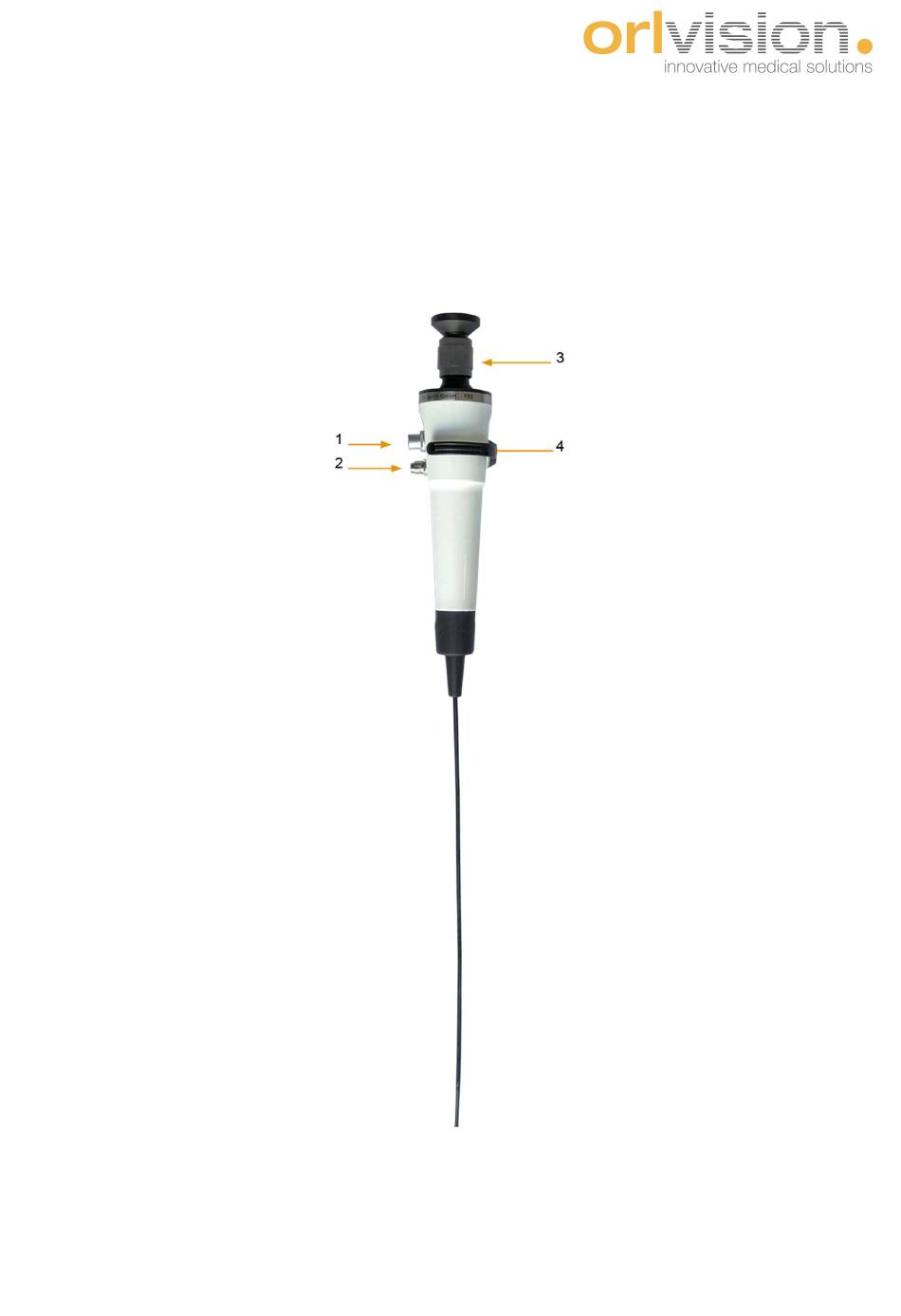

- Page 1 Instructions for use Rhino Laryngoscope Type FS2 1. Connection for light guide 3. focusing 2. Connection for pressure tester 4. angling lever...
-
Page 2: Table Of Contents
Application .............................6 Functionality...........................6 Notes on use..........................6 Scope of delivery ...........................7 Technical data, manufacturer and accessories ..................8 Technical data Rhino Laryngoscope FS2 ..................8 Manufacturer ............................9 Swiss Representative ..........................9 UK Authorised Representative .......................9 Recommended accessories ........................ 10 Using the Rhino Laryngoscope ...................... 11 10.1... -
Page 3: Risks And Hazard Warnings
1 Risks and hazard warnings 1. Please first check the packaging, the Rhino Laryngoscope and the accessories for completeness and shipping damage. In case of damage, make a note of the damage and notify your dealer or the manu- facturer. 2. - Page 4 Caution: Avoid direct sunlight, sudden strong temperature fluctuations or mechanical stress such as hard impacts and kinking of the insertion tube. Attention: The operational safety and usability of the medical device depend not only on your skills, but also on the care of the device.
-
Page 5: Intended Use
Caution: The Rhino Laryngoscope FS2 may only be used on persons who have a sufficiently large body opening for the insertion of the insertion tube. This is especially important for nasal examinations in children. The optical quality of the endoscope is only guaranteed in the image plane area. If you focus out- side the sharp image plane area, it is possible to detect foreign particles within the optical system. -
Page 6: Functionality And Application
4 Functionality and application Application The flexible Rhino Laryngoscopes FS2 of orlvision GmbH (hereinafter referred to as orlvision) are high- quality medical products. They are used for endoscopic examination in human ear, nose and throat medi- cine. The flexible Rhino Laryngoscopes can be used to examine the nasopharynx. -
Page 7: Scope Of Delivery
Scope of delivery The scope of delivery for the flexible Rhino Laryngoscope is as follows: The Rhino Laryngoscope: Handpiece with insertion tube and the connection sockets for the light guide to the cold light source and for connection to the pressure tester. ... -
Page 8: Technical Data, Manufacturer And Accessories
5 Technical data, manufacturer and accessories Technical data Rhino Laryngoscope FS2 Parameter Data Focus area 3 mm ± 1 to 50mm -5 / +10 Field of view (FOV) 90° ± 5 Diameter distal end 2.9 mm + 0 / -0.1 Diameter insertion tube 2.9 mm ±... -
Page 9: Manufacturer
6 Manufacturer The manufacturer of the Rhino laryngoscope FS2 is: orlvision GmbH Industrial Road 17 D-35633 Lahnau Tel: +49 (0) 64 41 67 92 98 - 0 Fax: +49 (0) 64 41 67 92 98-99 info@orlvision.de www.orlvision.de 7 Swiss Representative... -
Page 10: Recommended Accessories
9 Recommended accessories Only use a medically approved cold light source. Attention: The light source must meet the requirements of the DIN EN ISO 60601-1 standard! The connection on the Rhino laryngoscope is compatible for light guides with ACMI / Storz / Wolf endoscope connection. -
Page 11: Using The Rhino Laryngoscope
10 Use of the Rhino Laryngoscope 10.1 Insert, angle and retract the insertion tube. Carefully insert the insertion tube into the regions to be examined (nasal and pharyngeal cavities). If nec- essary, the distal end can be adjusted by 130° with the angling lever (see illustration) . The level of ad- justment should be tested in a free trial. -
Page 12: Cleaning, Care And Disinfection
11 Cleaning, care and disinfection 11.1 Manual procedures In accordance with KRINKO/BfArM recommendations, the machine method is always the preferred method for reprocessing. 11.1.1. Cleaning The laryngoscope must be carefully cleaned after each use. To do this, wipe it with a clean disposable cloth soaked in an appropriate disinfectant on all accessible external parts. -
Page 13: Machine Processes
11.2 Machine processes We recommend the following procedures using the BHT INNOVA® E3 CMS DC washer-disinfector from CANTEL GmbH or an equivalent machine with the settings given below. 11.2.1. Cleaning Cleaning agent: 0.5 % Dr. Weigert neodisher Mediclean forte® Automatic cleaning process with programme no. 24 with the following settings: Step Pre-cleaning for 4 minutes Step Emptying Step Cleaning 0.5% at 37°C for 6 minutes... -
Page 14: Leak Test
Cover cap Article number M-860-00003-0086-P Valve cover cap fitted 11.3 Leak test Attention: The leak test must be carried out before each reprocessing! The light guide may be removed for the leak test. Connection Leak Tester Attention: The connection tube of the pressure tester and the connection of the pressure tester to the laryngoscope must be dry! Place the valve adapter firmly on the connection of the pressure tester and turn them a quarter turn clock- wise. -
Page 15: Maintenance
The components of the Rhino Laryngoscope are maintenance-free for their users. Repairs and mainte- nance work may only be carried out by orlvision or by specialist companies authorised by orlvision. The company orlvision provides the authorised companies with all necessary product documentation. - Page 16 Notes _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________...
- Page 17 Notes _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________...
- Page 18 GmbH Gewerbestrasse 17 D-35633 Lahnau Tel. +49(0)6441679298-0 +49(0)6441679298-99 info@orlvision.com www.orlvision.com Rev. 17, 01.12.2022 Document is translated electronically...
