orlvision RSX-USB Instructions For Use Manual

Video rhino laryngoscope
Hide thumbs Also See for RSX-USB:
Table of Contents

Advertisement

Quick Links

Download this manual

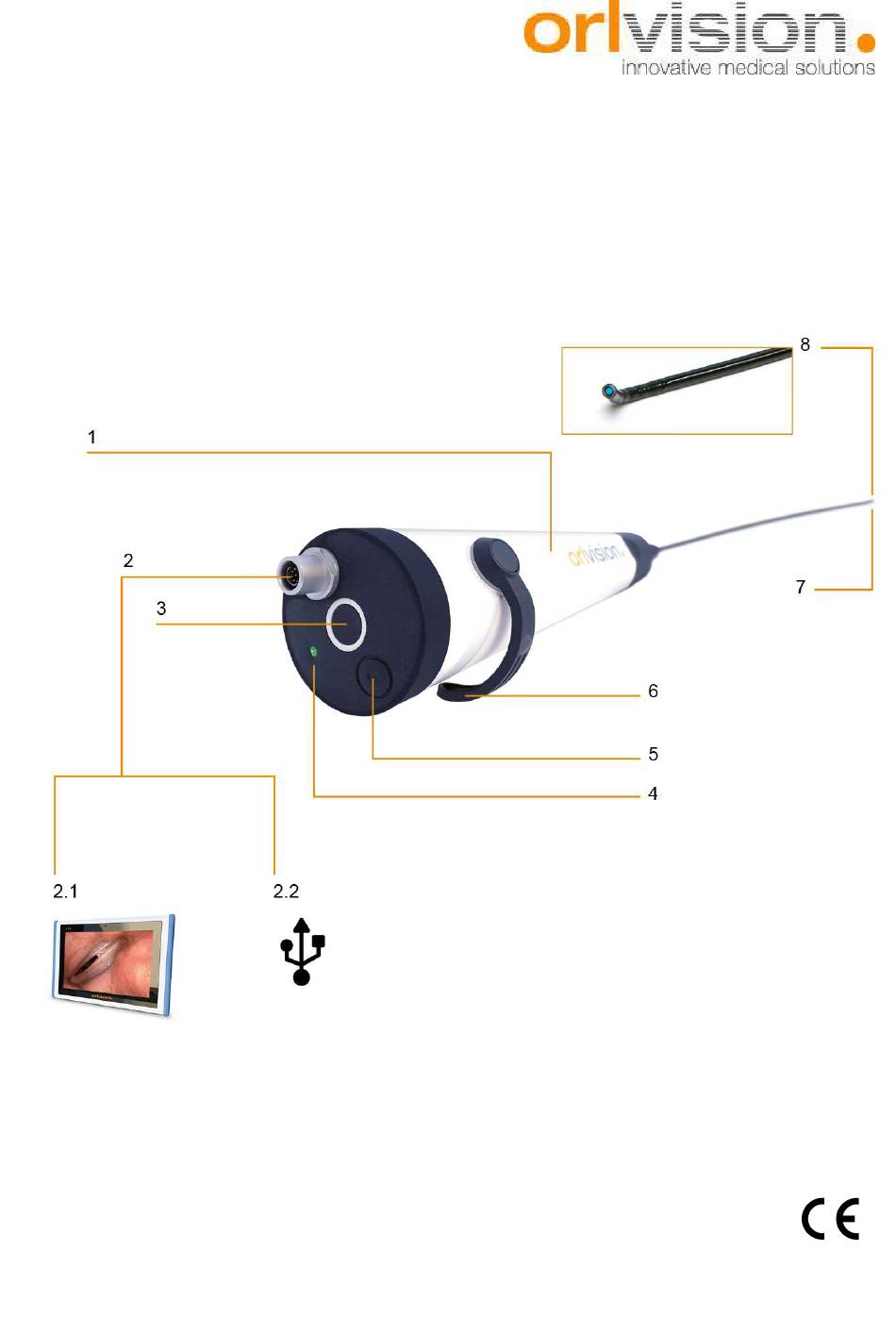

1
Integrated LED
2
USB interface
2.1 Tablet PC
2.2 USB
3
Power on/off
without function for devices from 06/2024
Instructions for use
Video Rhino Laryngoscope
Type RSX-USB / RSX-P / RSX-HD
Video Rhino Laryngoscope
4
Status LED
5
Release button
6
Probe control
7
Distal end
8
Sensor with precise optics
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSX-USB and is the answer not in the manual?

Questions and answers

Related Manuals for orlvision RSX-USB

Summary of Contents for orlvision RSX-USB

  • Page 1 Instructions for use Video Rhino Laryngoscope Type RSX-USB / RSX-P / RSX-HD Video Rhino Laryngoscope Integrated LED Status LED USB interface Release button 2.1 Tablet PC Probe control 2.2 USB Distal end Power on/off Sensor with precise optics without function for devices from 06/2024...

  • Page 2: Table Of Contents

    Contents Risks and hazard warnings ........................3 Intended use ............................5 Symbols used ............................5 Functionality and application ........................6 Application .............................6 Image processing ..........................6 Functionality...........................6 Notes on utilisation ........................6 Scope of delivery ...........................7 Technical data ............................8 Manufacturer ............................9 Swiss Representative ..........................9 UK Authorised Representative .......................9 Using the Video Rhino Laryngoscope ....................

  • Page 3: Risks And Hazard Warnings

    DIN EN 60601-1 or IEC 60601-1. Otherwise, in unfavourable cases, the patient or user could be endangered. Attention: It is currently not possible to operate Orlvision devices with tablets, laptops or other computers that have ARM-based processors. Please only use computers with x86-64 processors. Caution:...
  • Page 4 Panel PC, which is available as an option. Installing different software versions or other programmes on this PC may result in malfunctions in the image display. Orlvision accepts no liability for such faults. We recommend that you do not modify the Panel PC.

  • Page 5: Intended Use

    Caution: The Video Rhino Laryngoscope RSX-USB / RSX-P and RSX-HD may only be used on persons who have a sufficiently large body opening for the insertion of the insertion tube. This is particularly important for nasal examinations in children.

  • Page 6: Functionality And Application

    The acquisition of medical expertise and its diagnostic and therapeu- tic consequences are the sole responsibility of the user of the medical device.

  • Page 7: Scope Of Delivery

    Scope of delivery The scope of delivery for the flexible Video Rhino laryngoscope includes  the Video Rhino laryngoscope handpiece with insertion tube and the connector plug for the USB connection and the  Connection Cable (article no. M-820-02001-0046)  A leak tester (article no.

  • Page 8: Technical Data

    5 Technical data Parameters RSX-USB data RSX-P data RSX-HD data Focus area 10 - 55 mm 10 - 55 mm 10 - 55 mm Picture angle 90° 90° 90° Diameter distal end 3.9 mm 2.9 mm 3.9 mm Insertion tube diameter 3.9 mm...

  • Page 9: Manufacturer

    6 Manufacturer The manufacturer of the Video Rhino Laryngoscope RSX-USB / RSX-P / RSX-HD is orlvision GmbH Gewerbestrasse 17 D-35633 Lahnau Phone: +49(0) 64 41 67 92 98 - 0 Fax: +49(0) 64 41 67 92 98-99 info@orlvision.de www.orlvision.de 7 Swiss Representative...

  • Page 10: Using The Video Rhino Laryngoscope

    9 Use of the Video Rhino Laryngoscope Switch on The Video Rhino laryngoscope is switched on and off using the on/off switch (see Fig. 2) or switched on by connecting the connection cable to a PC, laptop or tablet. The on/off switch (2) has been disabled on all appliances since 06/2024 due to the design. Since then, the appliance has been switched on or off via the connection cable.

  • Page 11: Cleaning, Care And Disinfection

    10 Cleaning, care and disinfection According to KRINKO/BfArM recommendations, the automated process is always the preferred method for reprocessing. 10.1 Manual procedures Caution: A leak test (see chapter 10.3) must be carried out before each disinfection / insertion. In case of leakage, the Rhino laryngoscope must be discarded immediately and sent to the manufacturer for repair.

  • Page 12: Final Rinse

    Caution: Permanent immersion of the laryngoscope in concentrated alcohol leads to irreversible damage. If neces- sary, carry out a brief wipe disinfection. However, make absolutely sure that the alcohol can evaporate immediately after wipe disinfection. Caution: Under no circumstances should the USB cable be immersed in the disinfectant. The cable may only be cleaned and disinfected using wipe disinfection / surface disinfection.

  • Page 13: Automatic Cleaning And Disinfection Programme

    10.2.4. Automatic cleaning and disinfection programme Automatic cleaning and disinfection process with programme no. 22 NORMAL-PAA with the following set- tings:  Step Pre-cleaning for 4 minutes  Emptying step  Cleaning step 0.5% at 37°C for 6 minutes  Cleaning step 0.5% at 43°C for 6 minutes ...

  • Page 14: Leak Test

    10.3 Leak test Attention: The leakage test must be carried out before each reprocessing! Caution: The connection tube of the leak tester and the tester connection on the laryngoscope must be dry! Leak tester connection 1. Place the tester connection cap firmly on the tester connection and turn it a quarter turn clock- wise.

  • Page 15: Maintenance And Repairs

    The components of the Video Rhino laryngoscope are maintenance-free for their users. Repairs and maintenance work may only be carried out by orlvision or by specialist companies authorised by orlvision. The authorised companies will be provided with all necessary product documentation by orlvision.
  • Page 16 Notes _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________...
  • Page 17 Notes _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________...
  • Page 18 GmbH Gewerbestrasse 17 D-35633 Lahnau Phone +49(0)6441679298-0 Fax +49(0)6441679298-99 info@orlvision.com www.orlvision.com Rev. 28 from 15/08/2024...
