orlvision RSX-USB Instructions For Use Manual

Video rhino laryngoscope
Hide thumbs Also See for RSX-USB:
Table of Contents

Advertisement

Quick Links

Download this manual
1
Integrated LED
2
USB interface
2.1 Tablet PC
2.2 USB
3
Power on/off
Instructions for use
Video Rhino Laryngoscope
Type RSX-USB / RSX-P

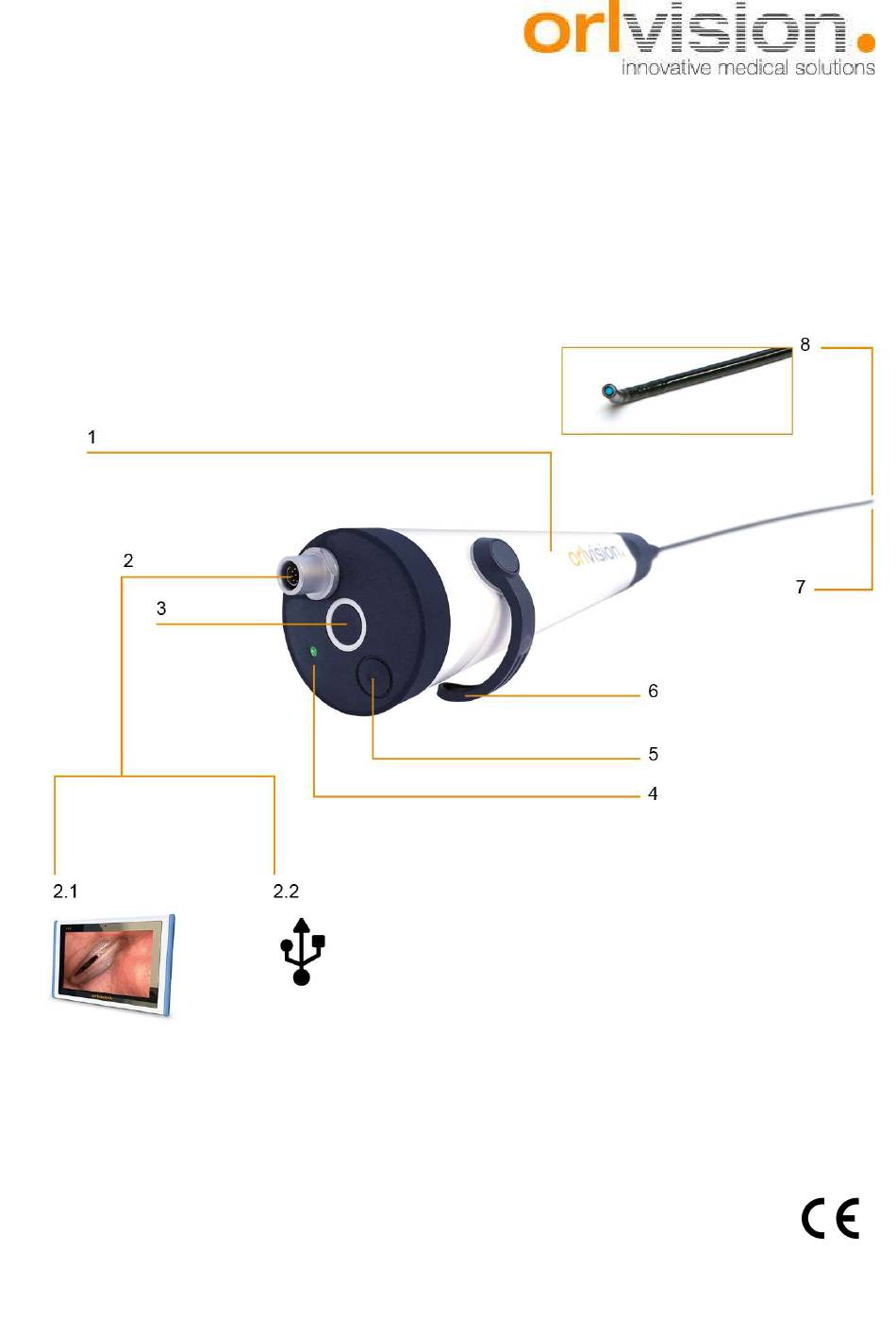

Picture 1:Video Rhino Laryngoscope
4Status
LED
5
Release button
6
Probe control
7
Distal end
8
Sensor with precise optics
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSX-USB and is the answer not in the manual?

Questions and answers

Related Manuals for orlvision RSX-USB

Summary of Contents for orlvision RSX-USB

  • Page 1 Instructions for use Video Rhino Laryngoscope Type RSX-USB / RSX-P Picture 1:Video Rhino Laryngoscope Integrated LED 4Status USB interface Release button 2.1 Tablet PC Probe control 2.2 USB Distal end Power on/off Sensor with precise optics...

  • Page 2: Table Of Contents

    Content Risks and hazard warnings ......................3 Intended use ............................. 5 Symbols used ........................... 5 Functionality and application ......................6 Application ..........................6 Image processing ........................6 How it works ..........................6 Notes on use..........................6 Scope of delivery ........................6 Technical data ..........................

  • Page 3: Risks And Hazard Warnings

    1 Risks and hazard warnings 1. Please first check the packaging, the Video Rhino Laryngoscope and the accessories for complete- ness and shipping damage. In case of damage, make a note of the damage and notify your dealer or the manufacturer. 2.
  • Page 4 PC, which is available as an option. The installation of different software versions or other pro- grammes on this PC may cause faults in the image display. Orlvision does not accept any guarantee for such faults. We recommend that you do not modify the Panel PC.

  • Page 5: Intended Use

    It is used exclusively in medical practices and clinics by staff specially trained in handling en- doscopes. Attention: The Video Rhino Laryngoscope RSX-USB / RSX-P may only be used on persons who have a suffi- ciently large body opening for the insertion of the insertion tube. This is especially important for nasal examinations in children.

  • Page 6: Functionality And Application

    The image of the examination region can be displayed on a PC equipped with a high-resolution screen via the USB interface. The RSX-USB laryngoscope is intended for use in clinics and doctors' surgeries and may only be used by personnel specially trained in handling endoscopes! Proceed with cleaning and disinfection as described in these instructions for use.

  • Page 7: Technical Data

    Video Rhino Laryngoscope handpiece with insertion tube and the connector for the USB connection and the  Connection Cable RSX-USB / RSX-P (Article no. M-820-02001-0046)  A hand air pump (Leak Tester; item no. M-860-00003-0057). for carrying out the leak test.

  • Page 8: Manufacturer

    6 Manufacturer The manufacturer of the Video Rhino Laryngoscope RSX-USB/RSX-P is orlvision GmbH Industrial Road 17 D-35633 Lahnau Tel.: +49(0) 64 41 67 92 98 - 0 Fax.: +49(0) 64 41 67 92 98-99 info@orlvision.de www.orlvision.de...

  • Page 9: Use Of The Video Rhino Laryngoscope

    7 Use of the Video Rhino Laryngoscope Switch on The Video Rhino Laryngoscope is switched on and off using the on/off switch (see Fig. 2). Figure 2: Operating elements on the handpiece 1 Save button 2 On-off switch 3 Status LED 4 Connector plug, attention: only plug in, do not turn The save button can be used to save an image.

  • Page 10: Cleaning, Care And Disinfection

    Make sure that the surfaces remain moist. Wipe with a dry disposable cloth afterwards. Alternatively, we recommend using Triamin disinfectant wipes from Wet Wipe (available from Orlvision). Contact time depending on possible organisms 5-15 minutes, see separate data sheet, available at www.wetwipe.eu .

  • Page 11: Final Rinse

    Caution: Permanent immersion of the laryngoscope in concentrated alcohol will cause irreversible damage. If necessary, perform a short wipe disinfection. However, make absolutely sure that the alcohol can evaporate immediately after the wipe disinfection. Attention: Under no circumstances should the USB cable be immersed in the disinfectant. The cable may only be cleaned and disinfected by wipe disinfection / surface disinfection.

  • Page 12: Leak Test

    Automatic cleaning and disinfection process with programme no. 22 NORMAL-PAA with the following settings:  Step Pre-cleaning for 4 minutes  Step Emptying  Step Cleaning 0.5% at 37°C for 6 minutes  Step Cleaning 0.5% at 43°C for 6 minutes ...

  • Page 13: Care

    The components of the Video Rhino Laryngoscope are maintenance-free for their users. Repairs and maintenance work may only be carried out by the company orlvision or by specialist companies au- thorised by it. The company orlvision provides the authorised companies with all necessary product documentation.

  • Page 14: Return

    EU directives 2012/19/EU. Disposal can be carried out by the manu- facturer. For this purpose, please send to the manufacturer at: Orlvision GmbH, Gewerbestraße 17, D-35633 Lahnau. Disposal in household waste is prohibited. 11 Electromagnetic compatibility 11.1...

  • Page 15: Electromagnetic Emission

    Parameter Data RSX-USB Data RSX-P Conducted RF according to EN 61000- 3 V/m 4-6, levels according to EN 60601-1-2, ISM frequencies 6 V/m 150 kHz - 80 MHz 11.5 Electromagnetic emission HF interference emission (Radiated Emission) according to CISPR 11;...
  • Page 16 Notes _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________...
  • Page 17 GmbH Gewerbestrasse 17 D-35633 Lahnau Tel. +49(0)6441679298-0 Fax +49(0)6441679298-99 info@orlvision.com www.orlvision.com Rev. 21 from 01.06.2022...
