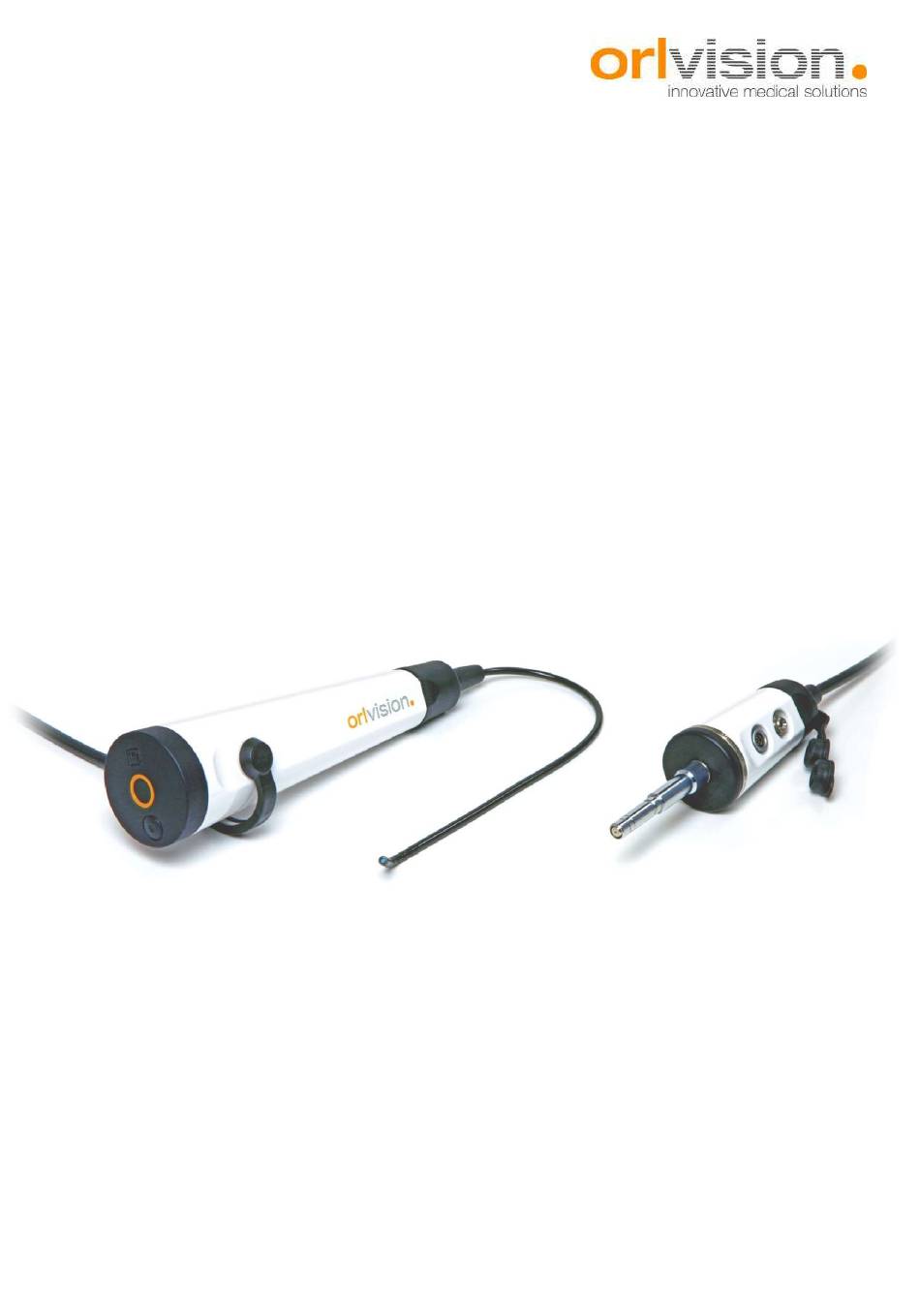

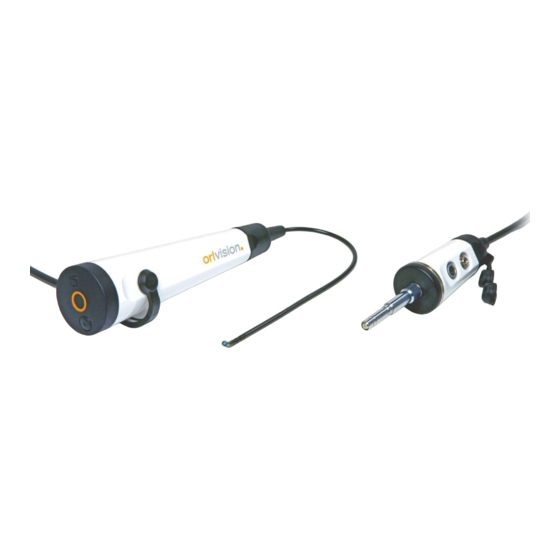

- Page 1 Instructions for use Video Rhino Laryngoscope RX1, RS1-PAL, RS1-NTSC...
-
Page 2: Table Of Contents
Content Risks and hazard warnings ......................3 Notes ............................3 Intended use ............................. 4 Symbols used ........................... 5 Functionality and application ......................6 General ............................ 6 Notes on use..........................6 Application ..........................6 How it works ..........................6 Scope of delivery ........................7 Technical data .......................... -
Page 3: Risks And Hazard Warnings
1 Risks and hazard warnings Notes 1. The Video Rhino Laryngoscopes RS1 and RX1 are only designed for use in hospitals and clinics without direct connection to the public supply network. 2. Please first check the packaging, the Video Rhino Laryngoscope and the accessories for complete- ness and shipping damage. -
Page 4: Intended Use
It is used exclusively in medical practices and clinics by staff specially trained in handling en- doscopes. Caution: The Video Rhino Laryngoscope RX1, RS1-PAL, RS1-NTSC may only be used on persons who have a sufficiently large body opening for the insertion of the insertion tube. This is especially important for nasal examinations in children. -
Page 5: Symbols Used
3 Symbols used The symbols used have the following meaning On the type plate: Attention, follow instructions for use Symbol for separate collection of electrical and electronic equipment Applied part type BF In the instructions for use: Caution, general danger area IP 68 Unit is dust-tight and protected against permanent submersion Unit complies with protection class II... -
Page 6: Functionality And Application
The flexible Video Rhino Laryngoscopes can be used to examine the nasophar- ynx. The image of the examination region can be displayed on a high-resolution screen and saved. The RS1/RX1 laryngoscope is intended exclusively for use in clinics and may only be used by person- nel specially trained in handling endoscopes! Perform a white balance before each use (see section 7.1). -
Page 7: Scope Of Delivery
OLYMPUS types are not included in the scope of delivery) Plug Cap Naso this operating manual 5 Technical data Data Video Rhino Laryngoscope Parameter RX1 / RS1 Focus area 10 - 55 mm Angle of view 90° Diameter distal end 3.9 mm... -
Page 8: Electromagnetic Radiation
With regard to radiation and interference immunity, the RS1 laryngoscope fulfils the conditions of the EN 60601-1-2:2007 (IEC 60601-1-2:2007, modified), Emission class A Intended for use in hospitals without direct connection to the public supply network! The RX1 laryngoscope complies with EN 60601-1-2:2007 (IEC 60601-1-2:2007, modified) with regard to radiation and immunity. 6 Manufacturer... -
Page 9: Recommended Accessories
7 Recommended accessories Cold light source Only use a medically approved cold light source! For example: Light source orlLED 180, ILO Laryngeal Stroboscope HighLight Plus, Inventis Monitor Only use a medically approved monitor! 8 Connection of the Video Rhino Laryngoscope Handpiece White balance Capture Button... -
Page 10: Use Of The Video Rhino Laryngoscope
The Video Rhino Laryngoscope should be connected as follows. See also figure 1. Plug the power supply unit into a mains socket (100 - 240 V AC, 50 - 60 Hz). The secondary connection of the power supply unit must be plugged into the connector into which the video cable for the monitor is also plugged. -
Page 11: Switch Off
Make sure that the surfaces remain moist. Wipe with a dry disposable cloth afterwards. Alternatively, we recommend Triamin disinfectant wipes from Wet Wipe (available from Orlvision). Contact time depending on possible organisms 5-15 minutes, see separate data sheet, available at www.wetwipe.eu . -
Page 12: Final Rinse
Caution: To protect the 9-pole plug connection, we recommend using the enclosed cover cap “Plug Cap Naso“. Fig. 4: Cover cap “Plug Cap Naso“ Caution: Permanent immersion of the laryngoscope in concentrated alcohol will cause irreversible damage. If necessary, perform a short wipe disinfection. However, make absolutely sure that the alcohol can evaporate immediately after the wipe disinfection. - Page 13 Caution: Before each cleaning or disinfection / insertion, a leak test (see chapter 9.3) must be carried out. In case of leakage, the Rhino Laryngoscope must be discarded immediately and sent to the manufac- turer for repair. In case of leakage, the disinfection will be ineffective! Pre-cleaning: Pre-cleaning with pre-soaked cloths with 0.5 % Dr.
-
Page 14: Leak Test
Figure 6: Valve cover cap fitted 10.3 Leak test Caution: The leak test must be carried out before each reprocessing! Caution: The connection tube of the leak tester and the tester connection on the laryngoscope must be dry! Place the tester connector cap firmly on the tester connector and turn it clockwise a quarter turn (see figure 3). -
Page 15: Care
The components of the Video Rhino Laryngoscope are maintenance-free for their users. Repairs and maintenance work may only be carried out by the company orlvision or by specialist companies au- thorised by it. The company orlvision provides the authorised companies with all necessary product documentation. - Page 16 These instructions for use have been machine translated. Orlvision GmbH Gewerbestrasse 17 D-35633 Lahnau Tel. +49(0)6441679298-0 Fax +49(0)6441679298-99 info@orlvision.com www.orlvision.com Rev. 25, 25.11.2021...
