Summary of Contents for Spectra HV1305C

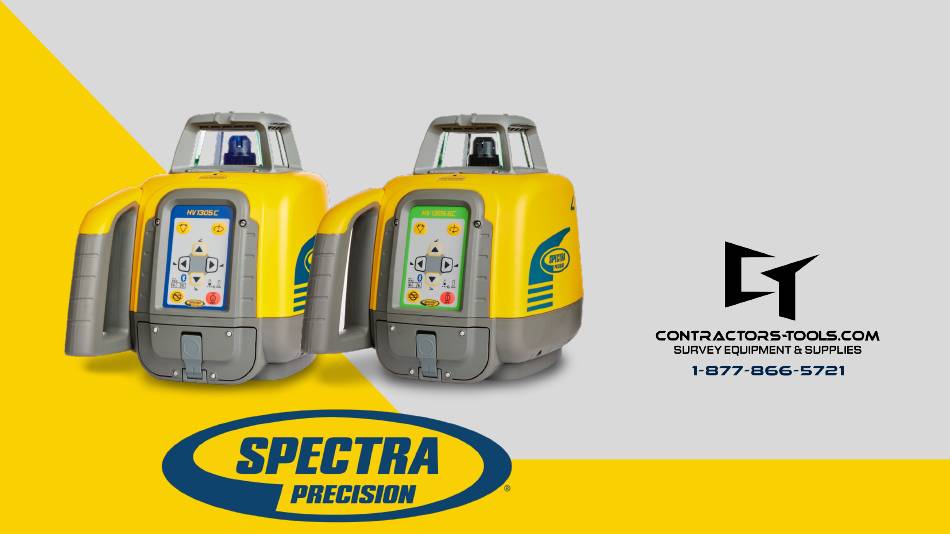

- Page 1 HV1305(G)C Horizontal / Vertical Laser Hands-on ©2025 Spectra Precision | All Rights Reserved ©2025 Spectra Precision | All Rights Reserved...
- Page 2 Level- / Bluetooth LED Left/right button (X axis) Shock Warning (HI) LED Up/Down button (Y axis) Manual LED Standby LED Battery Status LED Manual mode / Escape / Standby button Power button ccontractors ©2025 Spectra Precision | All Rights Reserved...
- Page 3 HV1305(G)C Peripherals Sighting guides Scope notches Battery door latch Beam Exit 5/8“ X 11 Handle Battery door Charger jack ©2025 Spectra Precision | All Rights Reserved ©2024 Spectra Precision | All Rights Reserved...
- Page 4 HV1305(G)C Peripherals Indication of the positive Y slope Indication of the positive X slope 5/8“ X 11 for vertical Serial label including the laser safety label ©2025 Spectra Precision | All Rights Reserved ©2024 Spectra Precision | All Rights Reserved...
- Page 5 The design prevents miss-insertion. Charger worldwide If using 4 x D-Cell alkaline batteries, (CH10) note the plus (+) and minus (-) diagramm within the battery pocket. ©2025 Spectra Precision | All Rights Reserved ©2024 Spectra Precision | All Rights Reserved...
- Page 6 LCD display Menu button Enter button Left/right button (X axis) Up/Down button (Y axis) Battery Status LED Manual mode / Escape / Standby button Power button ©2025 Spectra Precision | All Rights Reserved ©2024 Spectra Precision | All Rights Reserved...
- Page 7 Turning On the RC1402 Press the Power button to turn on the radio remote control. Using the RC1402 the HV1305GC and HV1305C provide more features that are not available via the laser only. Turning Off the RC1402 Press and hold the Power button for two seconds.
- Page 8 6. The RC1402 display show „Pairing OK“ for one second. Finally the RC1402 shows the laser information to indicate the laser has been machted with the remote control. ©2025 Spectra Precision | All Rights Reserved ©2024 Spectra Precision | All Rights Reserved...
- Page 9 (HL760 power button) twice to show the receiver standard display. 16. Result: the receiver display shows the laser and antennna symbol to confirm the radio connection: ©2025 Spectra Precision | All Rights Reserved ©2024 Spectra Precision | All Rights Reserved...
- Page 10 (CR700 menu button) once to show the receiver standard display. 15. Result: the receiver display shows the laser and antennna symbol to confirm the radio connection: ©2025 Spectra Precision | All Rights Reserved ©2024 Spectra Precision | All Rights Reserved...
- Page 11 The LCD shows „Initialisation“ and for one second the software revision. The LCD shows the mask mode and for a few seconds the battery status. Power button ©2025 Spectra Precision | All Rights Reserved ©2024 Spectra Precision | All Rights Reserved...
- Page 12 Shock warning (HI-alert) has been activated. Using the RC1402 remote control, pressing and holding the E button shows the current rotation speed, the internal product temperature and battery status. Status LED ©2025 Spectra Precision | All Rights Reserved ©2024 Spectra Precision | All Rights Reserved...
- Page 13 Turn off the laser Press and hold the Power button for two seconds turns off the laser. Power button ©2025 Spectra Precision | All Rights Reserved ©2024 Spectra Precision | All Rights Reserved...
-
Page 14: Standby Mode
RC1402 remote control) shows „Standby“. Press and hold the manual button for three seconds to deactivate standby mode and HI/MAN LED restore full operations of the laser. Manual button ©2025 Spectra Precision | All Rights Reserved ©2024 Spectra Precision | All Rights Reserved... -
Page 15: Manual Mode
To resume the automatic self-leveling mode, press the manual button three times. Up/down and left/right arrow buttons MAN LED Manual button ©2025 Spectra Precision | All Rights Reserved ©2024 Spectra Precision | All Rights Reserved... -
Page 16: Mask Mode
The display on the RC1402 remote control indicates which section of the laser has been turned off. Note: The laser always powers on with the mask mode deactivated. Up/down and left/right arrow buttons Manual button ©2025 Spectra Precision | All Rights Reserved ©2024 Spectra Precision | All Rights Reserved... -
Page 17: Rotation Speed
0, 10, 100, 200, 300 and 600 rpm regardless if the unit is in automatic or manual mode. Using the up/down arrow buttons, the rotation speed can be increased by increments of 10 starting with 100 rpm. Rotation button Up/down arrow buttons ©2025 Spectra Precision | All Rights Reserved ©2024 Spectra Precision | All Rights Reserved... -
Page 18: Scan Mode
5° increments. Note: when in vertical setup, pressing and holding the up/down arrow buttons move th line scan clockwise or counterclockwise. Scan mode button Left/right arrow buttons ©2025 Spectra Precision | All Rights Reserved ©2024 Spectra Precision | All Rights Reserved... - Page 19 When the X axis is in Single Axis Slope Mode use the left and right arrow buttons to slope the X axis while the Y axis remains in self-leveling mode. Red and green LED is flashing to indicate Single Axis Slope Mode Manual button ©2025 Spectra Precision | All Rights Reserved ©2024 Spectra Precision | All Rights Reserved...
- Page 20 Exiting PlaneMatch can be done by pressing the Manual button twice where the unit always goes back to automatic mode. Red and gree LED is flashing to indicate Single Axis Slope Mode Manual button ©2025 Spectra Precision | All Rights Reserved ©2024 Spectra Precision | All Rights Reserved...
