Spectra RC601 Instructions

Spectra RC601
INSTRUCTIONS
from Laser Levels Online www.laser-level.co.uk Tel: 08000 869 769

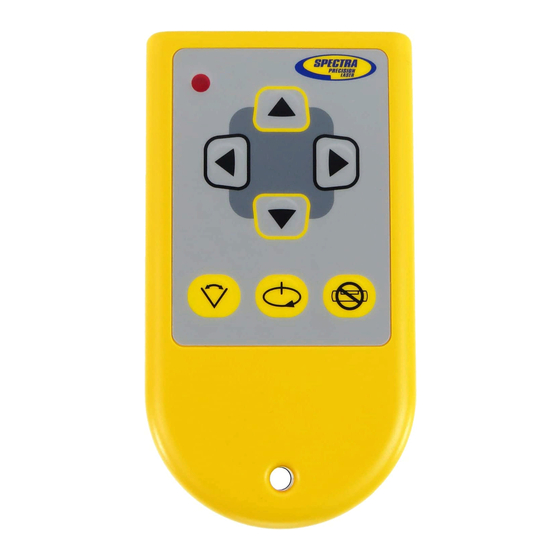

Thank you for purchasing the Spectra Precision RC601 Remote Control.
These instructions are intended to explain the quick basics to operating this
equipment. If you need any more information, or the unit requires calibration
or repair, then please contact our Service Dept on tel. 01246 260 007.
We are here to help.

Compatibility:

For use only with the following Spectra Precision Laser Levels:
HV101 / HV201 / HV301 / HV401 / HV601 & LL100 / LL300 / LL400
and the new "N" range:
LL100N / LL100N-3 / LL100N-5 and LL300N.
Please note:
The RC601 CANNOT be used to turn the Laser ON or OFF (a feature not
available on any Spectra Precision laser levels).

Power source:

Unscrew the battery cover & remove carefully.
Fit 1 x supplied 9V alkaline battery. Take care with correct polarity as marked
on the case. Refit the battery cover. The RC601UK will accept a rechargeable
battery but there is no provision for charging in the remote control. You will
need to charge this battery externally. We would also recommend that a
spare battery is kept in the laser's carry case, as a back-up.
1
