Summary of Contents for Spectra HV101
- Page 1 HV101 User Guide Bedienungsanleitung Manuel de l´utilisateur Guida per l´uso spectraprecision.com Gúia del usuario Gebruikershandleiding Operatörshandbok Betjeningsvejledning Guia do Usuário Bruksanvisning Käyttäjän opas Οδηγίες χρήσης Руководство пользователя...
- Page 5 This page left blank intentionally. Diese Seite wurde absichtlich leer gelassen. Cette page laissée vide intentionnellement. Esta página se dejó en blanco intencionalmente.
-
Page 6: Table Of Contents

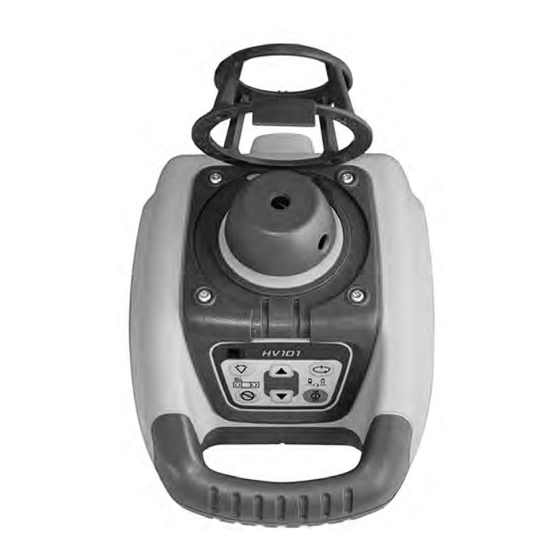

Thank you for choosing one of the Spectra Precision Lasers from the family of precision horizontal/vertical lasers. The HV101 is a simple-to-use laser that allows you to take accurate horizontal/vertical measurements, 90°- and plumb point transfer. TABLE OF CONTENTS FOR YOUR SAFETY... -
Page 7: Components
Caution: Use of other than the described user and calibration tools or other procedures may result in exposure to hazardous laser light. Caution: Using different than described at the HV101 user guide, may result in unsafe operation. COMPONENTS Power Button... -
Page 8: Activating/Deactivating Standby Mode
Activating/Deactivating Standby Mode Standby mode is a power-saving feature that conserves laser battery life. Press and hold the laser’s or remote control’s manual button for 3 seconds to activate standby mode. Note: When standby mode is activated, the laser beam, rotor, self-leveling system, and LEDs shut down, but the HI alert remains activated. -
Page 9: Applications
laser or the remote control, while the X-axis remains in automatic self leveling mode (e.g. when setting up sloped ceilings or drive ways). To activate the X-axis single slope mode, press the manual button (1 second) after the right arrow button at the remote control has been pressed and released. -
Page 10: Using The Y-Axis Single Slope Mode
1. Set up the laser over the reference point (A). 2. Look over the rotor to align the laser to the desired direction hub in the axis that is supposed to be used in automatic self-leveling mode. Turn the laser on the tripod until it is properly aligned. -
Page 11: Checking Calibration Of The Z (Vertical) Axis
Z (Vertical) Axis Checking Calibration of the Z (Vertical) Axis To check vertical calibration, you need a plumb bob with at least 10 m (30 ft) of string. 1. Suspend the plumb bob from the ceiling of a room whose ceiling height is at least 10 m (30 ft). -
Page 12: Protecting The Environment
WARRANTY Spectra Precision LLC warrants the HV101 to be free of defects in material and workmanship for a period of 2 years. Spectra Precision LLC or its authorized service center will repair or replace, at its option, any defective part, or the entire product, for which notice has been given during the warranty period. - Page 13 DECLARATION OF CONFORMITY Spectra Precision (Kaiserslautern) GmbH declare under our sole responsibility that the product HV101 to which this declaration relates is in conformity with the following standards IEC/EN/UL 61010; IEC/EN 60825; EN 61000-4-2, 2001; EN 61000-6-3:2001; EN 55022, 2003; EN 61000-6-2:2005;...
- Page 14 Spectra Precision LLC 3265 Logistics Lane, Suite 200 Dayton, Ohio 45377 U.S.A. spectraprecision.com © 2023, Spectra Precision (USA) LLC. All rights reserved. PN Q103740 Rev. F (04/23)
