Summary of Contents for Spectra LL100N

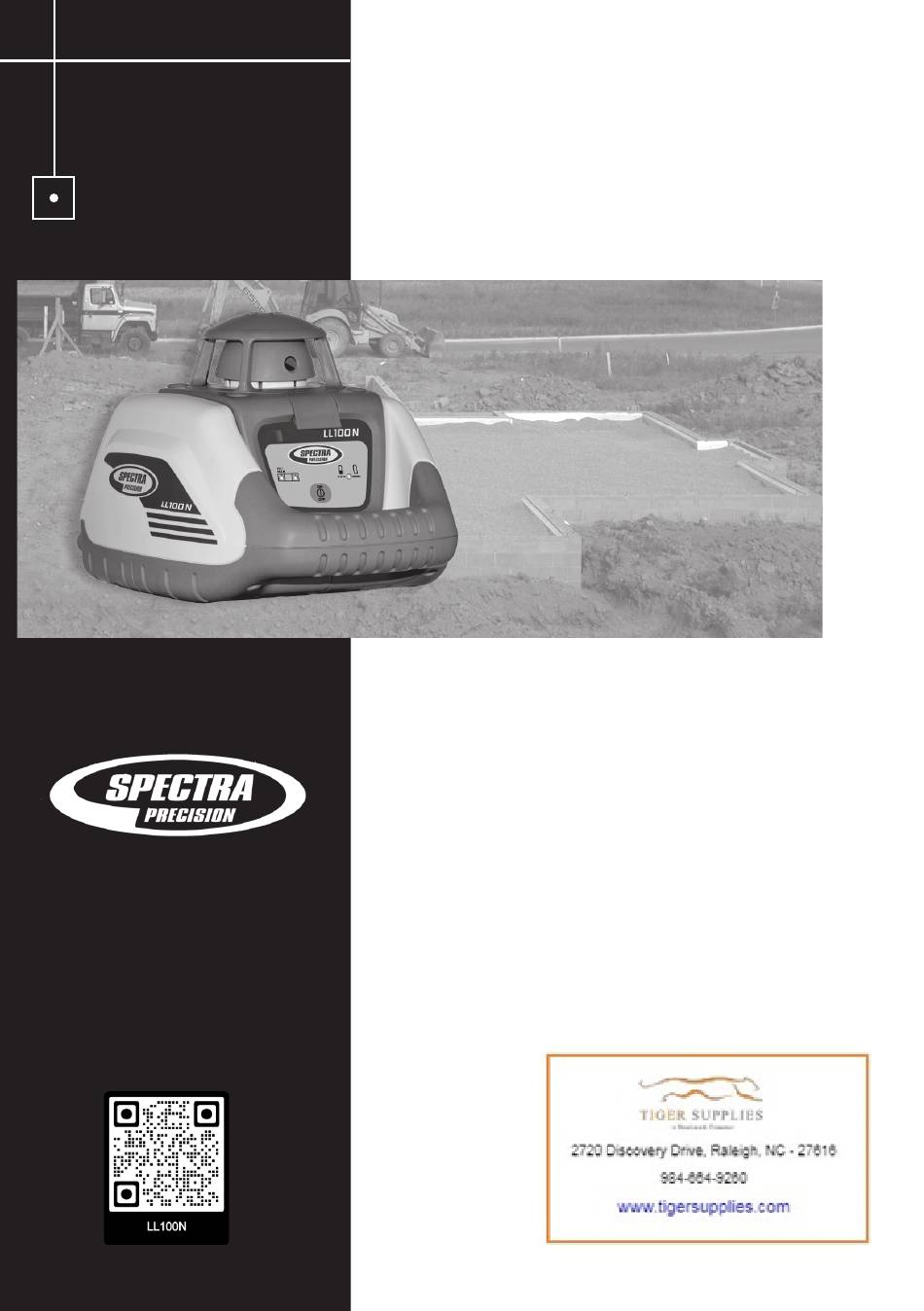

- Page 1 LL100N User Guide Bedienungsanleitung Manuel de l´utilisateur Guida per l´uso spectraprecision.com Gúia del usuario Gebruikershandleiding Operatörshandbok...
- Page 3 Optional Remote Control Optionale Fernbedienung Télécommande en option Telecomando opzionale Control remoto opcional Optionele Afstandsbediening Fjärrkontroll som tillval Valgfri fjernbetjening Controle remoto opcional Valgfri fjernkontroll Valinnainen kaukosäädin Προαιρετικό τηλεχειριστήριο Пульт дистанционного управления (опция)
- Page 5 This page left blank intentionally. Diese Seite wurde absichtlich leer gelassen. Cette page laissée vide intentionnellement. Esta página se dejó en blanco intencionalmente.
- Page 6 Thank you for choosing one of the Spectra Precision Lasers from the family of precision horizontal lasers. The LL100N is a simple-to-use laser that allows you to take accurate horizontal measurements, using a hand- held or rod mounted receiver. TABLE OF CONTENTS...
- Page 7 COMPONENTS Power Button Battery LED Manual/Standby Button (remote control) Leveling LED Manual/HI-Warning LED Up and Down Arrow Buttons (remote control) Left and Right arrow Buttons (remote control) Infrared-receiver for remote control Removable Rotor Cage Sighting Guides Rotor/Beam Exit Handle Battery compartment/door 5/8x 11 Tripod Mounts Rubber feet How to Use the Laser System...
- Page 8 To let you know that the laser is in standby mode, the battery LED flashes every 4 seconds. To deactivate standby mode and restore full operation of the laser, press and hold the remote control’s manual button for 3 seconds. The laser and all other functions turn on again.
- Page 9 6. Set the grade rod on the slope axis direction hub to adjust the laser’s elevation without changing the height of the receiver on the grade rod (C). 7. Press the up and down arrow buttons until you get an on-grade reading on the receiver. 8.
- Page 10 Warranty Spectra Precision LLC warrants the LL100N to be free of defects in material and workmanship for a period of 2 years. Spectra Precision LLC or its authorized service center will repair or replace, at its option, any defective part, or the entire product, for which notice has been given during the warranty period.
- Page 11 DECLARATION OF CONFORMITY Spectra Precision (Kaiserslautern) GmbH declare under our sole responsibility that the product LL100N to which this declaration relates is in conformity with the following standards EN 61000-6- 3:2007 + A1:2010, EN 61000-6-2:2005 and EN 60825-1:2014 following the provisions of directive Electromagnetic compatibility 2004/108/EC.
- Page 12 Spectra Precision 3265 Logistics Lane, Suite 200 Dayton, Ohio 45377 U.S.A. spectraprecision.com © 2023, Spectra Precision (USA) LLC. All rights reserved. PN 94038 Rev. F (02/23)
