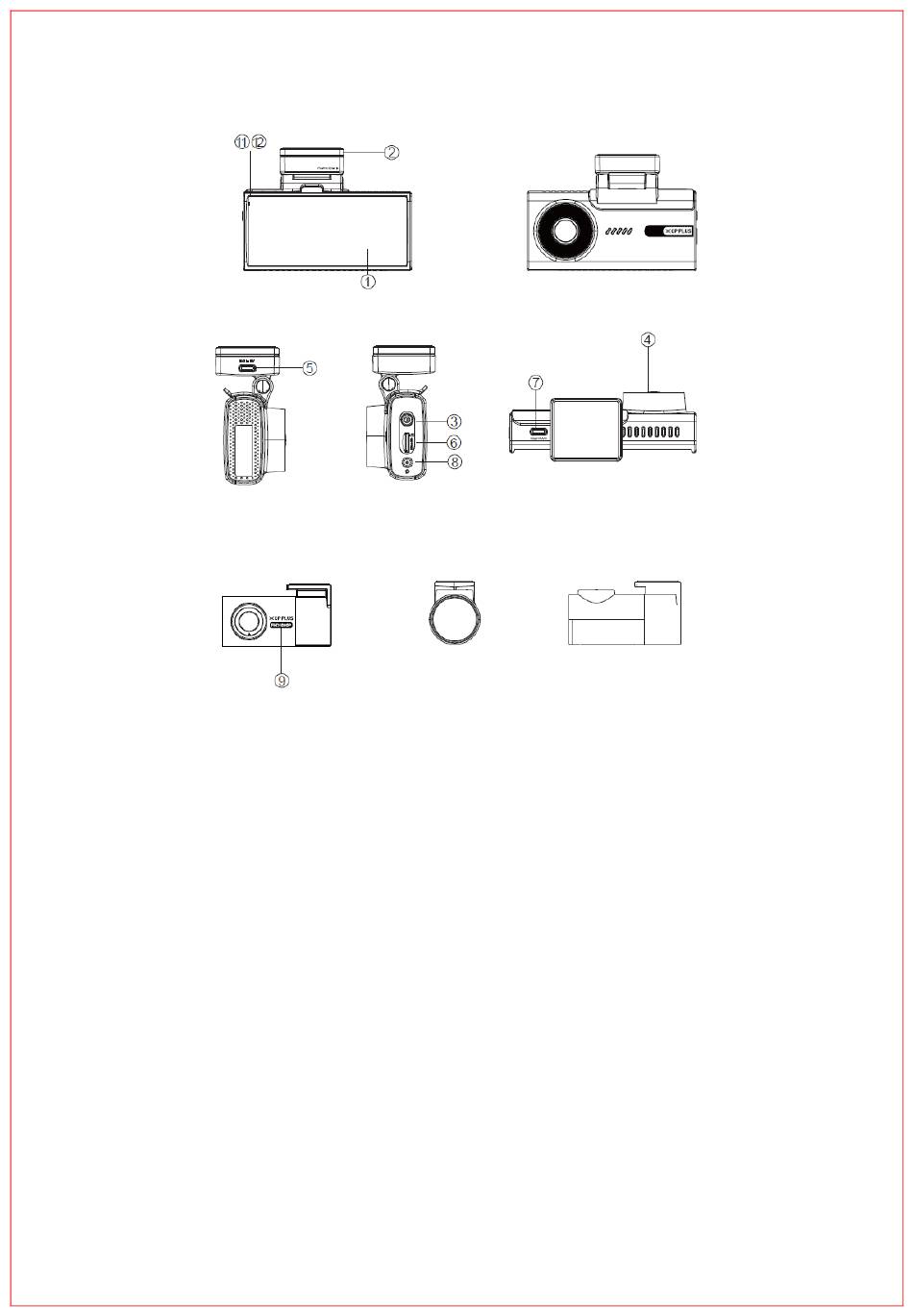

1. Overview of the CarKam 4K Front & Rear
Note: As this product is subject to active development, some functions may differ from those
presented in this manual. Please refer to the actual product for accurate information.
a) Touch Screen
b) Bracket Adhesive
c) Power
d) Camera Lens
e) Type-C USB Charge Connector
f) Micro SD Card Connector
g) Rear Cam Connector
h) Restart Hole
i) Rear Camera
j) Blue LED - The Blue LED will flash on while the Dash Cam is recording.
k) Red LED - The Red LED is permanently on while the Dash Cam is active.
Figure No. 1
