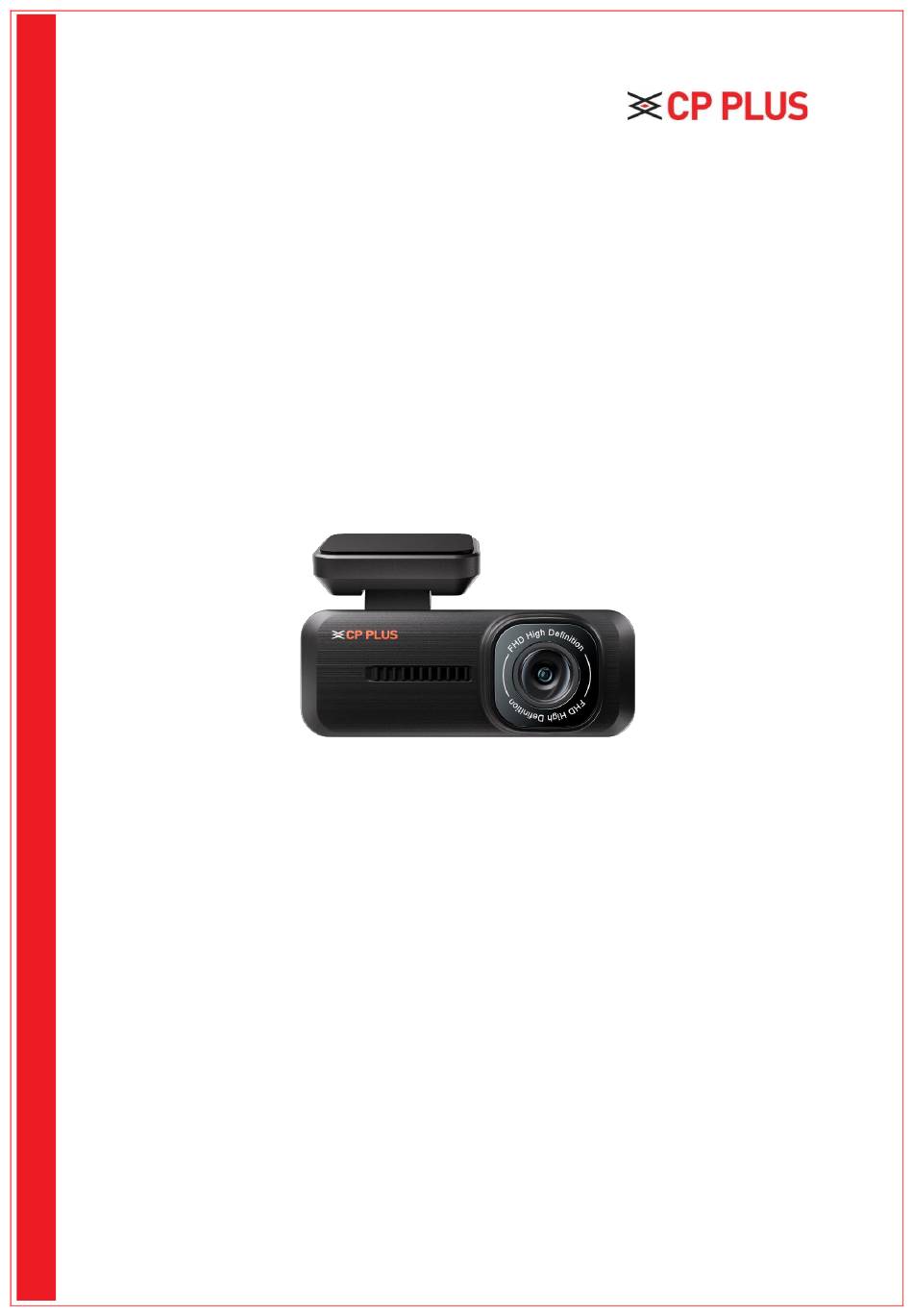

- Page 1 Quick Installation Guidance CarKam CP-W22 Version 1.0...
-
Page 2: About The Quick Start Guide
About the Quick Start Guide This document serves as the user manual for Dashcam. Before utilizing this product, we strongly advise carefully reading through this document to ensure proper usage. • This document provides instructions on how to use the product, focusing on its default settings, for quick reference. -
Page 3: Table Of Contents
Table of Contents About the Quick Start Guide ....................2 Table of Contents ........................3 Key Functions ........................5 2.1 Indicator Light ......................... 5 Installation process......................6 3.1 SD Card ..........................6 Install electrostatic stickers ..................7 Mounting the Dashcam ................... 8 Connect Power Cable .................... - Page 4 1. Overview of the CarKam 2MP Wi-Fi Dashcam Figure No.1 Note: As this product is subject to active development, some functions may differ from those presented in this manual. Please refer to the actual product for accurate information. Description Bracket Adhesive Camera Lens Micro SD Card Connector Mini USB Charge Connector...
-
Page 5: Key Functions
2. Key Functions The Dashcam has only one key, the power key. Various functions can be accessed by pressing the power key a specific number of times for each function. Action Function Press once Turn on Press three times in a row Format memory card Press and hold for 10 seconds Factory Reset... -
Page 6: Installation Process
3. Installation process. 3.1 SD Card Insert the SD card into the slot with the contact side facing up, Ensure the SD card is fully installed until you hear a (click) sound. Figure No.2 Note: After inserting a compatible MicroSD card, the Dashcam automatically enters the recording mode each time it is turned on. -
Page 7: Install Electrostatic Stickers
3.2 Install electrostatic stickers Position the electrostatic sticker within the dotted area on the windshield, avoiding the edges. Choose a clean spot on the glass. Clean the surface thoroughly before applying the sticker and press out any bubbles for a smooth finish. Tear off the large electrostatic sticker and stick it on the front windshield at a suitable place. -
Page 8: Mounting The Dashcam
3.3 Mounting the Dashcam Peel off the protective tape from the high-temperature adhesive on the base of the bracket. Place the recorder into the designated area outlined by the dotted frame on the electrostatic sticker. Tear off the 3M tape, stick the device on the electrostatic sticker, and adjust the device angle Figure No.4... -
Page 9: Connect Power Cable
3.4 Connect Power Cable Connect the USB Power cable to Front Dashcam and embed it properly Figure No.5... -
Page 10: Usb Cable Installation
3.5 USB Cable Installation Please use a pry tool to conceal the power line under the roof upholstery and seal the rubber ring along the A-pillar. Note: Depending on the vehicle’s style, the location of the car charger may vary. The figure below is for reference purposes only. -
Page 11: Connect Car Charger To Vehicle
3.6 Connect Car Charger to vehicle As shown in the figure, Connect the car charger and insert the power cable into the car charger. Note-: Power On/Off Method The Dashcam supports the following methods for powering on & off: When the vehicle car charger is plugged in and the vehicle is started, the charger will draw power from the car, automatically activating the Dashcam. -
Page 12: Quick Add On Carkam App
4. Quick add on CarKam App 4.1 Download App To download and install the CarKam app, either scan the QR code provided inside the box or search for it on the Google Play Store & Apple Store. Add CarKam Open the Wi-Fi settings of the mobile phone, •... - Page 13 Thank You for Choosing CP Plus! Toll Number 8800952952 Website: - www.cpplusworld.com Email id: - sales@cpplusworld.com; carkamsupport@cpplusworld.com...
