Summary of Contents for CP Plus CarKam CP-G41

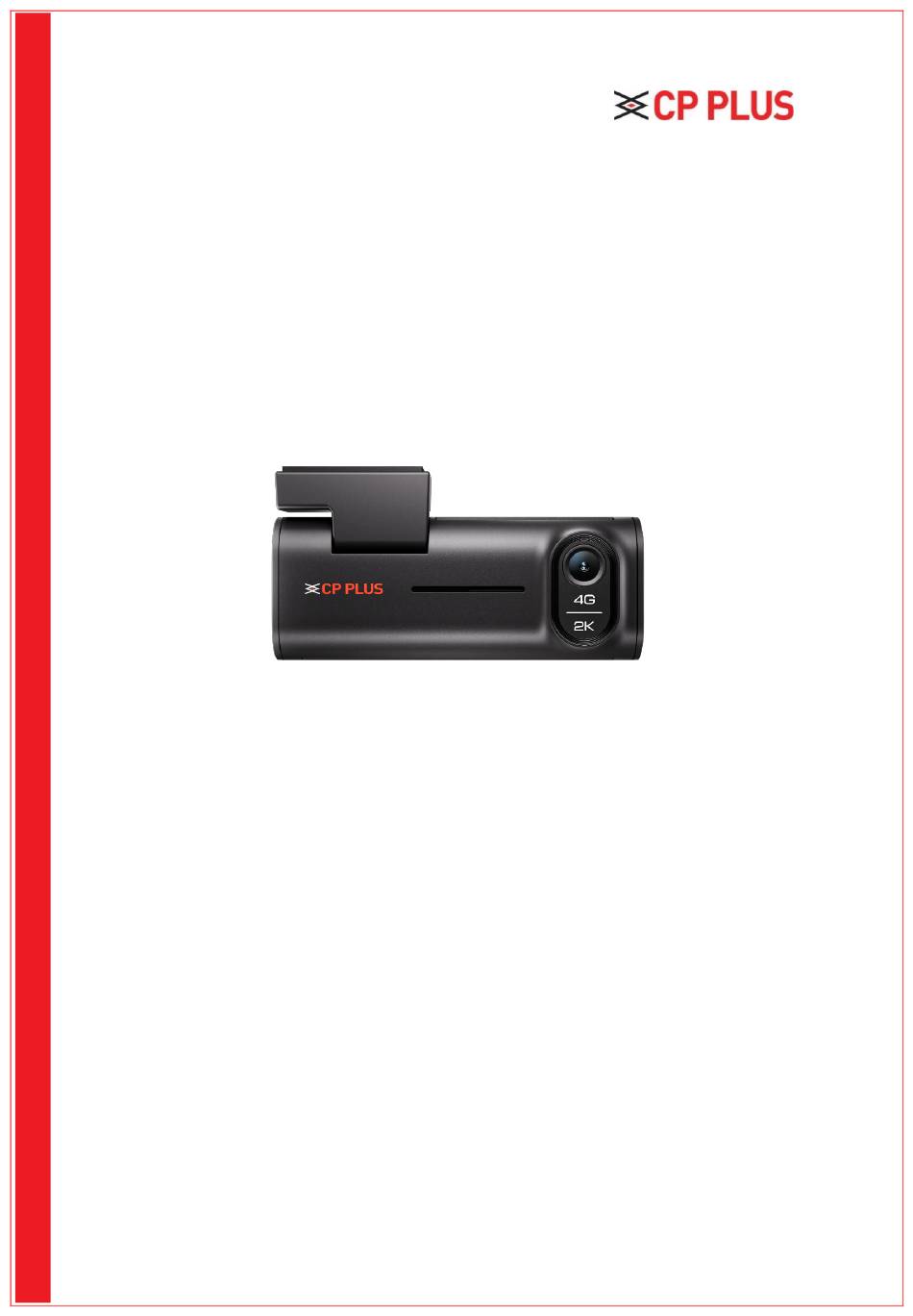

- Page 1 CarKam 4G CP-G41 4MP 4G Dashcam Quick Installation Guide Version 1.0.1...
- Page 2 About the Quick Installation Guide This document serves as a quick installation guide for Dashcam. Before utilizing this product, we strongly advise carefully reading this document to ensure proper usage. • This document provides instructions on how to use the product, focusing on its default settings, for quick reference.
-
Page 3: Table Of Contents
Table of Contents Product Overview ......................4 Key Functions ........................5 Indicator Light ........................5 Installation process ......................6 4.1 SD Card ......................6 4.2 SIM Card Installation ..................6 4.3 Install electrostatic stickers ................. 7 4.4 Mounting the Dashcam ..................8 4.5 Connect the USB cable and embed it .............. -
Page 4: Product Overview
1. Product Overview Figure No. 1 Description Bracket Adhesive Camera Lens TYPE-C USB Charge Connector SIM Card Slot Micro SD Card Slot Speaker Restart Hole Snapshot Audio/Format Power Light LTE Light REC Light MIC Hole... -
Page 5: Key Functions
2. Key Functions The Dashcam has only one key, the power key. Various functions can be accessed by pressing the power key a specific number of times for each function. Snapshot Button Short press Snapshot capture Audio Button Short press Turn off/on audio Press &... -
Page 6: Installation Process
4. Installation process 4.1 SD Card Insert the SD card into the slot, Ensure the SD card is fully installed until you hear a (click) sound Figure No. 2 4.2 SIM Card Installation Insert the Micro SIM card into the slot, Ensure the SD card is fully installed until you hear a (click) sound Figure No. -
Page 7: Install Electrostatic Stickers
4.3 Install electrostatic stickers Position the electrostatic sticker within the dotted area on the windshield, avoiding the edges. Choose a clean spot on the glass. Clean the surface thoroughly before applying the sticker and press out any bubbles for a smooth finish. Tear off the large electrostatic sticker and stick it on the front windshield at a suitable place. -
Page 8: Mounting The Dashcam
4.4 Mounting the Dashcam Peel off the protective tape from the high-temperature adhesive on the base of the bracket. Place the recorder into the designated area outlined by the dotted frame on the electrostatic sticker. Tear off the 3M tape, stick the device on the electrostatic sticker, and adjust the device angle Figure No. -
Page 9: Use The Pry Tool To Fix The Cable
4.6 Use the Pry Tool to fix the cable Please use a pry tool to conceal the power line under the roof upholstery and seal the rubber ring along the A-pillar. Note: Depending on the vehicle’s style, the location of the car charger may vary. The figure below is for reference purposes only Figure No. -
Page 10: Connect Car Charger To Vehicle
4.7 Connect Car Charger to Vehicle As shown in the figure, Connect the car charger and insert the power cable into the car charger. Power On/Off Method The Dashcam supports the following methods for powering on and off: Automatic Power On: When the car charger is plugged in and the vehicle is started, the charger draws power from the car and automatically activates the Dashcam. -
Page 11: Quickly Add The Dashcam To The Mobile App
5. Quickly add the Dashcam to the Mobile App. 5.1 Download the App To download and install the ezykam+ app: • Scan the QR code available on the device packaging box or Search for "ezykam+" on the Google Play Store or Apple Store. Figure No. -
Page 12: Log In
6.3 Log In: Use the credentials created during sign-up to log in to the Ezykam+ app. Figure No. 11 6.4 Add the Dashcam: • "+" After signing in, open the app and click the icon at the top-right corner of the home page. -
Page 13: Scan The Qr Code Or Barcode
• Select the Dashcam category and specify the model to be added. Figure No. 13 6.4 Scan the QR Code: Align the QR code within the frame to scan it, located on the back of the device. Figure No. 14... -
Page 14: Device Registration
6.5 Device Registration: After scanning, the device will take a few moments to register on the cloud. Once registered, the device will appear online, and you can check the live view. Figure No. 15 Note: Ensure that the Dashcam is powered on and the camera is connected to the internet before proceeding. - Page 15 Thank You for Choosing CP Plus! Toll Number 8800952952 Website: - www.cpplusworld.com Email id: - sales@cpplusworld.com carkamsupport@cpplusworld.com...
