ASSEMBLY INSTRUCTION
Tools Required to Assemble the Machine:
Two Adjustable Wrenches and Two Allen Wrenches
STEP 1
(See Diagram 1)
A.) Attach the Lat Bar Holder (#9) to the Main Frame (#2). Secure it with two M10 x 3"
Carriage Bolts (#32), M10 Aircraft Nuts (#45), 27/8" Washers (#47) and one 4 3/4"
Bracket (#30).
B.) Attach the Front Stabilizer (#4) to the Main Frame (#2). Secure it with two M10 x 24º
Carriage Bolts (#65), M10 Aircraft Nuts (#45), 7/8" Washers (#47) and one 4 3/8"
Bracket (#26).

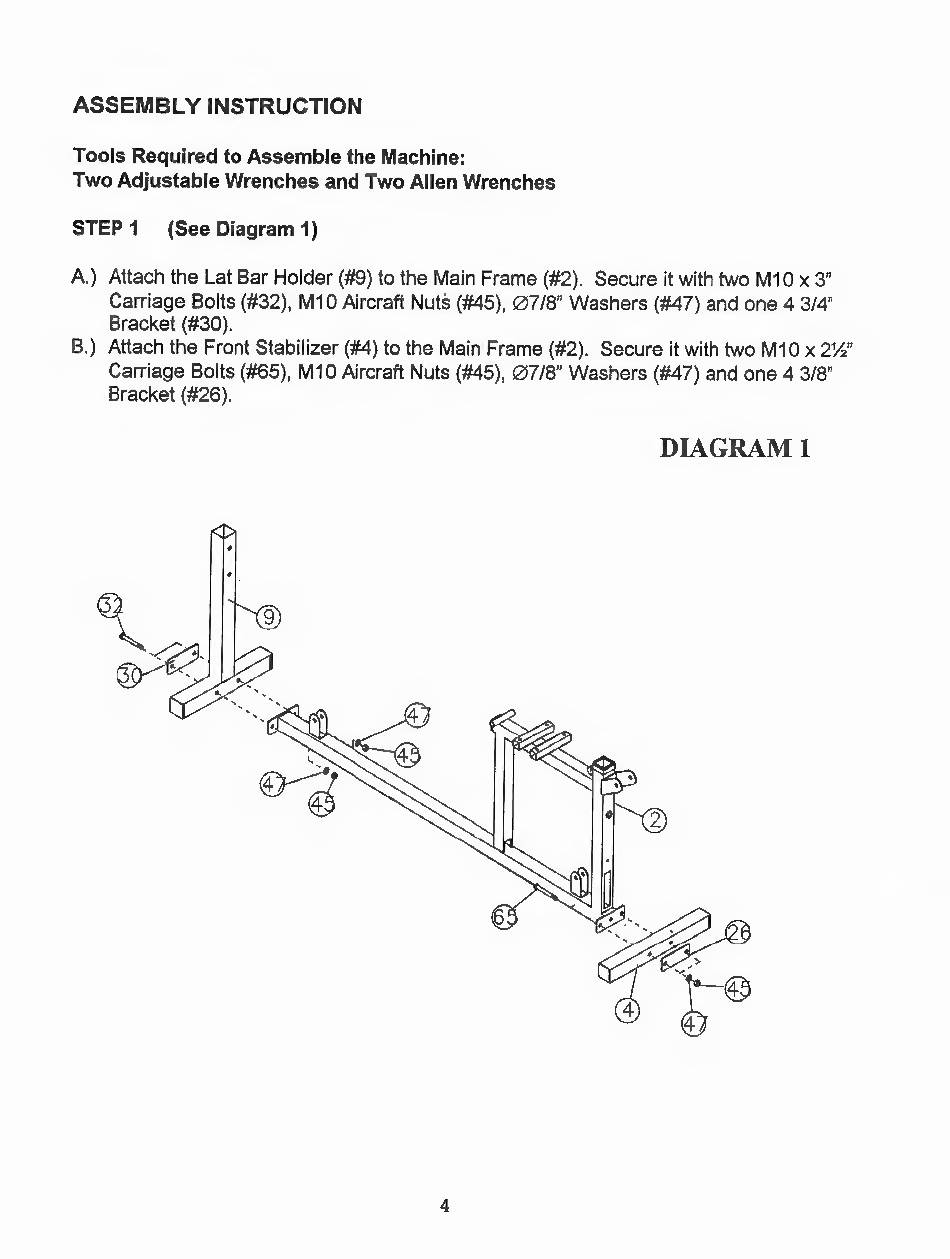

DIAGRAM 1
