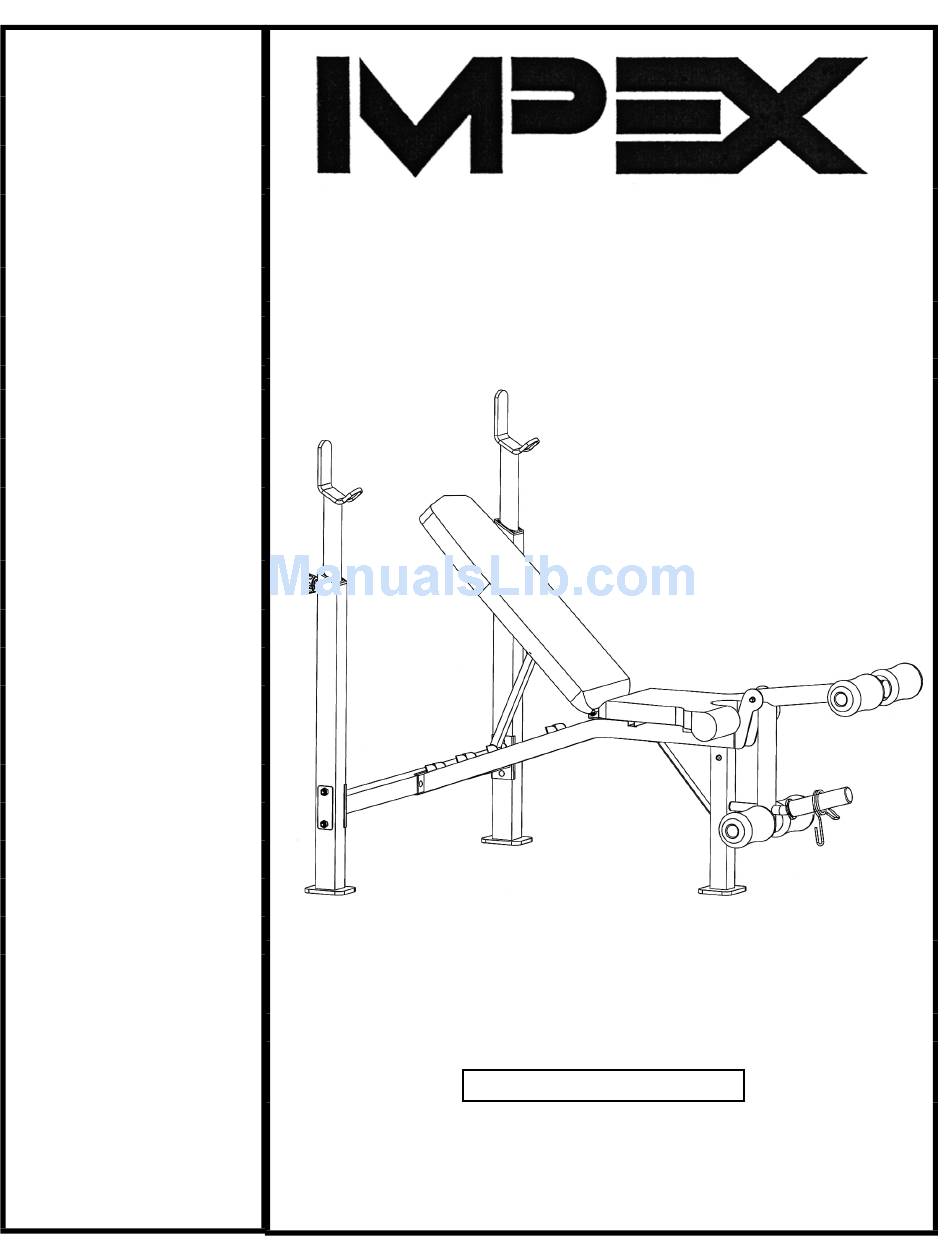

Impex CB-729 Owner's Manual

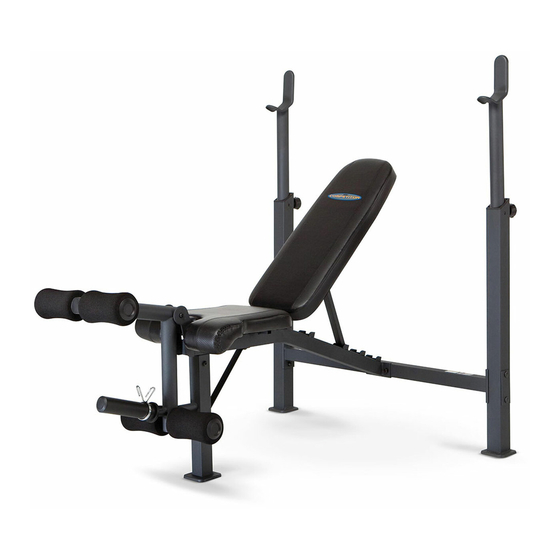

Competitor weight bench
Hide thumbs

Advertisement

Quick Links

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
CB-729
Retain This
Manual for
Reference
07-23-09
OWNER'S
MANUAL
COMPETITOR
WEIGHT BENCH
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
CB-729
®
IMPEX
INC.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CB-729 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Impex CB-729

Summary of Contents for Impex CB-729

  • Page 1 NOTE: Please read all instructions carefully before using this product COMPETITOR Table of Contents WEIGHT BENCH Safety Notice CB-729 Hardware Identifier Assembly Instruction Parts List Warranty Ordering Parts Model CB-729 Retain This Manual for Reference 07-23-09 ® IMPEX INC. OWNER'S 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746...

  • Page 2: Table Of Contents

    EXPLODED DIAGRAM……………………………………………………………… PARTS LIST....................…… WARRANTY....................…. ORDERING PARTS..................… BEFORE YOU BEGIN Thank you for selecting the COMPETITOR CB-729 Weight Bench by ® IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.

  • Page 3: Important Safety Notice

    OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. SAVE THESE INSTRUCTIONS.
  • Page 4 WARNING LABEL REPLACEMENT The Warning Label shown here has been placed on the Cross Brace. If the label is missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in location shown.

  • Page 5: Hardware Pack

    HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler or scale to measure the size.

  • Page 6: Assembly Instruction

    ASSEMBLY INSTRUCTION Tools Required for Assembling this Machine: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended that two or more people assemble this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) Do not tighten Nuts and Bolts until instructed to do so. B.) Connect the two Upright Beams (#1) by a Cross Brace (#3) in the Mid-span.
  • Page 7 STEP 2 (See Diagram 2) A.) Attach the Main Seat Support (#4) to the Front Post (#5). Secure it with three M10 x 5/8” Allen Bolts (#40) and three Ø ¾” Washers (#35). B.) Attach the Main Seat Support to the Cross Brace (#3). Secure it with two M10 x 2 5/8”...
  • Page 8 STEP 3 (See Diagram 3) A.) Attach the Leg Developer (#7) to the open bracket on the Front Post (#5). Secure it with one M8 x 3” Allen Bolt (#30), two Ø 5/8” Washers (#37), and one M8 Aircraft Nut (#33). B.) Attach the pivot on Backrest Support (#8) to the open bracket on Main Seat Support (#4).
  • Page 9 STEP 4 (See Diagram 4) A.) Attach the Backrest Board (#14) to the Backrest Support (#8). Secure it with two M8 x 1 ¾” Allen Bolts (#29) and two Ø 5/8” Washers (#37). B.) Attach the Seat Pad (#13) to Main Seat Support (#4). Secure it with four M6 x 1 ¼” Hex Bolts (#27) and four Ø...

  • Page 11: Parts List

    PARTS LIST KEY NO. DESCRIPTION QUANTITY Upright Beam Crutch Cross Brace Main Seat Support Front Post Diagonal Support Leg Developer Backrest Support Incline Support Bracket Foam Tube Lock Knob Seat Pad Backrest Board Ø 2” End Cap 2 3/8” x Ø 2” Crutch Sleeve Foam Roll Ø...

  • Page 12: Limited Warranty

    IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
