Impex TC 3000 Owner's Manual

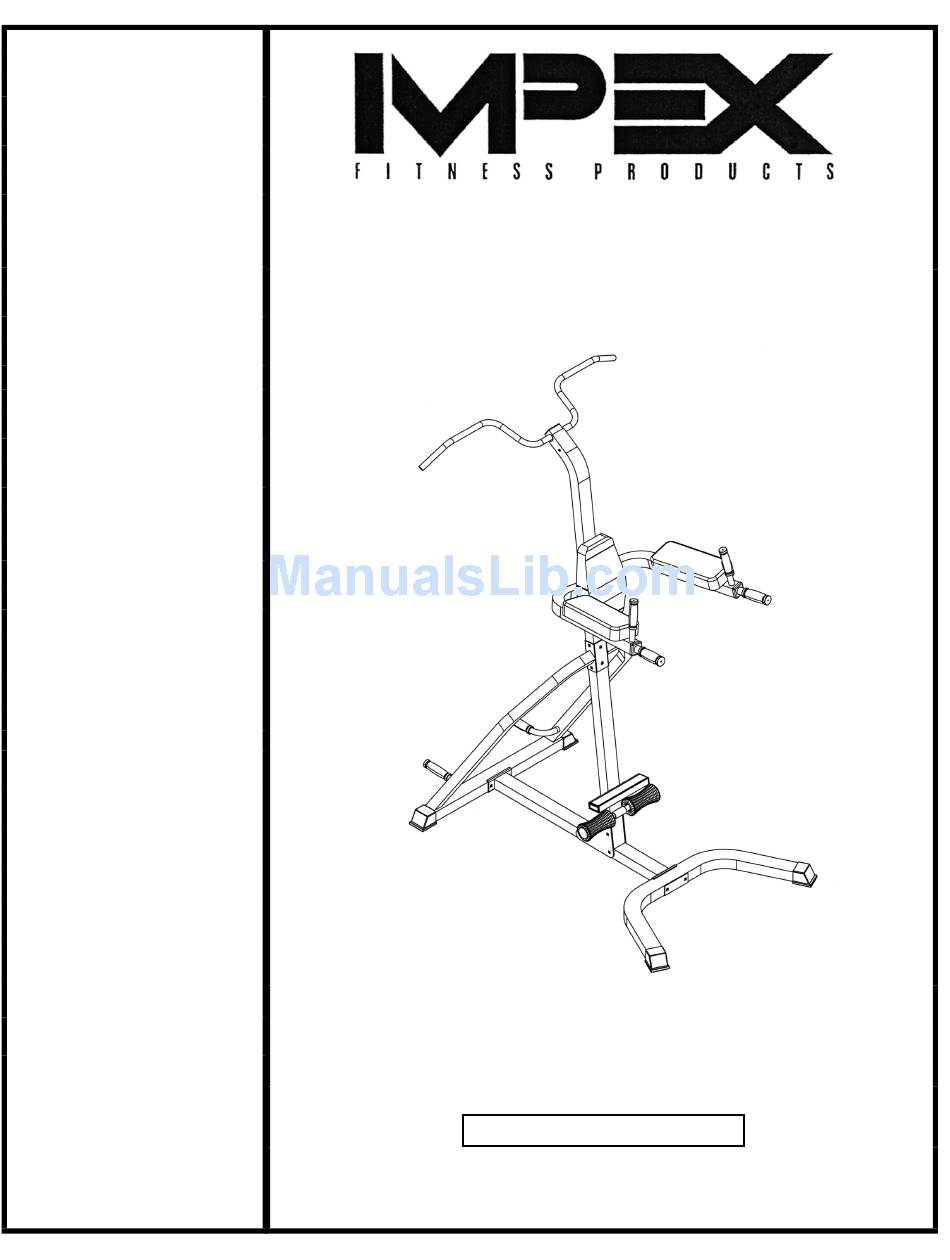

Impex TC 3000 Owner's Manual

Impex owner manual power station tc 3000
Hide thumbs

Advertisement

Quick Links

NOTE:
Please read all instructions
carefully before using this
product
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
TC 3000
Retain This
Manual for
Reference
05-17-02
OWNER'S
MANUAL
POWER STATION
IMPEX FITNESS PRODUCTS
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
TC 3000

Advertisement

loading
Need help?

Need help?

Do you have a question about the TC 3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Impex TC 3000

Summary of Contents for Impex TC 3000

  • Page 1 Please read all instructions carefully before using this product Safety Notice Hardware Identifier Assembly Instruction Parts List Warranty Ordering Parts Model TC 3000 Retain This Manual for Reference 05-17-02 OWNER'S MANUAL POWER STATION TC 3000 IMPEX FITNESS PRODUCTS 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746 Tel: (800) 999-8899 Fax: (626) 961-9966 www.impex-fitness.com...

  • Page 2: Table Of Contents

    WARRANTY...…. 10 ORDERING PARTS...… 10 BEFORE YOU BEGIN Thank you for selecting the POWER STATION TC 3000 by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.

  • Page 3: Important Safety Notices

    THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTION Tools Required to Assemble the Machine: Two Adjustable Wrenches and Allen Wrenches NOTE: It is strongly recommended this machine be assembled by two or more people to avoid possible injury. STEP 1 (See Diagram 1) A.) Connect the Front Stabilizer (#1) to the Base Frame (#3). Secure it with two M10 x 3 ¾” Carriage Bolts (#27), one Bracket (#14), two (#36).
  • Page 6 STEP 2 (See Diagram 2) A.) Attach Left Support Frame (#6) onto the Rear Stabilizer (#2). Secure it with a M10 x 2 ½” Allen Bolt (#30) and ¾” Washer (#35) from the bottom up. Repeat the same step to install the Right Support Frame (#7) to the Rear Stabilizer.
  • Page 7 STEP 3 (See Diagram 3) A.) Attach the Left Dip Support (#8) and Right Dip Support (#9) to the Upper Vertical Frame (#5). Secure them with two M10 x 3 ¾” Carriage Bolts (#27), Nuts (#36). B.) Attach two Arm Pads (#15) to Left and Right Dip Supports. Secure each Pad with two M8 x 2 ¼”...
  • Page 8 STEP 4 (See Diagram 4) A.) Attach Backrest Pad (#16) to the Upper Vertical Frame (#5). Secure it with two M8 x 2 ¾” Allen Bolts (#32) and 5/8” Washers (#34). B.) Insert the Chin-up Bar (#10) into the top opening on the Upper Vertical Frame (#5). Secure it with one M10 x 3 ¼”...

  • Page 10: Parts List

    Parts list KEY NO. DESCRIPTION Front Stabilizer Rear Stabilizer Base Frame Lower Vertical Frame Upper Vertical Frame Left Support Frame Right Support Frame Left Dip Support Right Dip Support Chin Up Bar Vertical Handle Foam Roll Tube Triangle Bracket Bracket Arm Pad Backrest Pad 1 ¼”...

  • Page 11: Warranty

    IMPEX Customer Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be prepaid by the customer. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an IMPEX authorized service center or for products used for commercial or rental purposes.
