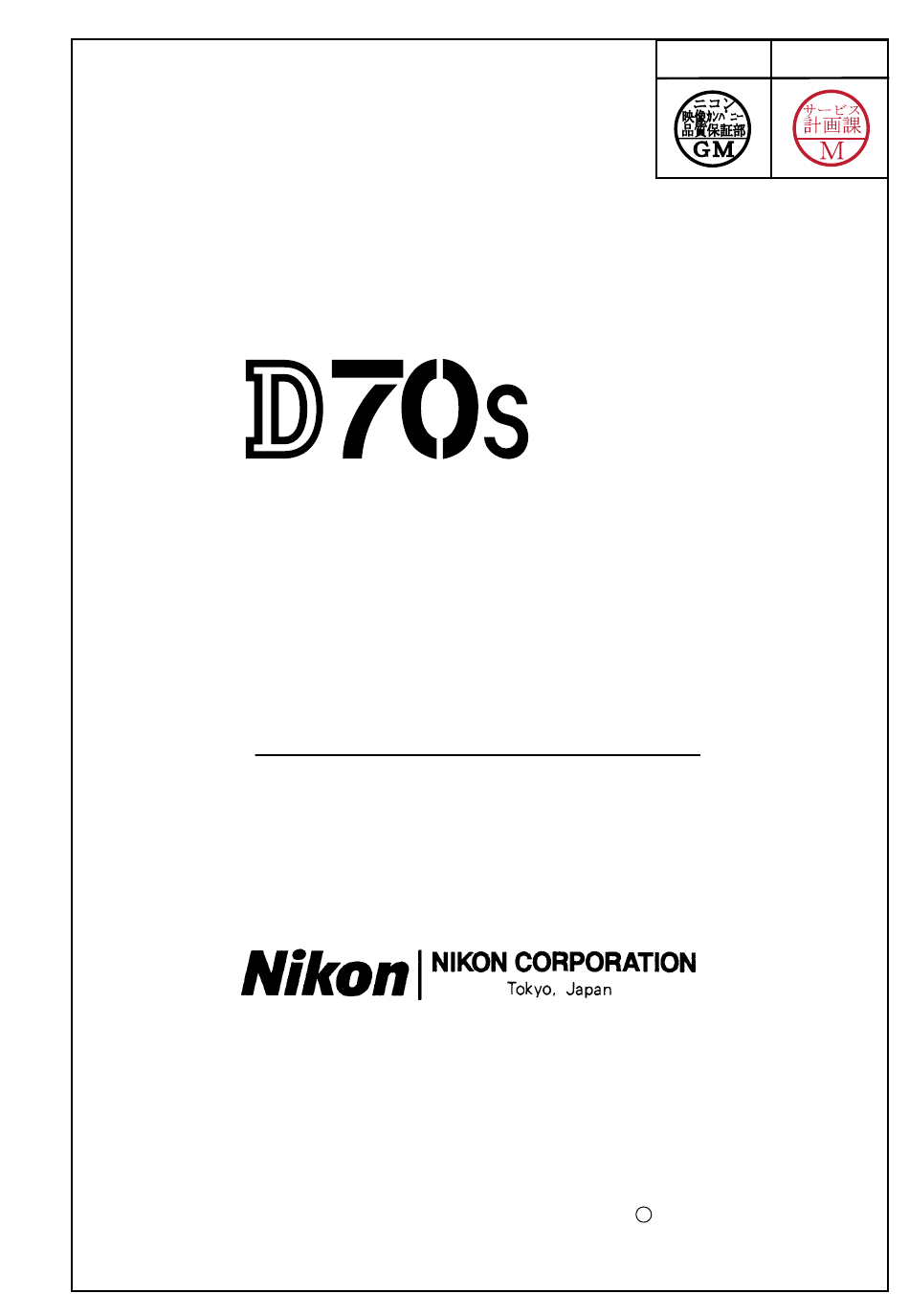

VBA11001-R.3663.B
作成承認印
配布許可印
VBA11001
REPAIR MANUAL(REVISED-1)
Copyrigh ｃ 2006 by Nikon Corporation.
All Rights Reserved.
無断転載を禁ず !!
Printed in Japan June 2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D70S and is the answer not in the manual?

Questions and answers

Related Manuals for Nikon D70S

Summary of Contents for Nikon D70S

  • Page 1 VBA11001-R.3663.B 作成承認印 配布許可印 VBA11001 REPAIR MANUAL(REVISED-1) Copyrigh ｃ 2006 by Nikon Corporation. All Rights Reserved. 無断転載を禁ず !! Printed in Japan June 2006...

  • Page 2: Specifications

    • 3008 × 2000 (Large) • 2240 × 1488 (Medium) • 1504 × 1000 (Small) Lens mount Nikon F mount (with AF coupling and AF contacts) Compatible lenses Type G or D AF Nikkor All functions supported Micro Nikkor 85 mm All functions supported except autofocus and some exposure f/2.8D...
  • Page 3 VBA11001-R.3663.B Autofocus TTL phase detection by Nikon Multi-CAM900 autofocus module with AF-assist illuminator (range approximately 0.5–3.0 m / 1´8″ – 9´10″ ) Detection range –1 – +19 EV (ISO 100 at 20 °C/68 °F) AF-area mode Single-area AF, dynamic-area AF, dynamic-area AF with closest...
  • Page 4 VBA11001-R.3663.B Built-in Speedlight • auto flash with auto pop-up 、 、 、 • P , S , A , M : manual pop-up with button release Guide number • ISO 200: approximately 15/49 (manual 17/56) (m / ft at 20 °C/68 °F) •...
  • Page 5 • Nikon reserves the right to change the specifications of the hardware and software described this manual at any time and without prior notice. Nikon will not be held liable for damages that may result from any mistakes that this manual may contain.

  • Page 6: Separate Front And Rear Bodies

    VBA11001-R.3663.B Disassembly WARNING 警告 � Due to an internal high voltage area, take extra care not to get an 内部に高電圧部あり。カバーを外す時は感電に注意すること。 electric shock when detaching covers. カバーを外した後は、修理指針の指示に従ってメインコンデン After removing covers, be sure to discharge the main condenser according to the instructions of the repair manuals. サーの放電を必ず行うこと。...
  • Page 7 VBA11001-R.3663.B Rear cover ・ Remove the TFT-PCB connection FPC from the connector. TFT-PCB connection FPC WARNING ・ Take out 4 screws (#612). 警告 � ・ Remove the rear cover. Due to an internal high voltage area, take extra care not to get an 内部に高電圧部あり。カバーを外す時は感電に注意すること。...
  • Page 8 VBA11001-R.3663.B Disassemble Rear cover #605×2 #402 #435 #403 #B431 #432 #437 #678×2 #413 #412 #426×2 #421 #425 #423 #404×2 #443 #1031 #444 #408 #416 Black #409 #420 Ａ Gray #417 #418 #414 #419 #668 #1071 Ａ #406 #B2036 #666×2 #665×3 - Ｄ3 ･...
  • Page 9 VBA11001-R.3663.B Memory compression PCB ・ Remove the USB gasket (#B481) from the memory compression PCB (#B2033). ・ Remove the connection FPCs from each connector which are connected from the CF PCB, I/F PCB, main PCB, and CCD PCB. ・ Remove the ferrite core (#1133) from I/F PCB connection FPC. ・...
  • Page 10 VBA11001-R.3663.B 　・ Take out 4 screws (#669) to detach the CCD PCB unit (#B3031). #669×4 #B3031 DC/DC PCB ・ Remove the solders of 10 wires. ・ Disconnect 3 connectors. ・ Take out 4 screws (#679) to detach DC/DC PCB (#B1030). Brown: Black: Black: Top cover GND...
  • Page 11 VBA11001-R.3663.B Covers SB pop-up ・ Cut the tracing film sheet, etc into the below size of piece. Then insert it into the clearance of the top cover pop-up part as shown right, and pop it up by sliding the sheet in the direction of the arrow. Approx.2cm Approx.
  • Page 12 VBA11001-R.3663.B ・ Remove the solders of 8 wires. ・ Remove FPC#1026 from the connector. ・ Remove 2 gaskets (#478) and 1 gasket (#479) (in order to prevent losing them.) ・ Take out 6 screws to detach the top cover (#B23). The eyepiece frame (#B271) comes off, too. - Ｄ7 ･...
  • Page 13 VBA11001-R.3663.B Disassembly of Top cover unit SB upper case 　・ Press the pop-up lever A part of the top cover unit so that the built-in SB pops up. 　・ Take out 2 screws (#631). 　・ Push from beneath the hooking lever of the SB upper case as shown in Fig.1 . Then slide 2 hooks in the direction of the arrow to remove the lever.
  • Page 14 VBA11001-R.3663.B Remove Lighting unit control PCB, connection FPC, and Shield wires #742 #607 Connection Tapes (#709×2) #742 Black White Lighting unit control PCB Shield wires SB lower case unit Remove wire-holding screw/Unsolder wires #646 　Yellow: SB pop-up SW Green: SB pop-up SW - Ｄ9 ･...
  • Page 15 VBA11001-R.3663.B Remove Flash-up spring ・ Unhook the Flash-up spring (#305). ・ Take out the screw (#646) and #305 remove the Flash-up spring (#305). #646 Remove SB lower case unit ・ Pull each wire out of holes. ・ Losen 2 hooks of the collar (#308) to remove it.
  • Page 16 VBA11001-R.3663.B Mode dial PCB unit, Remote control unit, Top cover FPC Remove attaching screws, soldering bridges #642 #635 #608×2 Solder: Pop-up solenoid 5 soldering bridges Detach Mode dial PCB and Remote control unit from Top cover FPC Tape (#733) Remote control unit 3 soldering bridges Black: DC/DC PCB Top cover FPC...
  • Page 17 VBA11001-R.3663.B Mode dial unit, Release button, Power-supply dial, other small parts Mode dial unit #142 #386 #463 #339 #387 #350 #351 #340 #453 Power-supply dial #352 #340 #452 #788 #766 #640 #347 #326 #348 #604×2 #381 Accessory shoe, Shoe mold unit, Outer LCD window, other small parts Shoe base #318 Shoe mold unit...
  • Page 18 VBA11001-R.3663.B 　 Preview SW unit ・ Remove the solders of 3 wires as shown right, and take out the screw (#649) to detach the preview SW unit. ・ Unsolder 2 wires on the connect-board unit (#B1020). Preview SW unit #649 　...

  • Page 19: Front Body

    VBA11001-R.3663.B 2. Front Body Disconnect Connectors ・ Disconnect the FPC ① , ② , ③ , and ④ from each connector in order. ① #B1008 ③ #B2163 ② #1026 ④ #B1025 　 Eyepiece unit 　 Metering FPC unit #291×2 #B2008 ・...
  • Page 20 VBA11001-R.3663.B 　 Penta unit #642×2 Adhesive #256 #642×2 #255 #283 #B277 #B1021 #280 #282 #B279 #1046 #278 #739 #280 #B279 #297 #284 - Ｄ15 ･...
  • Page 21 VBA11001-R.3663.B ・ Remove the front body FPC (#B1009) from the connector. ・ Remove the solders and soldering bridges of 7 #B1009 wires. Blue×2: Top cover FPC Yellow: A/M change sw Soldering bridge Brown:DC-DC Black:AF motor Red:AF motor ・ Take out the screws (#658 and #632) to detach the main PCB (#B2001) from the #632 front plate.
  • Page 22 VBA11001-R.3663.B ＃ 636×3 ・ Take out 3 screws (#636) with Hexagonal wrench, and remove the AF sensor unit (#B2163). ・ 3 springs (#170) come off, too. AF sensor unit #B2163 #728 ＃ 170×3 #607 ・ Remove the solders of 6 wires. #627 ・...
  • Page 23 VBA11001-R.3663.B ・ Remove the sponge (#797 and #748). ・ Take out 2 screws (#653) to remove the inner LCD unit (#B2010). #B2010 #653×2 Black： Brown： Soldering bridges Fmin Fmin Red:Mg Blue:Mg Green：SQ Yellow：SQ Orange：SQ Soldering bridges - Ｄ18 ･...
  • Page 24 VBA11001-R.3663.B Procedure 　　 1. Lock the mirror-up lever (#203) with the preview locking lever (#222). 2. Take out 3 screws (#642). 3. Remove the screw (#661), spring (#214) and lever (#254). 4. When the aperture lever is pressed down with finger, the aperture coupling lever (#207) moves in the direction of arrow ( ①...
  • Page 25 VBA11001-R.3663.B AF driving unit Lens release button Vertical lever #642 Horizontal lever #115 #621 ・ First, remove the #119 horizontal lever (#193). #B116 #B172 #630 #637×2 #191 #122 #185 #195 #193 #630 Bayonet unit A/M-change SW unit #642 Soldering bridge of #126 and #114 #126 #B125...
  • Page 26 VBA11001-R.3663.B Aperture lever unit F-min Switch unit Preview locking lever unit #190 #206 #203 #209 #207 #210 #208 #205 #375 #212 #639 #642 #375 #222 #213 #224 #202 #223 #134 #221 #133 #624 #652 #B2231 Mirror unit #234 ・ Note that 2 pins (#199) and the pin (#236) are attached with the Super X.(C-8008B) #238 #239...
  • Page 27 VBA11001-R.3663.B 3. Rear body 　 Cable-release main board ・ Remove 2 lead wires of the cable-release main board from the connect-board unit (#B1020). ・ Take off the screw A(#610) that fixes the connect-hold plate (#472). ・ Take off the screwB (#610) to remove the cable-release main board (#B1019). White ＃...
  • Page 28 VBA11001-R.3663.B 　 IF-PCB ・ Take out the screw (#610) to remove the IF-PCB from the rear body. Rear body #610 - Ｄ23 ･...
  • Page 29 VBA11001-R.3663.B CF-PCB ・ Take out 2 screws (#635) to remove the CF-PCB and CF ground plate (#469). CF-PCB #635×2 #B467 #B1034 Remove FPC by pulling #469 #663×2 aside in the direction of the arrow. #1064 Rear body 　 Main condenser Remove the 2 wires (pink and blue) as #754×2 Remove the solders of 2 wires (pink...
  • Page 30 VBA11001-R.3663.B 　 Main-SW 　 FPC 　 #B1002 Soldering bridge ・ Remove the soldering bridges on the sub-PCB (#B1002) to detach the main-SW FPC (#B1011). #B1011 Both-sided adhesive tape on backside of FPC ・ Remove the soldering bridges on the sub-PCB (#B1002) and solders of 8 wires.
  • Page 31 VBA11001-R.3663.B Separate SB-PCB from Sub-PCB ・ Remove the soldering bridges of Sub-SB #1015 Soldering bridges connection FPC (#1015). ・ Remove the connection FPC (#1065) from the connector. #B1002 Connector #1065 SB PCB #642×2 #1015 Soldering bridges Black #B1041 #109 Black Gray #633 SQ unit...
  • Page 32 VBA11001-R.3663.B Main-/Sub- command dial unt #616×2 Main command dial #368 #B367 #614×2 Sub-command dial #B377 Rear body small parts #643 #617×2 #492 #642×2 #146 #B1055 #493 #156 #671×2 #150 #491 #157×2 #617×2 #145 ＃ B1020 #149 #608 #764 #762×2 #160 #761 #765 - Ｄ27 ･...
  • Page 33 VBA11001-R.3663.B Assembly/Adjustment Grease: LEN317A Apply to the inner ・ NOTE: For undescribed tapes and diameter where to put #199 in. sponges in"Assembly" section, #B2231 refer to"other tapes/sponges" on page A46-47 and PARTS LIST. #234 1. Front body Mirror unit #238 #239 #199 #236...
  • Page 34 VBA11001-R.3663.B - Ａ2 ･...
  • Page 35 VBA11001-R.3663.B Aperture control unit 1. Turn the sequence white gear of the aperture control unit in the direction indicated by the arrow, and position the arm as shown in Fig. ① . 2. Place #248 in center of movement of range, and lock it with #249. (ref. Fig. ①） 3.
  • Page 36 VBA11001-R.3663.B 　 AF driving unit 　 Preview lever brake Grease: LEN317A Apply a little on sliding surface ・After screwing the spring (#214), ＃ 254 hook it to #254. ＃ 661 ＃ 214 #637×2 ＃ 637×2 ＃ 214 ＃ 661 ・ Position #B172 by following the direction and screw it.
  • Page 37 VBA11001-R.3663.B Vertical lever ・ Assemble by the following order. # 122→ # 191→ # 630 ＊ Note: Be careful NOT to bend the contact blade of the lens release ＃ 191 Lens release SW comes on the lever. #630 #122 Horizontal lever ＃...
  • Page 38 VBA11001-R.3663.B 　 Bayonet unit 　 AF lens contacts Grease: LEN317A #112×3 #114 #B2113 #123 #607 #111 #189 #648×5 #132 #642×2 #112×3 #131 #135 #660 　 A/M change SW cover unit #642 #621 Yellow #115 #119 Black #126 Soldering bridge of #126 and #114 - Ａ6 ･...
  • Page 39 VBA11001-R.3663.B 　 Height adjustment of AF coupling shaft 　#185 1.7±0.15mm Bayonet mount - Ａ7 ･...
  • Page 40 VBA11001-R.3663.B 　 Front body FPC #1009 Black： Brown： Soldering bridges Fmin Fmin Red:Mg Blue:Mg Green：SQ Yellow：SQ Tape #709 Orange：SQ Soldering bridge 　 Inner LCD unit ・ Attach the inner LCD unit (#B2010) ・ Attach the sponge (#295) on the front plate (#22). with 2 screws (#653).
  • Page 41 VBA11001-R.3663.B Shutter unit #607 #627 ・ Attach the shutter unit (#B31) with the screws #B31 (#607 and #627). ・ Make an arrangement of wires and attach 2 ・ Make soldering bridges and solder wires. pieces of tapes. #713 Wire arrangement Gray Purple White...
  • Page 42 VBA11001-R.3663.B AF sensor unit ＃ 636×3 ・ Attach 3 screws (#636) with Hexagonal wrench to screw up but not tight, then give it about 1 turn counterclockwise. #728 AF sensor unit #B2163 ＃ 170×3 Horizontal lever (#193) AF sensor unit #B2163 ・...
  • Page 43 VBA11001-R.3663.B Main PCB #632 #B2001 #658 #B1004 Connector (backside) Front plate unit #B1009 Blue×2： Top cover FPC Yellow： A/M change SW Soldering bridges Black： A/M change SW Brown： DC-DC PCB Black：AF motor Red： AF motor - Ａ11 ･...
  • Page 44 VBA11001-R.3663.B 　 Penta unit #642×2 #256 Direction for positioning of SI-LCD #1046 #642×2 #255 #283 #B277 #280 #B1021 #282 #B279 #1046 #278 #739 #280 #B279 Adhesive: C-8008B #297 #284 - Ａ12 ･...
  • Page 45 VBA11001-R.3663.B Angle adjustment of Main mirror and sub-mirror *Tools required: 2. Sub-mirror 47.75° Inspection and Adjustment 1.Main mirror 45°Inspection and Adjustment ① Collimator (J19002) ① Collimator (J19002) ② Reflection mirror (J18362） ② Sub-Mirror 45 deg. inspection tool ③ Optical parallel (J18037） （J18324）...
  • Page 46 VBA11001-R.3663.B 　 Eyepiece unit 　 Metering FPC unit #B2008 #291×2 ・ Attach the eyepiece unit (#B261) with the screw (#631). Attach the metering FPC unit (#B2008) and the #290 spring (#290) temporarily with 2 screws (#291). #631 #B261 ・ Position the metering FPC unit by following the direction, then attach it lightly with screws (first ①...
  • Page 47 VBA11001-R.3663.B 2. Rear body Rear body small parts #643 #617×2 Green #492 #642×2 #146 #493 #B1055 Yellow #156 #671×2 Pass 2 wires of the #150 distinguish SW (yellow/ #491 #157×2 green) through this hole #267 to come out upward. Orange Blue #617×2 Adhesive: Aron alpha...
  • Page 48 VBA11001-R.3663.B SQ unit #633 #627×2 #B91 Bottom of rear body Main-/Sub- Command Dial unit ・ Arrange 2 wires of the distinguish SW (yellow and green) as follows. #616×2 #368 Main command dial #B367 #614×2 Sub-command dial #B377 - Ａ16 ･...
  • Page 49 VBA11001-R.3663.B SB PCB / Sub-PCB ・ Make soldering bridges and solder 5 wires. ・ Assemble the SB PCB (#B1041), sub-SB connection FPC (#1015), and SB-PCB holder (#109) with 2 screws (#642). Soldering bridges #642×2 #1015 Black #B1041 Black #109 Gray ・...
  • Page 50 VBA11001-R.3663.B ・ Make soldering bridges on the sub-PCB (#B1002) and solder 8 wires. Yellow Green Soldering bridges - Ａ18 ･...
  • Page 51 VBA11001-R.3663.B 　 CF PCB unit #B467 ・ Attach the CF PCB unit (#B1034) on the CF PCB retainer (#B467) with 2 screws (#663). ・ Connect the connection FPC (#1064) to the connector of #B1034. #663×2 #B1034 #1064 ・ Assemble the CF PCB unit and CF ground #635×2 plate (#469) into rear body with 2 screws CF PCB unit...
  • Page 52 VBA11001-R.3663.B Bottom base plate Secondly battery ・ Attach the IF PCB GND plate (#75) with screw (#610). ・ Attach the secondary battery (#1059) with the retaining spring (#73) and the screw (#691). ・ Attach the bottom plate (#66) and the DC-DC shielding plate (#B103) with 4 screws (#635) and 2 screws (#633).
  • Page 53 VBA11001-R.3663.B 　 IF PCB unit ・ Attach the IF PCB shielding plate (#76) by making ・ Attach the IF PCB retaining plate (#72) on the IF soldering bridges. PCB (#1035) with 2 screws (#610). ・ Adhere 2 IF gaskets (#77) to #76. ・...
  • Page 54 VBA11001-R.3663.B Cable-release main board ・ Fix the cable-release main board (#B1019) with the screw B (#610). ・ Fix the connect-hold plate (#472) with the screw B(#610). ・ Solder 2 lead wires of the cable-release main board on the connect-board unit (# B1020). White ＃...
  • Page 55 VBA11001-R.3663.B 3. Mount Front body on Rear body Mount the front body on the rear body ・ Do NOT pinch wires and FPCs. ・ Attach screws by the following order. #642×3 → #634×4 → #699×3 #634×4 #642×3 Direction for positioning to attach the front plate.
  • Page 56 ②　 Turn the index ring to shift the position by "0.47 mm" from "0" that was set in ① . (This position is "0" of D70s.) ③　 Measure the body back based on "0" reference position of the index ring.
  • Page 57 VBA11001-R.3663.B ・ Arrange the brown wire that was soldered on the main PCB (ref. Page A11). Brown wire ・ Arrange each FPC. #1026 #1025 #1061 ・ Connect each FPC to the connectors in the order of ① , ② , and ③ . Arrenge this FPC ②...
  • Page 58 VBA11001-R.3663.B 　 DC-DC PCB 　 ・ Attach the DC-DC PCB (#B1030) with 4 screws (#679). ・ Solder 9 wires. ・ Connect the connection FPC (#1065), connection FPC (#1025), and secondary battery (#1059) to each connector of #B1030. Brown: Black: Gray: Front body FPC SB PCB SB PCB...
  • Page 59 VBA11001-R.3663.B Inspection and adjustment of AE CCD Alignment 3rd soldering bridge count- ・ Procedure ① To prevent short circuit, attach the grip (#B26) with the ing from bayonet side #B1011 screw (#631).Insert AECCD aligment tool(J15411) between the FD screen and the SI plate. ②...
  • Page 60 VBA11001-R.3663.B Assembly of Top cover unit Outer LCD window, Shoe mold unit, Accessory shoe, other small parts Grease: Grease: MZ-800S Apply to inner OS-30MF diameter of hole Hole for Exposure compensation button Shoe base Position for applying grease on top cover #318 Shoe mold unit Outer LCD window...
  • Page 61 VBA11001-R.3663.B Power-supply dial, Release button, Mode dial unit, other small parts #640 #452 Adhesive: Crazy glue at 7 parts #453 Grease： LEN317A Mode dial unit Mask (#142) Backside of Rear cover Grease: LEN317A Apply to 2 parts of inner diameter #386 Adhesive：C-8008B #463...
  • Page 62 VBA11001-R.3663.B Top cover FPC, Remote control unit, Mode dial PCB Attach Mode dial PCB and Remote control unit to Top cover FPC Tape (#733) Remote control unit 3 soldering bridges Black: DC/DC PCB Top cover FPC Both-sided adhesive tape (#464) Remote control unit Mode dial PCB Attaching screws, soldering bridges...
  • Page 63 VBA11001-R.3663.B SB lower case unit Attach SB lower case unit Grease：MZ-800S SB lower case unit ・ Mount the SB lower case unit on the top cover. ・ Insert the collar (#308) by following the direction as shown in Fig.1, and fi x it with 2 hooks. ・...
  • Page 64 VBA11001-R.3663.B Solder wires, wire-atatching screws #646 　Yellow: SB pop-up SW Green:SB pop-up SW Lighting unit control PCB Arrange shield wires, Attach lighting unit control PCB #742 #607 Connection Tapes (#709×2) #742 Black White Lighting unit control PCB Shield wires Arrangement of shield wires Thinner part Thicker part Do NOT interfere the...
  • Page 65 VBA11001-R.3663.B Solder Shield wires Red: Lighting unit control PCB White: Lighting unit control PCB Tape (#709) Fiber optics Note）Both ends of the fi- ber optics are just pinched in individual parts, and not adhered. SB upper case 　・ Attach the SB uper case on the SB lower case. （ Fig.1 ） 　・...
  • Page 66 VBA11001-R.3663.B 　 Top cover AE/AF lock button ・ Assemble the eyepiece frame (#B271) by putting the diopter adjusting lever at the lowermost position. #B23 ・ After pushing outside the AE/AF lock button from the inside of the top cover, assemble the top cover (#B23). #B271 　...
  • Page 67 VBA11001-R.3663.B 　 Covers ・ Assemble the front cover (#B24) at the ・Pop the SB lighting unit up and attach it last stage. with 2 screws (#611). #611×2 #608 #611×2 #B26 #B24 #124 #659 #631 #121 #684 Gap adjustment of SB lighting unit ・...
  • Page 68 To RS232C terminal pins - 9 pins converting connector. Flash meter But this is not provided by RJ, so use goods on the market. Not prepared as RJ Shutter tester (EF-8000, etc) AF50/1.4D J18383 D70s inspection and adjustment software - Ａ36 ･...
  • Page 69 VBA11001-R.3663.B How to connect communications tool (J61205) J61205 ① Connect the communications tool (J61205) to MC-31 (J19109). J19109 ② Attach the communications tool temporarily to the body A with the screw (6K010-049) which is included in package. 　 ③ Loosen the screw (6K010-049 ) and screw it lightly again at the position where the shaft C of the body can enter in the hole B of the communications tool.
  • Page 70 VBA11001-R.3663.B D70s Inspection and Adjustment Software (J18383) This inspection and adjustment software runs on Windows. Install the software by following the below procedure. <Operating environment> The following operating environment is required for installing this program on PC. 【In case of using Serial interface】...
  • Page 71 The operating system used here is "Windows 98 SE". 1. Create a folder for installation under a name you like and PC drive. 　　(e.g.) C:\D70s Paste the file (D70SOFT.EXE) in the created folder. 2. Double-click on the pasted file to display the following screen.
  • Page 72 VBA11001-R.3663.B ＜ How to install USB driver ＞ If this program is used by the USB interface, installing the USB driver is necessary. But if the OS is "Windows XP", the driver is already preloaded so it is not necessary to install it. 1.
  • Page 73 VBA11001-R.3663.B 5. Confirm that the driver is located at the right place, and click "Next". 6. Click "Finish" to complete the installation. - Ａ41 ･...
  • Page 74 VBA11001-R.3663.B <Start-up of Program> 1. Double-click the file (D70s.EXE), then the Inspection & Adjustment program for D70s starts. 　　　　　 2. To display in Japanese, select the radio button "JAPANESE" in "LANGUAGE" in the lower right-hand corner of the screen ". However, this is not properly viewed in the OS in English version If "Serial interface"...

  • Page 75: Tools Required

    SB. (ref. adjustment software for details) AF inspection and adjustment When using the adjustment software for the first time, prepare 5 cameras of D70s (or D70) and input the Note: average value of the 5 cameras, which was measured when checking the AF accuracy, in "WRITING OF AF ADJ.
  • Page 76 VBA11001-R.3663.B CCD PCB unit Direction for #669×4 ・ Attach the CCD dust-proof seal (#56). 　 positioning ・ Assemble the CCD PCB unit (#B3031) with #B3031 4 screws (#669). ＊ Note ①： In case there are washers inserted between the rear body and the CCD PCB unit, follow the instructions of Page A24.
  • Page 77 VBA11001-R.3663.B Rear cover #605×2 #402 #403 #435 #B431 #437 #432 #678×2 #413 #412 #426×2 #421 #425 #423 #1031 #443 #404×2 Direction for positioning #444 #416 #408 #410 Adhesive: Crazy glue Black Ａ Gray #409 #420 #417 #418 #668 #419 #1071 Ａ...
  • Page 78 VBA11001-R.3663.B ・ Attach the TFT-PCB connection FPC to the connector. TFT-PCB connection FPC Bottom cover #692 #697 #677×6 After the bottom cover is attached, store the I/F cover. ∞ Infinity alignment & adjustment ・ Replace the finder screen with the infinity focus check screen (J15410), and use the reference lens (J18010) and read the value.
  • Page 79 VBA11001-R.3663.B 　Other tapes/ sponges ① - Ａ47 ･...
  • Page 80 VBA11001-R.3663.B 　 Other tapes/ sponges ② - Ａ48 ･...

  • Page 81: Adjustment Software

    VBA11001-R.3663.B Necessary adjustments on PC when parts are replaced 1. Adjustment software 　　Adjustments AE CCD Aperture Adjustment Inspection and EEPROM position accuracy accuracy for battery adjustment for accuracy fixed inspection check level built-in SB values Parts to be light volume replaced 　Shutter unit ○...

  • Page 82: Shooting Image Adjustment Software

    VBA11001-R.3663.B 2. Shooting image adjustment software 　　Adjustments CCD- Sensitivity Gr/Gb Sensitivity CCD black CCD white view angle ratio point defect point defect EEPROM compensation ADJ (R/B EEPROM compensation compensation Flashram up Parts to be filter) Flash up replaced 　Shutter unit 　Main PCB unit 　AF sensor unit 　DC/DC PCB unit...

  • Page 83: Shooting Image Adjustment

    When D70s shooting image-related, TFT display-related and listed parts on Page A47 are replaced, be sure to make an adjustment by the shooting image adjustment software for D70s (J65076). The details of its function and how to use this software are as follows: 2.
  • Page 84 VBA11001-R.3663.B 6. How to use 　(1) Perform the D70sIMG.exe to start up the main screen. (ref. Fig.1） 　(2) Select ENGLISH / JAPANESE in Language to display the expected menu.（ref. Fig.2） 　(3) Click the desired button to start adjustments. ※ When the adjustments from 1. to 3. are made, calculate to get the “Sensitivity” and “Sensitivity ratio” reference values of (7) by using the reference body beforehand, then perform the adjustments.
  • Page 85 VBA11001-R.3663.B 7. Required equipment and conditions ※ AC adapter EH-5 and USB cable (mini B type) UC-E4 are used for all adjustments so they are not specified in the list. ★ New established tool Item Required equipment Setting/Remarks 1 Sensitivity adjustment Equivalent to luminance LV13 ・5100K color viewer　　...
  • Page 86 VBA11001-R.3663.B 8. Summary 　The summary on each adjustment is as follows: (1) Sensitivity adjustment Face the camera to the color viewer of LV13 equiv. putting the ND filter (-7 step) between them, and make an adjustment by changing the ampgain so that G output can fall in the standard range. Adjust the gain value so that the G output average value (Average of Gr/Gb) in the center (300×300 pixels) can reach the target output level (approx.
  • Page 87 VBA11001-R.3663.B 　(7) TFT view angle adjustment This is for adjusting the display position of TFT. Make an adjustment only for NTSC. (Unnecessary for PAL) 　(8) CCD-PCB EEPROM flashram up Copy the EEPROM value of the CCD-PCB into the flash memory of the memory compression PCB (AK PCB).
  • Page 88 ＊ Note: Adjustments are not possible without resetting "Custom setting" of this camera. 　 　　　　 Before the adjustments, record the details of "Custom setting" set by customers if necessary. You can use [D70 reference body] as [D70s reference body]. 　 Start adjustments 　・Provide the power for the camera via AC adapter.
  • Page 89 VBA11001-R.3663.B 9-2. Pixel defect (black spots) compensation 　・Set the color viewer luminance to LV13 equiv. 　・Provide the power for the camera via AC adapter. 　・Reset "Custom setting". 　・Set "PTP" mode by Setup menu. 　・Set the focus mode to M, exposure mode to M, and the exposure compensation to "0" of the camera. 　・Connect the camera and PC via USB cable.
  • Page 90 VBA11001-R.3663.B 9-4. Sensitivity ratio reference value calculation 　・Set the color viewer luminance to LV13 equiv. 　・Provide the power for the camera via AC adapter. 　・Reset "Custom setting". 　・Set "PTP" mode by Setup menu. 　・Set the focus mode to M, exposure mode to M, and the exposure compensation to "0" of the camera. 　・Connect the camera and PC via USB cable.
  • Page 91 VBA11001-R.3663.B 9-7. TFT-PCB EEPROM flashram up 　・Provide the power for the camera via AC adapter. 　・Set "PTP" mode by Setup menu. 　・Connect the camera and PC via USB cable. 　・Click "TFT PCB EEPROM FLASHRAM UP" of the menu on screen. 　・The adjustment starts.

  • Page 92: Table Of Contents

    VAA11001-R.3663.B ELECTRICITY Memory Compression PCB Block Diagram Wiring Diagram Main PCB (Surface) Main PCB (Reverse) Sub PCB (Surface) Sub PCB (Reverse) Flash Control PCB (Surface) Flash Control PCB (Reverse) Connection FPC AF CCD FPC External LCD FPC Top Cover FPC Metering FPC Front Body FPC SI FPC...
  • Page 93 VBA11001-R.3663.B ＡＫ基板ブロック図 Memory Compression Block Diagram 電源用CON 撮像基板用CON カメラ基板用CON ＴＦＴ基板用CON Power source CON Imaging PCB CON Camera PCB CON TFT PCB CON (20pin) (39pin) (25pin) （39pin) ＩＣＥ用CON ICE CON +5v,+8.5v,+12v (18pin) ICD(3～0) SUBRESET PXD(11～0), VLDATA（8～0), +5v→ +3.3v,+1.8v,+1.1v RESET HD,VD,FIELD， VLHD,VLVD, CＬK VLCLK +3.3v変換...
  • Page 94 VBA11001-R.3663.B 実体配線図 WIRING ポップアップ検出SW Pop-up detection SW DGND Yellow POPDTCT 内蔵ＳＢ発光部 Green PGND ｻﾌﾞ基板 Built-in flash tube Black Pop-up MG Sub PCB 上ｶﾊﾞｰFPC SQ-M ＡＦ補助光 Top cover FPC SQ-M AF-assist illuminator Brown 上ｶﾊﾞｰFPC Yellow 電池識別SW Top cover FPC Batt.discrimination Blue OUT- Green Vpower OUT-B...

  • Page 95: Main Pcb (Surface)

    VBA11001-R.3663.B メイン基板（表） Main PCB (Surface) ROSIN PWB - E3 ・　...

  • Page 96: Main Pcb (Reverse)

    VBA11001-R.3663.B メイン基板（裏） Main PCB (Reverse) - E4 ・　...

  • Page 97: Sub Pcb (Surface)

    VBA11001-R.3663.B サブ基板（表） Sub PCB (Surface) / NONE - E5 ・　...

  • Page 98: Sub Pcb (Reverse)

    VBA11001-R.3663.B サブ基板（裏） Sub PCB (Reverse) NONE/ / NONE NONE NONE - E6 ・　...

  • Page 99: Flash Control Pcb (Surface)

    VBA11001-R.3663.B 発光制御基板（表） Flash Control PCB (Surface) ROSIN PWB - E7 ・　...

  • Page 100: Flash Control Pcb (Reverse)

    VBA11001-R.3663.B 発光制御基板（裏） Flash Control PCB (Reverse) - E8 ・　...

  • Page 101: Connection Fpc

    VBA11001-R.3663.B 中継ＦＰＣ Connection FPC - E9 ・　...

  • Page 102: Af Ccd Fpc

    VBA11001-R.3663.B ＡＦ ＣＣＤ　ＦＰＣ - E10・　...

  • Page 103: External Lcd Fpc

    VBA11001-R.3663.B 外部ＬＣＤ　ＦＰＣ External LCD FPC NONE / NONE / NONE / - E11・　...

  • Page 104: Top Cover Fpc

    VBA11001-R.3663.B 上カバーＦＰＣ Top Cover FPC - E12・　...

  • Page 105: Metering Fpc

    VBA11001-R.3663.B 測光ＦＰＣ Metering FPC - E13・　...

  • Page 106: Front Body Fpc

    VBA11001-R.3663.B 前ボディＦＰＣ Front Body FPC - E14・　...

  • Page 107: Fpc

    VBA11001-R.3663.B ＳＩ　ＦＰＣ - E15・　...

  • Page 108: Ccd Pcb　(Surface)

    VBA11001-R.3663.B ＣＣＤ基板 （表） CCD PCB　(Surface) - E16・　...

  • Page 109: Ccd Pcb (Reverse)

    VBA11001-R.3663.B ＣＣＤ基板 （裏） CCD PCB (Reverse) - E17・　...

  • Page 110: Memory Compression Fpc (Surface)

    VBA11001-R.3663.B 圧縮記録基板 （表） Memory Compression FPC (Surface) - E18・　...

  • Page 111: Memory Compression Fpc (Reverse)

    VBA11001-R.3663.B 圧縮記録基板 （裏） Memory Compression FPC (reverse) - E19・　...

  • Page 112: Cf Pcb

    VBA11001-R.3663.B ＣＦ基板 CF PCB - E20・　...

  • Page 113: If Pcb

    VBA11001-R.3663.B ＩＦ基板 IF PCB - E21・　...

  • Page 114: Tft Pcb (Surface)

    VBA11001-R.3663.B ＴＦＴ基板 （表） TFT PCB (Surface) - E22・　...

  • Page 115: Tft Pcb (Reverse)

    VBA11001-R.3663.B ＴＦＴ基板 （裏） TFT PCB (Reverse) - E23・　...

  • Page 116: Dc-Dc Converter (Surface)

    VBA11001-R.3663.B ＤＣＤＣコンバータ ( 表） DC-DC Converter (Surface) - E24・　...

  • Page 117: Dc-Dc Converter (Reverse)

    VBA11001-R.3663.B ＤＣＤＣコンバータ ( 裏） 　 DC-DC Converter (Reverse) - E25・　...
  • Page 118 VBA11001-R.3663.B 工　具・TOOLS　 ★：新規設定工具・NEW　TOOL 工具番号 名　称 備　考 Tool No. Name of tool Others J61205 カメラ通信工具 FOR D70 Camera communication tool J15411 AE CCD 位置出し工具 FOR D70 AE CCD positioning tool J15410 無限合致調整用スクリーン FOR D70 Infinity focus adjustment screen J18362 反射ミラー FOR D70 Reflection mirror J18383 カメラ部点検、調整ソフト...
