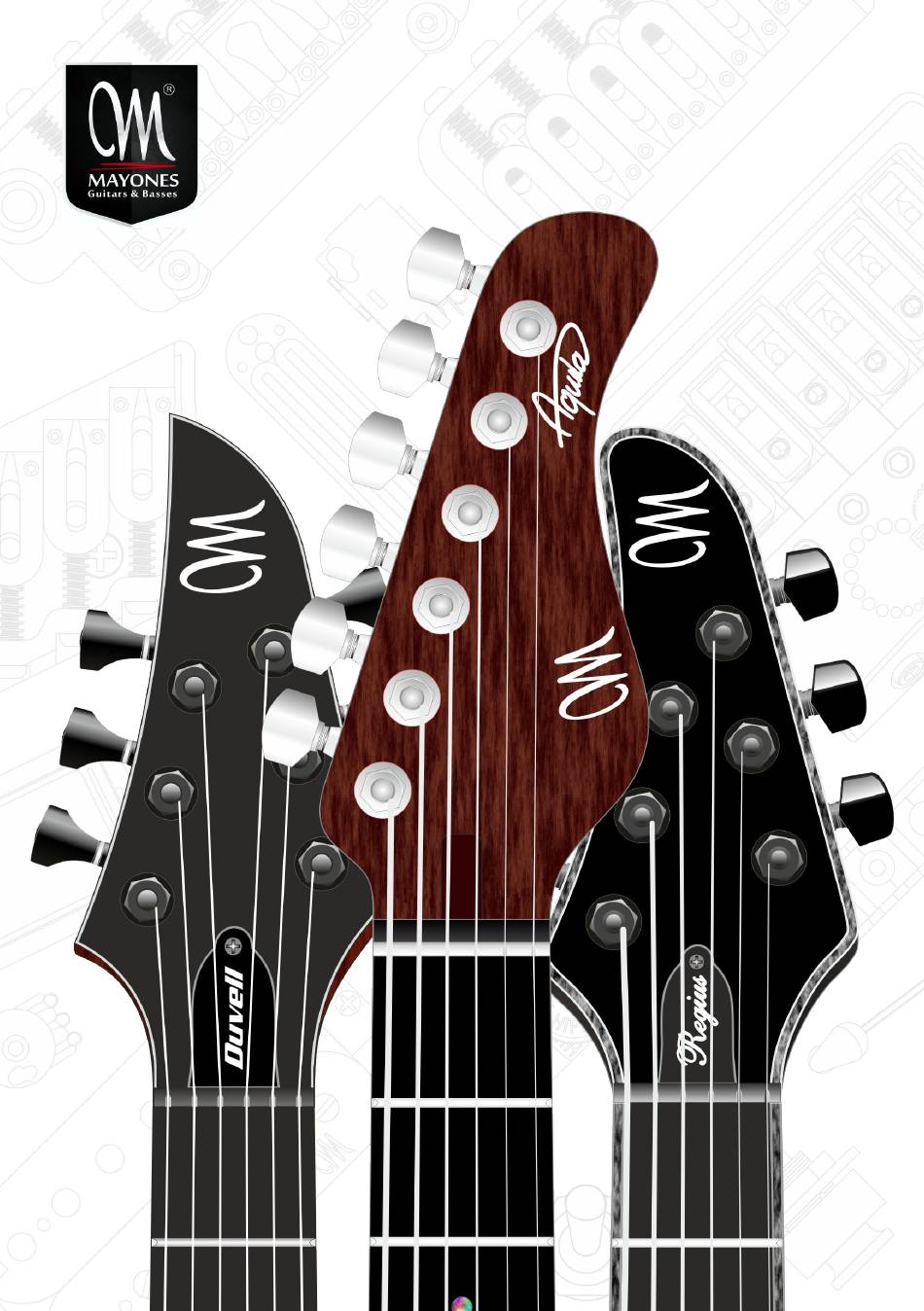

- Page 1 ELECTRIC GUITAR USER’S MANUAL...
- Page 2 DEAR GUITAR PLAYER! Thank you for purchasing an electric guitar of our production. We are convinced that you have made a good choice and that your new instrument will help you in developing your musical talent. We would like to help you in achieving this goal and this is why we would like you to familiarise yourself with a number of maintenance rules.
- Page 3 Main parts of the guitar 1. Headstock 2. Logo 3. Tuners (Tuning keys) 4. Tuner peg 5. Truss rod adjustment screw cover and truss rod adjustment screw for setting the neck relief 6. Nut (Locking nut) 7. Strings 8. Frets 9.
- Page 4 Winding the strings on tuning keys Depending on the construction of the bridge, insert the ball into the slot of the bridge, pull the string through the hole in the tremolo block, pull the string through the hole in the body, or cut off the ball and install the string in the locking saddle (Floyd Rose).
- Page 5 Adjusting the bridge Fixed bridges The height of each single saddle is usually set by adjusting two screws at the sides of the saddle (fig. 8 and fig. 9). The saddles should be positioned in a slight curve - the difference between the inner and outer saddles should be close to 1mm.
- Page 6 Tremolo bridges In traditional vintage-type tremolos (attached to the body with 6 screws) the height of the strings over the frets is determined in the same way as in fixed bridges, that is by changing the height of each saddle separately. In newer...
- Page 7 “Floyd Rose” bridge fig. 15 Floyd Rose tremolo system bridge base of the tremolo fine tuner screw 1A. knife edge of the tremolo (13) the block of the tremolo tremolo arm socket 10. springs locking cap of the tremolo arm 11.
- Page 8 16 Most Floyd Rose equipped guitars also come with locking nuts. (fig. 16). When changing strings, the locks should be loosened or taken off to enable changing strings and to let the string move freely on the nut during tuning. Usually the pressure pads are tightened or loosened using an Allen wrench.
- Page 9 Underbow hole with adjustment nut hole with in the heel of the neck adjustment nut on the head side increasing the rod tension fig. 18 Backbow loosening the rod tension fig. 19 Stabilising the tuning After each string has been changed and after tuning...
- Page 10 Adjusting intonation Adjusting the intonation is crucial to eliminating the error in the string pitch on certain frets. It consists of tuning the string exactly to the desired pitch and then fine tuning its bridge saddle to make the pitch at the 12th fret exactly an octave higher. If after tuning a string the pitch on the 12th fret is too low, the saddle of the bridge should be moved toward the front edge of the bridge (the scale should be shortened).
- Page 11 Guitars with different active lengths (scale) of individual strings should generally be treated the same way as typical instruments. Most Mayones VFret guitars have a scale length of 25.4" to 27", which means that with a "standard" set of strings and a normal tuning (E-H-G-D-A-E-[H]-[F#]) —...
- Page 12 The height of the strings over the pickups The distance between the pickups and the strings is an important factor of the instrument’s sound. This distance depends on the type of pickups and the type of strings used. It is checked by fretting the string on the last fret and measuring the distance between the surface of the pickup and the surface of the string (fig.
- Page 13 LED fretboard markers, they are usually powered by one or two 9V batteries, and increasingly often by a built-in lithium polymer battery with a dedicated charging module developed by Mayones. The power is turned on when a 1/4" instrument cable plug is inserted into the guitar output jack (fig.
-
Page 14: Charging The Built-In Battery
Charging the built-in battery To charge the internal battery, use the supplied charger that provides optimized charging parameters (5 V, 1A). Due to its small dimensions and the delicate nature of the USB-C input and the charger plug, one should be very cautious when plugging the charger in and during the charging process. - Page 15 The battery would retain its baseline performance over ca. 500 charge-discharge cycles. Should a noticeable performance and capacity drop occur, please contact the Mayones service center or replace the battery at an authorized service point indicated by the instrument manufacturer or its dealer.
-
Page 16: Maintenance
Maintenance In order to maintain full technical efficiency and high aesthetic value of the instrument, it should be cleaned and maintained regularly. Regardless of the type of finish and the components used, the basic recommendations presented below should be followed: 1. - Page 17 Surfaces with satin and matte finishes There are not many products on the market specifically designed for cleaning this type of surface, so the most important thing in this case is to maintain high levels of hygiene when using the instrument.
- Page 18 Find more information on guitar operation and maintenance and solving basic problems on our website www.mayones.com. Mayones Guitars and Basses care constantly about the quality of their instruments and release their newer and upgraded versions, as well as search for the best possible building materials.
