- Page 1 User Manual IONIZER TESTER CPM54 Part.-No.: 7100.CPM54 Wolfgang Warmbier GmbH & Co. KG | Untere Gießwiesen 21 | D-78247 Hilzingen | +49 (0)7731 8688 0 | www.warmbier.com...
-
Page 2: Scope Of Supply

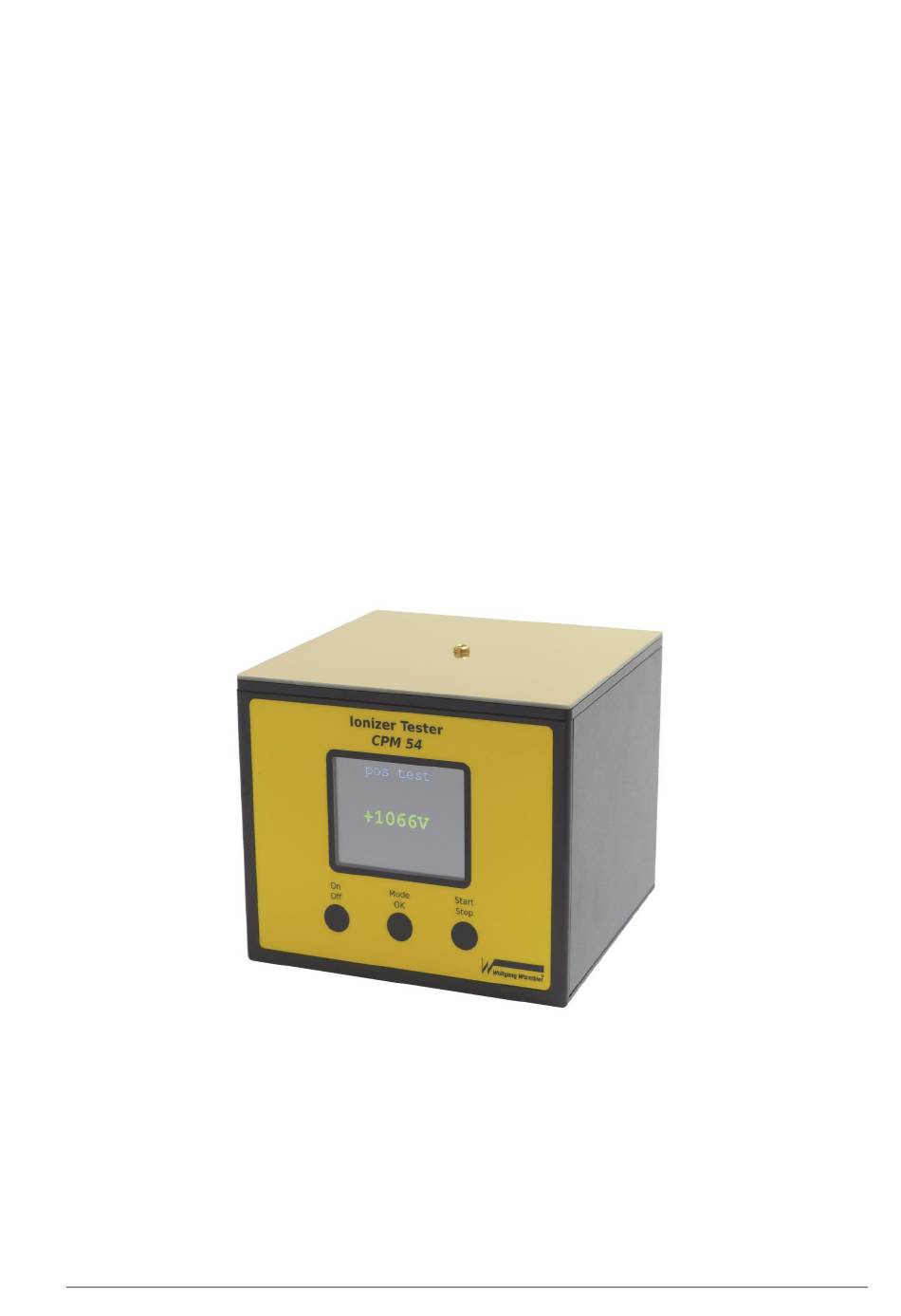

Calibration certificate „German / English“ ◼ Description - CPM54 The Ionizer Tester CPM54 is a measuring device for standard conform measurements of ionizer’s decay time and offset voltages and for walking test (Body Voltage Test). It supports fully automatic testing of positive-, negative discharges and offset voltages. -
Page 3: Installation
Connect the supplied charger and charge the batteries. After charging the device it is ready to use. You must disconnect the charger for operation. ◼ Power Supply The CPM54 is powered with three Lithium-Ion batteries. The battery runtime is app. 6 operating hours. ◼ Settings Decay measurement... -
Page 4: Safety Instructions
User Manual - CPM54 Part-No.: 7100.CPM54 ________________________________________________________________________________________________ ◼ Safety Instructions Please read the following notes. • The device generates high electrical voltage. Do not try to open the device or change its construction. High-Voltage danger! • The device must be grounded. Ground the device on the 4 mm banana plug socket on the side of the unit directly with “protective earth”. -
Page 5: Operation
User Manual - CPM54 Part-No.: 7100.CPM54 ________________________________________________________________________________________________ ◼ Operation Button On/Off: Press one time briefly to switch the unit on, press long to switch the unit off (until you hear the audible signal). The device remembers the last operation mode either „Offset/BVT“ or „Decay“. - Page 6 User Manual - CPM54 Part-No.: 7100.CPM54 ________________________________________________________________________________________________ Mode: Offset/BVT In this mode the current measurement is displayed. The maximum values for each polarity (Peak-Hold) are indicated in the bottom line. The maximum values will stay frozen after “STOP.” Because of this functionality you can also perform measurements at remote areas.
-
Page 7: Device Return And Environmentally Compatible Disposal
User Manual - CPM54 Part-No.: 7100.CPM54 ________________________________________________________________________________________________ Messages Message Root cause / Troubleshooting Measurement was stopped STOP Grounding test failed ground fail ➔ Check test plate if there are any parts touching or if there is a contamination ➔ Check the grounding path! Decay time was too fast (<...
