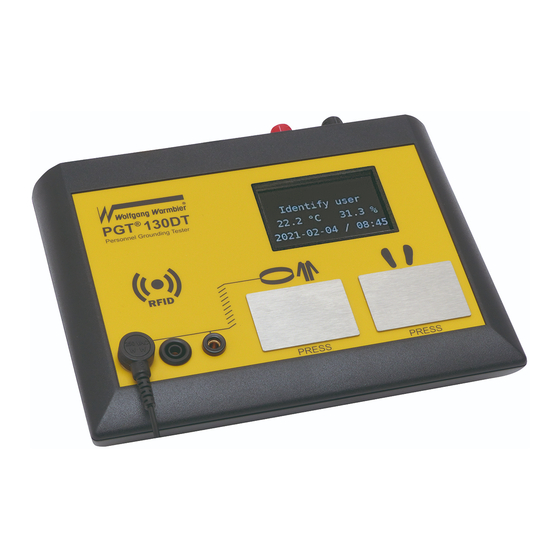

Wolfgang Warmbier PGT130.DT User Manual

Personnel grounding tester
Hide thumbs

Advertisement

Table of Contents

®
User's Manual – PGT
130.DT
Part No.: 7100.PGT130.DT
User's Manual
Personnel Grounding Tester
®
PGT
130.DT
V1.2
Page 1 / 21
V12/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PGT130.DT and is the answer not in the manual?

Questions and answers

Related Manuals for Wolfgang Warmbier PGT130.DT

Summary of Contents for Wolfgang Warmbier PGT130.DT

  • Page 1 ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT User’s Manual Personnel Grounding Tester ® 130.DT V1.2 Page 1 / 21 V12/2020...

  • Page 2: Table Of Contents

    ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT Table of contents Table of contents ............................ 2 Introduction ............................3 Important Notice ............................ 3 Scope of Delivery ........................... 4 Installation .............................. 4 Initial Operation - Local .......................... 6 Initial Operation via Network ........................7 Configuration ............................

  • Page 3: Introduction

    ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT Introduction ® The PGT 130.DT is a compact testing system for checking Personnel grounding with ESD shoes, wrist straps systems and smocks according to IEC 61340-5-1 and ANSI ESD S20.20. The user identification is possible via integrated RFID reader or via any external HID-compatible USB input device e.g.

  • Page 4: Scope Of Delivery

    ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT Scope of Delivery ® · Personnel Grounding Tester PGT 130.DT · Power supply (EU / US) · Footwear electrode · User’s manual · Calibration certificate (German / English) Installation Device overview...
  • Page 5 ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT Connections Power supply Ethernet Interface USB1 / USB2 External component connectors Optional external input device (needs to be connected in USB 2) • Temperature/Humidity Sensor • Label printer • Beacon light •...

  • Page 6: Initial Operation - Local

    ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT Installation 1. Connect the footwear electrode to the red and black socket. 2. If you wish to use external input device connect it to the USB2 socket. 3. Connect the external Temperature/Humidity sensor via supplied extension cable to the device if applicable.

  • Page 7: Initial Operation Via Network

    ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT Parameter Funktion Language Device language selection English, German, Spanish, French Voltage Measure voltage 30V, 50V, 100V Measure mode Measure modes AND - Shoe and wrist required OR - Shoe or wrist measurement...

  • Page 8: Configuration

    ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT Important settings: The time zone, date and time must first be set in System settings After saving the settings and logging in you find the optional sections Device, Network and Advanced in the Configuration menu.
  • Page 9 ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT Device settings · Measure voltage: 30V, 50V, 100V · Measure modes: AND - Shoe and wrist measurement required OR - Shoe measurement WRIST - Only wrist measurement required SHOE - Only shoe measurement required ·...
  • Page 10 ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT Extended Configuration Settings for measurement data retrieval and user data synchronization are available here. It is recommended to use HTTPS instead of HTTP as secure communication for measurement and user data transfer. You can additionally define a password for the communication.
  • Page 11 ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT Test data Test data view is the main entry page. A configurable number of records are displayed, including test data, date, time and test result. Measurement data view is updated every 20 seconds.
  • Page 12 ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT Table - userdata: Field Content Format userid User-ID String - max. 30 characters (ASCII 32-127) name Name String - max. 30 characters optional profile Measure profile Integer 0= Arbitrary 1= Shoe...

  • Page 13: Operation

    ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT Special Function: Service-access without measurement validation Users whose names are marked with a leading asterisk "*" are allowed to pass even if the measurement values are out of range. The signal will indicate “yellow” instead of “green” and no label will be printed.
  • Page 14 ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT Single shoe test This operating mode for handicapped personnel with one artificial leg is only available if user identification is enabled. Stand on the footplate. Identify yourself with the ID card and then touch the right sensor. After a short measurement time the color test result (green= pass, / red = fail) and the measurement values are displayed.

  • Page 15: Device Specification

    ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT Device specification: Limits and modes Test voltage Test voltage (no-load operation) 100V / 50V / 30V DC Upper limits Measure range Wrist / Smock 35 MΩ, 100 MΩ, 1 GΩ Footwear - each shoe 20 MΩ, 35 MΩ, 70 MΩ, 100 MΩ...

  • Page 16: Calibration

    For indoor operation Table top / Wall mounting (with optional wall mounting bracket) compliant Calibration To test the instrument accuracy you can use the optional available Calibration Unit for PGT130.DT. Detailed instructions can be found in the Calibration unit’s user’s manual. ®...

  • Page 17: Accessories

    ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT Accessories Wall mounting bracket for device mounting beside doors. ® Type: 130.DT.WH Part No.: 7100.PGT130.DT.WH Temperature/Humidity Sensor The current temperature and the relative humidity is recorded if the T/H-Sensor is connected.

  • Page 18: Waste Disposal

    ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT USB-HUB (passive) To connect multiple optional extensions, a USB-HUB with USB 2.0 / USB 1.1 specification is required. To connect the within this document listed devices a passive HUB (without additional power supply) is sufficient.

  • Page 19: Data Export Interface

    ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT Data Export Interface Test data can be polled by Time Attendance or Access Control systems via Ethernet Interface. A HTTP-GET query returns the data in [Content-Type: text/plain Charset: utf-8]. Export data is erased after each poll.
  • Page 20 ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT Interface 2 - CSV Exported data in CSV can directly be opened with spreadsheet programs, i.e. MS-Excel. Differences to Interface 1: · Field separation character is Semicolon · All fields are quoted with double quotes ·...
  • Page 21 ® User’s Manual – PGT 130.DT Part No.: 7100.PGT130.DT Interface 3 - DatatermD Special communication format for DatatermD service. Differences to Interface 1: · If no data is present, then erg is set to "0" and msg is set to "no data"...
