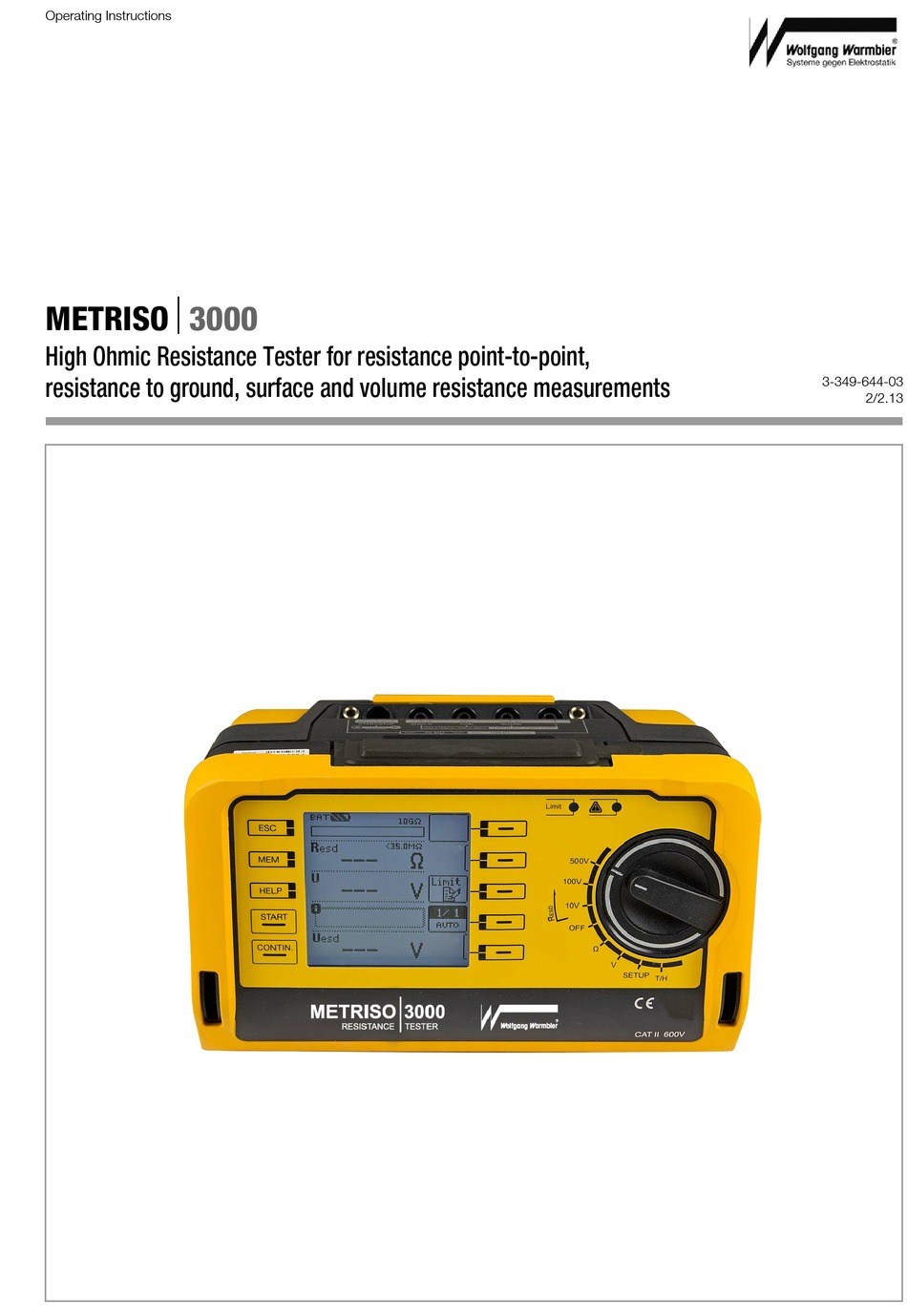

- Page 1 Operating Instructions METRISO3000 High Ohmic Resistance Tester for resistance point-to-point, 3-349-644-03 resistance to ground, surface and volume resistance measurements 2/2.13...
-
Page 2: Control Panel
Memory functions LEDs section 4.3 Fixed Function Keys ESC: Exit submenu / activate instrument from standby state MEM: Key for memory functions HELP: Access context sensitive help START: Start measurement CONTIN: Continuous measurement Wolfgang Warmbier GmbH & Co. KG... - Page 3 Port for connecting Barcode/RFID reader and temperature-humidity adapter Caution! RS 232 Only rechargeable batteries may be inserted when the charger is connected. USB slave for PC The test instrument must remain off connection during the charging process. Wolfgang Warmbier GmbH & Co. KG...
- Page 4 Calibration date depleted Adjustment date page 8 U < 8.5 V METRISO 3000 Measuring Kit includes: 1 High ohmic resistance meter with integrated USB interface Memory Occupancy Display 1 Set of measurement cables 1 Z550B plug-on temperature and atmospheric humidity sensor Memory full >...
-
Page 5: Table Of Contents
10.3.1 Creating Structures (example for floor covering, FLOOR 01) ... 21 10.3.2 Searching for Structural Elements ..........22 10.4 Saving Data and Generating Reports ........23 10.4.1 Use of Barcode Scanners and RFID Readers ......... 24 Wolfgang Warmbier GmbH & Co. KG... -
Page 6: Applications
Thanks to the USB data interface integrated into the limit values are adjustable (see sectionl 4.3) METRISO 3000, stored measured values can be transmitted to a LED for dangerous contact voltage PC, where they can then be printed and archived. This is of spe- ✓... -
Page 7: Safety Features And Precautions
New batteries must be inserted for initial start-up, or if only 1 filled segment remains in the battery symbol. Attention! Before opening the battery compartment (see page 5 for location), disconnect the instrument from the measuring circuit (mains) at all poles. Wolfgang Warmbier GmbH & Co. KG... -
Page 8: Device Settings - Setup
User interface Increase brightness language Decrease brightness On-time Increase contrast for display illumination / tester Decrease contrast Default settings Display Illumination On-time Test Instrument On-Time Return to submenu Automatic shutdown, deactivated = OFF Wolfgang Warmbier GmbH & Co. KG... - Page 9 Select time/date Activate settings Decrease Increase hours hours Decrease Increase minutes minutes Decrease Increase seconds seconds Set date Return to submenu Select time/date Activate settings Decrease Increase Decrease Increase month month Decrease Increase year year Wolfgang Warmbier GmbH & Co. KG...
- Page 10 Back up your measurement data to a PC with the help of ETC software before press- ing the respective key. The prompt window shown at the right asks you to confirm deletion. Wolfgang Warmbier GmbH & Co. KG...
-
Page 11: General Operation
Switching On, Monitoring and Switching Off METRISO 3000 Measuring Functions, Measuring Ranges and Limit If supply voltage drops to a value of less than 8.5 V, the Values LOW BATT pop-up message appears: No more measurements can be started. -
Page 12: Setting Measuring Parameters Per Esd Standards
3 Switch to the settings menu for the selected parameter with the key. menu. You can return to the main menu by pressing ESC instead of ✓, 4 Select a setting value using the or scroll key. without accepting the newly selected value. Wolfgang Warmbier GmbH & Co. KG... -
Page 13: Measuring Direct And Alternating Voltage
OFF position. The ESC, START and CONTIN keys have no function in this case. Set Voltage Type Parameter (waveform) Note Input impedance for the voltage measuring range is 10 M. Wolfgang Warmbier GmbH & Co. KG... -
Page 14: Esd Measurements
Resd. The respective selection The red LED lights up if is displayed in the key in the limit value is the start menu. exceeded. Wolfgang Warmbier GmbH & Co. KG... -
Page 15: Discharging The Device Under Test
Continuous Measurement via the CONTIN Key Note The instrument’s batteries are exposed to excessive stress during insulation resistance measurement. Stop continuous measurement with “constant test voltage” as soon as the display has settled in. Wolfgang Warmbier GmbH & Co. KG... -
Page 16: Measuring Resistance To Ground R G Or R Gp
Measuring Voltage Resd in Resd 10 100 V ±5 V (open-circuit voltage) Resd < 1 x 10 10 V ± 0.5 V Resd 1 x 10 100 V ±5 V Wolfgang Warmbier GmbH & Co. KG... -
Page 17: Measuring Point-To-Point Resistance
100 V ±5 V Use only the 2-pole measurement cable. ➭ Contact the “GUARD terminal” at the ring electrode with the GUARD socket at the METRISO 3000. ➭ Select a measuring voltage of U = 10 V in the Resd switch position. -
Page 18: Measurement Of Volume Resistance R
COM/SHIELD Ring Electrode according to IEC 61340-2-3 ➭ Connect the GUARD terminal at the measuring electrode to the GUARD socket at the METRISO 3000 when measuring very high-ohmic materials The measuring sequence is the same as described in the previ- ous sections. -
Page 19: Measuring Resistance - Ohm Function
CONTIN key. START Note As long as the T/F sensor is connected to the RS 232 interface, automatic shutdown of the ESD test instrument is disabled. Wolfgang Warmbier GmbH & Co. KG... -
Page 20: Database
A complete structure with customer, building and ESD control • Transfer a structure including measured values from the test elements can be created in the METRISO 3000 test instrument. This instrument to the PC. structure makes it possible to assign measurements to ESD con- trol elements in various buildings and customer facilities. -
Page 21: Creating Structures (Example For Floor Covering, Floor 01)
Special characters Go to the next page with the >> key Create a new object. Create object Edit designation VA: show measurement data Delete object Press the key in order to create a new object. Wolfgang Warmbier GmbH & Co. KG... -
Page 22: Searching For Structural Elements
, another pop-up window appears to which a new designation has to be entered for the ESD control element. Acknowledge you entry by pressing ✓..and entering the desired text (only full matches are found – no wild cards, case sensitive) Wolfgang Warmbier GmbH & Co. KG... -
Page 23: Saving Data And Generating Reports
If you change the parameters in the measurement view, they are not saved for the structural element. A measurement with changed parameters can nevertheless be saved to the struc- tural element, and any changed parameters are documented in the report for each measurement. Wolfgang Warmbier GmbH & Co. KG... -
Page 24: 10.4.1 Use Of Barcode Scanners And Rfid Readers
– No further object found: The entire database is searched at all levels. Reading In a Barcode for Editing If the menu for alphanumeric entry is active, any value scanned by means of a barcode or RFID reader is accepted directly. Wolfgang Warmbier GmbH & Co. KG... -
Page 25: Characteristic Values
LED lights up red to indicate the presence bol in 4 segments: of interference voltage (when instrument is Querying of momentary battery voltage via switched off) or high test voltage at the menu function. measuring sockets during resistance mea- surement (R Wolfgang Warmbier GmbH & Co. KG... - Page 26 219 M 500 M 541 M 1.00 G 1.11 G Figure 1: Characteristic Curves, Ux(Rx) 2.00 G 2.19 G 5.00 G 5.41 G 10.0 G 11.1 G 20.0 G 22.6 G 50.0 G 55.9 G Wolfgang Warmbier GmbH & Co. KG...
-
Page 27: Maintenance
➭ Please refer to the operating instructions included with the charger regarding the meanings of LED displays during the charging process. ➭ Do not disconnect the charger from the test instrument until the LED lights up green. Wolfgang Warmbier GmbH & Co. KG... -
Page 28: Housing
(Pb), cadmium (Cd) and mercury (Hg). The symbol at the right indicates that batteries must not be disposed of with the trash, and must be brought to a designated collection point. Pb Cd Hg Wolfgang Warmbier GmbH & Co. KG... -
Page 29: Appendix
Remedy: The connected device is not suitable for this port. Operation with a Barcode Scanner Barcode not recognized, incorrect syntax Data cannot be entered at this location within the structure. Remedy: Observe profile for preselected PC software (see SETUP menu). Wolfgang Warmbier GmbH & Co. KG... -
Page 30: Optional Accessories (Not Included)
8 LSD NiMH rechargeable batteries with reduced self-discharging (AA), 2000 mAh, with sealed cells Charger (material no. 7100.3000.Z502R) Broad-range charger for charging batteries in the measuring instrument Input: 100 to 240 V AC, output: 16.5 V DC, 0.6 A Wolfgang Warmbier GmbH & Co. KG... - Page 31 Wolfgang Warmbier GmbH & Co. KG...
- Page 32 Edited in Germany • Subject to change without notice • PDF version available on the Internet Wolfgang Warmbier GmbH & Co. KG Phone: +49-77-3186-880 Systeme gegen Elektrostatik Fax: +49-77-3186-8830 Untere Gießwiesen 21 e-mail info@warmbier.com 78247 Hilzingen, Germany www.warmbier.com...
