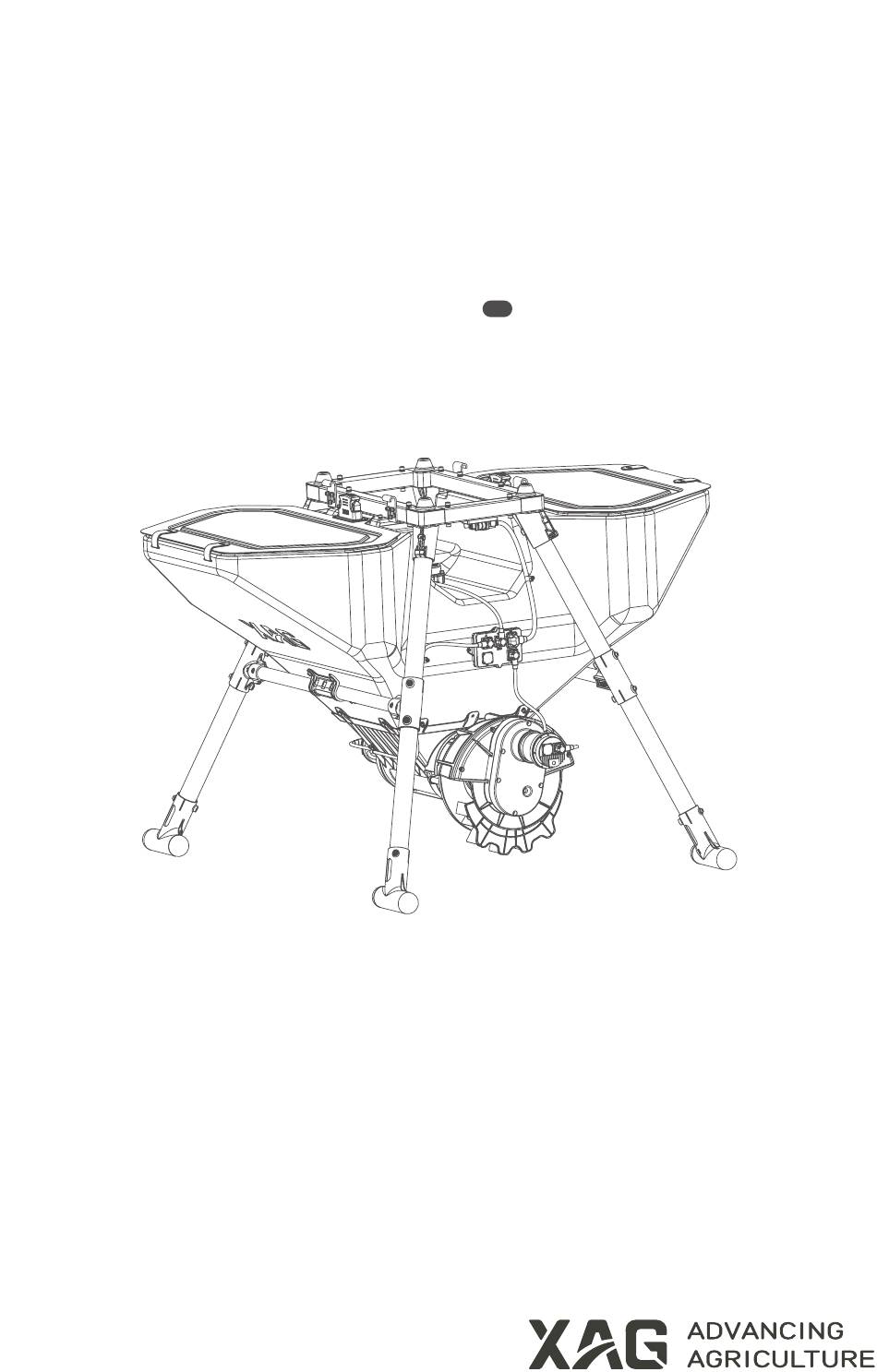

- Page 1 XAG P150 RevoCast 4 User Manual Version 1.0...
- Page 2 To User Dear user, thank you for choosing XAG's products. For safety purposes and better user experience, it is highly recommended that you read this manual carefully and strictly follow the instructions hereof. Contact Us Manufacturer: Guangzhou Xaircraft Technology Co., Ltd.
-
Page 3: Table Of Contents
Contents Safety Guidelines Introduction List of Items Main Components Installation Install Landing Gear Install Spread Assembly Drain Liquid Remove RevoSpray System Install RevoCast Use of RevoCast Firmware Update Spreading Calibration Manual Spreading Test Spreading Settings Maintenance Clean RevoCast Replace Screw Feeder Examples of Granules for Different Sized Screw Feeders Specifications Disclaimer... -
Page 4: Safety Guidelines
Calibrate with the granules to be spread. • It is NOT allowed to use a non-XAG granule container, covert the container on your own or increase its capacity in that it may result in malfunctions, inefficient operations, or damage to the product, which are not covered by the warranty. -
Page 5: Introduction
Introduction XAG P150 RevoCast 4 (RevoCast) is compatible with the XAG P150 2024 Agricultural Drone. From seeding and fertilizing to dispensing feed pellets for fish and shrimp in aquaculture, it offers intelligent, precise, efficient, and flexible production solutions for every user. -
Page 6: Main Components
Main Components ④ ③ ② ⑤ ⑥ ① ⑦ ⑧ ⑨ ⑫ ⑩ ⑪ ① Container ⑤ RevoCast Application ⑨ Spread Disc Motor Cable ② Lid System Cable ⑩ Spread Disc Motor ③ Boss ⑥ Radar Level Sensor ⑪ Spread Disc ④... - Page 7 ② Install and secure the crossbar into the T-joints at both sides. Align the U-bracket (Kit B) with the holes on the container and lightly fasten it with four screws (Kit B). ③ Partially secure the two T-clamps on each end of the crossbar with two screws (Kit C). After making the necessary adjustments, tighten all the screws (torque 9-11 kgf.cm) to complete the installation of the right landing gear.
-
Page 8: Install Spread Assembly
Install Spread Assembly ① Stand the container on its side, open the lid, and place the spread assembly on the container, with the screw feeder facing forward and the disk facing backward. Then stabilize it with your hand. ② Secure the spread assembly onto the container by putting screws (Kit D) through the holes of the assembly and into the exterior holes of the container. -
Page 9: Drain Liquid
Detergent: soapy water or laundry powder solution A. Clean RevoSpray System ① After adding soapy water or laundry powder solution, start spraying with the "XAG One" to remove the residual pesticide. ② Add clean water and spray again to remove the residual soapy water or laundry powder solution. -
Page 10: Remove Revospray System
Remove RevoSpray System Remove Spray Rod Assembly To avoid damage to the spray rods during spreading, please remove the spray rods before using RevoCast (take the left one as an example). ① Unscrew the four set screws of the arm ESC, open the ESC cover, and disconnect the nozzle signal cable. - Page 11 Remove RevoSpray ① Remove the airframe application system cable and the RevoSpray application system cable from the cable holder and disconnect them. ② Disconnect the two liquid tubes connected to RevoSpray from the airframe. ③ Open the two hasps on each side of the airframe and remove the RevoSpray. ①...
-
Page 12: Install Revocast
Before using the device, please check if the firmware version is up to date. If not, make sure to install the latest version. 1. Open XAG One and tap "Me"-"Device". Select the drone or remote controller for the operation and go to Device Details. Tap "... -
Page 13: Spreading Calibration
Manual Spreading Test Before spreading, please start "Manual Spreading Test" to make sure RevoCast works well. 1. Open "XAG One" and tap "Me" and then "Device" to select the drone and enter Device Details. Tap " " to enter Spreading and select "Manual Spreading Test". -
Page 14: Spreading Settings
Before spreading, please set spreading parameters in "Spreading Settings". 1. Open "XAG One" and tap "Operation" in the menu bar to enter Operation screen. 2. Select the fields for operation on the map. After that tap "Operation Settings" to set spreading parameters as needed. - Page 15 If the granules inside the RevoCast are corrosive, please clean RevoCast with soapy water or laundry powder solution first, then rinse it with clean water. Places prone to residual granules: 1. between the screw feeder shell and the screw feeder. 2. within the space that the spread disc rotates.
-
Page 16: Replace Screw Feeder
Replace Screw Feeder If the wear depth on one side exceeds 2 mm (the original diameter is 120 mm), please replace the screw feeders to ensure that RevoCast works well. ① Refer to the "Clean RevoCast" (pages 11-12) to pull out the screw feeder shell assembly. ②... -
Page 17: Specifications
3-8 m (subject to flight height, seed's weight & shape, Effective Spread Width dosage, environment, etc.) Applicable Granule Size 1-10mm (dry and solid granules) Spread Amount Accuracy ±10% (subject to granule type and moisture) Compatibility XAG P150 2024 Agricultural Drone www.xa.com/en... -
Page 18: Disclaimer
7. To the maximum extent permitted by law, XAG shall not be liable for any loss caused by your use of this product outside the instructions in this User Manual. Furthermore, XAG shall not be liable for... - Page 19 For any reason that certain terms stated herein are deemed void, other terms shall remain in effect. 13. To the extent permitted by law, XAG reserves the right for final explanation and revision of the terms and conditions stated hereinabove. XAG also has the right to update, modify or terminate these terms and conditions via its official website, User Manual, online App, etc., without prior notice.
-
Page 20: Compliance Information
Suppliers phone number and / or internet contact information: +1 (503) 866-1228 EU Compliance Statement “Hereby, [Guangzhou Xaircraft Technology CO.,LTD.], declares that this [XAG P150 RevoCast 4] is in compliance with the essential requirements and other relevant provisions of 2014/53/EU. -
Page 21: Appendix
Appendix Wiring Quick Guide www.xa.com/en... - Page 22 www.xa.com/en...
- Page 23 @XAGofficial @xag_official @XAG Official This document is subject to update without prior notice. © Guangzhou Xaircraft Technology CO., LTD. All Rights Reserved. All information in this User Manual (including but not limited to any text description, illustrations, photos, methods, processes, etc.) belongs to Guangzhou Xaircraft Technology CO., LTD.
