  • Page 1 P30 2019 Quick Start Guide Version 1.3...
  • Page 3 To users: Dear users, thank you for choosing XAG products. For SAFETY reasons and for the best experience possible, XAG recommend that you should read through this Quick Start Guide and Disclaimer within this document before attempting to use the P30 2019 Plant Protection UAS.

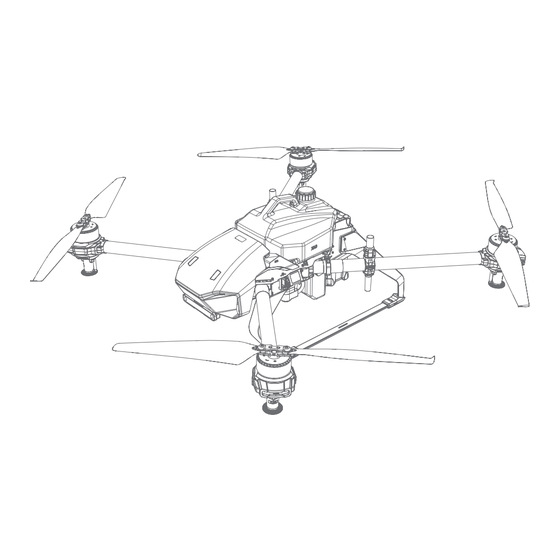

  • Page 4 Quick start guide P30 Plant Protection UAS Main structural components of P30 Plant Protection UAS are as follows: (Above) Figure 1. Airframe module structure (Top View) (Below) Figure 2. Airframe module structure (Bottom View) Propeller Head cover Liquid container Motor...
  • Page 5 Quick start guide No.1 Arm No.2 Arm No.3 Arm No.4 Arm Figure 3. Airframe module & Arm orientation HDLS module Airframe orientation number Antenna Hub Radar (Right)* Central Hub Power grid Hub Radar (Left)* Antenna frame Airframe nameplate (serial number/QR code) RTK UAV module Flight status indicator (tail light) Radar (Rear) Radar (Front)
  • Page 6: List Of Items

    List of items Before unpacking and using the product, please carefully check to see if it contains all the items listed in this list. Please contact XAG or your dealer if there are any missing items. Airframe×1 No. 4 Arm No.
  • Page 7 In order to facilitate transportation, the head cover, antenna frame components, center hatch cover and arm fixing slider of P30 have been installed on the aircraft body before leaving the factory. User will need to remove these parts temporarily before assembling the aircraft, and install them back to their original position after installing the arms.
  • Page 8 Quick start guide Arms installation Buckle Slider 4. Dismantle the fixed sliders of No.1 and 5. Install No.1 and No.2 arm No.2 arm Insert the No.2 short arm from designated position of airframe plate, and then install the Dismantle screws (4 screws on 2 sliders) on top slider back to its original position to complete limiting stopper of No.2 arm top sliders;...
  • Page 9 Quick start guide Connecting infusion tube 8. Connect circuits and infusion tube correctly After installation of arms, all the plugs of each circuit and the infusion tube of the spray system should be correctly connected. For the connection method, see “P Series Aircraft Module Wiring Guidelines”...
  • Page 10 Wiring guidelines for P-series UAV modules V1.1 HDLS Module RTK Module 4G – Left Antenna 4G–Right Antenna 2.4G/5.8G - Right antenna 2.4G/5.8G-Left Antenna RTK-Left Antenna RTK–Right Antenna Diagram -Antenna Hub NO.1 Motor NO.2 Motor Power system Load system power supply NO.3 Motor NO.4 Motor Diagram - Power Grid...
  • Page 11 Quick start guide P Series Aircraft Module Wiring Guidelines V1.1 Smart battery Uninterruptible Power Supply Load system XCope system Power system Terrain sensor GNSS RIK positioning module PC upgrading port High Data Link Module FC Status Indicator Auxiliary Port1 SBUS No.2 nozzle No.1 nozzle Liquid...
  • Page 12 2. Select “Scan QR”, and add your device by either entering the Serial Number or the Scanning the QR Code of the Aircraft (This information could be found on the Airframe Nameplate). 3. Please Scan the QR Code on the Activation Card provided by Official XAG Partners to activate your device.
  • Page 13: Prepare The Remote Controller

    Quick start guide 2. Prepare the remote controller XAG P series UAV needs to be used together with professional remote controller and APP, which supports various control modes. Currently, the supported control equipment (combination) includes: 1: ACB1 CommBack (standard) + Smart phone;...
  • Page 14 STEP 6 – Follow the on-screen instruction and Power on the UAV, and select the corresponding device STEP 4 – to be paired. Only on the XAG member platform can a UAS with the right to use be successfully Attention paired.
  • Page 15 Quick start guide 3. Preparation of smart battery The P-Series Plant Protection UAVs are designated to be powered by B12620/B12800 Smart battery. Normally on: norma lash slowly: low temperature The Smart Battery contains a power button and six Flash quickly: high temperature indicators.
  • Page 16 4. Preparation of liquid container P30 Plant Protection UAS is equipped with the standard 16L Liquid container which needs to be used with the automatic liquid refiller together. Before use, you need...
  • Page 17 Quick start guide 5. Viewing the flight state The Flight Indicator indicates the status on the aircraft. See the table below for details of the Flight Indicator: Flight Status Indicator Status Status description ONE RED + ONE GREEN LIGHT FLASH WEAK GPS SIGNAL Manual TWO LIGHT FLASHING (Green)
  • Page 18: Specifications And Parameters

    Specifications and parameters Electronic speed controller Model: VC12100 P30 multi-copter plant Maximum operating voltage: 52.2V (12SLipo) protection aerial platform Maximum continuous operating current: 100A Overall dimensions: 1,260×1,252×495mm Foldable propeller Overall dimensions: (when the propellers are folded) Material: nylon carbon fiber 1852×1828×495mm...
  • Page 19: Communication System

    Communication system Other features Operating frequency: 2.400-2.483GHz Operating efficiency: 14 ha/h 5.725-5.850GHz High-precision radar: (5 radars + XCope) omnibearing Transmission power (EIRP): 2.400-2.483GHz High-precision radar: obstacle avoidance, autonomous Transmission power (EIRP): FCC≤28dBm High-precision radar: obstacle avoidance Transmission power (EIRP): CE≤20dBm AI intelligent engine 3D operation planning: support Transmission power (EIRP): SRRC≤20dBm High-precision flow measurement: support...
  • Page 20 XAG server during use. In the event that the flight records and data cannot be uploaded and saved and XAG cannot analyze the flight records and data due to any reason of the user, XAG will not assume any responsibility.
  • Page 21 Flight safety instructions • Ensure that all flights are carried out in an open and familiar area, and avoid obstacles, crowds, and • acknowledge of all Risks . • Please do not operate the UAV when you are fatigue or under influence. •...
  • Page 22 Scan by WeChat for more details P30 Plant Protection Unmanned Aerial system includes supporting modules such as Aircraft, Remote control, Battery, Operation box, Liquid refiller, Charger, RTK Rover, RTK Base station, etc. User can also check the "User Manual" of their respective modules to understand the details of use to maximize the efficient of use.
  • Page 24 All information of this user manual (including but not limited to any text description, illustrations, photos, methods and processes, etc.) belongs to XAG Co., Ltd. and is protected by copyright law. Without written authorization, no individual or institution shall reproduce, extract, translate, distribute or otherwise reproduce or quote all contents of this manual...
