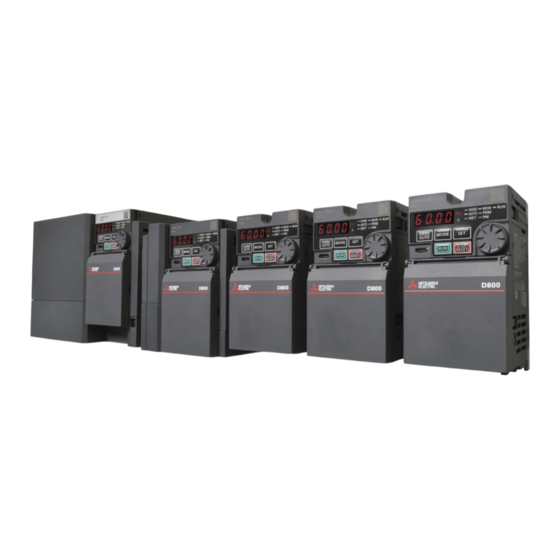

INVERTER
FR-D800
Instruction Manual (Function)
(Standard model)
Compact & easy-to-use inverter
FR-D820-0.1K-008 to 7.5K-318
FR-D840-0.4K-012 to 7.5K-163
FR-D820S-0.1K-008 to 2.2K-100
FR-D810W-0.1K-008 to 0.75K-042

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 800 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Mitsubishi Electric 800 Series

Summary of Contents for Mitsubishi Electric 800 Series

  • Page 1 INVERTER FR-D800 Instruction Manual (Function) (Standard model) Compact & easy-to-use inverter FR-D820-0.1K-008 to 7.5K-318 FR-D840-0.4K-012 to 7.5K-163 FR-D820S-0.1K-008 to 2.2K-100 FR-D810W-0.1K-008 to 0.75K-042...

  • Page 2: Table Of Contents

    Chapter 1 Introduction ........8 Product checking ............9 Operation steps .
  • Page 3 I/O terminal function assignment ..........44 Chapter 3 Parameters .
  • Page 4 PU contrast adjustment ........... . . 100 Display-off setting .
  • Page 5 Chapter 8 (D) Operation Command and Frequency Command ......... . 140 Operation mode selection .
  • Page 6 9.13 Load characteristics fault detection ..........199 9.14 Motor overspeeding detection .
  • Page 7 Chapter 12 (C) Motor Constant Parameters....258 12.1 Applied motor ............. 258 12.2 Offline auto tuning .
  • Page 8 14.8 Regenerative brake selection ..........337 14.9 Regeneration avoidance function .

  • Page 9: Chapter 1 Introduction

    (FR-PA07) Parameter unit Parameter unit (FR-PU07) Operation panel and parameter unit Inverter Mitsubishi Electric FR-D800 series inverter D800 Standard model (RS-485 communication) Parameter number (Number assigned to function) PU operation Operation using the PU (operation panel / parameter unit)

  • Page 10: Product Checking

    Product checking  Inverter model FR-D8 0.1K-008 Rating plate Inverter model MODEL FR-D820-0.1K-008 Input rating INPUT :XXXXX Output rating OUTPUT:XXXXX SERIAL SERIAL:XXXXXXXXXXX Country of origin MADE IN XXXXX • A: The voltage class is shown. Symbol Voltage class 100 V class 200 V class 400 V class •...

  • Page 11: How To Read The Serial Number

     How to read the SERIAL number The SERIAL consists of two symbols, three characters indicating the production year and Rating plate example month, and six characters indicating the control number. The last two digits of the production year are indicated as the Year, and the Month is indicated Symbol Year Month Control number by 1 to 9, X (October), Y (November), or Z (December).

  • Page 12: Operation Steps

    Operation steps : Initial setting Step of operation Frequency command Installation/mounting Inverter output Wiring of the power frequency supply and motor Time (Hz) Start command Control mode selection to give a start to give a start to give a start command? command? Start command via the PU connector or...
  • Page 13 Symbol Overview Refer to page Give the start command via terminal STF or STR and the frequency command via terminals RH, RM, and RL. (External operation mode) Give the start command via terminal STF or STR and the frequency command by voltage input via terminal 2.

  • Page 14: Related Manuals

    When using this inverter for the first time, prepare the following manuals as required and use the inverter safely. The latest version of e-Manual Viewer and the latest PDF manuals can be downloaded from the Mitsubishi Electric FA Global Website.

  • Page 15: Chapter 2 Basic Operation

    The indicator blinks during test operation. The indicator is OFF when the inverter controls the induction motor. Setting dial The setting dial of the Mitsubishi Electric inverters. Turn the setting dial to change the setting of frequency or parameter, etc. Press the setting dial to perform the following operations: •...
  • Page 16 Appearance Name Description MODE key Switches the operation panel to a different mode. The easy setting of the inverter operation mode is enabled by pressing this key simultaneously with the HAND/AUTO key. Every key on the operation panel becomes inoperable by holding this key for two seconds. The key lock function is disabled when Pr.161 = "0 (initial setting)".

  • Page 17: Basic Operation Of The Operation Panel

    2.1.2 Basic operation of the operation panel  Basic operation Operation mode switchover/Frequency setting External operation mode (displayed at power-ON) PU operation mode PU Jog operation mode Blinking Change the setting. Frequency setting written and complete Second screen Third screen First screen (Output frequency monitoring) (Output current...

  • Page 18: Parameter Setting Mode

    V/F control as a batch. Automatic parameter Changes parameter settings as a batch. The target parameters include setting communication parameters for the Mitsubishi Electric human machine interface (GOT) connection and the parameters for the rated frequency settings of 50/60 Hz. Parameter initial value Changes the parameter initial value group.

  • Page 19: Parameter Setting Screen

     Parameter setting screen First screen (Output frequency monitoring) Parameter setting mode PU operation mode Blinking The present setting is Change the setting. Parameter write complete displayed. Hold down For a 4-digit parameter number The present setting is displayed. Change the setting. Hold down For a 5-digit parameter...

  • Page 20: Monitoring The Inverter

    Monitoring the inverter 2.2.1 Monitoring of output current and output voltage • Press the SET key on the operation panel in the monitor mode to switch the monitor item between output frequency, output current, and output voltage. Operating procedure Press the MODE key during inverter operation to monitor the output frequency. The [Hz] LED turns ON. Press the SET key to monitor the output current.

  • Page 21: Displaying The Set Frequency

    2.2.3 Displaying the set frequency To display the present set frequency, change the mode of the operation panel to the monitor mode and press the setting dial ) while the inverter runs in the PU operation mode or in the External/PU combined operation mode 1 (Pr.79 Operation mode selection = "3").

  • Page 22: Easy Setting Of The Inverter Operation Mode

    Easy setting of the inverter operation mode The operation mode suitable for start and speed command combinations can be set easily using Pr.79 Operation mode selection. The following shows the procedure to operate with the external start command (STF/STR) and the frequency command by using the operation panel.

  • Page 23: Frequently-Used Parameters (Simple Mode Parameters)

    Frequently-used parameters (simple mode parameters) Parameters that are frequently used for the FR-D800 series are grouped as simple mode parameters. When Pr.160 User group read selection = "9999", only the simple mode parameters are displayed on the operation panel. This section explains the simple mode parameters. 2.4.1 Simple mode parameter list For simple variable-speed operation of the inverter, the initial values of the parameters may be used as they are.
  • Page 24 21, 9999 The target parameters include communication parameters for the Mitsubishi Electric human machine interface (GOT) connection and the parameters for the rated frequency settings of 50/60 Hz. Initial value for the FR-D820-0.75K-042 or lower, the FR-D840-0.75K-022 or lower, the FR-D820S-0.75K-042 or lower, and the FR-D810W- 0.75K-042 or lower.

  • Page 25: Basic Operation Procedure (Pu Operation)

    Basic operation procedure (PU operation) Select a method to give the frequency command from the list below, and refer to the specified page for its procedure. Method to give the frequency command Refer to page Setting the frequency on the operation panel in the frequency setting mode Give commands by turning ON/OFF switches wired to inverter's terminals (multi-speed setting) Setting the frequency by inputting voltage signals...
  • Page 26 NOTE • To display the set frequency, press the setting dial while the inverter runs in the PU operation mode or in the External/PU combined operation mode 1 (Pr.79 = "3"). (Refer to page 207.) • The frequency can be set without pressing the SET key when Pr.161 Frequency setting/key lock operation selection = "1 or 11".

  • Page 27: Setting The Frequency With Switches (Multi-Speed Setting)

    2.5.2 Setting the frequency with switches (multi-speed setting) • Use the RUN key on the operation panel to give a start command. • Turn ON the RH, RM, or RL signal to give a frequency command (multi-speed setting). • Set Pr.79 Operation mode selection = "4" (External/PU combined operation mode 2). [Connection diagram] Inverter Speed 1...

  • Page 28: Setting The Frequency Using An Analog Signal (Voltage Input)

    2.5.3 Setting the frequency using an analog signal (voltage input) • Use the RUN key on the operation panel to give a start command. • Use the frequency setting potentiometer to give a frequency command (by connecting it to terminals 2 and 5 (voltage input)).
  • Page 29 Parameters referred to Pr.7 Acceleration time, Pr.8 Deceleration timepage 128 Pr.79 Operation mode selectionpage 140 Pr.125 Terminal 2 frequency setting gain frequencypage 245 C2 (Pr.902) Terminal 2 frequency setting bias frequencypage 245 2. Basic Operation 2.5 Basic operation procedure (PU operation)

  • Page 30: Setting The Frequency Using An Analog Signal (Current Input)

    2.5.4 Setting the frequency using an analog signal (current input) • Use the RUN key on the operation panel to give a start command. • Use the current regulator which outputs 4 to 20 mA to give a frequency command (by connecting it across terminals 4 and 5 (current input)).
  • Page 31 NOTE • The AU signal can be assigned to another terminal. Set "4" in any parameter from Pr.178 to Pr.182 and Pr.185 to Pr.189 (Input terminal function selection) to assign the function to an input terminal. • To change the frequency (60 Hz) at the maximum current input (initial value: 20 mA), adjust Pr.126 Terminal 4 frequency setting gain frequency.

  • Page 32: Basic Operation Procedure (External Operation)

    Basic operation procedure (External operation) Select a method to give the frequency command from the list below, and refer to the specified page for its procedure. Method to give the frequency command Refer to page Setting the frequency on the operation panel in the frequency setting mode Giving frequency commands with switches (multi-speed setting) Setting the frequency by inputting voltage signals Setting the frequency by inputting current signals...
  • Page 33 NOTE • When both the forward rotation start switch (STF signal) and the reverse rotation start switch (STR signal) are turned ON, the motor cannot be started. If both are turned ON while the inverter is running, the inverter decelerates to a stop. •...

  • Page 34: Setting The Frequency And Giving A Start Command With Switches (Multi-Speed Setting)

    2.6.2 Setting the frequency and giving a start command with switches (multi-speed setting) • Turn ON the STF/STR signal to give a start command. • Turn ON the RH, RM, or RL signal to give a frequency command (multi-speed setting). •...
  • Page 35 Parameters referred to Pr.4 to Pr.6 Multi-speed settingpage 162 Pr.7 Acceleration time, Pr.8 Deceleration timepage 128 2. Basic Operation 2.6 Basic operation procedure (External operation)

  • Page 36: Setting The Frequency Using An Analog Signal (Voltage Input)

    2.6.3 Setting the frequency using an analog signal (voltage input) • Turn ON the STF/STR signal to give a start command. • Use the frequency setting potentiometer to give a frequency command (by connecting it to terminals 2 and 5 (voltage input)). •...
  • Page 37 Parameters referred to Pr.7 Acceleration time, Pr.8 Deceleration timepage 128 Pr.178 STF terminal function selection, Pr.179 STR terminal function selectionpage 249 2. Basic Operation 2.6 Basic operation procedure (External operation)

  • Page 38: Changing The Frequency (Initial Value: 60 Hz) At The Maximum Voltage Input (Initial Value: 5 V)

    2.6.4 Changing the frequency (initial value: 60 Hz) at the maximum voltage input (initial value: 5 V) • Change the maximum frequency. The following shows the procedure to change the frequency at 5 V from 60 Hz (initial value) to 50 Hz using a frequency setting potentiometer for 0 to 5 VDC input.

  • Page 39: Setting The Frequency Using An Analog Signal (Current Input)

    2.6.5 Setting the frequency using an analog signal (current input) • Turn ON the STF/STR signal to give a start command. • Use the current regulator which outputs 4 to 20 mA to give a frequency command (by connecting it across terminals 4 and 5 (current input)).
  • Page 40 NOTE • When both the forward rotation start switch (STF signal) and the reverse rotation start switch (STR signal) are turned ON, the motor cannot be started. If both are turned ON while the inverter is running, the inverter decelerates to a stop. •...

  • Page 41: Changing The Frequency (Initial Value: 60 Hz) At The Maximum Current Input (Initial Value: 20 Ma)

    2.6.6 Changing the frequency (initial value: 60 Hz) at the maximum current input (initial value: 20 mA) • Change the maximum frequency. The following shows the procedure to change the frequency at 20 mA from 60 Hz (initial value) to 50 Hz using a frequency setting potentiometer for 4 to 20 mA input.

  • Page 42: Basic Operation Procedure (Jog Operation)

    Basic operation procedure (JOG operation) 2.7.1 Giving a start command by using external signals for JOG operation • The JOG signal can be input only via a control circuit terminal. • JOG operation is performed while the JOG signal is ON. •...
  • Page 43 NOTE • To change the frequency, change the setting of Pr.15 Jog frequency (initial value: 5 Hz). • To change the acceleration/deceleration time, change the setting of Pr.16 Jog acceleration/deceleration time (initial value: 0.5 second). • The JOG signal can be assigned to another terminal. Set "5" in any parameter from Pr.178 to Pr.182 (Input terminal function selection) to assign the function to an input terminal.

  • Page 44: Giving A Start Command From The Operation Panel For Jog Operation

    2.7.2 Giving a start command from the operation panel for JOG operation • JOG operation is performed while the RUN key on the operation panel is pressed. Operation panel The following shows the procedure to operate at 5 Hz. Operating procedure Turning ON the power of the inverter The operation panel is in the monitor mode.

  • Page 45: I/O Terminal Function Assignment

    I/O terminal function assignment • Functions can be assigned to the external I/O terminals (physical terminals) or communication (virtual terminals) by setting parameters. FR-D800 Output Output terminal (physical terminal) Input terminal Input (physical terminal) PU connector / RS-485 terminal (Communication) Output Relay output terminal (physical terminal)
  • Page 46  Output terminal function assignment • Signals can be output from the inverter by using physical terminals or via communication • Use parameters to assign functions to output terminals. Check the terminal available for each parameter. Terminal name External output terminal Output via communication (physical terminal) ○...

  • Page 47: Chapter 3 Parameters

    Parameters This chapter explains the function setting for use of this product. Always read the instructions before use. The following marks are used to indicate the controls. (Parameters without any mark are valid for all the controls.) Mark Control method Applied motor V/F control Three-phase induction motor...

  • Page 48: Parameter List (By Parameter Number)

    Parameter list (by parameter number) For simple variable-speed operation of the inverter, the initial values of the parameters may be used as they are. Set the necessary parameters to meet the load and operational specifications. Parameter's setting, change and check can be made on the operation panel.
  • Page 49 Function Name Setting range Minimum Initial value Refer group setting to page Gr.1 Gr.2 increments JOG operation D200 Jog frequency 0 to 590 Hz 0.01 Hz 5 Hz F002 Jog acceleration/deceleration 0 to 3600 s 0.1 s 0.5 s time —...
  • Page 50 Function Name Setting range Minimum Initial value Refer group setting to page Gr.1 Gr.2 increments — F101 Remote function selection 0 to 4 — G030 Energy saving control selection 0, 9 — H300 Retry selection 0 to 5 — H611 Stall prevention operation 0 to 590 Hz 0.01 Hz...
  • Page 51  Pr.100 to Pr.199 Function Name Setting range Minimum Initial value Refer group setting to page Gr.1 Gr.2 increments RS-485 N020 RS-485 communication station 0 to 31 (0 to 247) communication number N021 RS-485 communication speed 48, 96, 192, 384, 576, 768, 1152 —...
  • Page 52 Function Name Setting range Minimum Initial value Refer group setting to page Gr.1 Gr.2 increments — M301 AM terminal function selection 1 to 3, 5 to 14, 17, 18, 21, 24, 32, 33, 37, 50, 52, 53, 61, 62, 67, 97, 98 —...
  • Page 53 Function Name Setting range Minimum Initial value Refer group setting to page Gr.1 Gr.2 increments Output terminal M400 RUN terminal function 0, 1, 3, 4, 7, 8, 11 to function selection 16, 18, 19, 25, 26, assignment 34, 40, 41, 46 to 48, M404 FU terminal function selection 57, 64 to 66, 70, 79...
  • Page 54  Pr.200 to Pr.299 Function Name Setting range Minimum Initial value Refer group setting to page Gr.1 Gr.2 increments Multi-speed 232 to D308 Multi-speed setting (speed 8 to 0 to 590 Hz, 9999 0.01 Hz 9999 setting speed 15) D315 —...
  • Page 55  Pr.300 to Pr.399 Function Name Setting range Minimum Initial value Refer group setting to page Gr.1 Gr.2 increments RS-485 D010 Communication operation 0, 1 communication command source D011 Communication speed 0 to 2 command source D001 Communication startup mode 0, 1, 10 selection N001...
  • Page 56 Function Name Setting range Minimum Initial value Refer group setting to page Gr.1 Gr.2 increments Communication N000 Protocol selection 0, 1 D013 PU mode operation command 2 to 4, 9999 9999 source selection — H429 Frequency jump range 0 to 30 Hz, 9999 0.01 Hz 9999 PID control...
  • Page 57 Function Name Setting range Minimum Initial value Refer group setting to page Gr.1 Gr.2 increments Increased G130 Increased magnetic excitation 0, 1 magnetic deceleration operation excitation selection deceleration G131 Magnetic excitation increase 0% to 40%, 9999 0.1% 9999 rate G132 Increased magnetic excitation 0% to 200% 0.1%...
  • Page 58  Pr.800 to Pr.999 Function Name Setting range Minimum Initial value Refer group setting to page Gr.1 Gr.2 increments — G200 Control method selection 10, 19, 20, 40 Torque limit H700 Torque limit input method selection D030 Set resolution switchover 0, 10 H710 Torque limit level 2...
  • Page 59 Function Name Setting range Minimum Initial value Refer group setting to page Gr.1 Gr.2 increments Monitoring M104 Operation panel setting dial 0 to 3, 5 to 14, 17, push monitor selection 18, 20, 23 to 25, 32, 33, 37, 38, 44, 50 to 55, 61, 62, 64, 67, 68, 91, 97, 98, 100 —...
  • Page 60 Function Name Setting range Minimum Initial value Refer group setting to page Gr.1 Gr.2 increments — 1048 E106 Display-off waiting time 0 to 60, 100 to 160 1 min 0 min  Pr.1100 to Pr.1399 Function Name Setting range Minimum Initial value Refer group...
  • Page 61  Alphabet (calibration parameters, etc.) Function Name Setting range Minimum Initial value Refer group setting to page Gr.1 Gr.2 increments Calibration M320 AM terminal calibration — — — parameter (901) T200 Terminal 2 frequency setting 0 to 590 Hz 0.01 Hz 0 Hz bias frequency (902)

  • Page 62: Use Of A Function Group Number For The Identification Of Parameters

    Use of a function group number for the identification of parameters A parameter identification number shown on the PU can be switched from a parameter number to a function group number. As parameters are grouped by function and displayed by the group, the related parameters can be set continually at a time. ...

  • Page 63: Parameter List (By Function Group Number)

    Parameter list (by function group number)  E: Environment setting Name Refer to group page parameters E602 PWM frequency automatic switchover Parameters for the inverter operating environment. E700 Life alarm status display Name Refer to E701 Inrush current limit circuit group page life display...

  • Page 64: H: Protective Function Parameter

     D: Parameters for the setting of Name Refer to group page operation command and H011 Second free thermal reduction frequency 1 frequency command H012 Second free thermal Parameters for setting the command source to the inverter, reduction ratio 1 H013 Second free thermal and the motor driving frequency and torque.
  • Page 65 Name Refer to Name Refer to group page group page H610 Stall prevention operation M031 Operating time carrying- level compensation factor at over times double speed M040 Frequency monitoring H611 Stall prevention operation reference reduction starting frequency M041 Current monitoring H631 Voltage reduction selection reference...

  • Page 66: C: Motor Constant Parameters

    Name Refer to Name Refer to group page group page M451 NET Y1 output selection T751 NET X1 input selection M452 NET Y2 output selection T752 NET X2 input selection M453 NET Y3 output selection T753 NET X3 input selection M454 NET Y4 output selection T754...

  • Page 67: A: Application Parameters

     A: Application parameters Name Refer to group page Parameters for the setting of a specific application. A902 1022 Sampling cycle A903 1023 Number of analog channels Name Refer to A904 1024 Sampling auto start group page A905 1025 Trigger mode selection A001 MC switchover interlock time...

  • Page 68: (G) Control Parameters

     N: Communication operation Name Refer to group page parameters G107 Special regenerative brake duty Parameters for the setting of communication operation such G110 DC injection brake operation communication specifications operating voltage characteristics. G120 Regeneration avoidance operation selection Name Refer to G121 Regeneration avoidance group...

  • Page 69: Chapter 4 Control Method

    (For details on the inverter rated current, refer to the inverter rated specifications in the Instruction Manual (Connection).) • The motor described in the following table is used. Motor Condition Mitsubishi Electric standard efficiency motor (SF-JR) Offline auto tuning is not required. Mitsubishi Electric high-efficiency motor (SF-HR) Mitsubishi Electric constant-torque motor (SF-JRCA 4P, SF-HRCA)

  • Page 70: Pm Sensorless Vector Control

    • The PM sensorless vector control requires the following conditions. • The motor described in the following table is used. Motor Condition Mitsubishi Electric PM motor (EM-A) The offline auto tuning is not required. IPM motor or PM motor other than the above The offline auto tuning is required.

  • Page 71: Changing The Control Method And Mode

    Changing the control method and mode Set the control method and the control mode. V/F control, Advanced magnetic flux vector control, and PM sensorless vector control are available. Select a control method and a control mode by setting Pr.800 Control method selection. Name Initial value Setting range...
  • Page 72  PM sensorless vector control test operation (Pr.800 = "19") • A test operation for speed control is available without connecting a motor to the inverter. The speed calculation changes to track the speed command, and such speed changes can be checked on the operation panel or by outputting it as analog signals to terminal AM.
  • Page 73 Parameters referred to page 207 Operation panel main monitor selection page 215 Pr.158 AM terminal function selection  Changing the control method with external terminals (RT signal, X18 signal) • Control method (V/F control or Advanced magnetic flux vector control) can be switched using external terminals. The control method can be switched using either the Second function selection (RT) signal or the V/F switchover (X18) signal.

  • Page 74: Selecting The Advanced Magnetic Flux Vector Control

    Change the control method to Advanced magnetic flux vector control (Pr.800 = "20"). Make the motor setting (Pr.71). Motor Pr.71 setting Remarks Mitsubishi Electric standard SF-JR 0 (initial value) (3) efficiency motor SF-JR 4P 1.5 kW or lower Mitsubishi Electric high-...
  • Page 75  Keeping the motor speed constant when the load fluctuates (speed control gain) Name Initial Setting Description value range Speed control gain 9999 0% to 200% Makes adjustments to keep the motor speed constant during variable load G932 (Advanced magnetic flux operation under Advanced magnetic flux vector control.

  • Page 76: Selecting The Pm Sensorless Vector Control

    Selecting the PM sensorless vector control Two methods of the motor parameter initialization are available for the use of EM-A motor: using Pr.998 PM parameter initialization, and using PM parameter initialization ("PM").  Initializing the parameters required for the PM sensorless vector control (Pr.998) •...
  • Page 77  List of the target parameters for the motor parameter initialization • The settings of the parameters in the following table are changed to the settings for PM sensorless vector control by performing the motor parameter initialization using Pr.998 PM parameter initialization. The changed settings differ according to the specification (capacity) of the PM motor used.
  • Page 78 Name Setting Setting increments Induction motor PM motor PM motor (rotations per (frequency) minute) 0 (initial value) 3044 3144 3044 0, 3144 (EM-A) (EM-A) Gr.1 Gr.2 Speed control integral time 0.333 s 0.333 s 0.001 s Torque control P gain (current 150% loop proportional gain) Torque control integral time...
  • Page 79 • PM motor other than the EM-A Name Setting Setting increments Induction motor PM motor PM motor (rotations per (frequency) minute) 0 (initial value) 8009, 9009 8109, 9109 8009, 0, 8109, 9009 9109 Gr.1 Gr.2 Maximum frequency 120 Hz Maximum motor Maximum motor 1 r/min 0.01 Hz...
  • Page 80 Pr.702 Maximum motor frequency is used as the maximum motor frequency (rotations per minute). When Pr.702 = "9999 (initial value)", Pr.84 Rated motor frequency is used as the maximum motor frequency (rotations per minute). The setting value is converted from frequency to rotations per minute. (It differs according to the number of motor poles.) NOTE •...
  • Page 81  Setting for the PM sensorless vector control by selecting PM parameter initialization on the operation panel ("PM") • The parameters required to drive a PM motor (EM-A) are automatically set by batch. (Refer to page 76.) • The PM LED on the operation panel turns ON when the PM sensorless vector control is set. The following shows the procedure to initialize the parameter settings for an EM-A motor by selecting PM parameter initialization on the operation panel.
  • Page 82  Setting for the V/F control by selecting PM parameter initialization on the operation panel ("PM") • When the control method is changed from PM sensorless vector control to V/F control, all the parameter settings required to drive an induction motor are automatically set. (Refer to page 76.) The following shows the procedure to change the control method from PM sensorless vector control to V/F control by selecting...

  • Page 83: Chapter 5 Speed Control Under Pm Sensorless Vector Control

    Speed control under PM sensorless vector control Purpose Parameter to set Refer page To limit the torque during speed Torque limit P.D030, P.H500, Pr.22, Pr.157, control P.H700, P.H710, Pr.810, Pr.811, P.H730, P.M430 Pr.815, Pr.874 To adjust the speed control gain Speed control P gain, speed control P.G211 to P.G214, Pr.820, Pr.821,...

  • Page 84: Setting Procedure Of Pm Sensorless Vector Control (Speed Control)

    Setting procedure of PM sensorless vector control (speed control) This inverter is set for an induction motor in the initial setting. Follow the following procedure to change the setting for the PM sensorless vector control.  When using a PM motor (EM-A) Operating procedure Perform wiring properly.
  • Page 85  When using a PM motor (other than the EM-A) Operating procedure Set the applied motor (Pr.9, Pr.71, Pr.80, Pr.81, Pr.83, and Pr.84). (Refer to page 258, page 271.) Set "8093" (IPM motor) or "9093" (PM motor) in Pr.71 Applied motor. Set Pr.9 Rated motor current, Pr.80 Motor capacity, Pr.81 Number of motor poles, Pr.83 Rated motor voltage, and Pr.84 Rated motor frequency according to the motor specifications.

  • Page 86: Setting The Torque Limit Level

    Setting the torque limit level Limit the output torque not to exceed the specified value. The torque limit level can be set in a range of 0% to 400%. The TL signal can be used to switch between two types of torque limit.
  • Page 87  Second torque limit level (TL signal, Pr.815) • For Pr.815 Torque limit level 2, when the Torque limit selection (TL) signal is ON, the setting value of Pr.815 is the limit value regardless of the setting of Pr.810 Torque limit input method selection. •...
  • Page 88 NOTE • Under V/F control or Advanced magnetic flux vector control, if the output frequency drops to 1 Hz due to the stall prevention operation and this state continues for 3 seconds, a fault indication (E.OLT) appears, and the inverter output is shut off. This operation is activated regardless of the Pr.874 setting.

  • Page 89: Performing High-Accuracy, Fast-Response Control (Gain Adjustment)

    Performing high-accuracy, fast-response control (gain adjustment) Gain adjustment is useful for achieving optimum machine performance or improving unfavorable conditions, such as vibration and acoustic noise during operation with high load inertia or gear backlash. Name Initial value Setting range Description Speed control P gain 0% to 1000% The proportional gain during speed control is set.
  • Page 90  Adjustment procedure (Pr.820, Pr.821) Change the Pr.820 setting while checking the conditions. If it cannot be adjusted well, change the Pr.821 setting, and perform step 1 again. Movement / condition Adjustment method Load inertia is too high. Set Pr.820 and Pr.821 higher. Pr.820 If acceleration is slow, set about 80% to 90% of the maximum value without any vibration/ acoustic noise while increasing the setting value by 10%.
  • Page 91  When using a multi-pole motor (8 poles or more) • If the motor inertia is known, set Pr.707 Motor inertia (integer) and Pr.724 Motor inertia (exponent). (Refer to page 263.) • Adjust Pr.820 Speed control P gain and Pr.824 Torque control P gain (current loop proportional gain) to suit the motor, by referring to the following methods.

  • Page 92: Adjustment When The Motor Wiring Length Is Long

    Adjustment when the motor wiring length is long Adjust the setting if an unstable movement such as uneven rotation or an error occurs when the motor wiring length is long or when the high-response operation is set for the control gain. Name Initial value Setting range...

  • Page 93: Troubleshooting In The Speed Control

    Troubleshooting in the speed control Condition Possible cause Countermeasure Motor does not run Speed command from • Check that the speed command sent from the controller is correct. (Take EMC at the correct speed. the controller is different measures.) (Command speed from the actual speed.

  • Page 94: Chapter 6 (E) Environment Setting Parameters

    (E) Environment Setting Parameters Purpose Parameter to set Refer to page To set the time Clock P.E020 to P.E022 Pr.1006 to Pr.1008 To set a limit for the reset function. Reset selection/ P.E100 to P.E102 Pr.75 To shut off output if the operation panel disconnected PU disconnects.

  • Page 95: Clock

    Clock The time can be set. The time can only be updated while the inverter power is ON. The real time clock function is enabled using an optional LCD operation panel (FR-LU08). Name Initial value Setting range Description 1006 Clock (year) 2000 (year) 2000 to 2099 Set the year.

  • Page 96: Reset Selection/Disconnected Pu Detection/Pu Stop Selection

    Reset selection/disconnected PU detection/PU stop selection The reset input acceptance, disconnected PU connector detection function, and PU stop function can be selected. Name Initial value Setting range Description Reset selection/ 0 to 3, 14 to 17 In the initial setting, the reset command input is always disconnected PU enabled, the inverter operation continues even when PU is detection/PU stop...
  • Page 97  Reset selection (P.E100) • While P.E100 = "1", or Pr.75 = "1, 3, 15, or 17", the reset command input is enabled (using the RES signal or through communication) only when the protective function is activated. NOTE • When the RES signal is input during operation, the motor coasts since the inverter being reset shuts off the output. Also, the cumulative values of electronic thermal O/L relay and regenerative brake duty are cleared.
  • Page 98  How to restart the inverter which has been stopped in the External operation mode by using the STOP/RESET key on the PU ("PS" (PU stop) warning reset method) • PU stop release method for operation panel After completion of deceleration stop, turn OFF the STF or STR signal. Press the HAND/AUTO key three times.

  • Page 99: Pu Display Language Selection

    PU display language selection The display language of the parameter unit (FR-PU07) can be selected. Name Initial value Setting range Description PU display language — Japanese E103 selection English German French Spanish Italian Swedish Finnish 6. (E) Environment Setting Parameters 6.3 PU display language selection...

  • Page 100: Buzzer Control

    Buzzer control The key sound and buzzer of the LCD operation panel (FR-LU08) or parameter unit (FR-PU07) can be turned ON/OFF. Name Initial value Setting range Description PU buzzer control Turns the key sound and buzzer OFF. E104 Turns the key sound and buzzer ON. NOTE •...

  • Page 101: Pu Contrast Adjustment

    PU contrast adjustment Contrast of the LCD display on the LCD operation panel (FR-LU08) or the parameter unit (FR-PU07) can be adjusted. Decreasing the setting value lowers the contrast. Name Initial value Setting range Description PU contrast adjustment 0 to 63 0: Low →...

  • Page 102: Display-Off Setting

    Display-off setting The LED display of the operation panel can be turned OFF when the operation panel has not been used for a certain period of time. Name Initial value Setting range Description 1048 Display-off waiting time Display-off setting is disabled. E106 1 to 60 min Set time until the LED of the operation panel is turned...

  • Page 103: Automatic Frequency Setting / Key Lock Operation Selection

    Automatic frequency setting / key lock operation selection Turing the setting dial on the operation panel enables frequency setting without pressing the SET key. The key operation of the operation panel can be disabled. Name Initial value Setting range Description Frequency setting/key lock Automatic frequency setting disabled Key lock function...
  • Page 104  Disabling the setting dial and keys on the operation panel (by holding down the MODE key for 2 seconds) • Operation using the setting dial and keys of the operation panel can be disabled to prevent parameter changes, unexpected starts or frequency changes. •...

  • Page 105: Frequency Change Increment Amount Setting

    Frequency change increment amount setting When setting the set frequency with the setting dial of the operation panel, the frequency changes in 0.01 Hz increments in the initial status. Setting this parameter to increase the frequency increment amount that changes when the setting dial is rotated can improve usability.

  • Page 106: Run Key Rotation Direction Selection

    RUN key rotation direction selection The rotation direction of the motor when the RUN key on the operation panel is pressed can be selected. Name Initial value Setting range Description RUN key rotation direction selection Forward rotation E202 Reverse rotation 6.

  • Page 107: Multiple Rating Setting

    6.10 Multiple rating setting Two rating types of different rated current and permissible load can be selected. The optimal inverter rating can be selected according to the application, enabling equipment to be downsized. Name Initial value Setting range Description (overload current rating, surrounding air temperature) Multiple rating setting SLD rating.

  • Page 108: Parameter Write Selection

    6.11 Parameter write selection Whether or not to enable the writing to various parameters can be selected. Use this function to prevent parameter values from being rewritten by misoperation. Name Initial value Setting range Description Parameter write selection Writing is enabled only during stop. E400 Writing is disabled.
  • Page 109  Parameter write disabled (Pr.77 = "1") • Parameter write, Parameter clear, and All parameter clear are disabled. (Parameter read is enabled.) • The following parameters can be written even if Pr.77 = "1". Name Name Stall prevention operation level Password lock level Reset selection/disconnected PU detection/PU Password lock/unlock...

  • Page 110: Password

    6.12 Password Registering a 4-digit password can restrict access to parameters (reading/writing). Name Initial value Setting range Description Password lock level 9999 1 to 6, 99, 101 to Select restriction level of parameter reading/writing E410 106, 199 when a password is registered. 9999 No password protection Password lock/unlock...
  • Page 111  Locking parameters with a password (Pr.296, Pr.297) • The procedure of locking parameters with a password is as follows. Set the parameter reading/writing restriction level to enable the password protection. (Set a value other than "9999" in Pr.296.) Pr.296 setting Allowable number of failed password attempts Pr.297 readout 1 to 6, 99...
  • Page 112  Access to parameters according to the password status Parameter Password protection disabled / Parameters Parameters locked Password locked up unlocked Pr.296 = "9999", Pr.296 ≠ "9999", Pr.296 ≠ "9999", Pr.296 = "101 to 106, 199", Pr.297 = "9999" Pr.297 = "9999" Pr.297 = "0 to 4"...

  • Page 113: Free Parameter

    6.13 Free parameter Any number within the setting range of 0 to 9999 can be input. For example, these numbers can be used: • As a unit number when multiple units are used. • As a pattern number for each operation application when multiple units are used. •...

  • Page 114: Setting Multiple Parameters By Batch

    6.14 Setting multiple parameters by batch The setting of particular parameters is changed by batch, such as communication parameters for connection with the Mitsubishi Electric human machine interface (GOT), the parameters for the rated frequency (50/60 Hz) setting, or the parameters for acceleration/deceleration time increment.
  • Page 115  Initial setting with the GOT2000 series • When "FREQROL 500/700/800, SENSORLESS SERVO" is selected for "Controller Type" in the GOT setting, set Pr.999 = "10" to configure the GOT initial setting. • When "FREQROL 800 (Automatic Negotiation)" is selected for "Controller Type" in the GOT setting, the GOT automatic connection can be used.

  • Page 116: Extended Parameter Display And User Group Function

    6.15 Extended parameter display and user group function Use this parameter to select a group of parameters to be displayed on the operation panel or parameter unit. Name Initial value Setting range Description User group read 9999 Only simple mode parameters are displayed. E440 selection Displays simple mode and extended parameters.

  • Page 117: Operating Procedure

     Registering a parameter in a user group (Pr.173) • To register Pr.3 in a user group Operating procedure Power ON Make sure the motor is stopped. Changing the operation mode Press the HAND/AUTO key to choose the PU operation mode. The HAND LED turns ON. Selecting the parameter setting mode Press the MODE key to choose the parameter setting mode.
  • Page 118  Clearing a parameter from a user group (Pr.174) • To delete Pr.3 from a user group Operating procedure Power ON Make sure the motor is stopped. Changing the operation mode Press the HAND/AUTO key to choose the PU operation mode. The HAND LED turns ON. Selecting the parameter setting mode Press the MODE key to choose the parameter setting mode.

  • Page 119: Pwm Carrier Frequency And Soft-Pwm Control

    6.16 PWM carrier frequency and Soft-PWM control The motor sound can be changed. Name Initial value Setting range Description PWM frequency 0 to 15 The PWM carrier frequency can be changed. The setting value E600 selection represents the frequency in kHz. Note that "0" indicates 0.7 kHz, "15"...
  • Page 120 NOTE • Reducing the PWM carrier frequency is effective as a countermeasure against EMI from the inverter or for reducing leakage current, but doing so increases the motor noise. • When the PWM carrier frequency is set to 1 kHz or lower (Pr.72 ≤ 1), the increase in the harmonic current causes the fast- response current limit to activate before the stall prevention operation, which may result in torque shortage.

  • Page 121: Inverter Parts Life Display

    6.17 Inverter parts life display The degree of deterioration of the control circuit capacitor, main circuit capacitor, cooling fan, inrush current limit circuit, relay contacts of terminals A, B, and C, and inverter module can be diagnosed on the monitor. When a part approaches the end of its life, an alarm can be output by self diagnosis to prevent a fault.
  • Page 122 • When the parts have reached the life alarm output level, the corresponding bits of Pr.255 turns ON. The ON/OFF state of the bits can be checked with Pr.255. The following table shows examples. Pr.255 bit 9 bit 8 bit 7 bit 6 bit 5 bit 4...
  • Page 123  Life display of the main circuit capacitor (Pr.258, Pr.259) • For accurate life measurement of the main circuit capacitor, wait three hours or longer after turning OFF. The temperature left in the main circuit capacitor affects measurement. • The deterioration degree of the main circuit capacitor is displayed in Pr.258. •...
  • Page 124  Life display of the cooling fan • If a cooling fan speed of less than the specified speed is detected, Fan alarm "FN" is displayed on the operation panel or the parameter unit. As an alert output, bit 2 of Pr.255 turns ON, and the Y90 signal and Alarm (LF) signal are also output. •...

  • Page 125: Maintenance Timer Alarm

    6.18 Maintenance timer alarm The Maintenance timer (Y95) signal is output when the inverter's cumulative energization time reaches the time period set with the parameter. "MT" is displayed on the operation panel. This can be used as a guideline for the maintenance time of peripheral devices.

  • Page 126: Current Average Value Monitor Signal

    6.19 Current average value monitor signal The output current average value during constant-speed operation and the maintenance timer value are output to the Current average monitor (Y93) signal as a pulse. The output pulse width can be used in a device such as the I/O unit of a programmable controller as a guideline for the maintenance time for mechanical wear, belt stretching, or deterioration of devices with age.
  • Page 127  Pr.557 Current average value monitor signal output reference current setting Set the reference (100%) for outputting the output current average value signal. The signal output time is calculated with the following formula. Output current average value × 5 s (Output current average value 100%/5 s) Pr.557 setting value The output time range is 0.5 to 9 seconds.
  • Page 128 NOTE • Masking of the data output and sampling of the output current are not performed during acceleration/deceleration. • If constant speed changes to acceleration or deceleration during start pulse output, it is judged as invalid data, and the signal maintains HIGH start pulse output for 3.5 seconds and LOW end pulse output for 16.5 seconds. After the start pulse output is completed, minimum 1-cycle signal output is performed even if acceleration/deceleration is performed.

  • Page 129: Chapter 7 (F) Settings For Acceleration/Deceleration

    (F) Settings for Acceleration/Deceleration Purpose Parameter to set Refer to page To set the motor acceleration/ Acceleration/deceleration P.F000, P.F002, Pr.7, Pr.8, Pr.16, deceleration time time P.F003, P.F010, Pr.20, Pr.44, Pr.45, P.F011, P.F020, Pr.611, Pr.791, P.F021, P.F070, Pr.792 P.F071 To set the acceleration/deceleration Acceleration/deceleration P.F100 Pr.29...

  • Page 130: Control Block Diagram

     Control block diagram Output frequency ≥ Specified value JOG-ON Acceleration time (Pr.16) deceleration time RT-OFF Acceleration and deceleration time (Pr.7, Pr.8) JOG-OFF Second acceleration and deceleration time (Pr.44, Pr.45) RT-ON Acceleration and deceleration time in low-speed range Output frequency < Specified value (Pr.791, Pr.792) under PM sensorless vector control ...
  • Page 131  Setting two acceleration/deceleration times (RT signal, Pr.44, Pr.45) • Pr.44 and Pr.45 are applied when the RT signal is ON. To input the RT signal, set "3" in any parameter from Pr.178 to Pr.182 and Pr.185 to Pr.189 (Input terminal function selection) to assign the function. •...

  • Page 132: Acceleration/Deceleration Pattern

    Acceleration/deceleration pattern The acceleration/deceleration pattern can be set according to the application. Name Initial value Setting range Description Acceleration/deceleration Linear acceleration/deceleration F100 pattern selection S-pattern acceleration/deceleration A S-pattern acceleration/deceleration B  Linear acceleration/deceleration (Pr.29 = "0 (initial value)") • When the frequency is changed for acceleration, deceleration, etc. during inverter operation, the output frequency is changed linearly (linear acceleration/deceleration) to reach the set frequency without straining the motor and inverter.
  • Page 133  S-pattern acceleration/deceleration B (Pr.29 = "2") • This is useful for preventing collapsing stacks such as on a conveyor. S-pattern acceleration/deceleration B can reduce the impact during acceleration/deceleration by accelerating/decelerating while maintaining an S-pattern from the present frequency (f2) to the target frequency (f1). [S-pattern acceleration/ deceleration B] Set frequency...

  • Page 134: Remote Setting Function

    Remote setting function Even if the operation panel is located away from the enclosure, contact signals can be used to perform continuous variable- speed operation, without using analog signals. Name Initial value Setting range Description RH, RM, RL signal function Frequency setting storage Remote function Multi-speed setting...
  • Page 135 Set frequency Decreased according to Inverter Forward Increased (Hz) the Pr.45 setting rotation according to the Acceleration Pr.44 setting Clear Cleared by RL Terminal 2 (main speed) Connection Time diagram for remote setting RH (Acceleration) RL (Clear) STF (Forward)  Main speed •...
  • Page 136  Frequency setting storage • The remotely set frequency is stored, held, or cleared according to the Pr.59 setting. When the inverter is turned ON again and the operation is resumed, the setting shown in the parentheses will be applied. Pr.59 setting Power OFF STF/STR signal OFF...
  • Page 137 When the setting frequency is "0" • Even when the remotely-set frequency is cleared by turning ON the RL (clear) signal after turning OFF (ON) both the RH and RM signals, the inverter operates at the remotely-set frequency stored in the last operation if power is reapplied before one minute has elapsed since turning OFF (ON) both the RH and RM signals.

  • Page 138: Starting Frequency And Start-Time Hold Function

    Starting frequency and start-time hold function Magnetic flux Magnetic flux Magnetic flux It is possible to set the starting frequency and hold the set starting frequency for a certain period of time. Set these functions when a starting torque is needed or the motor drive at start needs smoothing. Name Initial value Setting range...
  • Page 139 Parameters referred to page 190 Pr.2 Minimum frequency 7. (F) Settings for Acceleration/Deceleration 7.4 Starting frequency and start-time hold function...

  • Page 140: Minimum Motor Speed Frequency At The Motor Start Up

    Minimum motor speed frequency at the motor start Set the frequency where the PM motor starts running. Set the deadband in the low-speed range to eliminate noise and offset deviation when setting a frequency with analog input. Name Initial value Setting range Description Starting frequency...

  • Page 141: Operation Mode Selection

    (D) Operation Command and Frequency Command Purpose Parameter to set Refer to page To select the operation mode Operation mode selection P.D000 Pr.79 To start up the inverter in Network Communication startup P.D000, P.D001 Pr.79, Pr.340 operation mode at power-ON mode selection To select the command source during Operation and speed...
  • Page 142 Pr.79 Description LED indicator Refer to setting page : OFF : ON PU/EXT key selection of the operation mode. PU operation mode (initial The inverter operation mode can be selected by pressing the HAND/AUTO key. value) At power ON, the inverter is in the External operation mode. External operation mode NET operation mode Operation mode...
  • Page 143  Operation mode basics • The operation mode specifies the source of the start command and the frequency command for the inverter. • Basic operation modes are as follows. External operation mode : For giving a start command and a frequency command with an external potentiometer or switches which are connected to the control circuit terminal.
  • Page 144  Operation mode switching method External operation When "0 or 1" is set in Pr.340 Switching with the PU Switching through the network Press Switch to External operation mode through the PU to light Press the network. Switch to the Network operation the PU to light mode through the network.
  • Page 145  External operation mode (Pr.79 = "0 (initial value) or 2") • Select the External operation mode when the start command and the frequency command are applied from a frequency setting potentiometer, start switch, etc. which are provided externally and connected to the control circuit terminals of the inverter.
  • Page 146  PU/External combined operation mode 2 (Pr.79 = "4") • Select the PU/External combined operation mode 2 when giving a frequency command from the external potentiometer, or multi-speed and JOG signals, and giving a start command by key operation of the operation panel or the parameter unit. •...
  • Page 147  PU operation interlock (Pr.79 = "7") • The operation mode can be forcibly switched to the External operation mode by turning OFF the PU operation external interlock (X12) signal. This function will be usable in a case where the inverter does not reply to external command signals during operation due to the operation mode accidentally unswitched from the PU operation mode to the External operation mode.
  • Page 148  Switching operation mode by external signal (X16 signal) • When External operation and the operation from the operation panel are used together, the PU operation mode and External operation mode can be switched during a stop (during motor stop, start command OFF) by using the PU/External operation switchover (X16) signal.
  • Page 149  Switching the operation mode by external signals (X65, X66 signals) • When Pr.79 = "0, 2, 6, or 7", the PU operation mode and External operation mode can be changed to the Network operation mode during a stop (during motor stop, start command OFF) by the PU/NET operation switchover (X65) signal, or the External/NET operation switchover (X66) signal.
  • Page 150 Parameters referred to page 160 Pr.15 Jog frequency page 162 Pr.4 to Pr.6, Pr.24 to Pr.27, Pr.232 to Pr.239 Multi-speed operation page 95 Pr.75 Reset selection/disconnected PU detection/PU stop selection page 102 Pr.161 Frequency setting/key lock operation selection page 249 Pr.178 to Pr.182 and Pr.185 to Pr.189 (Input terminal function selection) Pr.340 Communication startup mode selection page 150 8.

  • Page 151: Startup Of The Inverter In Network Operation Mode At Power-On

    Startup of the inverter in Network operation mode at power-ON The operation mode at power ON and at restoration from instantaneous power failure can be selected. After the inverter starts up in the Network operation mode, parameter writing and operation can be commanded from programs. Set this mode when performing communication operation using the PU connector or RS-485 terminals.

  • Page 152: Start Command Source And Frequency Command Source During Communication Operation

    Start command source and frequency command source during communication operation The start and frequency commands can be given via communication using the external signals. The command source in the PU operation mode can also be selected. Name Initial Setting Description value range Communication...
  • Page 153  Controllability through communication Command Condition Item Controllability in each operation mode interface External Combined Combined NET operation operation operation operation operation (via PU connector mode 1 mode 2 / RS-485 terminal) (Pr.79 = "3") (Pr.79 = "4") Operation panel Pr.551 = "4" or Operation command ○...
  • Page 154 Command Condition Item Controllability in each operation mode interface External Combined Combined NET operation operation operation operation operation (via PU connector mode 1 mode 2 / RS-485 terminal) (Pr.79 = "3") (Pr.79 = "4") USB connector Pr.551 = "3, Operation command ○...
  • Page 155  Operation when a communication error occurs Fault type Condition Operation in each operation mode at error occurrences PU operation External Combined Combined NET operation operation operation mode 1 operation mode 2 (via PU connector / (Pr.79 = "3") (Pr.79 = "4") RS-485 terminals) Inverter fault —...
  • Page 156  Selecting the command interface in the Network operation mode (Pr.338, Pr.339) • Selecting a command interface is required for the following two types of commands: the operation command using the start signals and the signals related to the inverter function selection, and the speed command using signals related to the frequency setting.
  • Page 157 NOTE • The communication interface selection is determined by the setting of Pr.551. • The settings of Pr.338 and Pr.339 can be changed during operation when Pr.77 = "2". Note that the changed setting is applied after the inverter has stopped. Until the inverter has stopped, the previous setting of the interface for the operation command and the speed command in the Network operation mode is valid.

  • Page 158: Reverse Rotation Prevention Selection

    Reverse rotation prevention selection This function can prevent reverse rotation fault resulting from the incorrect input of the start signal. Name Initial value Setting range Description Reverse rotation Both forward and reverse rotations allowed D020 prevention selection Reverse rotation disabled Forward rotation disabled •...

  • Page 159: Frequency Setting Using Pulse Train Input

    Frequency setting using pulse train input A pulse train input via terminal RM can be used to set the inverter's speed command. Name Initial value Setting range Description Gr.1 Gr.2 Pulse train input Terminal RM: RM signal D100 selection Terminal RM: Pulse train input Input pulse division Pulse train input disabled D101...
  • Page 160  Pulse train input specification Item Specification Supported pulse method Open collector output Complementary output (24 V power supply voltage) HIGH input level 20 V or more (voltage between RM and SD) LOW input level 5 V or less (voltage between RM and SD) Maximum input pulse rate 100k pulses/s Minimum input pulse width...

  • Page 161: Jog Operation

    JOG operation The frequency and acceleration/deceleration time for JOG operation can be set. JOG operation can be used for conveyor positioning, test operation, etc. Name Initial Setting Description value range Jog frequency 5 Hz 0 to 590 Hz Set the frequency for JOG operation. D200 Jog acceleration/ 0.5 s...
  • Page 162  JOG operation using the PU • When the operation panel or parameter unit is in the JOG operation mode, the motor jogs only while a key for start command is pressed. (For the operation method, refer to page 43.) NOTE •...

  • Page 163: Operation By Multi-Speed Setting

    Operation by multi-speed setting Use these parameters to change among pre-set operation speeds with the terminals. The speeds are pre-set with parameters. Any speed can be selected by simply turning ON/OFF the contact signals (RH, RM, RL, and REX signals). Name Initial value Setting range...
  • Page 164  Multi-speed setting for 4th speed or more (Pr.24 to Pr.27, Pr.232 to Pr.239) • The frequency from 4th speed to 15th speed can be set according to the combination of the RH, RM, RL, and REX signals. Set the frequencies in Pr.24 to Pr.27, Pr.232 to Pr.239. (In the initial status, 4th to 15th speeds are invalid.) •...

  • Page 165: Chapter 9 (H) Protective Function Parameters

    (H) Protective Function Parameters Purpose Parameter to set Refer to page To protect the motor from overheating Electronic thermal O/L relay P.H000, P.H006, Pr.9, Pr.51, Pr.561, P.H010, P.H016, Pr.607, Pr.608, P.H020, P.H021 Pr.1016 To set the overheat protection Free thermal O/L relay P.H001 to P.H005, Pr.600 to Pr.604, characteristics for the motor...

  • Page 166: Motor Overheat Protection (Electronic Thermal O/L Relay)

    Motor overheat protection (electronic thermal O/L relay) Set the current of the electronic thermal relay function to protect the motor from overheating. Such settings provide the optimum protective characteristic considering the low cooling capability of the motor during low-speed operation. Name Initial value Setting range...
  • Page 167 The % value denotes the percentage to the rated inverter current. It is not the percentage to the rated motor current. When the electronic thermal relay function dedicated to the Mitsubishi Electric constant-torque motor is set, this characteristic curve applies to operation.
  • Page 168  Electronic thermal O/L relay when using PM motor (Pr.9) • This function detects the overload (overheat) of the motor and shuts off the inverter output by stopping the operation of the transistor at the inverter output side. • Set the rated current (A) of the motor in Pr.9 Electronic thermal O/L relay. •...
  • Page 169 • To set two types of electronic thermal O/L relays for one motor under Advanced magnetic flux vector control, use Pr.51 Second electronic thermal O/L relay. • While the RT signal is ON, the setting values of Pr.51 is referred to provide thermal protection. Pr.450 Pr.9 Pr.51...
  • Page 170  Electronic thermal O/L relay pre-alarm (TH) and warning signal (THP signal) • If the accumulated electronic thermal value reaches 85% of the Pr.9 or Pr.51 setting, electronic thermal O/L relay function pre-alarm (TH) is displayed and the Electronic thermal O/L relay pre-alarm (THP) signal is output. If the value reaches 100% of the Pr.9 setting, the motor thermal protection (E.THM/E.THT) is activated to shut off the inverter output.
  • Page 171  PTC thermistor input (Pr.561, Pr.1016, E.PTC) This function is used to protect the motor from overheating by inputting outputs from the motor's built-in PTC thermistor to the inverter. It is recommended that a PTC thermistor whose resistance increases most rapidly around the rated activating temperature (TN±DT) is used.
  • Page 172 NOTE • When using terminal 2 for PTC thermistor input (Pr.561 ≠ "9999"), terminal 2 does not operate as an analog frequency command terminal. When a function for the PID control or dancer control is assigned to terminal 2, the function is disabled. Use Pr.133 PID action set point to set the set point for the PID control.
  • Page 173 • When setting Pr.600, Pr.602, Pr.604 (Pr.692, Pr.694, Pr.696) to the same frequency, the following graph's upper level is applied. Load ratio [%] Pr.600=10Hz Pr.601=80% Pr.602=10Hz Pr.603=50% Pr.604=10Hz Output frequency [Hz] NOTE • Make sure to set the parameters according to the temperature characteristic of the motor used. Parameters referred to page 258 Pr.71 Applied motor...

  • Page 174: Cooling Fan Operation Selection

    Cooling fan operation selection The cooling fan built into the inverter can be controlled. Name Initial Setting Description value range Cooling fan Cooling fan ON/OFF control disabled. (The cooling fan is always ON at H100 operation selection power ON.) A cooling fan operates at power ON. Cooling fan ON/OFF control enabled.

  • Page 175: Earth (Ground) Fault Detection At Start

    Earth (ground) fault detection at start Select whether to make earth (ground) fault detection at start. When enabled, earth (ground) fault detection is performed immediately after a start signal input to the inverter. Name Initial value Setting range Description Gr.1 Gr.2 Earth (ground) fault detection at start 0 Earth (ground) fault detection at start disabled...

  • Page 176: Inverter Output Fault Detection Enable/Disable Selection

    Inverter output fault detection enable/disable selection Faults occurred on the output side (load side) of the inverter (inverter output fault (E.10)) can be detected during operation. Name Initial value Setting range Description Inverter output fault detection Output fault detection disabled H182 enable/disable selection Output fault detection enabled...

  • Page 177: Initiating A Protective Function

    Initiating a protective function A fault (protective function) is initiated by setting the parameter. This function can be used to check how the system operates at activation of a protective function. Name Initial value Setting Description range Fault initiation 9999 16 to 253 The setting range is the same with the one for fault data codes of the H103...

  • Page 178: I/O Phase Loss Protection Selection

    I/O phase loss protection selection The output phase loss protection function, which stops the inverter output if one of the three phases (U, V, W) on the inverter's output side (load side) is lost, can be disabled. The input phase loss protective function on the inverter input side (R/L1, S/L2, T/L3) can be disabled. Name Initial value Setting range...

  • Page 179: Retry Function

    Retry function This function allows the inverter to reset itself and restart at activation of the protective function (fault indication). The retry generating protective functions can also be selected. When the automatic restart after instantaneous power failure function is selected (Pr.57 Restart coasting time ≠ "9999"), the restart operation is also performed after a retry operation as well as after an instantaneous power failure.
  • Page 180  Retry count check (Pr.69) • Reading the Pr.69 value provides the cumulative number of successful restart times made by retries. The cumulative count in Pr.69 increases by 1 when a retry is successful. Retry is regarded as successful when normal operation continues without a fault for the Pr.68 setting multiplied by four or longer (3.3 seconds at the shortest).
  • Page 181  Selecting retry generating faults (Pr.65) • Using Pr.65, the fault that causes a retry is selectable. The faults not described in the following table do not enable the retry function. (For details on faults, refer to the Instruction Manual (Maintenance).) ● indicates the faults selected for retry. Retry- Pr.65 setting Retry-...

  • Page 182: Emergency Drive

    Emergency drive The inverter can continue driving the motor in case of emergency such as a fire, since protective functions are not activated even if the inverter detects a fault. Using this function may damage the motor or inverter because driving the motor is given the highest priority.

  • Page 183: Connection Diagram

     Connection diagram • The following diagram shows a connection example for emergency drive operation (in the commercial mode). MCCB R/L1 S/L2 T/L3 Emergency drive in operation Emergency drive execution Fault output during emergency drive ALM3 Reset 24VDC Be careful of the capacity of the sequence output terminals. The applied terminals differ by the settings of Pr.190 to Pr.192 (Output terminal function selection).
  • Page 184 • The following diagram shows the operation of the emergency drive function (in the retry / output shutoff mode or in the fixed frequency mode (Pr.523 = "211")). Emergency drive continued Emergency drive finished Operation continued for E.PUE or the like Retry at a fault ALM3 Frequency...
  • Page 185  Emergency drive operation selection (Pr.523, Pr.524) • Use Pr.523 Emergency drive mode selection to select the emergency drive operation. Set a value in the hundreds place to select the operation when a valid protective function is activated (fault) during emergency drive operation.
  • Page 186 • If the parameter for electronic bypass is not set while the commercial mode is set (Pr.523 = "3[][], 4[][]"), the operation is not switched over to the commercial power supply operation even when a condition for switchover is satisfied, and the output is shut off.
  • Page 187  Protective functions during emergency drive operation • Protective functions during emergency drive operation are as follows. Protective Operation during Protective Operation during Protective Operation during functions emergency drive functions emergency drive functions emergency drive E.OC1 Retry E.LUP The function is disabled. E.CDO Retry E.OC2...
  • Page 188  Emergency drive status monitor • Set "68" in Pr.52, Pr.774 to Pr.776, Pr.992 to monitor the status of the emergency drive on the operation panel. • Description of the status monitor Operation Description panel Emergency drive setting Emergency drive operating status indication Emergency drive function setting is not —...
  • Page 189 CAUTION • When the emergency drive function is enabled, the operation is continued or the retry operation (automatic reset and restart) is repeated even if a fault occurs, which may damage or burn this product and the motor. Before restarting the normal operation after emergency drive operation, make sure that this product and the motor have no fault.

  • Page 190: Checking Faulty Area In The Internal Storage Device

    Checking faulty area in the internal storage device When E.PE6 (Internal storage device fault) occurs, faulty area in the internal storage device can be checked by reading Pr.890. When the read value of Pr.890 is "7" or smaller, an inverter reset after All parameter clear can return the operation to normal. (The parameters that had been changed before All parameter clear must be set again.) Name Initial value...

  • Page 191: Limiting The Output Frequency (Maximum/Minimum Frequency)

    9.10 Limiting the output frequency (maximum/minimum frequency) Motor speed can be limited. Clamp the upper and lower limits of the output frequency. Name Initial value Setting range Description Maximum frequency 120 Hz 0 to 120 Hz Set the upper limit of the output frequency. H400 Minimum frequency 0 Hz...
  • Page 192 Parameters referred to page Pr.13 Starting frequency 137, page 139 page 160 Pr.15 Jog frequency page 245 Pr.125 Terminal 2 frequency setting gain frequency, Pr.126 Terminal 4 frequency setting gain frequency 9. (H) Protective Function Parameters 9.10 Limiting the output frequency (maximum/minimum frequency)

  • Page 193: Avoiding Machine Resonance Points (Frequency Jump)

    9.11 Avoiding machine resonance points (frequency jump) When it is desired to avoid resonance attributable to the natural frequency of a mechanical system, these parameters allow resonant frequencies to be jumped. Name Initial value Setting range Description Frequency jump 1A 9999 0 to 590 Hz, 1A to 1B, 2A to 2B, 3A to 3B are frequency jumps...
  • Page 194  6-point frequency jump (Pr.552) • A total of six jump areas can be set by setting the common jump range for the frequencies set in Pr.31 to Pr.36. • When frequency jump ranges overlap, the lower limit of the lower jump range and the upper limit of the upper jump range are used.

  • Page 195: Stall Prevention Operation

    9.12 Stall prevention operation Magnetic flux Magnetic flux Magnetic flux This function monitors the output current and automatically changes the output frequency to prevent the inverter from shutting off due to overcurrent, overvoltage, etc. It can also limit the stall prevention and fast-response current limit operation during acceleration/deceleration and power/regenerative driving.
  • Page 196  Setting of stall prevention operation level (Pr.22) • For Pr.22 Stall prevention operation level, set the ratio of the output current to the inverter's rated current at which the stall Output current prevention operation is activated. Normally, use this parameter in Pr.22 the initial setting.
  • Page 197 Pr.156 Fast-response Stall prevention operation selection Operation when the setting current limit ○: enabled OL signal is output ○: enabled ●: disabled ○: continued ●: disabled ●: stopped Acceleration Constant speed Deceleration ● ○ ● ● ● ○ ● ● ●...
  • Page 198  Setting for stall prevention operation in the high-frequency range (Pr.22, Pr.23, Pr.66) Setting example (Pr.22 = 120%, Pr.23 = 100%, Pr.66 = 60Hz) Always at the Pr.22 level when Pr.23 = "9999" Pr.22 Stall prevention operation level as set in Pr.23 400Hz 590Hz Pr.66...
  • Page 199  Further prevention of a trip (Pr.154) • Set Pr.154 = "11" when the overvoltage protective function (E.OV[]) is activated during stall prevention operation in an application with large load inertia. Note that turning OFF the start signal (STF/STR) or varying the frequency command during stall prevention operation may delay the acceleration/deceleration start.

  • Page 200: Load Characteristics Fault Detection

    9.13 Load characteristics fault detection This function is used to monitor whether the load is operating in normal condition by storing the speed/torque relationship in the inverter to detect mechanical faults or for maintenance. When the load operating condition deviates from the normal range, the protective function is activated or the warning is output to protect the inverter or the motor.
  • Page 201  Load characteristics reference setting (Pr.1481 to Pr.1487) • Use Pr.1481 to Pr.1485 to set the reference value of load characteristics. • Use Pr.1486 Load characteristics maximum frequency and Pr.1487 Load characteristics minimum frequency to set the output frequency range for load fault detection. Upper limit warning detection width Load status (Pr.1488)
  • Page 202 Example of starting measurement from the stop state Frequency(Hz) Load reference 5 recorded f5(Pr.1486) Pr.41 Load reference 4 recorded Pr.41 Load reference 3 recorded Pr.41 Load reference 2 recorded Operation at the Pr.41 Load reference set frequency 1 recorded f1(Pr.1487) Pr.41 STF＝ON Pr.1480=1...

  • Page 203: Setting Example

     Setting example • The load characteristics are calculated from the parameter setting and the output frequency. • A setting example is as follows. The reference value is linearly interpolated from the parameter settings. For example, the reference when the output frequency is 30 Hz is 26%, which is linearly interpolated from values of the reference 2 and the reference 3.
  • Page 204  Load fault detection setting (Pr.1488 to Pr.1491) • When the load is deviated from the detection width set in Pr.1488 Upper limit warning detection width, the Upper limit warning detection (LUP) signal is output. When the load is deviated from the detection width set in Pr.1489 Lower limit warning detection width, the Lower limit warning detection (LDN) signal is output.

  • Page 205: Motor Overspeeding Detection

    9.14 Motor overspeeding detection The Overspeed occurrence (E.OS) is activated when the output frequency exceeds the overspeed detection level. This function prevents the motor from accidentally speeding over the specified value, due to an error in parameter setting, etc. Name Initial value Setting Description...

  • Page 206: Chapter 10 (M) Item And Output Signal For Monitoring

    (M) Item and Output Signal for Monitoring Purpose Parameter to set Refer to page To display the motor speed (the Speed indication and its P.M000, P.M001, Pr.37, Pr.53, Pr.505 number of rotations per minute) setting change to rotations P.M003 To switch the unit of measure to set per minute the operation speed from frequency to motor speed...
  • Page 207  Displayed unit switchover (Pr.37, Pr.53, and Pr.505) • The rotation speed or machine speed can be displayed for monitoring or used for parameter setting instead of the frequency by using Pr.53. • To display the machine speed, set Pr.37 to the value which corresponds to the speed of machine operated at the frequency set in Pr.505.

  • Page 208: Monitor Item Selection On Operation Panel Or Via Communication

    10.2 Monitor item selection on operation panel or via communication The monitor item to be displayed on the operation panel or the parameter unit can be selected. Name Initial value Setting range Description Operation panel main 0, 5 to 14, 17, 18, Select the monitor item to be displayed on the operation M100 monitor selection...
  • Page 209  Monitor item list (Pr.52, Pr.774 to Pr.776, Pr.992) • Use Pr.52, Pr.774 to Pr.776, or Pr.992 to select the monitor item to be displayed on the operation panel or the parameter unit. • Refer to the following table to find the setting value for each monitoring. The value in the Pr. setting column is set in each of the parameters for monitoring (Pr.52, Pr.774 to Pr.776, and Pr.992) to determine the monitored item.
  • Page 210 Monitor item Increment Communication Description and unit setting Monitor Monitor code 1 code 2 Station number (RS- 40244 The station number of the inverter enabling RS-485 485 communication) communication is displayed. Energy saving effect Increment 40250 The energy saving effect monitoring is enabled. and unit The item to monitor is selectable from among the saved Cumulative energy...
  • Page 211 The monitor code is used for the Mitsubishi inverter protocol. The monitor code is used for the MODBUS RTU. To monitor the item on the LCD operation panel (FR-LU08) or the parameter unit (FR-PU07) in the monitor mode, use Pr.774 to Pr.776 or the monitor function of the FR-LU08 or the FR-PU07 for setting.
  • Page 212  Monitor display for operation panel (Pr.52, Pr.774 to Pr.776) • When Pr.52 = "0" (initial value), the monitoring of output frequency, output current, output voltage, and fault display can be selected in sequence by pressing the SET key. • Among the items set in Pr.52, the load meter, motor excitation current, and motor load factor are displayed in the second screen (initially set to monitor the output current).
  • Page 213 NOTE • During an error, the output frequency at error occurrence appears. • During output shutoff by the MRS signal, the values displayed are the same as during a stop. • During offline auto tuning, the tuning state monitor takes priority. ...
  • Page 214 • The decimal point position on the watt-hour meter can be shifted to left. The number of digits to be shifted is equal to the setting of Pr.891 Cumulative power monitor digit shifted times. For example, when Pr.891 = "2", the monitored value 1278.56 kWh is displayed as 12.78 (in 100 kWh increments) on the operation panel, or displayed as 13 on a display used for monitoring via communication.
  • Page 215  Hiding the decimal places for the monitors (Pr.268) • The numerical figures after a decimal point displayed on the operation panel may fluctuate during analog input, etc. The decimal places can be hidden by selecting the decimal digits with Pr.268. Pr.268 setting Description 9999 (initial value)

  • Page 216: Monitor Display Selection For Terminal Am

    10.3 Monitor display selection for terminal AM The signal (monitor item) to be output to terminal AM can be selected. Name Initial value Setting range Description Gr.1 Gr.2 AM terminal function selection 1 to 3, 5 to 14, 17, 18, Select the item monitored via terminal AM.
  • Page 217 Monitor item Increment Pr.158 (AM) Terminal AM full-scale Remarks and unit setting value PID set point 0.1% 100% Refer to page 289 for the PID control. PID measured value 0.1% 100% Motor thermal load factor 0.1% Motor thermal activation level (100%) Inverter thermal load factor 0.1% Inverter thermal activation...

  • Page 218: Adjustment Of Terminal Am

    10.4 Adjustment of terminal AM By using the operation panel or the parameter unit, you can adjust (calibrate) terminal AM to full-scale deflection. Name Initial Setting Description value range C1 (901) AM terminal calibration — — Calibrates the scale of the analog meter connected to terminal M320 1200 AM output offset...

  • Page 219: Energy Saving Monitoring

    10.5 Energy saving monitoring From the power consumption estimated value during commercial power supply operation, the energy saving effect by use of the inverter can be monitored and output. Name Initial value Setting range Description Operation panel main Refer to page 50: Energy saving effect M100...
  • Page 220  Energy saving monitoring list • The items in the energy saving effect monitoring (items which can be monitored when "50" is set in Pr.52, Pr.158, Pr.774 to Pr.776, and Pr.992) are listed below. (The items which can be monitored via terminal AM (Pr.158 setting) are limited to [1 Power saving] and [3 Average power saving].) Energy saving Description and formula...
  • Page 221 • The items in the cumulative energy saving monitoring (items which can be monitored when "51" is set in Pr.52, Pr.774 to Pr.776, and Pr.992) are listed below. (The digit of the cumulative energy saving monitored value can be moved to the right according to the setting of Pr.891 Cumulative power monitor digit shifted times.) Energy saving Description and formula...
  • Page 222  Power saving real-time monitoring ([1 Power saving], [2 Power saving rate]) • During [1 Power saving] monitoring, an energy saving effect (power difference) of using the inverter as compared to the commercial power supply operation is calculated and displayed on the main monitor. •...
  • Page 223  Cumulative energy saving monitoring ([6 Energy saving amount], [7 Energy cost savings / CO emission reduction], [8 Annual energy saving amount], [9 Annual energy cost savings / annual CO emission reduction]) • The decimal point position of the cumulative energy saving monitored value can be shifted to left. The number of digits to be shifted is equal to the setting of Pr.891 Cumulative power monitor digit shifted times.
  • Page 224  Estimated input power for the commercial power supply operation (Pr.892, Pr.893, Pr.894) • Select the pattern of the commercial power supply operation from among four patterns (discharge damper control (fan), suction damper control (fan), valve control (pump) and commercial power drive), and set it in Pr.894 Control selection during commercial power-supply operation.
  • Page 225  Annual energy saving and its monetary value, and annual CO emission reduction (Pr.896, Pr.899) • When the operation time rate (ratio of the time period in year when the inverter drives the motor) [%] is set in Pr.899, the annual energy saving effect can be estimated.

  • Page 226: Output Terminal Function Selection

    10.6 Output terminal function selection Use the following parameters to change the functions of the open collector output terminals and relay output terminals. Name Initial Signal name Setting range value RUN terminal For open RUN (Inverter running) 0, 1, 3, 4, 7, 8, 11 to 16, 18, 19, 25, 26, 34, 40, M400 function selection collector output...

  • Page 227: Output Signal List

     Output terminal function assignment • Signals can be output from the inverter by using physical terminals or via communication, • Use parameters to assign functions to output terminals. Check the terminal available for each parameter. Terminal External output terminal Output via name (physical terminal)
  • Page 228 Setting Signal Function Operation Related Refer to page name parameter Positive Negative logic logic — Electronic bypass Used to enable the electronic bypass Pr.136, Pr.139 during emergency drive operation. — Electronic bypass Fan fault output Output when a fan fault occurs. Pr.244 Heat sink overheat Output when the heat sink temperature...
  • Page 229 Setting Signal Function Operation Related Refer to page name parameter Positive Negative logic logic Remote output Output via a terminal by setting a proper Pr.495, Pr.496 number in a relative parameter. The value cannot be set in Pr.193 to Pr.196. Alarm Output when an Alarm fault (fan fault or a Pr.121, Pr.244...
  • Page 230  Adjusting the output terminal response level (Pr.289) • The responsivity of the output terminals can be delayed in a range between 5 to 50 ms. (The following is the operation example of the RUN signal.) Time Pr.289 = 9999 Pr.289 ≠...
  • Page 231 • To use the RY or RUN signal, set the corresponding number in the following table in any parameter from Pr.190 to Pr.196 (Output terminal function selection) to assign the function. Output Pr.190 to Pr.196 settings signal Positive logic Negative logic NOTE •...

  • Page 232: Output Frequency Detection

    10.7 Output frequency detection If the inverter output frequency which reaches a specific value is detected, the relative signal is output. Name Initial value Setting Description range Gr.1 Gr.2 Up-to-frequency 0% to 100% Set the level where the SU signal turns ON. M441 sensitivity Output frequency...
  • Page 233  Output frequency detection (FU (FB) signal, Pr.42, Pr.43) • The Output frequency detection (FU) signal and the Speed detection (FB) signal are output when the output frequency reaches or exceeds the Pr.42 setting. • The FU signal is useful for applying or releasing electromagnetic brake, etc. •...
  • Page 234  Speed detection hysteresis (Pr.870) This function prevents chattering of the speed detection signals. When an output frequency fluctuates, the following signals may chatter (turns ON and OFF repeatedly). • Up to frequency (SU) signal • Speed detection (FB) signal •...

  • Page 235: Output Current Detection Function

    10.8 Output current detection function If the inverter output current which reaches a specific value is detected during operation, the relative signal is output via an output terminal. Name Initial Setting Description value range Output current detection level 150% 0% to 400% Set the level to detect the output current.
  • Page 236  Zero current detection (Y13 signal, Pr.152, Pr.153) • If the inverter output during inverter running remains lower than the Pr.152 setting for the time set in Pr.153 or longer, the Zero current detection (Y13) signal is output. • Once the Zero current detection (Y13) signal turns ON, the signal is retained ON for at least 0.1 second. •...

  • Page 237: Remote Output Function

    10.9 Remote output function The signal can be turned ON or OFF via the output terminal on the inverter as if the terminal is the remote output terminal for a programmable controller. Name Initial Setting Description value range Remote output selection Remote output data is cleared when Remote output data is cleared M500...
  • Page 238  Remote output data retention (REM signal, Pr.495) • When the inverter power is reset (or a power failure occurs) while Pr.495 = "0 (initial value) or 10", the REM signal setting is cleared. (The ON/OFF state of the signal assigned to each terminal is determined by the settings in Pr.190 to Pr.192.) The setting in Pr.496 is reset to "0".

  • Page 239: Pulse Train Output Of Output Power

    10.10 Pulse train output of output power Every time when the output energy amount, which is accumulated from the time at power ON, after an inverter reset, or after the Pr.799 Pulse increment setting for output power is changed, reaches the specified value (or its integral multiples), the Y79 signal is output in pulses.

  • Page 240: Detection Of Control Circuit Temperature

    10.11 Detection of control circuit temperature The temperature of the control circuit board can be monitored, and a signal can be output according to a predetermined temperature setting. Name Initial value Setting range Description Control circuit temperature signal 0°C 0°C to 100°C Set the temperature where the Y207 signal turns ON.

  • Page 241: Chapter 11 (T) Multi-Function Input Terminal Parameters

    (T) Multi-Function Input Terminal Parameters Purpose Parameter to set Refer to page To inverse the rotation direction with Analog input selection P.T000, P.T001 Pr.73, Pr.267 the voltage/current analog input selection (terminals 2 and 4) To eliminate noise on analog inputs Analog input filter P.T002 Pr.74...
  • Page 242 • Set Pr.73 (Pr.267) and the voltage/current input switch according to the analog signal input. The incorrect settings shown in the following table cause a failure. The inverter does not operate properly with other incorrect settings. Setting causing a failure Operation Switch setting Terminal input...
  • Page 243  Running with analog input voltage • For the frequency setting signal, input 0 to 5 VDC (or 0 to 10 VDC) between terminals 2 and 5. The 5 V (10 V) input is the maximum output frequency. • The power supply 5 V (10 V) can be input by either using the internal power supply or preparing an external power supply. The internal power supply is 5 VDC output via terminal 10.
  • Page 244  Performing forward/reverse rotation with the analog input (reversible operation) • The reversible operation by terminal 2 (terminal 4) is enabled by setting "10, 11, or 16" in Pr.73 and adjusting Pr.125 (Pr.126) Terminal 2 frequency setting gain frequency (Terminal 4 frequency setting gain frequency), C2 (Pr.902) Terminal 2 frequency setting bias frequency to C7 (Pr.905) Terminal 4 frequency setting gain.

  • Page 245: Response Level Of Analog Input And Noise Elimination

    11.2 Response level of analog input and noise elimination The response level and stability of frequency command using the analog input signal (terminal 2 or 4) can be adjusted. Name Initial value Setting range Description Input filter time constant 0 to 8 Set the primary delay filter time constant to the analog input T002 command.

  • Page 246: Frequency Setting Voltage (Current) Bias And Gain

    11.3 Frequency setting voltage (current) bias and gain The magnitude (slope) of the output frequency can be set as desired in relation to the frequency setting signal (0 to 5 VDC, 0 to 10 VDC, or 4 to 20 mA). Use Pr.73 Analog input selection (Pr.267 Terminal 4 input selection) and the voltage/current input switch to switch among input of 0 to 5 VDC, 0 to 10 VDC, and 0 to 20 mA.

  • Page 247: Operating Procedure

    • There are three methods to adjust the bias/gain frequency setting voltage (current). Adjustment by applying voltage (current) between terminals 2 and 5 (4 and 5) to set the voltage (current) at the bias/gain frequency.page 246 Adjustment by selecting the voltage (current) at the bias/gain frequency without applying voltage (current) between terminals 2 and 5 (4 and 5).page 247 Adjustment by changing the frequency without adjusting the voltage...
  • Page 248  Adjustment by selecting the voltage (current) at the bias/gain frequency without applying voltage (current) between terminals 2 and 5 (4 and 5) (Example of adjustment at the gain frequency) Operating procedure Turning ON the power of the inverter The operation panel is in the monitor mode. Changing the operation mode Press the HAND/AUTO key to choose the PU operation mode.
  • Page 249  Adjustment by changing the frequency without adjusting the voltage (current) (Example of changing the gain frequency from 60 Hz to 50 Hz) Operating procedure Selecting the parameter Turn the setting dial until "P.125" (Pr.125) appears for terminal 2, or "P.126" (Pr.126) for terminal 4. Press the SET key to show the present set value.

  • Page 250: Input Terminal Function Selection

    11.4 Input terminal function selection Use the following parameters to change the input terminal functions. Name Initial value Initial signal Setting range STF terminal function STF (Forward rotation 0 to 5, 7, 8, 10, 12, 14, 16, 18, 24, 25, 27, 30, T700 selection command)

  • Page 251: Input Signal List

     Input signal list • Refer to the following table and set the parameters. Setting Signal Function Related parameter Refer to name page Pr.59 = "0 (initial value)" Low-speed operation command Pr.4 to Pr.6, Pr.24 to Pr.27, Pr.232 to Pr.239 Remote setting (setting clear) Pr.59 Pr.59 ≠...
  • Page 252 NOTE • The same function can be assigned to two or more terminals. In this case, the logic of terminal input is OR. • The priority of the frequency command given by the external signals is as follows: JOG operation (JOG/JOG2 signal) > multi-speed operation (RL/RM/RH/REX signal) >...

  • Page 253: Inverter Output Shutoff

    11.5 Inverter output shutoff The inverter output can be shut off with the MRS signal. The logic of the MRS signal can also be selected. Name Initial Setting range Description value MRS signal input X10 signal input MRS/X10 terminal input Normally open input Normally open input T720...
  • Page 254  Assigning a different action for each MRS signal input via communication and external terminal (Pr.17 = "4 or 5") • When Pr.17 = "4 or 5", the MRS signal input from an external terminal is normally closed (NC contact), and the MRS signal input from communication is normally open (NO contact).

  • Page 255: Selecting The Condition To Activate The Second Function Selection (Rt) Signal

    11.6 Selecting the condition to activate the Second function selection (RT) signal The second function can be selected using the RT signal. • Turning ON the Second function selection (RT) signal enables the second functions. To input the RT signal, set "3" in any parameter from Pr.178 to Pr.182 and Pr.185 to Pr.189 (Input terminal function selection) to assign the function.

  • Page 256: Start Signal Operation Selection

    11.7 Start signal operation selection Operation of the start signal (STF/STR) can be selected. The stopping method (deceleration stop or coasting) at turn-OFF of the start signal can also be selected. (For the stop operation selection, refer to page 335.) Name Initial value Setting range...
  • Page 257 NOTE • By setting Pr.250 = "0 to 100, 1000 to 1100", the motor will coast to a stop when the start command is turned OFF. (Refer page 335.) • The STF and STR signals are assigned to Pr.178 STF terminal function selection and Pr.179 STR terminal function selection in the initial status.
  • Page 258  Start signal operation Pr.250 setting and inverter condition 0 to 100 s, 9999 1000 to 1100 s, 8888 Stop Stop Reverse rotation Forward rotation Forward rotation Stop Reverse rotation Parameters referred to page 162 Pr.4 to Pr.6 Multi-speed setting page 249 Pr.178 to Pr.182 and Pr.185 to Pr.189 (Input terminal function selection) 11.

  • Page 259: Chapter 12 (C) Motor Constant Parameters

    (C) Motor Constant Parameters Purpose Parameter to set Refer to page To select the motor to be used Applied motor P.C100, P.C200 Pr.71, Pr.450 To maximize the performance of the Offline auto tuning P.C100 to P.C105, Pr.9, Pr.51, Pr.71, induction motor P.C107, P.C108, Pr.80 to Pr.84, Pr.90 P.C110, P.C120 to...
  • Page 260 • 0% to 100%, 9999 (0.1%) — Mitsubishi Electric high-performance ○ Pr.706 energy-saving motor SF-PR • 0 to 5000 mV (rad/s), 9999 1140 — Mitsubishi Electric PM motor EM-A ○ (0.1 mV (rad/s)) 8090 — IPM motor ○ 9090 —...
  • Page 261  Changing motor thermal characteristics (RT signal, Pr.450) • To change the motor thermal characteristics, use Pr.450 Second applied motor. • The setting value "9999 (initial value)" disables the second motor. • Pr.450 is enabled when the RT signal is ON. To input the RT signal, set "3" in any parameter from Pr.178 to Pr.182 and Pr.185 to Pr.189 (Input terminal function selection) to assign the function.
  • Page 262  Automatic change of Pr.0 Torque boost and Pr.12 DC injection brake operation voltage • When initial values are set in Pr.0 and Pr.12, the Pr.0 and Pr.12 settings are automatically changed to the values in the following table by changing the Pr.71 setting. Inverter Pr.0 value (%) after automatic change FR-D820-[]...
  • Page 263 NOTE • When the Pr.0 and Pr.12 settings are changed from their initial values, the automatic change is not performed. • When the SF-PR motor is selected (Pr.71 = "70 or 73"), the output current may become large due to a small load by setting Pr.81 Number of motor poles according to the number of the SF-PR motor poles.

  • Page 264: Offline Auto Tuning

    Tuning data (The value measured by offline auto tuning is 0 to 50 Ω, 9999 C120 (R1) automatically set.) 9999: The constant value of Mitsubishi Electric motor (SF-PR, Motor constant 9999 0 to 50 Ω, 9999 SF-JR, SF-HR, SF-JRCA, or SF-HRCA) is used.
  • Page 265 Mitsubishi Electric standard efficiency motors (SF-JR 0.2 kW or higher), high-efficiency motors (SF-HR 0.2 kW or higher), Mitsubishi Electric constant-torque motors (SF-JRCA 4P, SF-HRCA 0.2 kW to 7.5 kW), or Mitsubishi Electric high-performance energy-saving motor (SF-PR), such as an induction motor of other manufacturers or SF-JRC, or with a long wiring length (exceeding 15 m as a reference).
  • Page 266 Motor constant Motor constant parameter parameter parameter mH, %, and A unit internal data setting Ω, mΩ, and A unit setting setting Mitsubishi Electric high- SF-PR — performance energy-saving motor Mitsubishi Electric standard SF-JR 0 (initial value) — efficiency motor SF-JR 4P 1.5 kW or lower...
  • Page 267  Performing tuning • Before performing tuning, check the monitor display of the operation panel or parameter unit if the inverter is in the state ready for tuning. The motor starts by turning ON the start command while tuning is unavailable. •...
  • Page 268 NOTE • The motor constants measured once during offline auto tuning are stored as parameters and their data are held until offline auto tuning is performed again. However, the tuning data is cleared when performing All parameter clear. • Changing Pr.71 after tuning completion will change the motor constant. For example, if "3" is set in Pr.71 after tuning is performed with Pr.71 = "0", the tuning data becomes invalid.
  • Page 269 0 to 32767, 9999 NOTE • If "9999" is set in the motor constant parameters, tuning data will be invalid and the constant values for Mitsubishi Electric motors (SF-PR, SF-JR, SF-HR, SF-JRCA, SF-HRCA, and so on) are used. 12. (C) Motor Constant Parameters...
  • Page 270 When "2516" is displayed for Pr.90, set 2642 (2516 × 1.05 = 2641.8) in Pr.90. • If "9999" is set in the motor constant parameters, tuning data will be invalid and the constant values for Mitsubishi Electric motors (SF-PR, SF-JR, SF-HR, SF-JRCA, SF-HRCA, and so on) are used.
  • Page 271 • If "wye connection" or "delta connection" is incorrectly selected in Pr.71, Advanced magnetic flux vector control is not performed properly. • If "9999" is set in the motor constant parameters, tuning data will be invalid and the constant values for Mitsubishi Electric motors (SF-PR, SF-JR, SF-HR, SF-JRCA, SF-HRCA, and so on) are used.

  • Page 272: Offline Auto Tuning For A Pm Motor

    12.3 Offline auto tuning for a PM motor The offline auto tuning enables the optimal operation of a PM motor. • Automatic measurement of the motor constant required for PM sensorless vector control operation enables optimal operation of motors even when the motor constant varies or when the wiring distance is long. •...
  • Page 273 Name Initial Setting range Description value Motor protection 9999 100% to 500% Set the maximum current (OCT) level of the motor. C133 current level 9999 When the EM-A is selected: EM-A constant is used. When a PM motor other than the EM-A is selected: 200% is used.
  • Page 274  Settings • To perform tuning, set the following parameters about the motor. Name Setting Motor capacity Motor capacity (kW) Number of motor poles Number of motor poles (2 to 12) Electronic thermal O/L relay Rated motor current (A) Rated motor frequency Rated motor frequency (Hz) Rated motor voltage Rated motor voltage (V)
  • Page 275 NOTE • Satisfy the required inverter start conditions to start offline auto tuning. For example, stop the input of the MRS signal. • To force tuning to end, use the MRS or RES signal or the STOP/RESET key on the PU. (Turning OFF the start signal (STF signal or STR signal) also ends tuning.) •...
  • Page 276 NOTE • The motor constants measured once during offline auto tuning are stored as parameters and their data are held until offline auto tuning is performed again. However, the tuning data is cleared when performing All parameter clear. • Changing Pr.71 after tuning completion will change the motor constant. For example, if "8093" is set in Pr.71 after tuning is performed with Pr.71 = "8090", the tuning data becomes invalid.
  • Page 277  Changing the motor constants • The motor constants can be set directly when the motor constants are known in advance, or by using the data measured during offline auto tuning. • According to the Pr.71 setting, the range of the motor constant parameter setting values and units can be changed. The changed settings are stored in the EEPROM as the motor constant parameters.
  • Page 278 NOTE • As the motor constants measured in the offline auto tuning have been converted into internal data (****), refer to the following setting example when making setting. (The value displayed has been converted into a value for internal use. Therefore, simple addition of a value to the displayed value does not bring the desired effect.) Setting example: To slightly increase the Pr.90 value (5%) When "2516"...

  • Page 279: Chapter 13 (A) Application Parameters

    (A) Application Parameters Purpose Parameter to set Refer to page To strengthen or weaken the frequency Traverse operation P.A300 to P.A305 Pr.592 to Pr.597 at a constant cycle To perform process control, such as PID control P.A601 to P.A604, Pr.127 to Pr.134, Pr.553, for the pump flow volume and air P.A607, P.A610 to Pr.554, Pr.575 to Pr.577,...
  • Page 280 • Setting Pr.592 Traverse function selection = "1 or 2" enables the traverse function. • Assigning the Traverse function selection (X37) signal to the input terminal enables the traverse function only when the X37 signal is ON. (When the X37 signal is not assigned, the traverse function is always available. When the Network operation mode is selected, the traverse function is always available regardless of ON/OFF state of the X37 signal.) To input the X37 signal, set "37"...

  • Page 281: Pid Control

    13.2 PID control Process control such as flow rate, air volume or pressure is possible on the inverter. A feedback system can be configured and PID control can be performed with the set point and feed back values set by analog input signals (terminals 2 and 4) or using parameter values given via communication.
  • Page 282 Name Initial Setting range Description value 1015 Integral stop selection The integral stops when the manipulated amount is limited. The A607 at limited frequency range is ±100% for the manipulated amount. The integral is cleared during output interruption. The integral does not stop when the manipulated amount is limited. The range is ±100%for the manipulated amount.
  • Page 283  PID action outline  PI action PI action is a combination of proportional action (P) and integral action (I), and applies a manipulated amount according to the size of the deviation and transition or changes over time. [Example of action when the measured value changes in a stepped manner] Deviation Set point Measured value P action...
  • Page 284  Reverse action When deviation X = (set point - measured value) is a plus value, the manipulated amount (output frequency) is increased, and when the deviation is a minus value, the manipulated amount is decreased. Deviation Set point [Heating] X>0 Cold Increase...
  • Page 285  Selection of deviation value, measured value and set point input method, and PID action method (Pr.128, Pr.609, Pr.610) • Using Pr.128, select the input method for the PID set point, measured value detected by the meter, and externally calculated deviation. Also, select forward or reverse action. •...
  • Page 286 • The following shows the relationship between the input values of the analog input terminals and set point, measured value and deviation. (Calibration parameter initial values) Input terminal Input Relationship with analog input Calibration parameter specification Set point Result Deviation Terminal 2 0 to 5 V 0 V = 0%...

  • Page 287: Input/Output Signals

     Input/output signals • Assigning the PID control valid (X14) signal to the input terminal by Pr.178 to Pr.182 and Pr.185 to Pr.189 (Input terminal function selection) enables PID control to be performed only when the X14 signal is turned ON. When the X14 signal is OFF, regular inverter running is performed without PID action.
  • Page 288  PID automatic switchover control (Pr.127) • The system can be started up more quickly by starting up without PID control activated. • When Pr.127 PID control automatic switchover frequency is set, the startup is made without PID control until the output frequency reaches the Pr.127 setting.
  • Page 289  PID output suspension function (sleep function) (SLEEP signal, Pr.575 to Pr.577) • When a status where the output frequency after PID calculation is less than Pr.576 Output interruption detection level has continued for the time set in Pr.575 Output interruption detection time or longer, inverter running is suspended. This allows the amount of energy consumed in the inefficient low-speed range to be reduced.
  • Page 290  Integral stop selection when the frequency is limited (Pr.1015) • The operation for the integral term can be selected when the frequency or the manipulated amount is limited during PID control. • The manipulation range can be selected. • The operation during output interruption can be selected for the integral term using the PID output suspension (SLEEP) function.

  • Page 291: Adjustment Procedure

     Adjustment procedure Enable PID control When Pr.128 ≠ "0", PID control is enabled. Set the set point, measured value and deviation input methods at Pr.128, Pr.609 and Pr.610. Setting the parameter Adjust the PID control parameters of Pr.127, Pr.129 to Pr.134, Pr.553, Pr.554, Pr.575 to Pr.577. Terminal setting Set the I/O terminals for PID control.

  • Page 292: Calibration Example

     Calibration example (Adjust room temperature to 25°C by PID control using a detector that outputs 4 mA at 0°C and 20 mA at 50°C.) Start Set the room temperature to 25°C. Determination of set point Determine the set point of what is desired to be adjusted.
  • Page 293 • Calibrating set point input (Example: To enter the set point on terminal 2) 1. Apply the input (for example, 0 V) of set point setting 0% across terminals 2 and 5. Using C2 (Pr.902), enter the frequency (for example, 0 Hz) to be output by the inverter when the deviation is 0%. Using C3 (Pr.902), set the voltage value at 0%.
  • Page 294 NOTE • The priority of the frequency command given by the external signals is as follows: JOG operation (JOG/JOG2 signal) > multi-speed operation (RL/RM/RH/REX signal) > PID control (X14 signal) > terminal 4 analog input (AU signal) > pulse train input > terminal 2 analog input. •...

  • Page 295: Calibration Of Pid Display

    13.3 Calibration of PID display When the LCD operation panel (FR-LU08) or the parameter unit (FR-PU07) is used, the display unit of parameters and monitor items related to PID control can be changed to various units. Name Initial Setting Description value range PID unit selection...
  • Page 296 NOTE • Always calibrate the input after changing the voltage/current input specification with Pr.73 and Pr.267, and the voltage/ current input switch. • Take caution when the following condition is satisfied because the inverter recognizes the deviation value as a negative (positive) value even though a positive (negative) deviation is given: C42 (PID bias coefficient) >...
  • Page 297  Changing the PID display coefficient of the LCD operation panel (FR- LU08) or the parameter unit (FR-PU07) (Pr.759) • Use Pr.759 PID unit selection to change the unit of the displayed value on the FR-LU08 or the FR-PU07. For the coefficient set in C42 (Pr.934) to C44 (Pr.935), the units can be changed as follows. Pr.759 setting Unit Unit name...

  • Page 298: Dancer Control

    13.4 Dancer control PID control is performed using detected dancer roll position as feedback data. The dancer roll is controlled to be at a designated position. Name Initial value Setting range Description Second acceleration/ 0 to 3600 s Set the acceleration/deceleration time during dancer control. F020 deceleration time In dancer control, this parameter becomes the acceleration/...
  • Page 299  Block diagram of dancer control Acceleration/deceleration of main speed Main speed command Target frequency Ratio PID deviation Acceleration/ Limit deceleration Pr.128 = 42, 43 PID control Dancer roll setting point Kp(1+ +Td S) Ti S Pr.128 = 40, 41 Pr.133 PID feedback PID set point...
  • Page 300  Connection diagram • Sink logic Inverter • Pr.128 = "41" MCCB Motor • Pr.182 = "14" R/L1 Power supply S/L2 • Pr.190 = "14" T/L3 • Pr.191 = "15" • Pr.133 = Set point Forward rotation Reverse rotation PID control selection RH(X14) (FUP)R+/FU Upper limit...
  • Page 301 NOTE • When Pr.128 is set to "0" or the X14 signal is OFF, regular inverter running not dancer control is performed. • Dancer control is enabled by turning ON/OFF the bits of terminals assigned the X14 signal by RS-485 communication or over the network.
  • Page 302  Selection of additive method for PID calculation result • When ratio is selected as the additive method (Pr.128 = "42, 43"), PID calculation result × (ratio of main speed) is added to the main speed. The ratio is determined by the Pr.125 Terminal 2 frequency setting gain frequency and C2 (Pr.902) Terminal 2 frequency setting bias frequency settings.
  • Page 303  PID monitor function • This function displays the PID control set point and measured value on the operation panel, and can output these from terminal AM. • Set the following values to Pr.52 Operation panel main monitor selection, Pr.774 to Pr.776 (Operation panel monitor selection), Pr.992 Operation panel setting dial push monitor selection, and Pr.158 AM terminal function selection for each monitor.
  • Page 304  Adjustment procedure for dancer roll position detection signal • When the input of terminal 4 is voltage input, 0 V is the lower limit position and 5 V (10 V) is the upper limit position (initial values). When it is current input, 4 mA is the lower limit position and 20 mA is the upper limit position (initial values). When the potentiometer has an output of 0 to 7 V, C7 (Pr.905) must be calibrated at 7 V.
  • Page 305 Parameters referred to page 305 Pr.57 Restart coasting time page 133 Pr.59 Remote function selection page 240 Pr.73 Analog input selection Pr.79 Operation mode selection page 140 page 249 Pr.178 to Pr.182 and Pr.185 to Pr.189 (Input terminal function selection) page 225 Pr.190 to Pr.196 (Output terminal function selection) page 165 Pr.561 PTC thermistor protection level...

  • Page 306: Automatic Restart After Instantaneous Power Failure / Flying Start With An Induction Motor

    13.5 Automatic restart after instantaneous power failure / flying start with an induction motor Magnetic flux Magnetic flux Magnetic flux The inverter can be restarted without stopping the motor operation in the following situations: • When an instantaneous power failure occurs during inverter running •...
  • Page 307 NOTE • The wiring distance must be 100 m or less when the frequency search is performed. • The frequency search is available at a frequency from 6 to 120 Hz for the 100/200 V class, and from 15 to 120 Hz for the 400 V class.
  • Page 308  Restart operation without frequency search (Pr.162 = "1 or 11") • When Pr.162 = "1 or 11", reduced voltage start is used for the restart operation. In this method, the voltage is raised gradually while keeping the output frequency level at the level before an instantaneous power failure, regardless of the motor's coasting speed.
  • Page 309  Adjustment of restart coasting time (Pr.57) • Restart coasting time is the time period from the occurrence of instantaneous power failure until the operation is restarted after power is restored. With frequency search, the motor speed is detected and operation is restarted after the coasting time. •...
  • Page 310 Parameters referred to page 128 Pr.7 Acceleration time page Pr.13 Starting frequency 137, page 139 page 178 Pr.65, Pr.67 to Pr.69 Retry function page 157 Pr.78 Reverse rotation prevention selection page 249 Pr.178 to Pr.182 and Pr.185 to Pr.189 (Input terminal function selection) 13.

  • Page 311: Automatic Restart After Instantaneous Power Failure / Flying Start With A Pm Motor

    13.6 Automatic restart after instantaneous power failure / flying start with a PM motor The inverter can be restarted without stopping the motor operation. When the automatic restart after instantaneous power failure function is selected, the motor driving is resumed in the following situations: •...
  • Page 312  Restart coasting time (Pr.57) • Coasting time is the time from the motor speed detection to the restart operation start. • To enable restart operation, set "0" (no coasting time) in Pr.57 Restart coasting time. Generally, this setting does not interfere with inverter operation.

  • Page 313: Offline Auto Tuning For A Frequency Search

    The offline auto tuning automatically sets the gain required for the A711 gain frequency search. 9999 The constant value of Mitsubishi Electric motor (SF-PR, SF-JR, SF-HR, SF-JRCA, or SF-HRCA) is used. Auto tuning setting/ No offline auto tuning C110 status Offline auto tuning is performed under Advanced magnetic flux vector control or PM sensorless vector control.
  • Page 314 Set the rated motor current (initial value is the inverter rated current) in Pr.9 Electronic thermal O/L relay. (Refer page 165.) Set Pr.71 Applied motor according to the motor to be used. Motor Pr.71 setting Mitsubishi Electric standard efficiency motor SF-JR 0 (3) Mitsubishi Electric high-efficiency motor SF-JR 4P 1.5 kW or lower 20 (23)
  • Page 315 • The Pr.96 setting value is changed depending on the tuning status. Status Operation panel indication LCD operation panel (FR-LU08) display Setting AutoTune 12:34 TUNE --- STOP PREV NEXT Tuning in progress AutoTune 12:34 TUNE PREV NEXT Normal end AutoTune 12:34 Blinking TUNE...
  • Page 316 Parameters referred to page 165 Pr.9 Electronic thermal O/L relay page 178 Pr.65, Pr.67 to Pr.69 Retry function page 258 Pr.71 Applied motor page 140 Pr.79 Operation mode selection page 194 Pr.156 Stall prevention operation selection 13. (A) Application Parameters 13.7 Offline auto tuning for a frequency search...

  • Page 317: Power Failure Time Deceleration-To-Stop Function

    13.8 Power failure time deceleration-to-stop function Magnetic flux Magnetic flux Magnetic flux This is a function to decelerate the motor to a stop when an instantaneous power failure or undervoltage occurs. Name Initial Setting Description value range Power failure stop The inverter output is shut off at an undervoltage or when a A730 selection...
  • Page 318  Continuous operation function at instantaneous power failure (Pr.261 = "2") • The motor re-accelerates to the set frequency when the power restores during the deceleration triggered by a power failure. If the power is restored after stoppage by a power failure, a restart operation is performed when automatic restart after instantaneous power failure (Pr.57 ≠...

  • Page 319: Trace Function

    13.9 Trace function • The operating status of the inverter can be traced and temporarily stored in the RAM in the inverter. The data stored in the RAM is deleted when the power supply is turned OFF. (The data is retained at inverter reset.) •...

  • Page 320: Operation Outline

    Name Initial Setting range Description value 1038 Digital source selection 0 to 255 Select the digital data (I/O signal) for sampling on A930 (1ch) each channel. 1039 Digital source selection A931 (2ch) 1040 Digital source selection A932 (3ch) 1041 Digital source selection A933 (4ch) 1042...
  • Page 321  Tracing procedure Prior setting for tracing Set Pr.1022 Sampling cycle and Pr.1023 Number of analog channels according to the necessary sampling time. Use Pr.1027 to Pr.1034 to set analog sources, and Pr.1038 to Pr.1045 to set digital sources. Set a trigger type in Pr.1025. Tracing Sampling starts according to the Pr.1020 and Pr.1024 settings.
  • Page 322  Analog source (monitor item) selection • Select the analog sources (monitor items) to be set to Pr.1027 to Pr.1034 from the following table. Setting Monitor item Trigger level Setting Monitor item Trigger level value criterion value criterion Output frequency/speed PTC thermistor resistance Pr.561 Output current...
  • Page 323  Digital source (monitor item) selection • Select the digital sources (input/output signals) to be set to Pr.1038 to Pr.1045 from the following table. When a value other than the ones in the following table is set, "0" (OFF) is applied for indication. Setting Signal Remarks...
  • Page 324  Start of sampling (Pr.1020, Pr.1024) • Set the trace operation. The trace operation is set in Pr.1020 Trace operation selection. • When "1" is set in Pr.1020, sampling starts. • When "2" is set in Pr.1020, it is regarded that a trigger occurs (forced trigger), and the sampling stops and the tracing starts. •...
  • Page 325 NOTE • Changing the terminal assignment using Pr.190 to Pr.196 (Output terminal function selection) may affect the other functions. Set parameters after confirming the function of each terminal. Parameters referred to page 207 Pr.52 Operation panel main monitor selection page 240 Pr.178 to Pr.182 and Pr.185 to Pr.189 (Input terminal function selection) page 225 Pr.190 to Pr.196 (Output terminal function selection) 13.

  • Page 326: Chapter 14 (G) Control Parameters

    (G) Control Parameters Purpose Parameter to set Refer to page To set the starting torque manually Manual torque boost P.G000, P.G010 Pr.0, Pr.46 To set the motor constant Base frequency, base frequency P.G001, P.G002, Pr.3, Pr.19, voltage P.G011 Pr.47 To select the V/F pattern matching the Load pattern selection P.G003 Pr.14...
  • Page 327  Starting torque adjustment • Assuming Pr.19 Base frequency voltage is 100%, set the output voltage at 0 Hz to Pr.0 (Pr.46) in percentage. • Perform the adjustment of the parameter little by little (approximately 0.5%), and confirm the status of the motor each time. The motor may overheat when the value is set too high.

  • Page 328: Base Frequency Voltage

    As a result, the inverter output may be shut off due to overload. A caution is required especially in case of Pr.14 Load pattern selection = "1" (variable torque load). • When using the Mitsubishi Electric constant torque motor, set Pr.3 to 60 Hz. Pr.19...
  • Page 329  Setting of base frequency voltage (Pr.19) • Use Pr.19 Base frequency voltage to set the base voltage (for example, rated motor voltage). • When it is set lower than the power supply voltage (approximately twice of the power supply voltage for a single-phase 100 V power input model), maximum output voltage of the inverter will be the voltage set in Pr.19.

  • Page 330: Load Pattern Selection

    14.3 Load pattern selection Optimal output characteristics (V/F characteristics) for application or load characteristics can be selected. Name Initial Setting Description value range Load pattern selection For constant-torque load G003 For variable-torque load For constant-torque lift (boost at reverse rotation: 0%) For constant-torque lift (boost at forward rotation: 0%) ...
  • Page 331  Vertical lift load applications (Pr.14 = "2, 3") • Set "2" when a vertical lift load is fixed as power driving load at forward rotation and regenerative load at reverse rotation. • Pr.0 Torque boost is valid during forward rotation, and torque boost is automatically changed to "0%" during reverse rotation.

  • Page 332: Energy Saving Control

    14.4 Energy saving control V/F Magnetic flux Magnetic flux Magnetic flux The inverter will automatically perform energy saving operation without setting detailed parameters. This control method is suitable for applications such as fans and pumps. Name Initial value Setting range Description Energy saving Normal operation...

  • Page 333: Sf-Pr Slip Amount Adjustment Mode

    14.5 SF-PR slip amount adjustment mode • As compared to our conventional SF-JR motor, the slip amount is small for the high-performance energy-saving SF-PR motor. When replacing the SF-JR to the SF-PR, the slip amount is reduced and the rotations per minute increases. Therefore, when the SF-PR is used with the same frequency setting as that of the SF-JR, power consumption may increase as compared to the SF-JR.

  • Page 334: Dc Injection Brake

    14.6 DC injection brake • Adjust the braking torque and timing to stop the motor using the DC injection brake. When the DC injection brake operation is used, DC voltage is applied to the motor to prevent rotation of the motor shaft. When a motor shaft is rotated by external force, the motor shaft does not go back to the original position.
  • Page 335  Operation time setting (Pr.11) • Set the operation time for DC injection brake in Pr.11 DC injection brake operation time. • When the motor does not stop due to large load moment (J), increase the setting to ensure the effect. •...

  • Page 336: Stop Selection

    14.7 Stop selection Select the stopping method (deceleration stop or coasting) at turn-OFF of the start signal. Coasting can be selected for the cases such that the motor is stopped with a mechanical brake at turn-OFF of the start signal. The operation of the start signal (STF/STR) can be selected.
  • Page 337 NOTE • The stop selection setting is disabled when the following functions are operating. Power failure stop function (Pr.261) PU stop (Pr.75) Deceleration stop due to a communication error (Pr.502) JOG operation Offline auto tuning • When Pr.250 ≠ "9999 or 8888", acceleration/deceleration is performed in accordance with the frequency command until the output is shut off by turning OFF the start signal.

  • Page 338: Regenerative Brake Selection

    14.8 Regenerative brake selection • When performing frequent start and stop operation, usage rate of the regenerative brake can be increased by using the optional high-duty brake resistor (FR-ABR) or the brake unit (FR-BU2, BU, or FR-BU). • The multifunction regeneration converter (FR-XC in power regeneration mode) is used for the continuous operation in the regenerative status.
  • Page 339  When using the high-duty brake resistor (FR-ABR) (FR-D820-0.4K-025 or higher, FR-D840-0.4K-012 or higher, FR-D820S-0.4K-025 or higher, and FR-D810W-0.4K-025 or higher) • Set Pr.30 = "1". • Set Pr.70 = 10%.  When the automatic restart after instantaneous power failure function is enabled •...
  • Page 340 NOTE • When Pr.30 = "0 or 2" and the X10 signal is not assigned to an input terminal, the MRS signal can be used as the X10 signal. The logic of the signal depends on that of the MRS signal (normally open input when Pr.17 = "0 or 1", and normally closed input when Pr.17 = "2 to 5").
  • Page 341 Voltage class Inverter Minimum resistance (Ω) Power consumption (kW) 200 V class FR-D820-0.4K-025 FR-D820-0.75K-042 FR-D820-1.5K-070 FR-D820-2.2K-100 FR-D820-3.7K-165 FR-D820-5.5K-238 FR-D820-7.5K-318 FR-D820S-0.4K-025 FR-D820S-0.75K-042 FR-D820S-1.5K-070 FR-D820S-2.2K-100 400 V class FR-D840-0.4K-012 FR-D840-0.75K-022 FR-D840-1.5K-037 FR-D840-2.2K-050 FR-D840-3.7K-081 FR-D840-5.5K-120 FR-D840-7.5K-163 The resistance should be 200 Ω or more at 100% ED. The following shows the brake duty when the resistance is less than 200 Ω. Brake duty (% ED) 100% ED (at 200 Ω...

  • Page 342: Regeneration Avoidance Function

    14.9 Regeneration avoidance function The regenerative status can be detected and avoided by raising the frequency. • The operation frequency is automatically increased to prevent the regenerative operations. This function is useful when a load is forcibly rotated by another fan in the duct. Name Initial value Setting...
  • Page 343 NOTE • The slope of frequency rising or lowering by the regeneration avoidance operation will change depending on the regenerative status. • The DC bus voltage of the inverter will be approximately times of the normal input voltage (twice of the input voltage √...
  • Page 344  Adjusting the regeneration avoidance operation (Pr.665, Pr.886) • If the frequency becomes unstable during regeneration avoidance operation, decrease the setting of Pr.886 Regeneration avoidance voltage gain. On the other hand, if an overvoltage fault occurs due to a sudden regeneration, increase the setting.

  • Page 345: Increased Magnetic Excitation Deceleration

    14.10 Increased magnetic excitation deceleration Magnetic flux Magnetic flux Magnetic flux Increase the loss in the motor by increasing the magnetic flux during deceleration. The deceleration time can be reduced by suppressing the stall prevention (overvoltage) (oL). The deceleration time can be reduced without using a brake resistor. (When a brake resistor is used, the duty can be reduced.) Name Initial Setting...
  • Page 346  Overcurrent prevention function (Pr.662) • The increased magnetic excitation rate is lowered automatically when the output current reaches or exceeds the level set in Pr.662 during increased magnetic excitation deceleration. • When the inverter protective function (E.OC[], E.THT) is activated due to increased magnetic excitation deceleration, adjust the level set in Pr.662.

  • Page 347: Slip Compensation

    14.11 Slip compensation Under V/F control, the slip of the motor is estimated from the inverter output current to maintain the rotation of the motor constant. Name Initial Setting Description value range Rated slip 9999 0.01% to Set the rated motor slip. G203 0, 9999 No slip compensation...

  • Page 348: Speed Smoothing Control

    14.12 Speed smoothing control Magnetic flux Magnetic flux Magnetic flux The output current (torque) of the inverter sometimes becomes unstable due to vibration caused by mechanical resonance. Such vibration can be suppressed by reducing fluctuation of the output current (torque) by changing the output frequency. Name Initial Setting...

  • Page 349: Chapter 15 Checking And Clearing Of Settings

    Checking and Clearing of Settings 15.1 Parameter clear / All parameter clear • Set "1" in Pr.CL Parameter clear or ALLC All parameter clear to initialize the parameter. (The parameter cannot be cleared when Pr.77 Parameter write selection = "1".) •...

  • Page 350: List Of Parameters Changed From The Initial Values

    15.2 List of parameters changed from the initial values Parameters changed from their initial values can be displayed. Operating procedure Turning ON the power of the inverter The operation panel is in the monitor mode. Selecting the parameter setting mode Press the MODE key to choose the parameter setting mode.

  • Page 351: Fault History Clear

    15.3 Fault history clear  Fault history clearing procedure • Set Er.CL Fault history clear = "1" to clear the fault history. Operating procedure Turning ON the power of the inverter The operation panel is in the monitor mode. Selecting the parameter setting mode Press the MODE key to choose the parameter setting mode.

  • Page 352: Changing The Parameter Initial Value Group

    15.4 Changing the parameter initial value group The parameter initial value group can be changed. Operating procedure Turning ON the power of the inverter The operation panel is in the monitor mode. Changing the operation mode Press the HAND/AUTO key to choose the PU operation mode. The HAND LED turns ON. Selecting the parameter setting mode Press the MODE key to choose the parameter setting mode.

  • Page 353: Chapter 16 Appendix

    Appendix Appendix provides the reference information for use of this product. Refer to the information as required. 16.1 For customers replacing the conventional model with this inverter 16.1.1 Replacement of the FR-D700 series  Differences and compatibility with the FR-D700 series Item FR-D800 FR-D700...
  • Page 354 Item FR-D800 FR-D700 Control circuit Shape of terminal Spring clamp type terminal block Contact input Analog input Relay output Open collector output Pulse output Not available Analog output Not available Safety input/ S1, S2, PC, SO, SOC S1, S2, SC, SO output Communication RS-485 PU connector / RS-485 terminals...

  • Page 355: Specification Comparison Between Pm Sensorless Vector Control And Induction Motor Control

    16.2 Specification comparison between PM sensorless vector control and induction motor control Item PM sensorless vector control Induction motor control Applicable motor IPM motor or PM motor Induction motor Starting torque 200% (FR-D820-3.7K-165 or lower, FR-D840-3.7K-081 or lower, FR-D820S-2.2K-100 or lower, FR-D810W-0.75K-042 or lower) and 150% (FR-D820-5.5K-238 or higher, FR-D840-5.5K-120 or higher)

  • Page 356: Parameters (Functions) And Instruction Codes Under Different Control Methods

    16.3 Parameters (functions) and instruction codes under different control methods Instruction codes are used to read and write parameters in accordance with communication (such as the Mitsubishi inverter protocol). (For details of communication, refer to the Instruction Manual (Communication).) Function availability under each control method is shown as follows: ○: Available ×: Not available Δ: Available with some restrictions...
  • Page 357 Name Instruction code Control method Parameter Read Write Extended Copy Clear Magnetic flux Magnetic flux Magnetic flux clear Speed display ○ ○ ○ ○ ○ ○ RUN key rotation direction selection ○ ○ ○ ○ ○ ○ Up-to-frequency sensitivity ○ ○...
  • Page 358 Name Instruction code Control method Parameter Read Write Extended Copy Clear Magnetic flux Magnetic flux Magnetic flux clear RS-485 communication stop bit ○ ○ ○ ○ ○ ○ length / data length RS-485 communication parity check ○ ○ ○ ○ ○...
  • Page 359 Name Instruction code Control method Parameter Read Write Extended Copy Clear Magnetic flux Magnetic flux Magnetic flux clear RH terminal function selection ○ ○ ○ ○ × ○ NET X1 input selection ○ ○ ○ ○ × ○ NET X2 input selection ○...
  • Page 360 Name Instruction code Control method Parameter Read Write Extended Copy Clear Magnetic flux Magnetic flux Magnetic flux clear Communication EEPROM write ○ ○ ○ ○ ○ ○ selection Communication error count ○ ○ ○ × × × Overspeed detection level ×...
  • Page 361 Name Instruction code Control method Parameter Read Write Extended Copy Clear Magnetic flux Magnetic flux Magnetic flux clear First free thermal reduction ○ ○ ○ ○ ○ ○ frequency 2 First free thermal reduction ratio 2 ○ ○ ○ ○ ○...
  • Page 362 Name Instruction code Control method Parameter Read Write Extended Copy Clear Magnetic flux Magnetic flux Magnetic flux clear Control method selection ○ ○ ○ ○ ○ ○ Torque limit input method selection × × ○ ○ ○ ○ Set resolution switchover ×...
  • Page 363 Name Instruction code Control method Parameter Read Write Extended Copy Clear Magnetic flux Magnetic flux Magnetic flux clear Terminal 4 frequency setting gain ○ ○ ○ ○ × ○ (905) frequency Terminal 4 frequency setting gain ○ ○ ○ ○ ×...
  • Page 364 Name Instruction code Control method Parameter Read Write Extended Copy Clear Magnetic flux Magnetic flux Magnetic flux clear 1107 Running speed monitor filter ○ ○ ○ ○ ○ ○ 1108 Excitation current monitor filter ○ ○ ○ ○ ○ ○ 1200 AM output offset calibration ○...
  • Page 365 MEMO 16. Appendix 16.3 Parameters (functions) and instruction codes under different control methods...

  • Page 366: Warranty

    (1) Damages caused by any cause found not to be the responsibility of Mitsubishi Electric. (2) Loss in opportunity, lost profits incurred to the user by Failures of Mitsubishi Electric products. (3) Special damages and secondary damages whether foreseeable or not, compensation for accidents, and compensation for damages to products other than Mitsubishi Electric products.

  • Page 367: Revisions

    Revisions *The manual number is given on the bottom left of the back cover. Revision date Manual number Revision Dec. 2024 IB(NA)-0601034ENG-A First edition IB(NA)-0601034ENG-A...
  • Page 368 FR-D800 TORISETSU KINOU Model EIBUN Model code 1AJ081 HEAD OFFICE: TOKYO BUILDING 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN IB(NA)-0601034ENG-A(2412)MEE Printed in Japan Specifications subject to change without notice.
