22 PERIODIC SERVICE

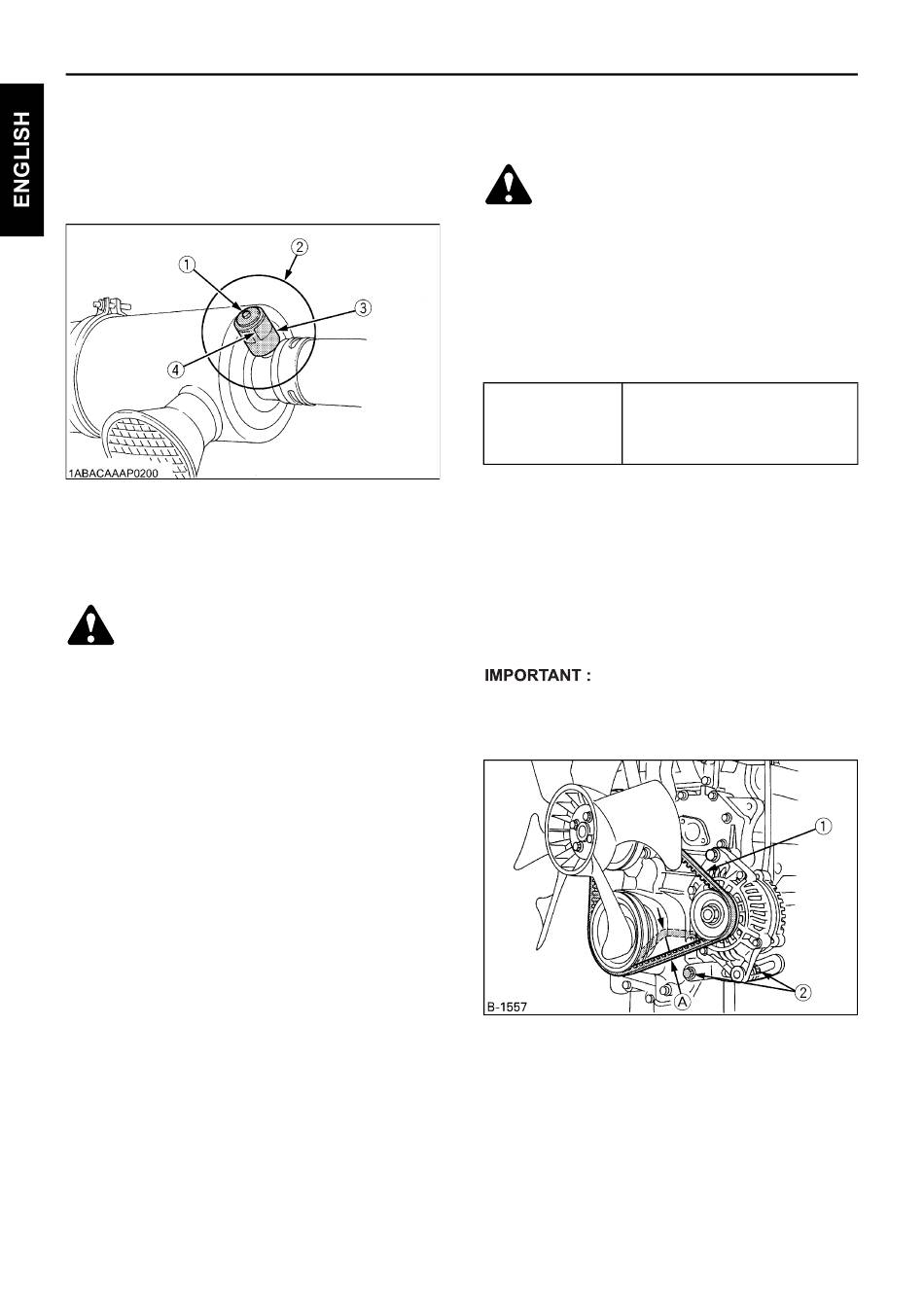

BDust indicator (optional)
If the red signal on the dust indicator attached to the air
cleaner is visible, the air cleaner has reached the
service level.
Clean the element immediately, and reset the signal
with the "RESET" button.
(1) "RESET" button
(2) Dust indicator
(3) Service level
(4) Signal

ELECTRIC WIRING

CAUTION
To avoid personal injury:
CShorting of electric cable or wiring
may cause a fire.
ACheck to see if electric cables and
wiring are swollen, hardened or
cracked.
AKeep dust and water away from all
power connections.
Loose wiring
make bad connections. Be sure
to repair them before starting the
engine.
Damaged wiring reduces the capacity of electrical parts.
Change or repair damaged wiring immediately.
terminal parts,

FAN BELT

BAdjusting Fan Belt Tension
CAUTION
To avoid personal injury:
ABe sure to stop the engine and
remove the key before checking the
belt tension.
ABe sure to reinstall the detached
safety shield after maintenance or
checking.
A deflection of between 10 to 12
Proper fan belt mm (0.39 to 0.47 in.) when the belt
tension is pressed in the middle of the
span.
1. Stop the engine and remove the key.
2. Apply moderate thumb pressure to belt between the
pulleys.
3. If tension is incorrect, loosen the alternator mounting
bolts and, using a lever placed between the
alternator and the engine block, pull the alternator
out until the deflection of the belt falls within
acceptable limits.
4. Replace fan belt if it is damaged.
A If belt is loosen or damaged and the fan is damaged,
it could result in overheats or insufficient charging.
Correct or replace belt.
(1) Fan belt (A) 10 to 12 mm (0.39 to 0.47 in.)
(2) Bolt and nut (under load of 6~7 kgf (13.2~15.4
lbs))
