Korg MS-02 Owner's Manual page 5

4. Using the Interface • Using the keyboard of a Hz/V type synthesizer }o simultaneously play (control) an OCT/V type synthesizer.

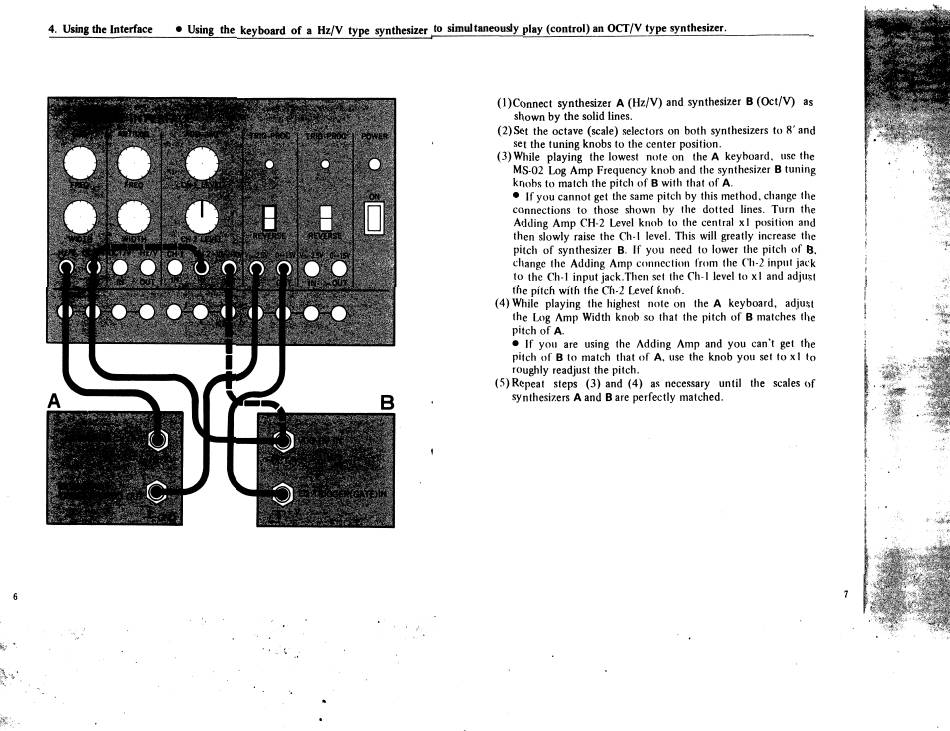

(l)Connect synthesizer A (Hz/V) and synthesizer B (Oct/V) as
shown by the solid lines.
(2)Set the octave (scale) selectors on both synthesizers to 8' and
set the tuning knobs to the center position.
(3) While playing the lowest note on the A keyboard, use the
MS-02 Log Amp Frequency knob and the synthesizer B tuning
knobs to match the pitch of B with that of A.
• If you cannot get the same pitch by this method, change the
connections to those shown by the dotted lines. Turn the
Adding Amp CH-2 Level knob to the central xl position and
then slowly raise the Ch-1 level. This will greatly increase the
pitch of synthesizer B. If you need to lower the pitch of B,
change the Adding Amp connection from the Ch-2 input jack
to the Ch-1 input jack.Then set the Ch-1 level to xl and adjust
the pitch with the Ch-2 Level knob.
(4) While playing the highest note on the A keyboard, adjust
the Log Amp Width knob so that the pitch of B matches the
pitch of A.
• If you are using the Adding Amp and you can't get the
pitch of B to match that of A, use the knob you set to xl to
roughly readjust the pitch.
(5)Repeat steps (3) and (4) as necessary until the scales of
synthesizers A and B are perfectly matched.
