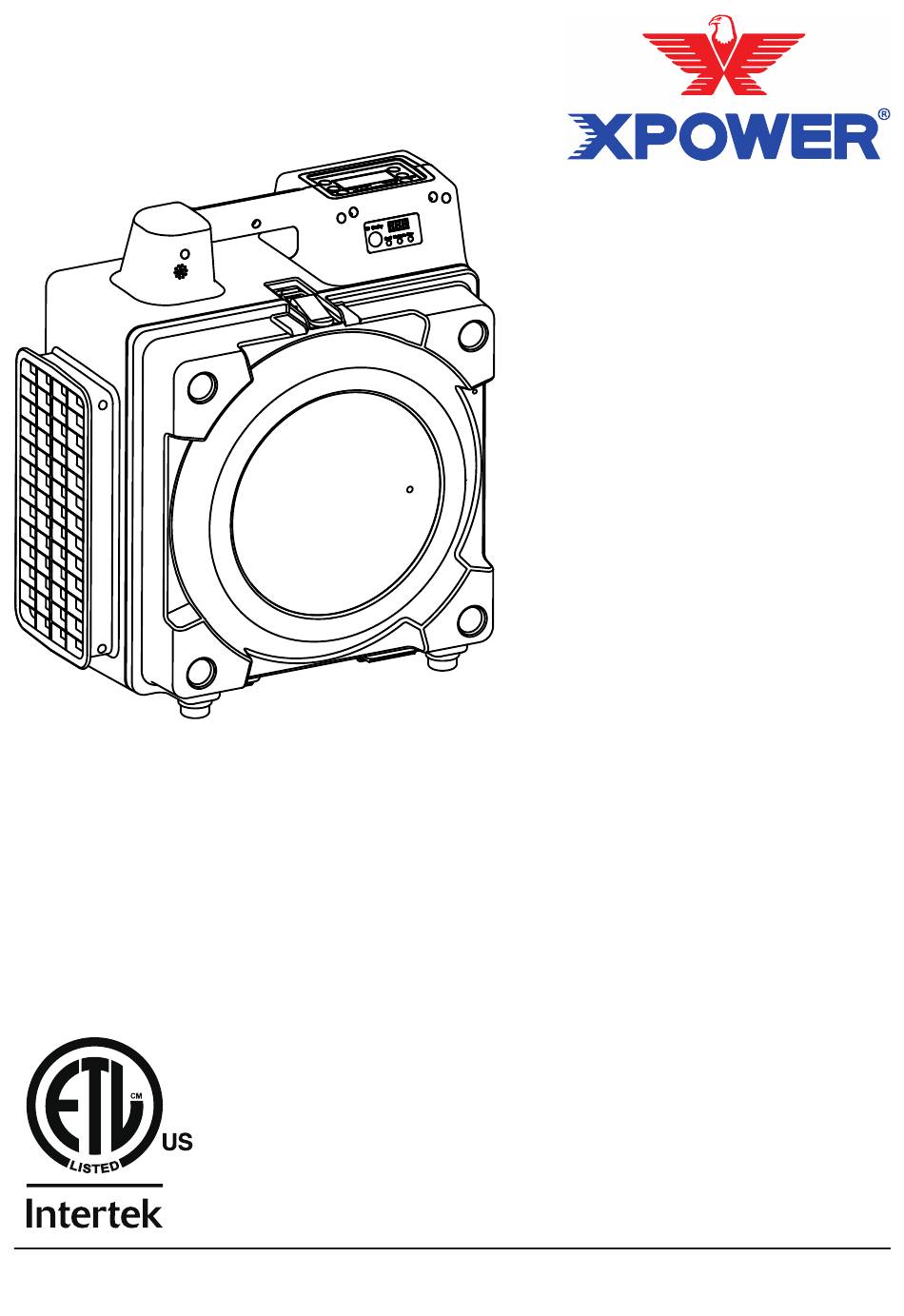

- Page 1 Air Scrubber Owner's Manual Model: X-2700, X-2800, X-2830, X-2830U (115 V~, 60Hz) Read and save these instructions before use www.xpower.com | 1-(855)-855-8868 | info@xpower.com Index: NA-1-A38 Edition: 3.1.Final...
-
Page 2: Safety Instructions
• If the appliance is damaged or it malfunctions, continue to use it. Unplug the product from the electrical outlet. Refer to troubleshooting guide or contact XPOWER. • Store in a dry area, away from exposure to sunlight, extreme temperature and humidity, or other extreme environments, when not in use. -
Page 3: Items Included
P-80 Series, P-100 Series, P-200 Series (115V 60HZ) Read and save these instructions before use Lea y guarde estas instrucciones antes de usar la unidad Lire et conserver ces instructions avant utilisation www.xpower.com | 1-(855)-8868 | info@xpower.com Index: NA-1-A2 Edition: 1.0.Alpha Parts Description Machine... - Page 4 The graph only presents the appearance of the filters. The actual sizes of filters with different part number could be slightly different. (See Page 15: Technical Specifications) If your product(s) is not listed above, please visit www.xpower.com for more information. English - 4...
- Page 5 You may also find that installing multiple Air Scrubbers may be required for larger enclosed areas. Special Safety Instructions for X-2830U only Please use XPOWER HEPA-50-33U HEPA filter to ensure UV lamp functions safely. Other kind of filters may cause a hazardous leakage of ultraviolet. English - 5...
- Page 6 Extension Setup (Optional) Foam Cover Intake Ducting • Turn off the machine and remove the foam cover*. • Attach the ducting hose to the intake. * For model X-2700 only. Exhaust Ducting • Turn off the machine. • Attach the ducting hose to the exhaust. English - 6...
- Page 7 Control Panel Timer Value / Running Time Value Display Fan Speed Timer Value /Running Power Time Value Switch Switch Timer Speed TIMER Control RUNNING TIME OFF-TIMER FILTER CHANGE SPEED Control Value Display Filter Change Indicator Indicator Light Buttons Power Switch Speed Control Press to switch on / off the machine.
- Page 8 Timer Value / Timer Value / Running Time Value Running Time Value Display Display Fan Speed Fan Speed Control Panel (Continued) Timer Value Timer Value /Running /Running Power Indicators Time Value Time Value Switch Switch Switch Running Time Value Timer Value Timer Value / Timer Timer...
- Page 9 Air Quality Monitor (Continued) Index Light Levels of Health Concern according to the AQI by EPA Green / Good Good Orange (Yellow) / Moderate or, Unhealthy for Sensitive Groups Moderate Red / Poor Unhealthy, or Very Unhealthy, or Hazardous Foam Cover* •...
-
Page 10: User Maintenance Instructions
Transportation Handle Carry with Handle Stack in Carrier Lift the Air Scrubber with the You can stack up to 5 Air Scrubbers handle on the top of the housing. and transport. User Maintenance Instructions Frequent maintenance is recommended on this appliance. Failure to follow the maintenance instructions may cause failure of the appliance and void the warranty. - Page 11 Machine Maintenance (Continued) Organize the Cord • Wrap the power cord around the intake for storage after use.* • Use convenient clip at end of cord to secure in place. * Wrap-around design does not apply to all models mentioned in this manual. Filter Maintenance To ensure the best filtration efficiency and to prevent secondary pollution of used filters, you should replace or clean the filters frequently or when the filter change light...
- Page 12 Filter Maintenance (Continued) Clean the filters (See Also Page 4: Filters) • Filters: These filters are washable with water. Use a vacuum or clean Nylon Mesh cloth to remove loose debris. And then further clean the filter with water. Use a cloth to remove the water on the filter and dry it naturally in the air.
- Page 13 Filter Maintenance (Continued) Reload the filters To ensure the best efficiency and lifespan, each filter must be reloaded in a correct position, sequence and orientation. Inner Filters Inner Filters • Other filters must be loaded inside the Air Scrubber. See Page 4: Filters •...
- Page 14 Filter Maintenance (Continued) Tips: • On one of the side of each filter, there is a label with an arrow showing the airflow direction. • When placing the filter, the side with label should face up. The arrow on the label should point to the blue housing.
-
Page 15: Troubleshooting Guide
Filters are fully loaded. The Clean or replace the loaded movement filter change light illuminates. filters. (See Page 10: Filter Maintenance) If troubleshooting does not resolve your problem, please contact XPOWER or other parties authorized by XPOWER for further instructions. English - 15... -
Page 16: Technical Specification
Technical Specification Machine Specification MODEL NUMBER X-2700 X-2800 X-2830 X-2830U Voltage/ 115 V~, 60 Hz Frequency Amperage 2.8 A Motor Power 1/2 HP Rated Airflow 550 CFM 500 CFM Speed Control 5 Speeds Off-Timer Meter 0.5 - 24 h Cord Length 13 ft. - Page 17 2.0 in. Filter HEPA65-33 13 x 13 in. 2.8 in. TF-12 Filter 12 x 12 in. 0.4 in. Airborne disinfection. See Also Page 4: Filters If your product(s) is not listed above, please visit www.xpower.com for more information. English - 17...
- Page 18 (3) Visit XPOWER U.S. Head Office at 668 S. 6th Ave., City of Industry, CA 91746 or the most current address provided on www.xpower.com. Please also have your original proof of purchase and the serial number(s) of your product(s) ready when you contact XPOWER.
- Page 19 (1) Request a RMA (Return-Merchandise-Authorization) number. (2) Use the original or an equivalent packaging, prepay shipping charges at your own expense to the address provided by XPOWER, with the RMA number on the shipping label or the packaging. (3) Include all the original parts and components.
- Page 20 XPOWER Manufacture, INC. 668 S. 6th Avenue, City of Industry, CA 91746 USA www.xpower.com | 1-(855)-855-8868 | info@xpower.com Read and save these instructions before use Index: NA-1-A38 Edition: 3.1.Final...
