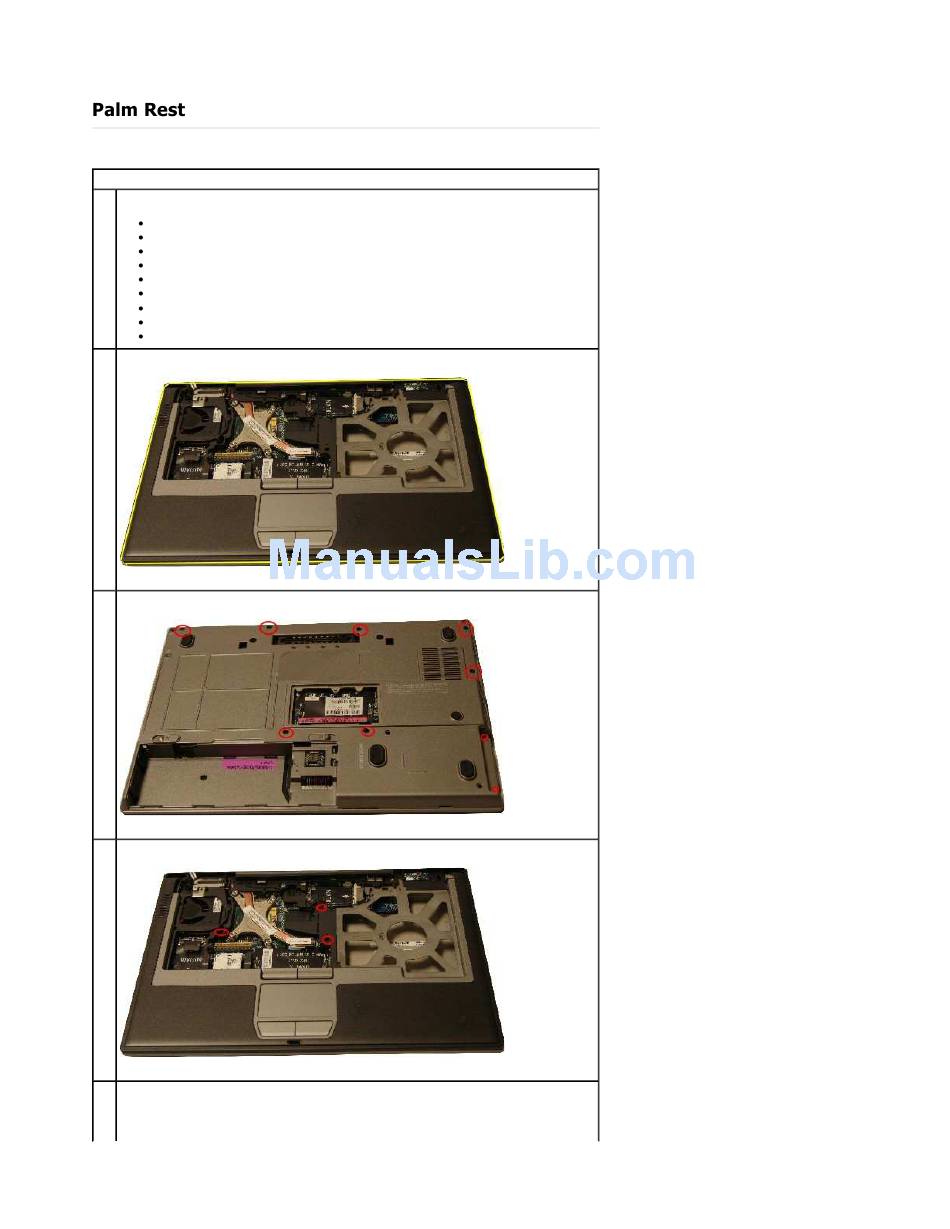

The following table outlines the steps for removing and replacing the palm rest assembly for the Latitude™ D620.

Removing and Replacing the Palm Rest Assembly

1. Before removing the palm rest assembly:
Remove the AC power.
Remove the battery.
Remove the optical drive.
Remove the hard drive.
Remove the hinge cover.
Remove the keyboard.
Remove the Bluetooth® card.
Remove the coin battery.
Remove the LCD.
2. Locate the palm rest
3. Remove the nine securing screws from the bottom section of the system.
4. Remove the three palm rest screws from the upper section of the system for the Latitude D620.
5.
Disconnect the cable connector attached to the system board.
