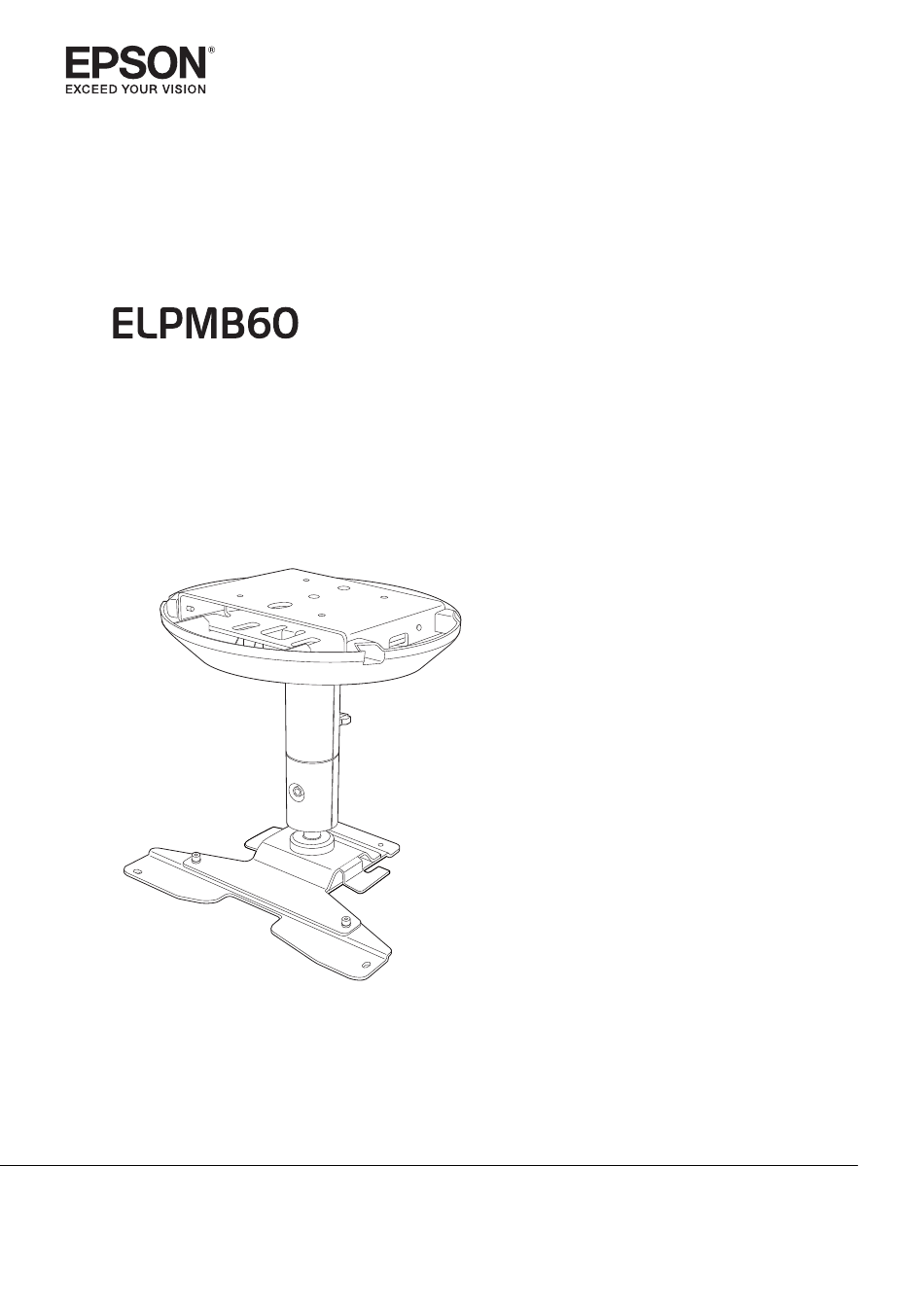

Using the Product Safely Safety Instructions This guide explains how to install the projector on the ceiling, on a wall, or on the floor using the ELPMB60 ceiling mount/floor stand supplied. Make sure you read this guide carefully to use the installation mounts and the projector safely. Incorrect handling that ignores instructions in this guide could damage this product or could result in personal injury or property damage.
Do not attach anything to this mount except for EPSON projector’s that are compatible with this product. If you attach a projector that is not compatible with this product, the mount could fall, topple over, or be damaged causing death or serious injury.
Do not apply excessive force to the projector or the mount when installing. Otherwise, the mount or the projector may be damaged and could cause death or injury. Do not install in the following situations. Contact your local dealer or Epson Service Call Center.
Using the Product Safely Caution Do not install the projector in a location outside the projector's operating temperature range. Such an environment may damage the projector. Install it away from air outlets such as air conditioners. If the air from an air conditioner and so on flows directly over the projector, the temperature rises and the projector may not operate correctly.
Preparing the Projector Package Contents Check that you have all of the following accessories before you start work. Projector plate Arm unit Cable clamp Ceiling mount/Floor stand plate A Ceiling mount/Floor stand plate B Mount cover A Mount cover B Safety wire set (safety wire (500 mm) and User's Guide) Hexagonal wrench (M4 ball point) Hexagonal wrench (M6)
Page 8
Preparing the Projector Shape Name Quantity Application M4 x 10 mm hexagonal recessed head Secures the projector plate to the projector. screw (with washer): silver Secures the arm unit to the projector plate. Secures the mount cover.
Installation Procedure Attaching the Mount to the Projector Attach the projector plate and arm unit to the base of the projector. Caution Make sure you use the screws supplied when attaching the mount to the projector. Attaching the Projector Plate You may not need to attach the projector plate depending on the model you are using.
Installation Procedure Secure the projector plate using the M4 x 10 mm screws supplied (x4). Attaching the Arm Unit Straighten the arm unit and tighten the screws.
Page 11
Installation Procedure Place the arm unit on the projector. Align the screw holes on the projector plate or the screw holes on the projector with the screw holes on the arm unit. With projector plate Without projector plate Secure the arm unit to the projector using the M4 x 10 mm screws supplied (x3). With projector plate Without projector plate...
Installation Procedure Installing the Safety Wire When installing in a high location such as a ceiling, wall, or on a shelf, after attaching the arm unit, install the safety wire supplied to prevent the projector from falling. For details on the installation procedure, see the User's Guide supplied with the safety wire set.
Installation Procedure Attaching the Projector to the Installation Location Determining the installation position Check the position where you want to project the image, and determine the mounting position for the Ceiling mount/Floor stand. Make sure you take into consideration the structure (strength and so on) of the installation location on which you will install the Ceiling mount/Floor stand.
Installation Procedure 1: Concrete 2: Ceiling surface a: Female threading type anchor b: Eye bolt c: Flat washer d: Spring washer e: Hexagonal nut At least 3 ridges of the screw should be visible. However, do not extend more than 9 mm as this will touch the mount.
Page 15
Installation Procedure Insert ceiling mount/floor stand plate B into plate A. Tighten the M4 x 14 mm screws supplied (x4) with the hexagonal wrench (M4 ball point), and secure ceiling mount/floor stand plate B.
Installation Procedure Attaching the Arm Unit to the Ceiling Mount/Floor Stand Plate Insert the arm unit into the gap provided in ceiling mount/floor stand plate B. Slide it to the front and align the screw holes in ceiling mount/floor stand plate B with the screw holes in the arm unit.
Installation Procedure Connecting Cables Connect the necessary cables to the projector's connection ports. Check the Projector's User's Guide for information on the connection ports.
Installation Procedure Attaching the Mount Cover Attach the cable clamp to the arm unit. Insert the cable clamp to fit through the holes in the arm unit. Attach mount cover A to the ceiling mount/floor stand plate. Route cables through the cabling paths or cable clamps if necessary. If the cables are thick or if there are a lot of cables, connect them directly without passing them through the cabling path or cable clamps.
Page 19
Installation Procedure Secure mount cover A using the M4 x 10 mm screws supplied (x2). Caution Make sure the cables do not get trapped by the mount cover. If you tighten the screws while the cables are trapped between the cover and the mount, the cables may be disconnected. Attach mount cover B.
Page 20
Installation Procedure Secure mount cover B using the M4 x 10 mm screws supplied (x4). Align the screw holes while supporting mount cover B from underneath.
Installation Procedure Adjusting the Orientation of the Projector You can use the ball joint on the projector support section to adjust the orientation and the angle of the projector. The range of angles available varies depending on the model you are using. For more details, see the User's Guide supplied with the projector.
Page 22
Installation Procedure When you have finished making adjustments, securely tighten the screw for the ball joint section with a hexagonal wrench (M6). • After making adjustments, make sure you tighten the screws of the ball joint completely. If they are not tightened completely, the angle of the projector will change shifting the position of the image.
Appendix Specification Item Specification Mass (projector plate, arm unit, ceiling mount/floor stand plate A/B, mount Approx. 2.7 kg cover A/B) Maximum load capacity Approx. 10.0kg Appearance [Unit: mm] Without the mount cover 198.3 26.4 31.9 33.5 Φ45 253.6 260.1...
