Please check that all the parts are working correctly. Enter the factory preset code on the code
knob/lever on the keypad handle. When the correct code is entered the knob/handle will rotate and the spindle fol-
lower of the back of the keypad will also rotate. Please note, whilst the handle may turn the spindle follower on the
back of the keypad will not rotate until the correct code has been entered.
The knob/lever will freely turn counter clockwise on the outside keypad and clockwise inside keypad. The spindle
follower on the back of the keypad will rotate each time. The knob should return easily under its spring pressure. If
you intend to change the code please refer to 'code change' instructions, this can be changed with the keypad fitted
on/off the door.
Many of the installation instructions refer to the handing of the door. The hand of the door is determined with the door
in its closed position from the exterior or keypad side of the door.

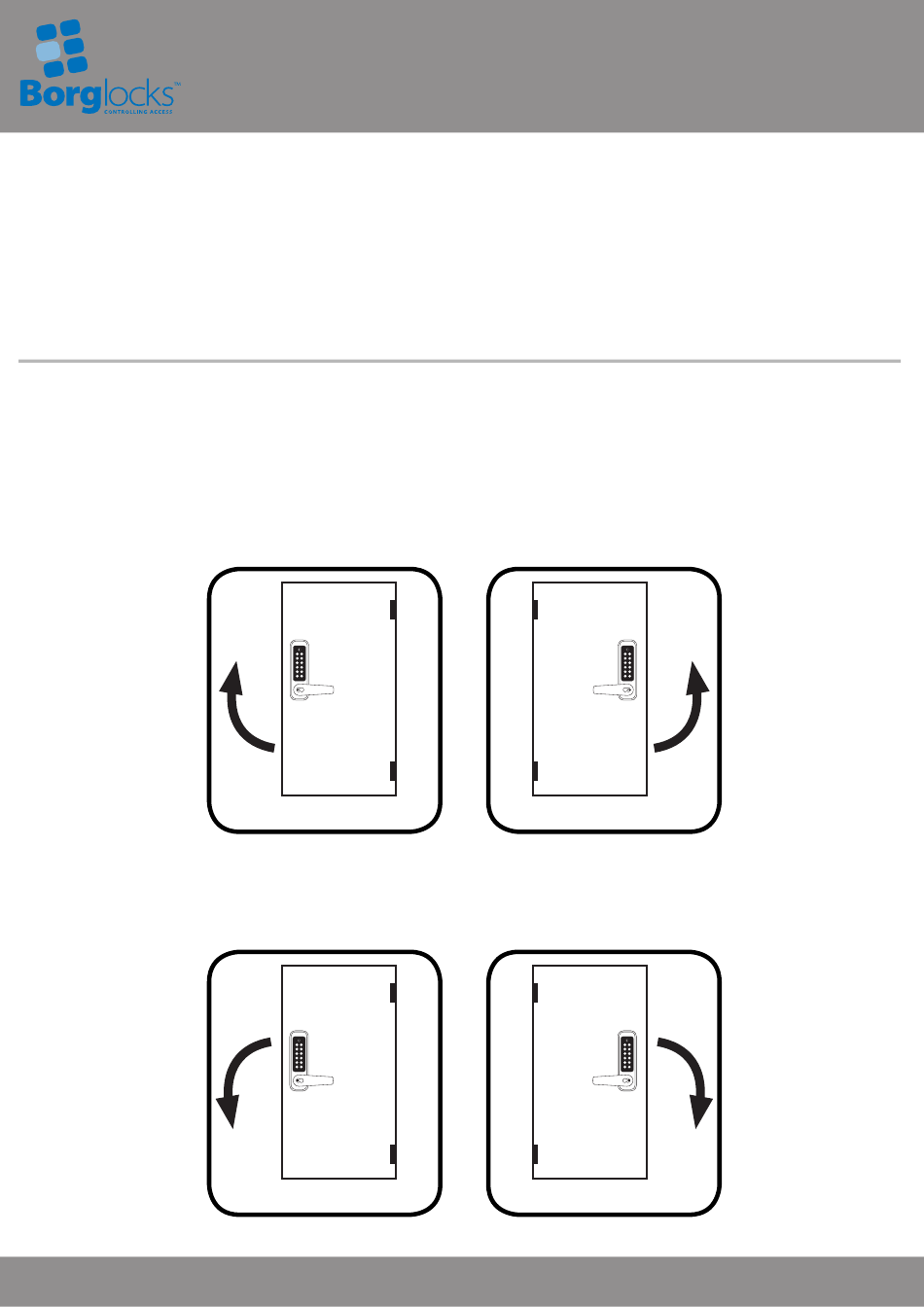

A) Right hand door – door opens inward (push), hinged on the right side.
B) Left hand door – door opens inward (push), hinged on the left side.
C) Right hand inward opening – door opens outward (pull), hinged on the right side.
D) Left hand inward opening – door opens outward (pull), hinged on the left side
www.borglocks.com
Preparation
Determining the hand of the door
A
C
Helpline: +44 (0) 1708 225700
BL7000 ECP Series
B
D
card and
rotate the
