Borglocks BL4409 ECP Instruction Manual

Hide thumbs Also See for BL4409 ECP:

Advertisement

Quick Links

Download this manual
1
BORGLOCKS.COM
10
Part No.
www.borglocks.com

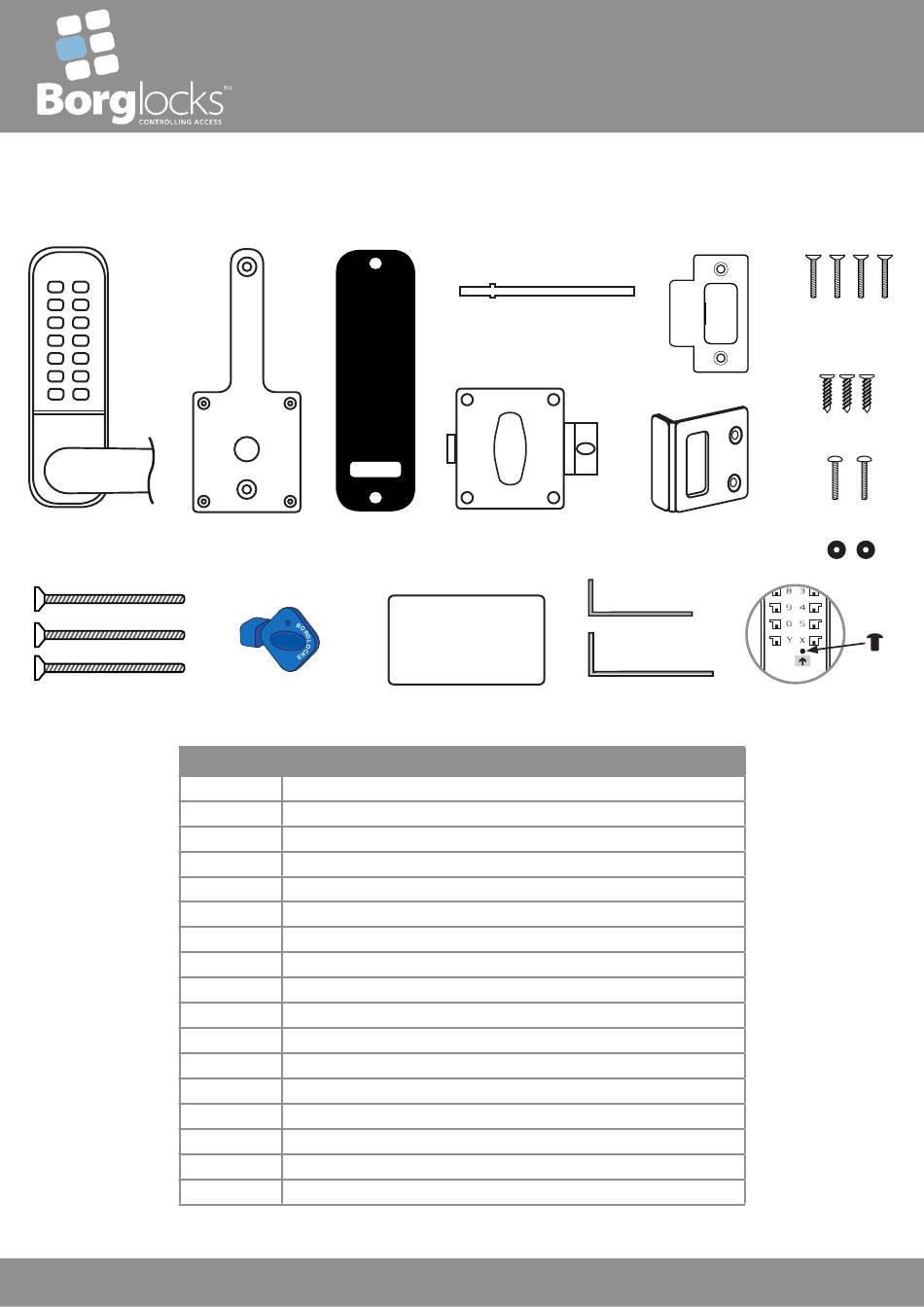

Parts List & Contents
